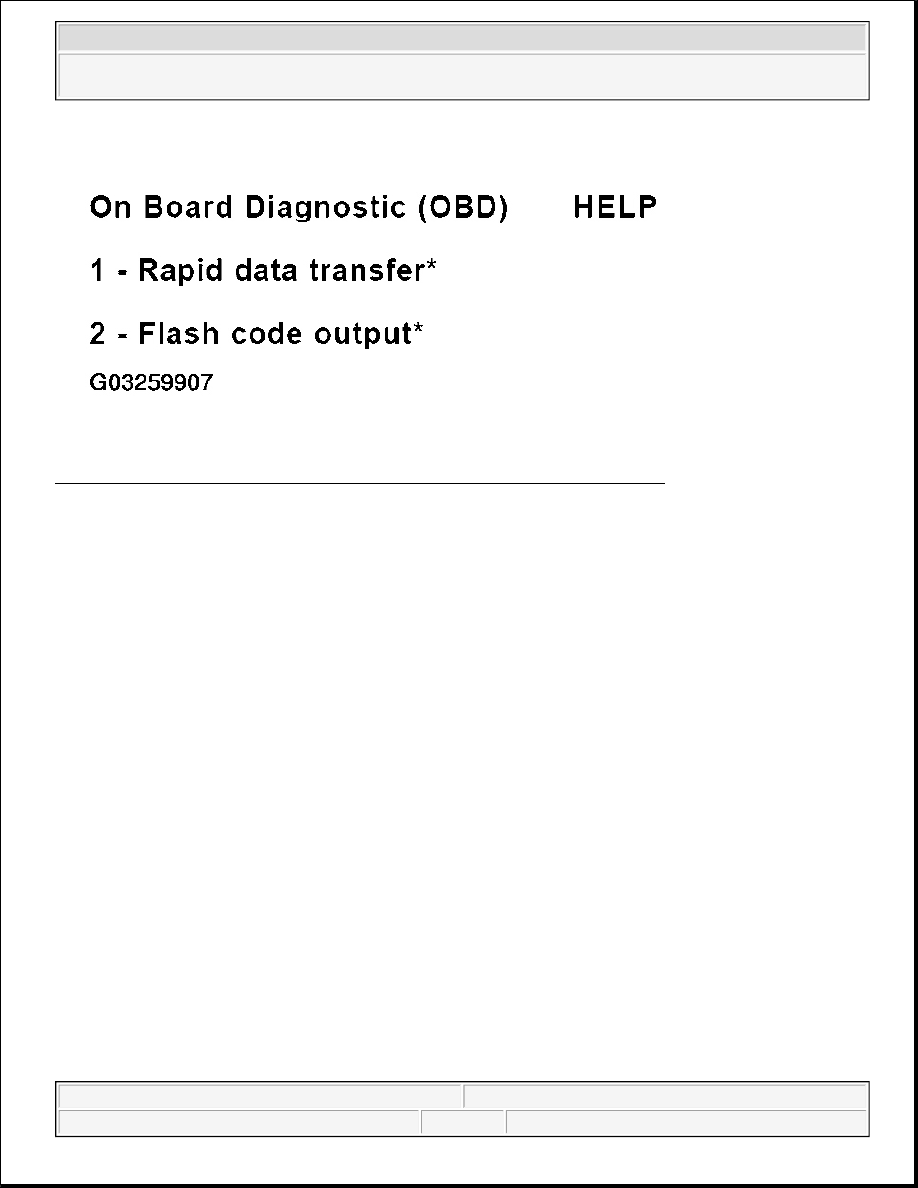

Fig. 8: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (1 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch on ignition.

z

Switch on printer with the Print button (indicator lamp in button lights up).

z

Press button 1 for "Rapid data transfer" mode.

Indicated on display:

z

Press buttons -1- and -7- to select instrument cluster address word 17.

NOTE:

z

If display remains blank, check Scan Tool (ST) voltage supply according to
wiring diagram.

See SYSTEM WIRING DIAGRAMS.

z

Additional operating instructions can be called up by pressing HELP
button.

z

The --> button is used to advance through program sequence.

z

In operating mode 1 "Rapid data transfer," function 00 "Automatic test
sequence" can be carried out. The DTC memory of all control modules
with OBD capability are checked automatically.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

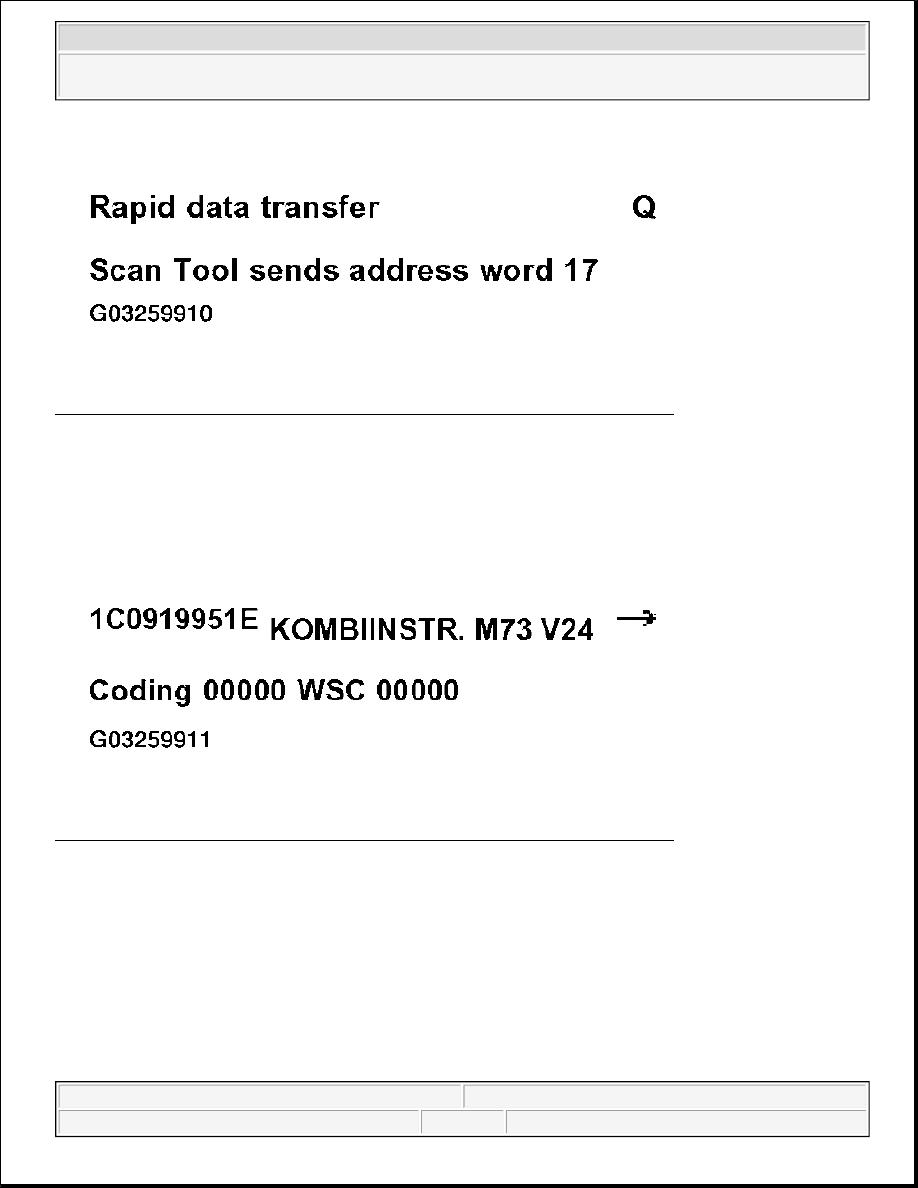

Fig. 9: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (2 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

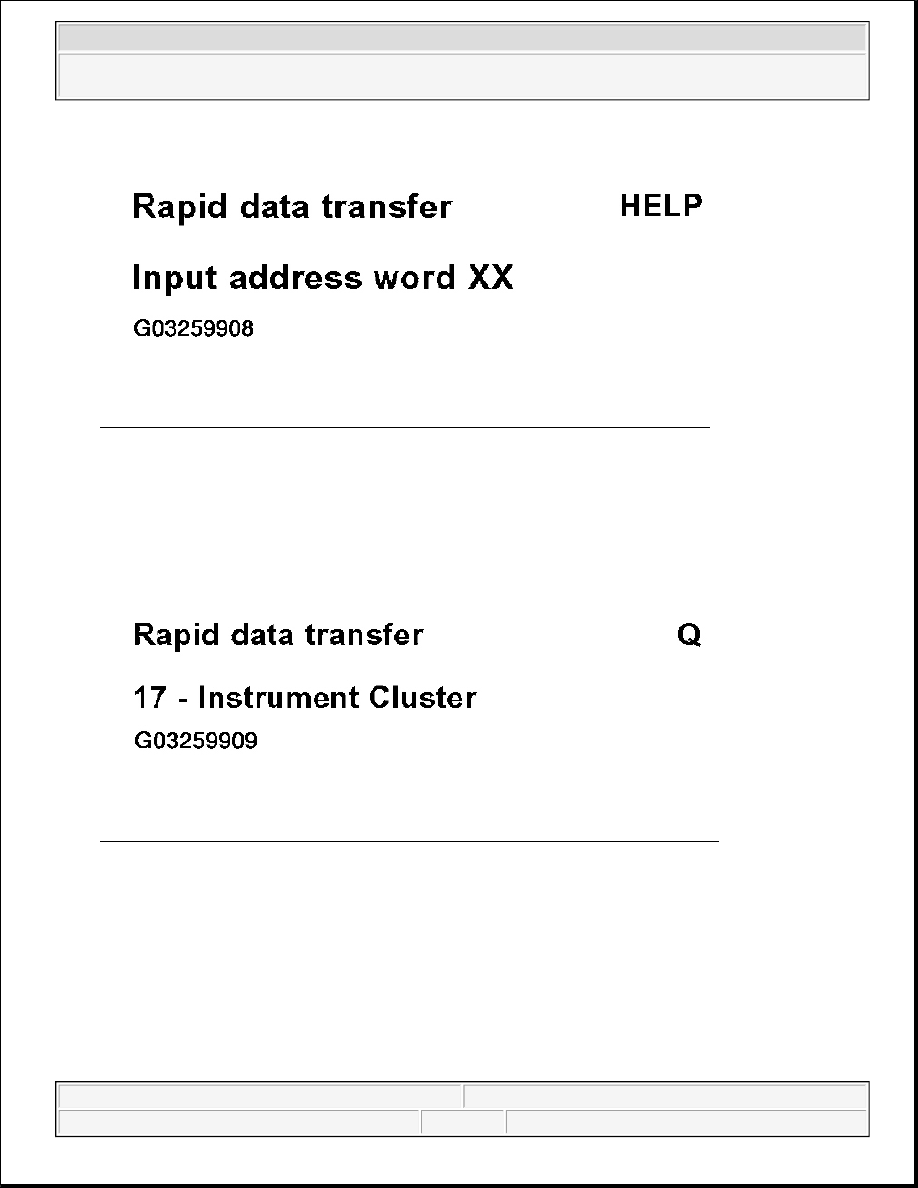

Fig. 10: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (3 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 11: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (4 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Control module version, checking

Indicated on display (example only): Readout, top line

Fig. 12: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (5 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

C0 919 951 E: Part No. of control module

z

KOMBIINSTR: Component designation

z

M73: Manufacturer's code (example: Magneti Marelli)

z

V24: Software version installed in instrument cluster

Readout, bottom line

z

Coding 00000 (Depends on engine, transmission and brake system.): Coding of instrument cluster



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



z

WSC 00000 (Will be automatically stored in the control module when entering the system.): Dealership
number

z

Press --> button.

Indicated on display

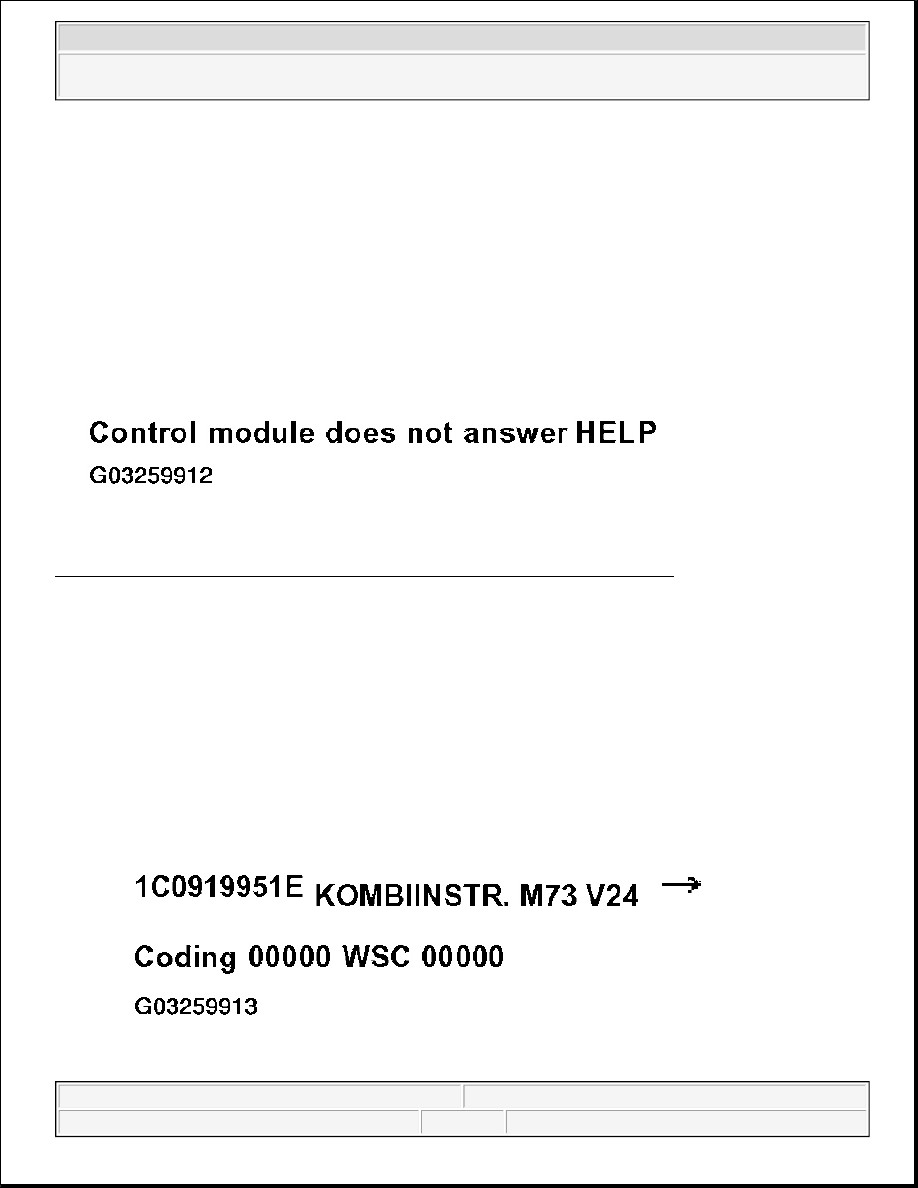

Fig. 13: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (6 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

By pressing the HELP button, a list of possible malfunction causes is printed out.

z

After repairing malfunctions, re-enter address word 17 for instrument cluster and confirm with -Q-
button.

Indicated on display (example only)

z

Press --> button.

CAUTION: Part numbers are for reference only. Always check with your Parts

Department for the latest parts information.
