Volkswagen New Beetle. Manual - part 320





Fig. 174: Scan Tool Display - Central Locking Control Unit Function 02 (7 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch off ignition.

z

Disconnect connection to scan tool V.A.G 1551.

DTC MEMORY, ERASING (FUNCTION 05)

z

Connecting scan tool, see SCAN TOOL, CONNECTING . Initiating On Board Diagnosis (OBD), see
ON BOARD DIAGNOSIS (OBD) FOR THE CENTRAL LOCKING SYSTEM, INITIATING .

Requirements:

z

Malfunction is corrected

z

Functional check has been carried out

z

DTC memory interrogated again

DTC memory, erasing

Indicated on display:

NOTE:

The vehicle system tester V.A.G 1552 can be used instead of the scan tool
V.A.G 1551; however a print-out is not possible.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



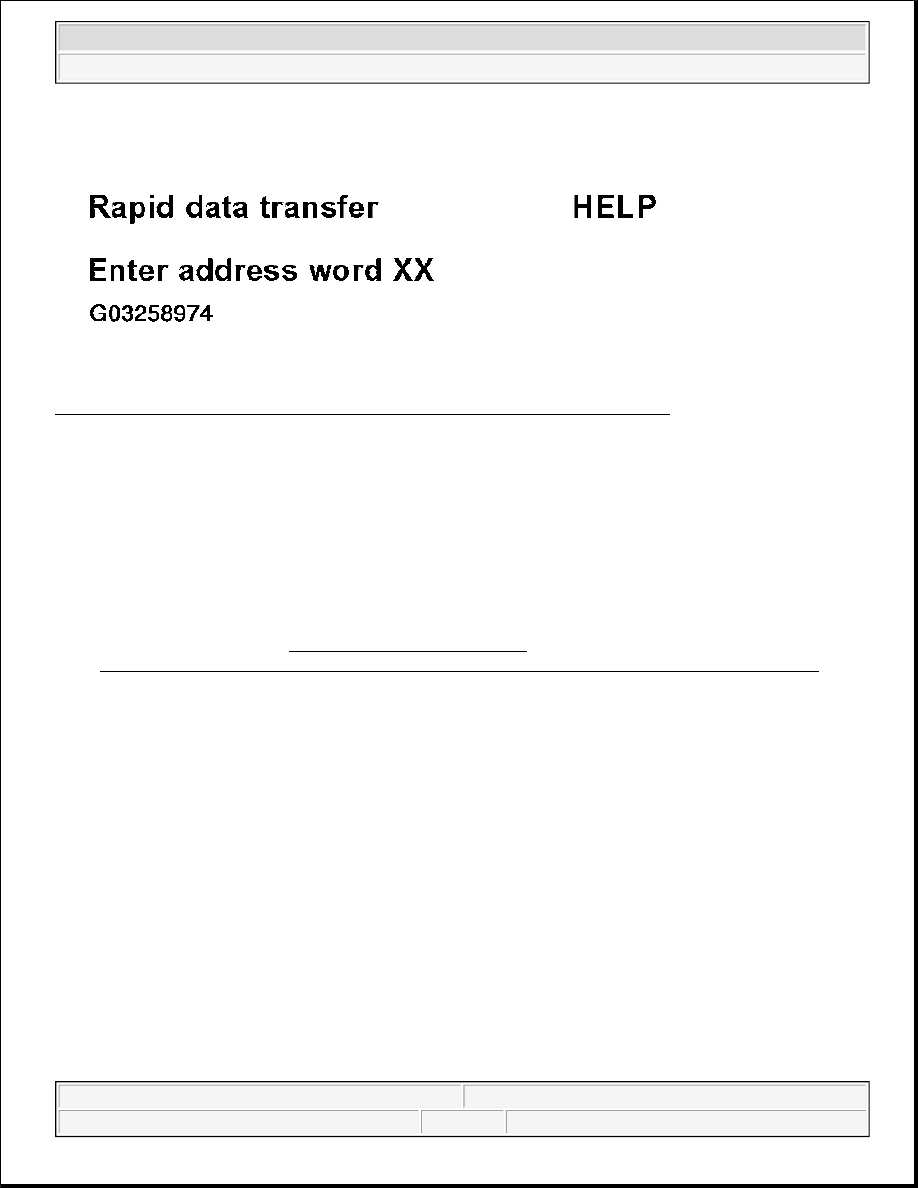

Fig. 175: Scan Tool Display - Central Locking Control Unit Function 05 (1 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -5- (the function "Erase DTC memory" is entered with 05).

Indicated on display:

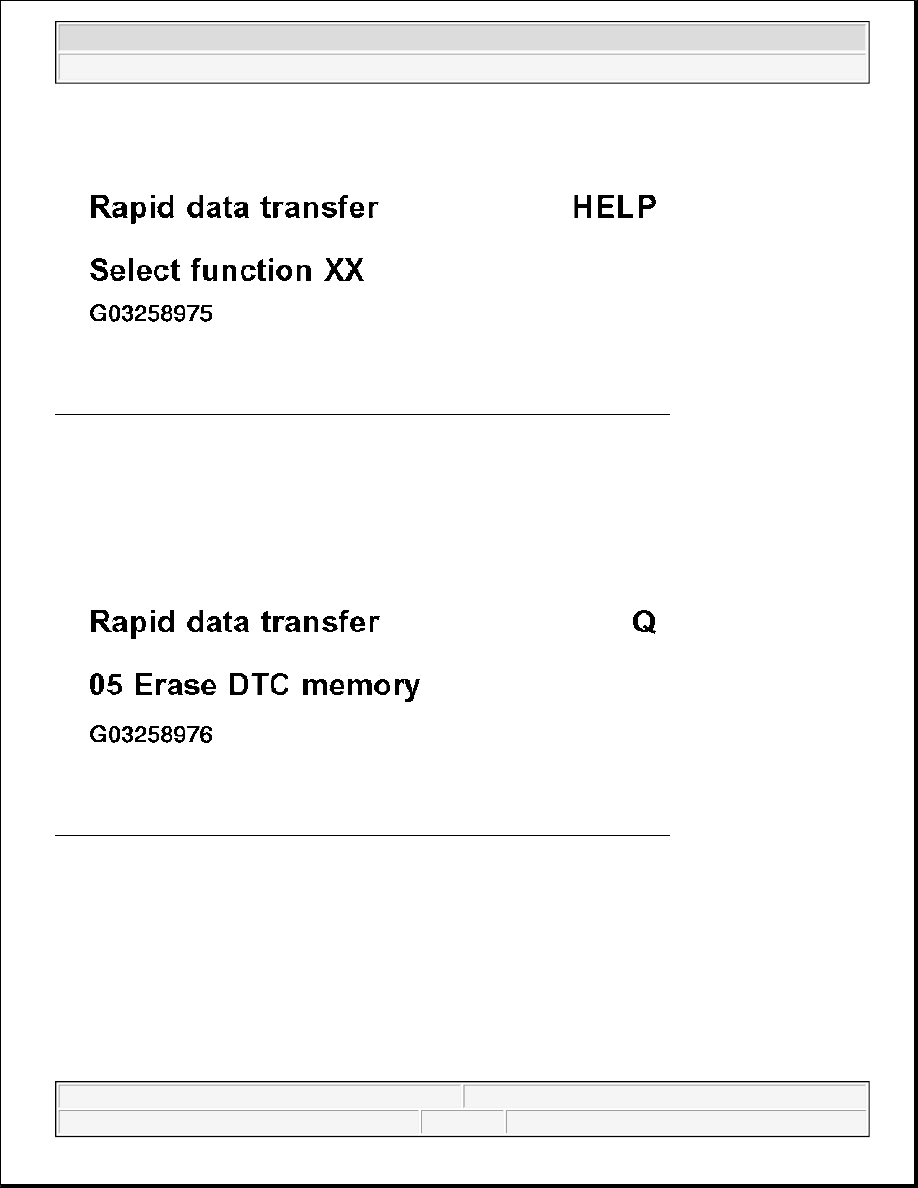

Fig. 176: Scan Tool Display - Central Locking Control Unit Function 05 (2 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

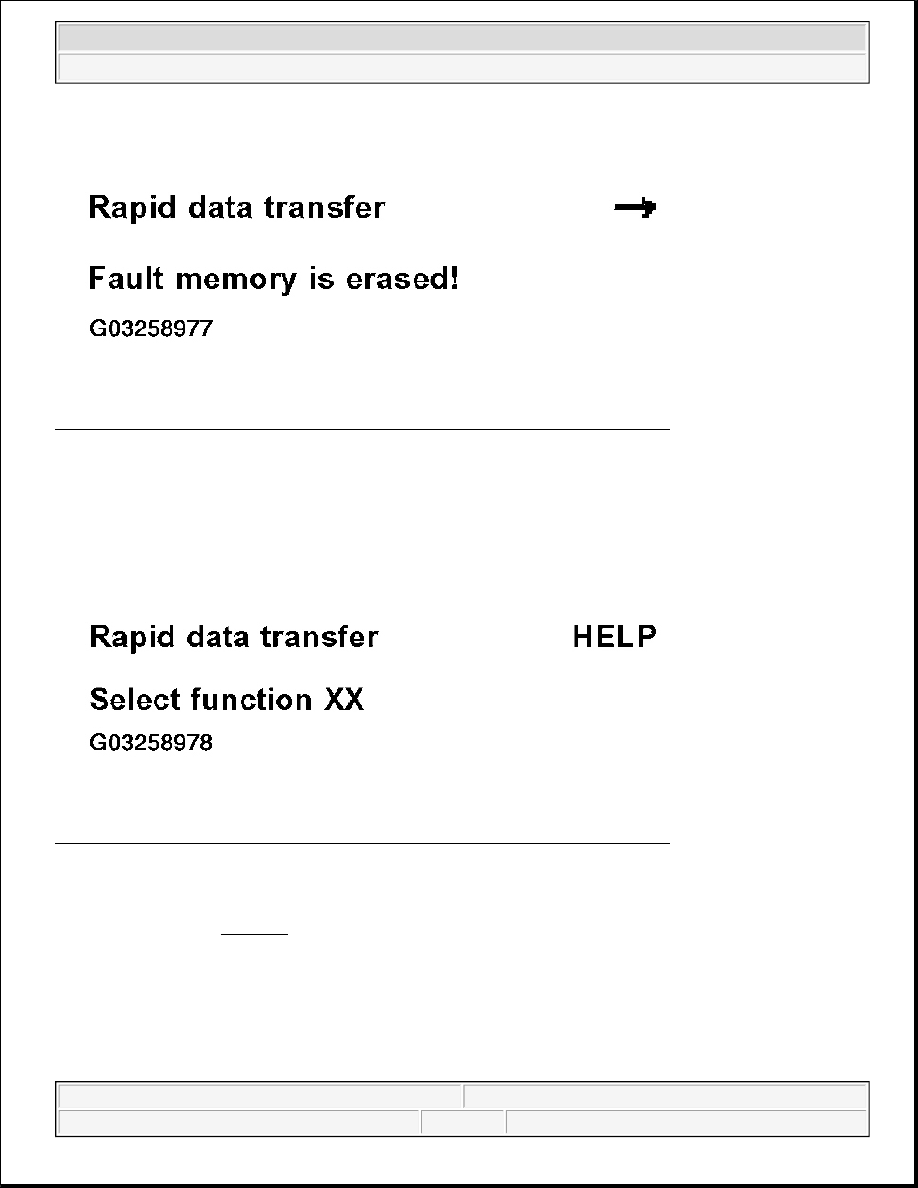

Fig. 177: Scan Tool Display - Central Locking Control Unit Function 05 (3 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Indicated on display:

Fig. 178: Scan Tool Display - Central Locking Control Unit Function 05 (4 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

z

If this appears in the display, the test sequence has malfunctioned. See
Fig. 179 .

z

Adhere exactly to test sequence: first of all check DTC memory, then erase
memory.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

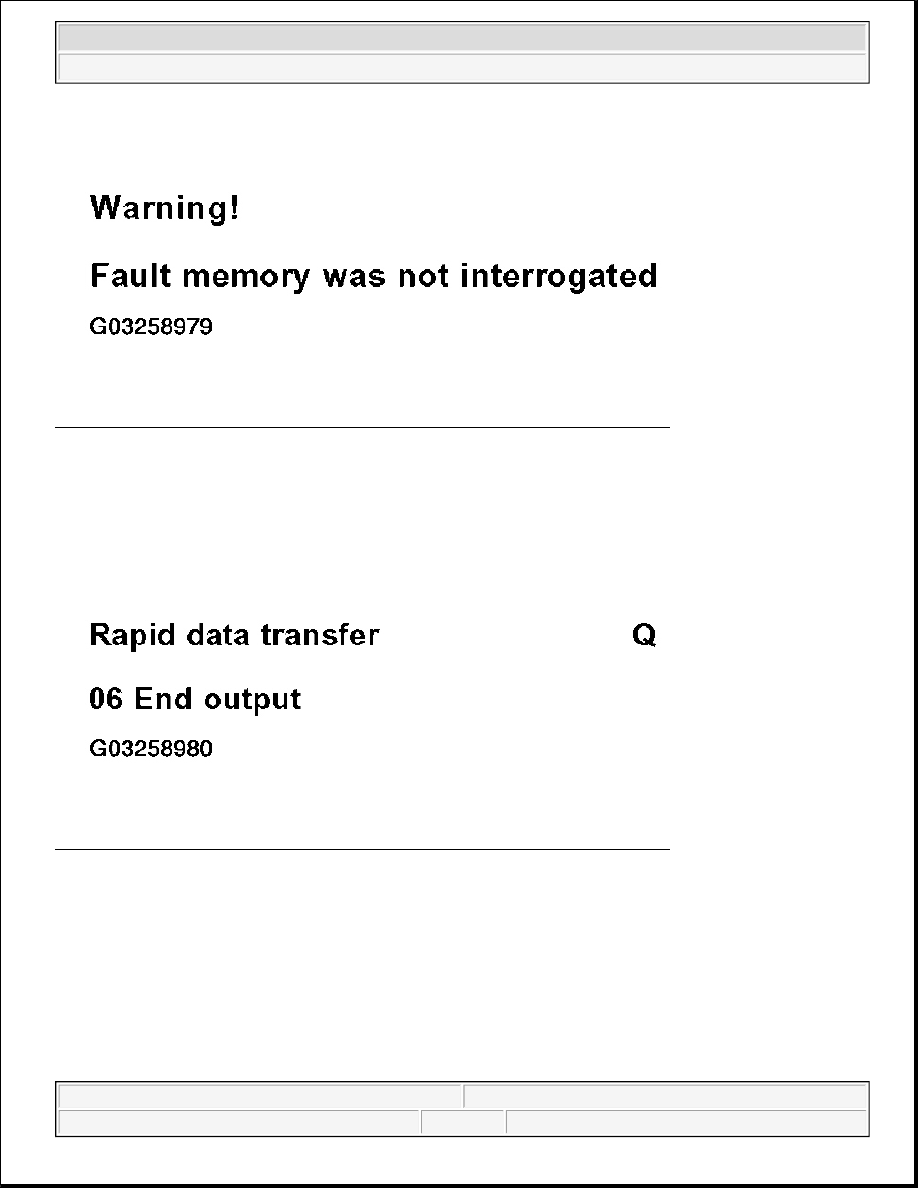

Fig. 179: Scan Tool Display - Central Locking Control Unit Function 05 (5 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -6- to end the output.

Indicated on display:

Fig. 180: Scan Tool Display - Central Locking Control Unit Function 05 (6 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:
