Volkswagen New Beetle. Manual - part 321





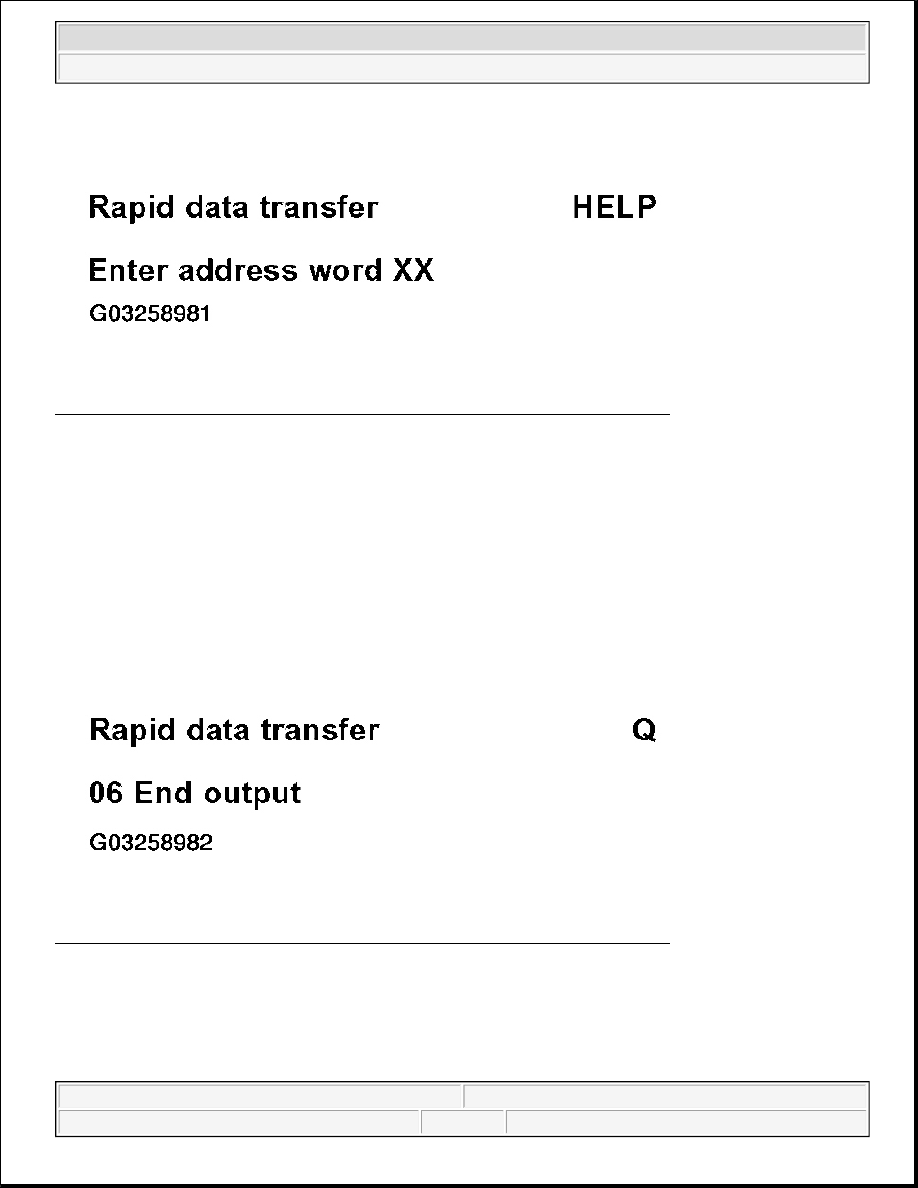

Fig. 181: Scan Tool Display - Central Locking Control Unit Function 05 (7 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch off ignition.

z

Disconnect connection to scan tool V.A.G 1551.

END OUTPUT

z

Press buttons -0- and -6- to end the output.

Indicated on display:

Fig. 182: Scan Tool Display - Central Locking Control Unit Function 06 (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 183: Scan Tool Display - Central Locking Control Unit Function 06 (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch off ignition.

z

Disconnect connection to scan tool V.A.G 1551.

DIAGNOSTIC TROUBLE CODE (DTC) TABLE

DIAGNOSTIC TROUBLE CODE (DTC) - CENTRAL LOCKING (00000, 00668 & 00849)

NOTE:

z

The Diagnostic Trouble Code (DTC) tables are listed according to the 5
digit fault code on the left.

z

Explanation of the malfunction types (e.g. "open circuit/short to ground
(GND)"):

See Scan tool operating instructions

z

Before replacing components indicated as being faulty, check the wiring
and connectors to these components as well as the ground (GND)
connections using Electrical Wiring Diagram. This is particularly relevant
if malfunctions are output as "occurring sporadically" (SP).

z

The DTCs displayed can be located using the test table.

V.A.G 1551 print-out

Possible cause

Corrective action

00000
No fault recognized

If "No fault recognized" appears after performing repairs, the On Board
Diagnosis (OBD) is terminated.

00668
Vehicle voltage
terminal 30 Signal too
small

z

Battery discharged

z

Wiring or

connections faulty

z

Battery charging

z

Check wiring and connections referring to

Electrical Wiring Diagram

00849
S-on ignition/starter

z

Terminal 15 OK,

but S-terminal

z

Read measured value block; Display group

number 006, see BREAK DOWN OF



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



DIAGNOSTIC TROUBLE CODE (DTC) - CENTRAL LOCKING (00928)

DIAGNOSTIC TROUBLE CODE (DTC) - CENTRAL LOCKING (00929)

switch -D- undefined
switching status

faulty

z

Wiring or

connections faulty

z

Ignition/starter lock

faulty

DISPLAY CONTENT FOR DISPLAY
GROUP NUMBER 006
 , display zone 1

z

Check wiring and connections referring to

Electrical Wiring Diagram

z

Replace ignition/starter lock

V.A.G 1551 print-out

Possible cause

Corrective action

00928
Drivers side central
locking lock unit -F220-
Implausible signal
Incorrect activation

z

Wiring or connections faulty

z

No voltage supply for

central locking on driver's

door

z

Lock unit mechanics and

operating components are

stiff/partially seized

z

Drivers side central locking

lock unit -F220- faulty

z

Incorrect lock unit installed

(1)



z

Check wiring and connections

referring to Electrical Wiring

Diagram

z

Check voltage supply for central

locking lock unit in driver's door

(lower left footwell) or at lock unit

z

Check lock unit mechanical

components and operating

components and make serviceable

z

Replace drivers side central locking

lock unit -F220-

z

Replace lock unit

(1)

If a Rest of World lock is installed in a USA vehicle, there is a safe feedback via an additional switch
(safe switch).

V.A.G 1551 print-out

Possible cause

Corrective action

00929
Front passengers side
central locking lock unit -
F221- Implausible signal
Incorrect activation

z

Wiring or connections

faulty

z

No voltage supply for

central locking on front

passengers door

z

Lock unit mechanics and

operating components are

stiff/partially seized

z

Front passengers side

central locking lock unit -

F221- faulty

z

Incorrect lock unit installed

(1)



z

Check wiring and connections

referring to Electrical Wiring

Diagram

z

Check voltage supply for central

locking lock unit in driver's door

(lower right footwell) or at lock

unit

z

Check lock unit mechanical

components and operating

components and make serviceable

z

Replace front passengers side

central locking lock unit -F221-

z

Replace lock unit

(1)

If a Rest of World lock is installed in a USA vehicle, there is a safe feedback via an additional switch
(safe switch).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



DIAGNOSTIC TROUBLE CODE (DTC) - CENTRAL LOCKING (00945 & 00946)

DIAGNOSTIC TROUBLE CODE (DTC) - CENTRAL LOCKING (00947 & 00951)

DIAGNOSTIC TROUBLE CODE (DTC) - CENTRAL LOCKING (00953 & 00954)

V.A.G 1551 print-out

Possible cause

Corrective action

00945
Crash sensor -G190-

(1)



Short to ground (GND)

z

Control module faulty

z

Replace control module

z

Output can be checked in Output

Diagnostic Test Mode (DTM) for

airbag.

00946
Interior light -W- Short
to positive

z

Wiring or connections

faulty

z

Interior light or one of the

reading lights are faulty

z

Check wiring and connections

referring to Electrical Wiring

Diagram

z

Replace interior light or faulty

reading light

(1)

Sensor is internal to control module and cannot be physically checked.

V.A.G 1551 print-out

Possible cause

Corrective action

00947
Tailgate/trunk lid remote control
switch -E188- Short to ground
(GND)

z

Wiring or connections

faulty

z

Tailgate/trunk lid remote

control switch -E188

faulty

z

Check wiring and

connections referring to

Electrical Wiring Diagram

z

Replace tailgate/trunk lid

remote control switch -E188-

00951
Tailgate/trunk lid remote release
motor relay -J398- (only for
USA) Short to positive

z

Wiring or connections

faulty

z

Tailgate/trunk lid remote

release motor relay -J398-

faulty

z

Check wiring and

connections referring to

Electrical Wiring Diagram

z

Replace tailgate/trunk lid

remote release motor relay -

J398-

V.A.G 1551 print-out

Possible cause

Corrective action

00953
Time limit interior light
Undefined switching
status

z

Wiring or connections faulty

z

Interior light, reading lights and

luggage compartment

connections faulty

z

Interior light faulty

z

Check wiring and connections

referring to Electrical Wiring

Diagram

z

Check wiring and connections

referring to Electrical Wiring

Diagram

z

Replace interior light

00954
Starter inhibitor relay -
J433-

(1)

 ,

(2)

 Short to

positive

z

Wiring or connections faulty

z

Starter inhibitor relay -J433-

faulty (USA)

z

Check wiring and connections

referring to Electrical Wiring

Diagram

z

Replace starter inhibitor relay -

J433- (USA)



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
