Volkswagen New Beetle. Manual - part 318

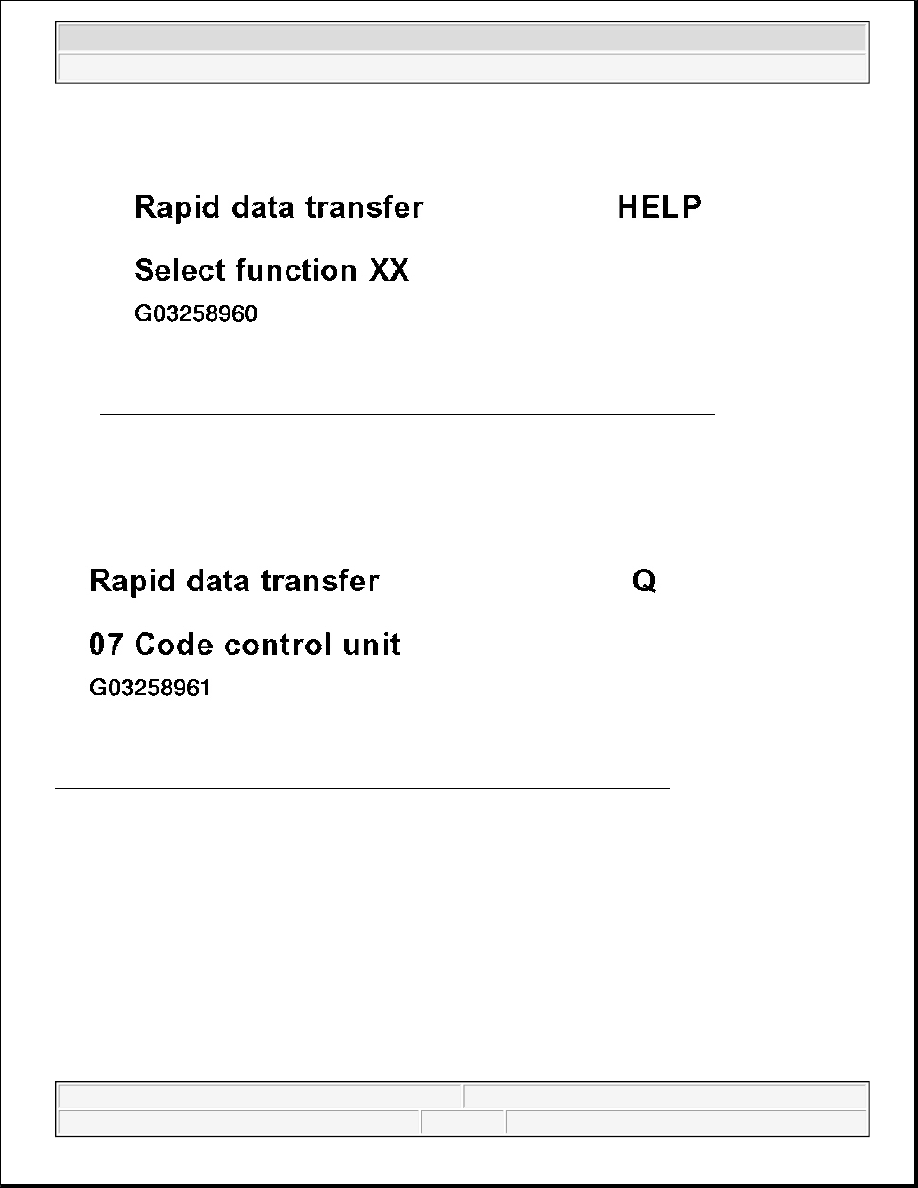

Fig. 160: Scan Tool Display - Central Locking Control Unit Function 07 (1 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

Fig. 161: Scan Tool Display - Central Locking Control Unit Function 07 (2 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 162: Scan Tool Display - Central Locking Control Unit Function 07 (3 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Enter code number according to table: The following code numbers (and others) will be accepted by the
control unit, but these are also used with other vehicles, country variations or vehicle equipment. See
CENTRAL LOCKING CONTROL UNIT CODING .

CENTRAL LOCKING CONTROL UNIT CODING

z

Confirm entry with -Q- button.

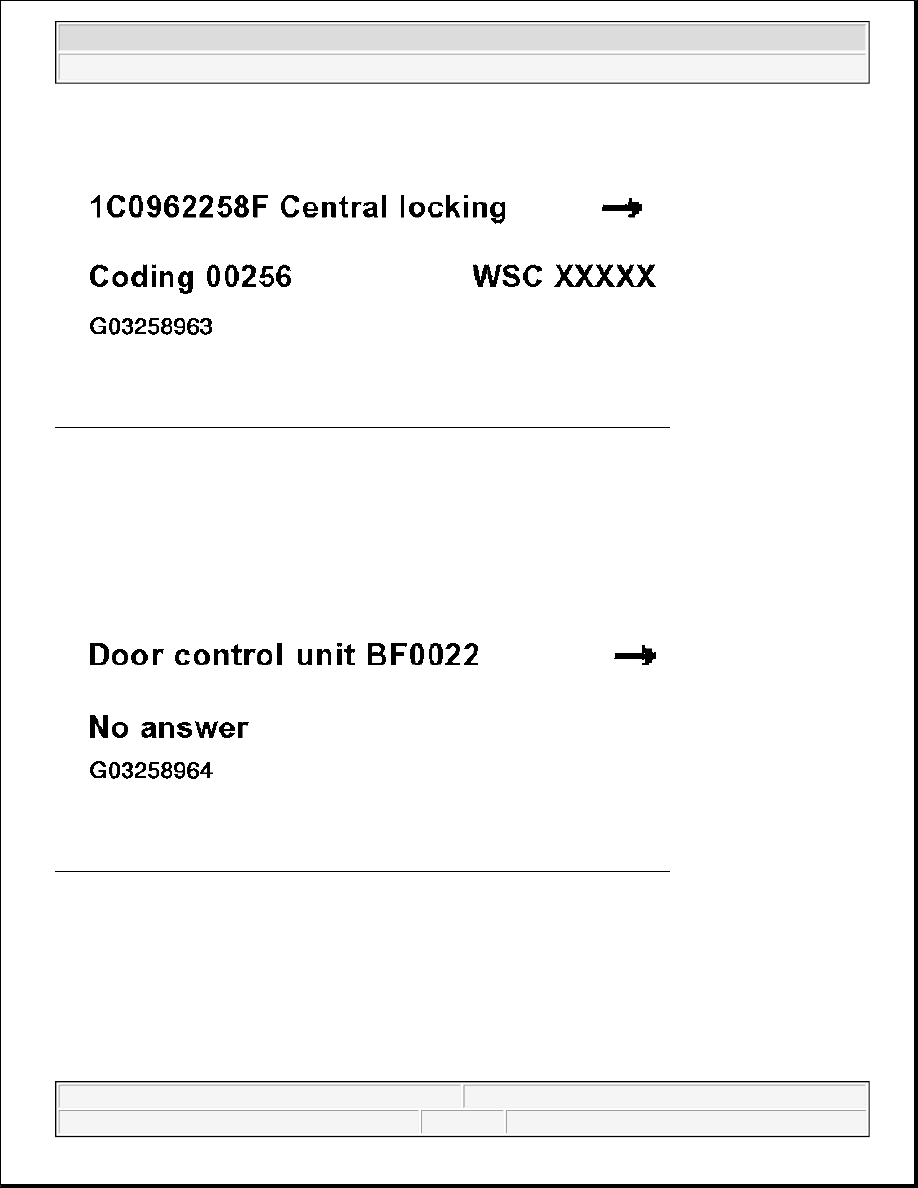

Control unit identification number with relevant letter index, code number and workshop code (dealership
number) will be displayed.

If the contents of the display are as shown then the coding is successful.

Vehicle equipment

Function

Code number

Central locking
2- Window regulator

Single door unlocking

00256

All door opening

00257

Central locking
2- Window regulator and memory

Single door unlocking

00258

All door opening

00259



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 163: Scan Tool Display - Central Locking Control Unit Function 07 (4 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If an incorrect code number has been entered and accepted by the control unit (e.g. 04096), a display will
subsequently follow indicating that no communication has taken place with for example rear door control unit.

Indicated on display:

Fig. 164: Scan Tool Display - Central Locking Control Unit Function 07 (5 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Repeat coding.

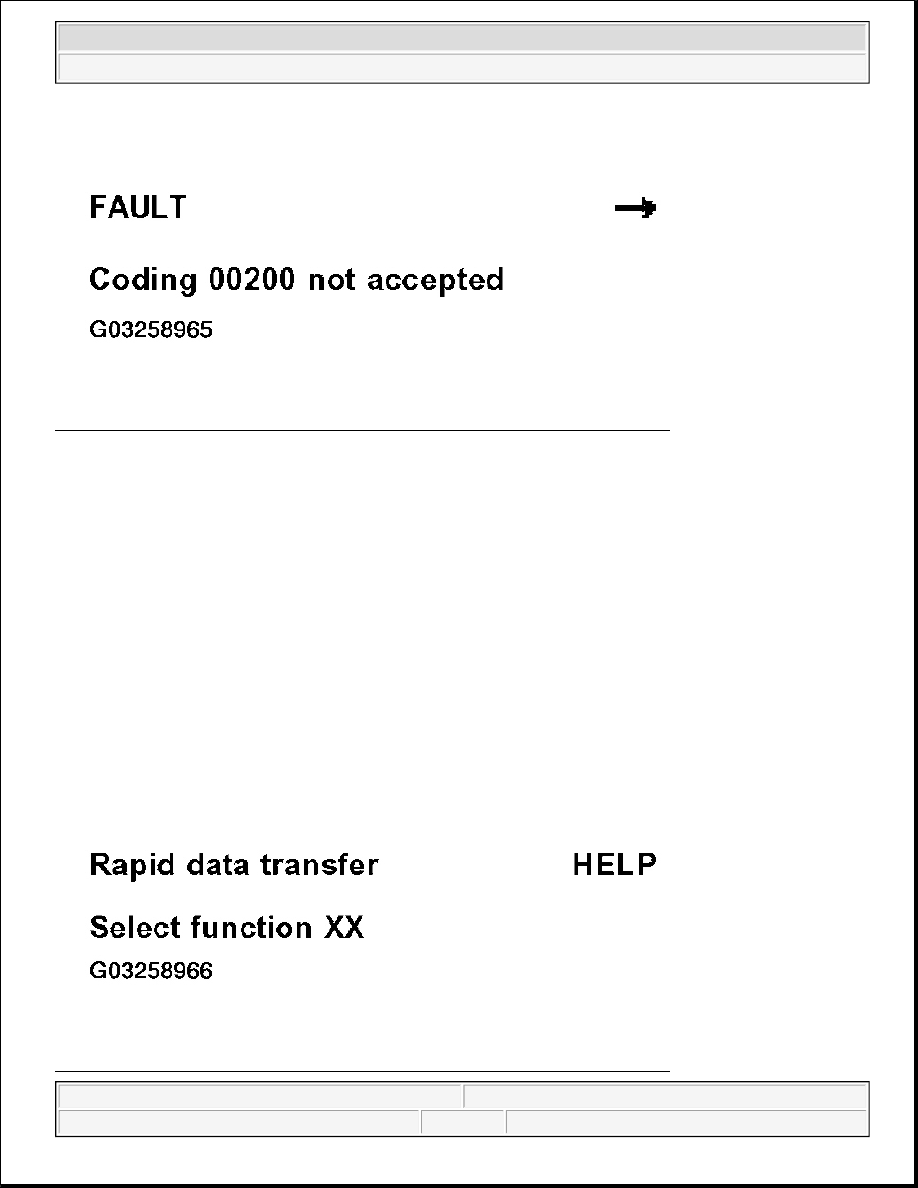

If the code number entered, is not accepted by the control unit, the display will show:

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 165: Scan Tool Display - Central Locking Control Unit Function 07 (6 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

In this case the control unit has not been programmed with the relevant data for the vehicle.

A check must then be completed to see if the correct control unit for the vehicle has been installed (compare
Part No. and letter index), or whether an incorrect code number has been entered.

z

Repeat coding.

If the control unit cannot be coded (correct control unit, correct code number), the control unit is faulty.

Ending function:

z

Press --> button.

Indicated on display:

Fig. 166: Scan Tool Display - Central Locking Control Unit Function 07 (7 Of 8)



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
