Volkswagen New Beetle. Manual - part 317





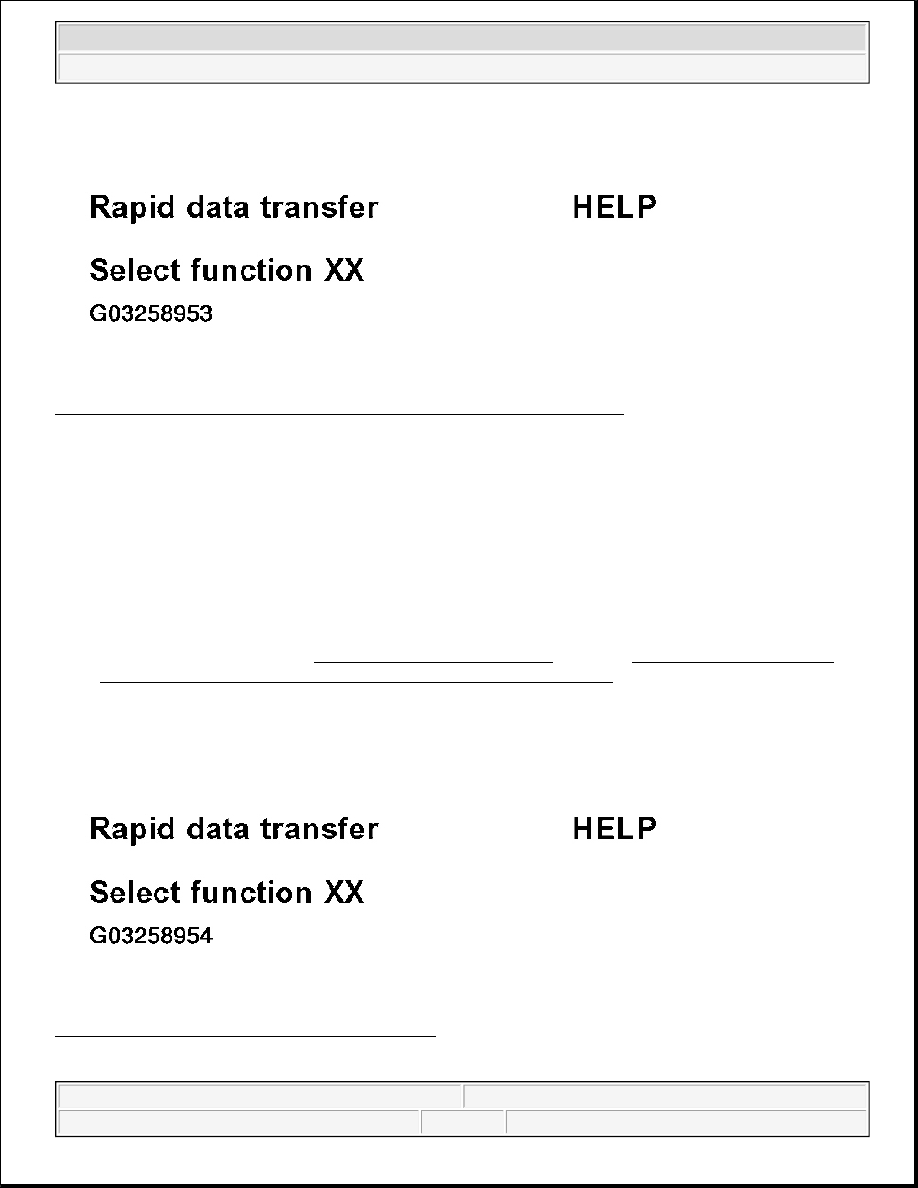

Fig. 153: Scan Tool Display - OBD For Central Locking System (14 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

CONTROL UNIT VERSION, CHECKING (FUNCTION 01)

z

For connecting scan tool, see SCAN TOOL, CONNECTING . Also see ON BOARD DIAGNOSIS
(OBD) FOR THE CENTRAL LOCKING SYSTEM, INITIATING
 .

Indicated on display:

Fig. 154: Scan Tool Display - Function 01 (1 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

z

A list of possible functions is printed out after pressing the HELP key.

z

Do not select further functions, which can be printed out after pressing the
HELP button.

z

After the functions have been completed the V.A.G 1551 returns to the
mentioned start position.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



z

Press buttons -0- and -1-.

Indicated on display:

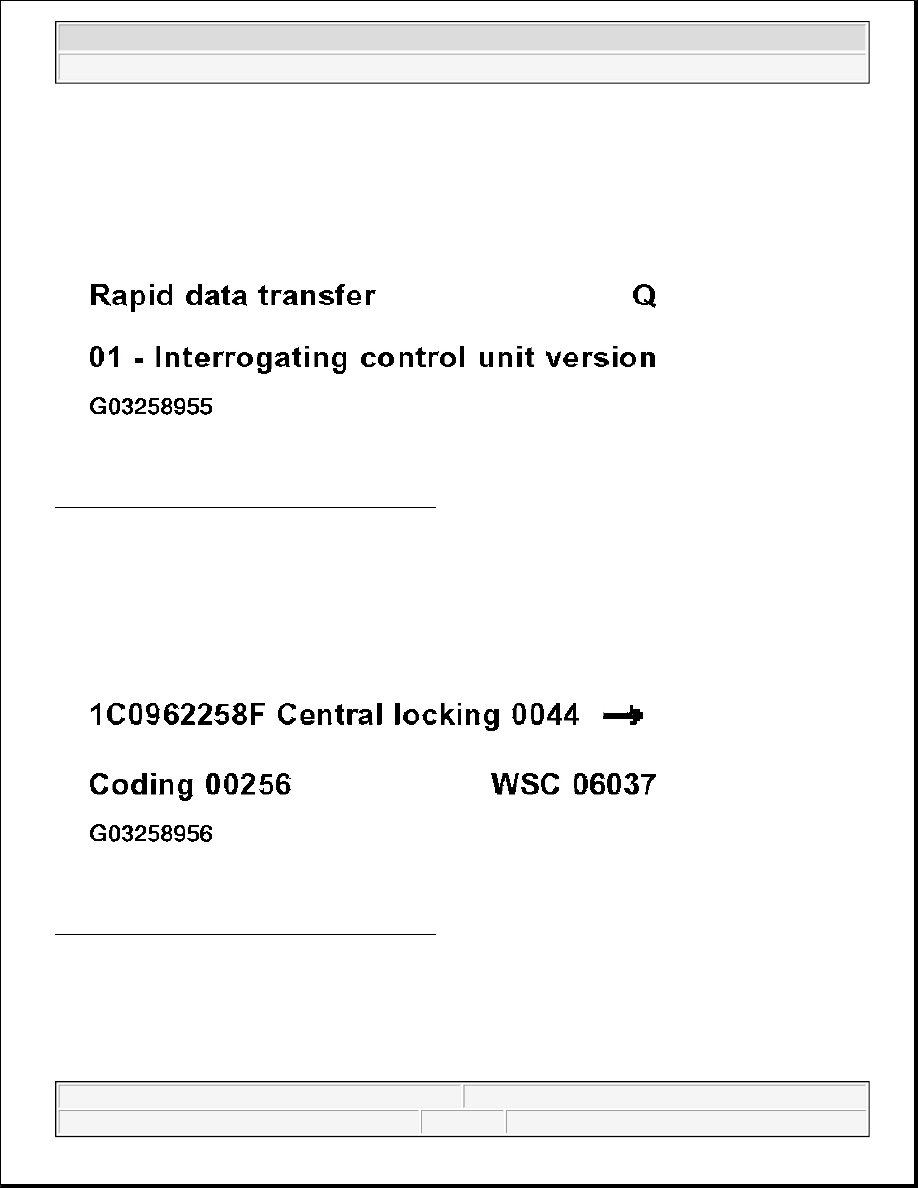

Fig. 155: Scan Tool Display - Function 01 (2 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

The scan tool V.A.G 1551 display will show the control unit identification, for example:

Fig. 156: Scan Tool Display - Function 01 (3 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Breakdown of the display:

z

1C0962258F = Part No. of the control unit (for latest control unit version see parts catalog)

z

Central locking = System designation



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



z

0044 = Software version

z

Coding 00256 = Coding variants

z

WSC = Workshop code (Will be automatically stored in the control unit when entering the system.)

z

Press --> button.

Indicated on display:

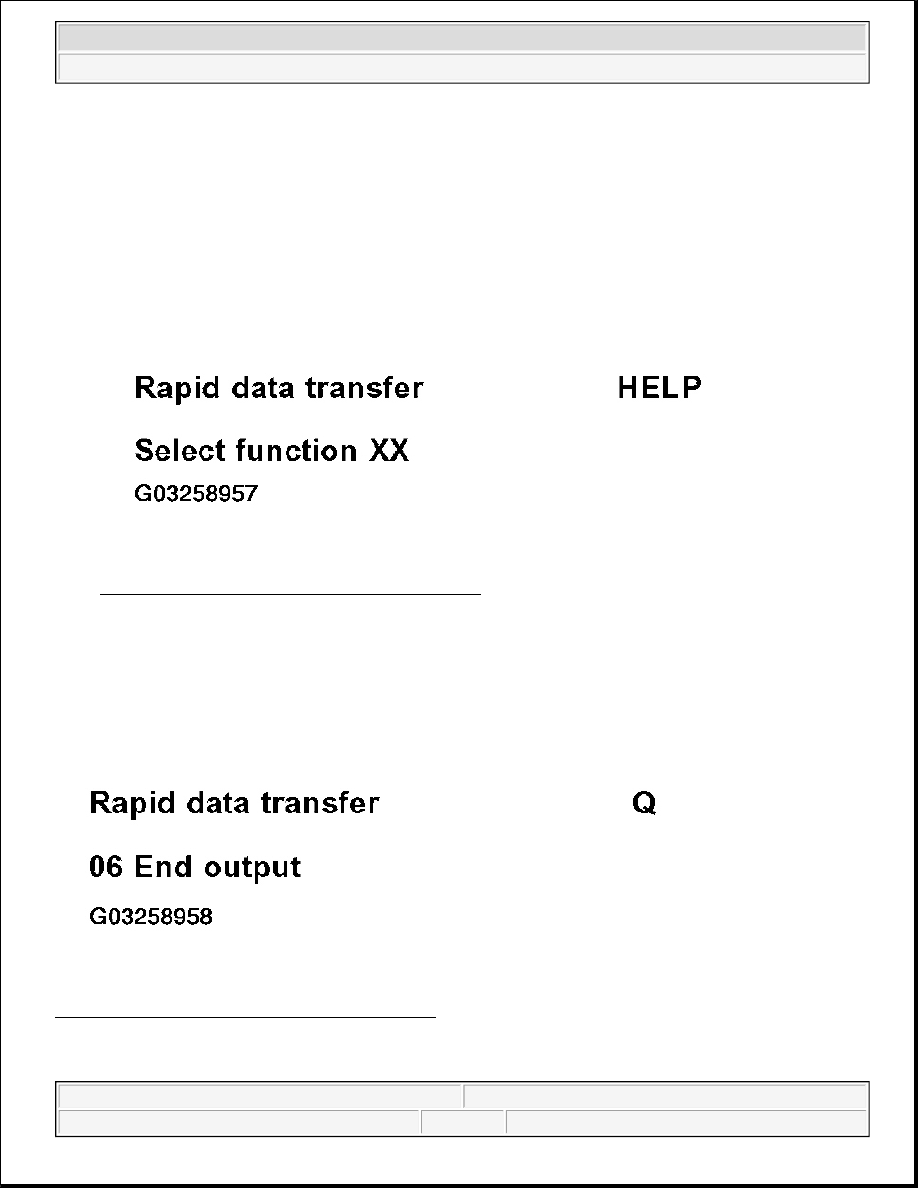

Fig. 157: Scan Tool Display - Function 01 (4 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -6- to end the output.

Indicated on display:

Fig. 158: Scan Tool Display - Function 01 (5 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Indicated on display:

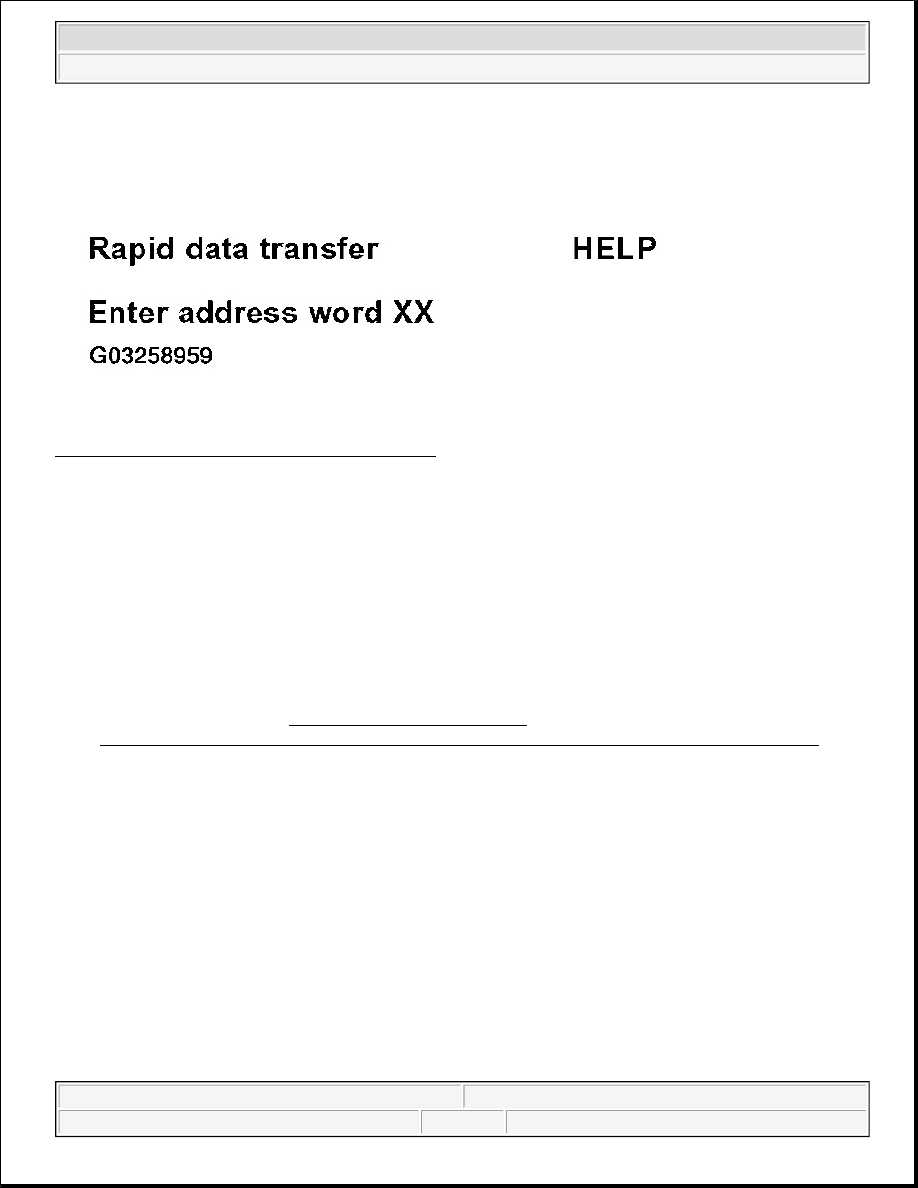

Fig. 159: Scan Tool Display - Function 01 (6 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch off ignition.

z

Disconnect connection to scan tool V.A.G 1551.

CENTRAL LOCKING CONTROL UNIT USING SCAN TOOL V.A.G 1551, CODING (FUNCTION 07)

z

Connecting scan tool, see SCAN TOOL, CONNECTING . Initiating On Board Diagnosis (OBD), see
ON BOARD DIAGNOSIS (OBD) FOR THE CENTRAL LOCKING SYSTEM, INITIATING .

Indicated on display:

z

Press buttons -0- and -7- (with 07 the function "Code control unit" is selected).

NOTE:

z

When supplied the control unit is pre-coded according to the vehicle
equipment.

z

Coding is performed using scan tool V.A.G 1551.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
