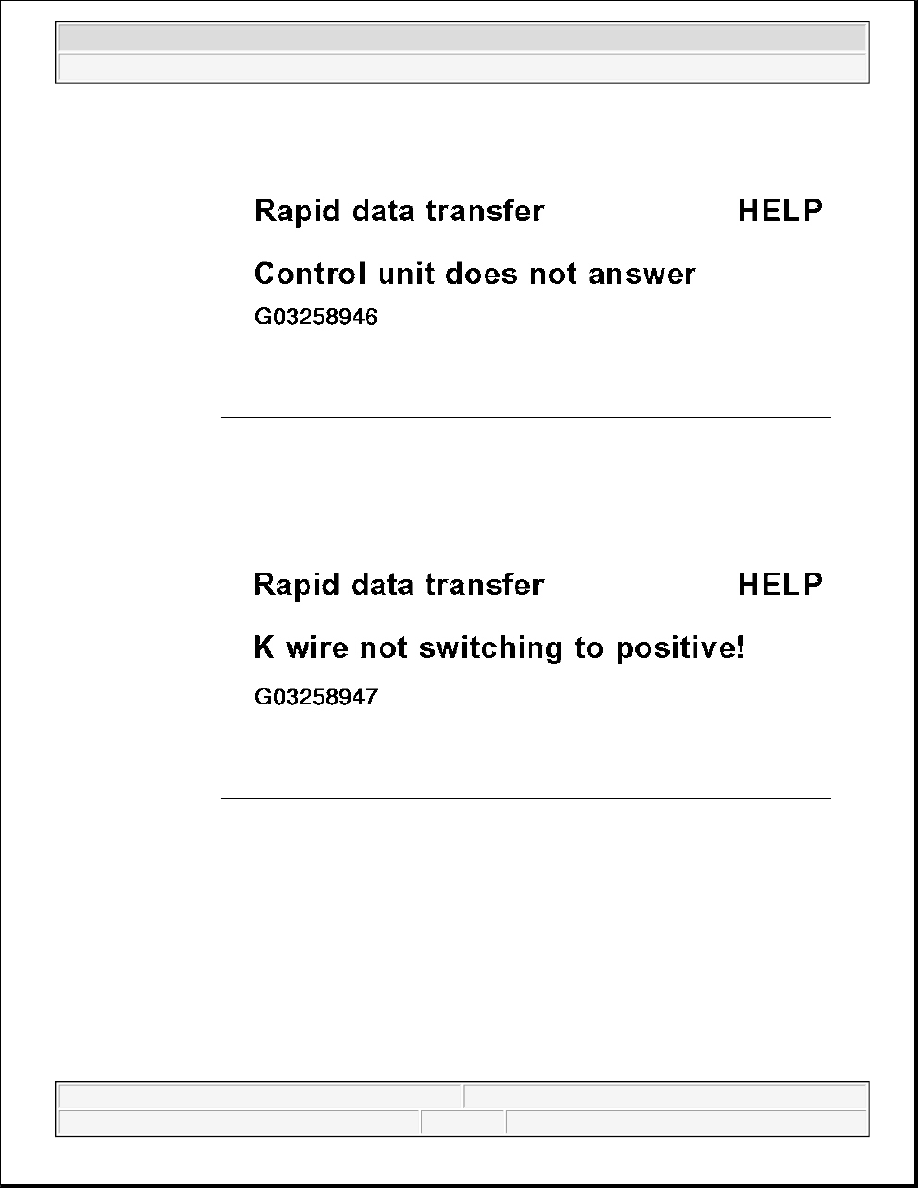

Fig. 146: Scan Tool Display - OBD For Central Locking System (7 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

When doing this the ignition must be switched on.

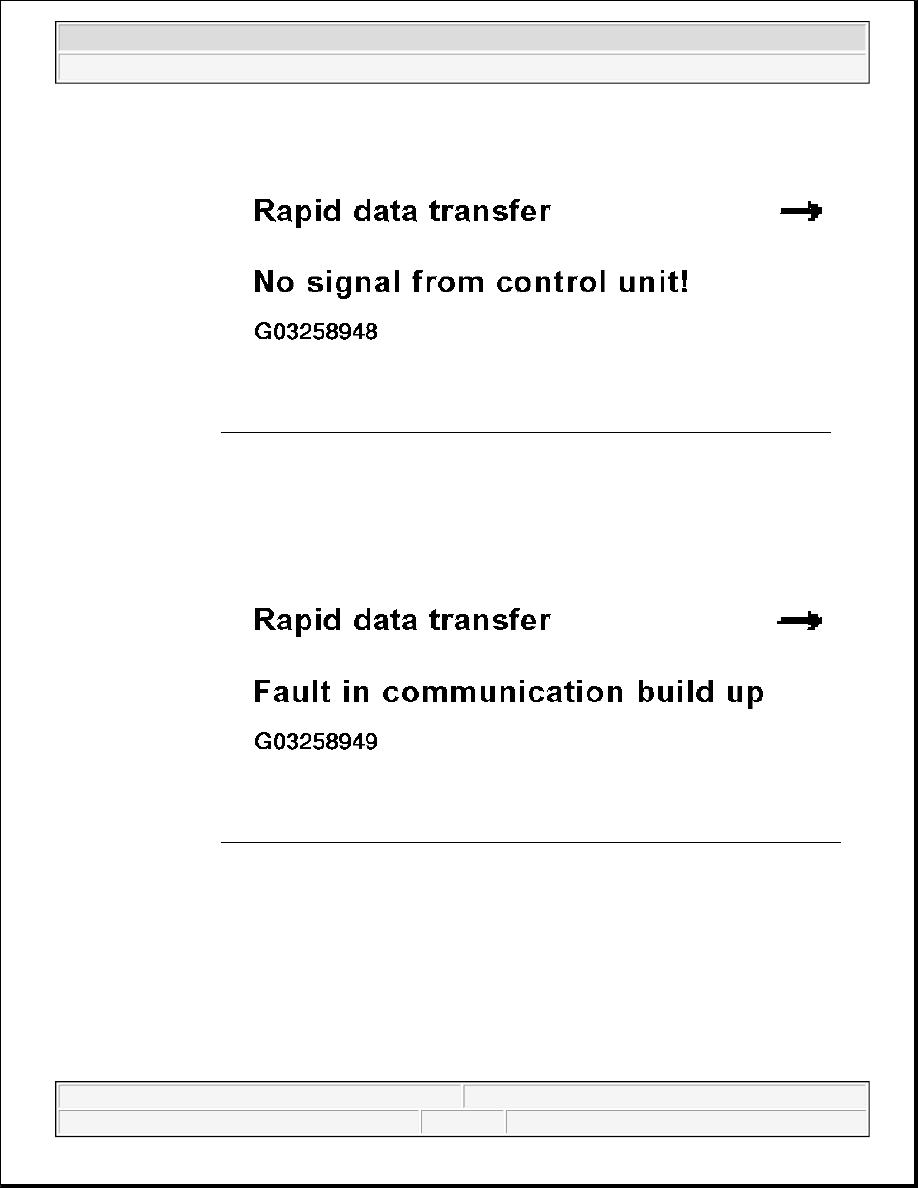

Fig. 147: Scan Tool Display - OBD For Central Locking System (8 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Malfunctions have occurred at the start of or during the program (external
interference?).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Indicated on display after entering the address word 35:

Fig. 148: Scan Tool Display - OBD For Central Locking System (9 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check diagnosis wires as well as voltage supply and ground (GND)
connection.

Fig. 149: Scan Tool Display - OBD For Central Locking System (10 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

{

After correcting the possible causes of the fault, once again enter the
address word 35 for "Central locking" and confirm with the -Q-
button.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

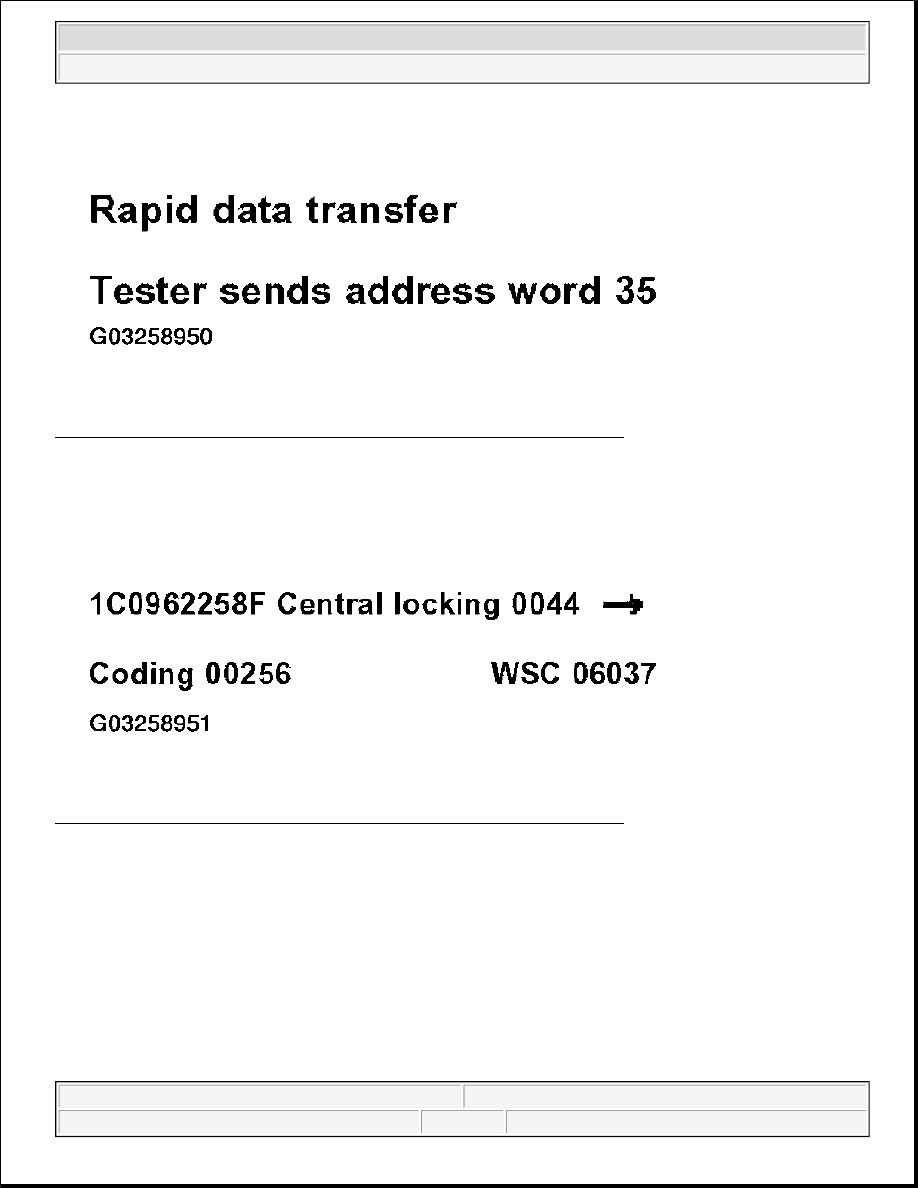

Fig. 150: Scan Tool Display - OBD For Central Locking System (11 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The scan tool V.A.G 1551 display will show the control unit identification, for example:

Fig. 151: Scan Tool Display - OBD For Central Locking System (12 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 152: Scan Tool Display - OBD For Central Locking System (13 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

List of selectable functions

LIST OF SELECTABLE FUNCTIONS

Indicated on display:

Function

See

01 - Checking control unit
version

CONTROL UNIT VERSION, CHECKING (FUNCTION 01)

02 - Check DTC memory

DTC MEMORY, CHECKING (FUNCTION 02)

03 - Output Diagnosis Test
Mode (DTM)

OUTPUT DIAGNOSTIC TEST MODE (DTM)

05 - Erasing DTC memory

DTC MEMORY, ERASING (FUNCTION 05)

06 - Ending output

END OUTPUT

07 - Code control unit

CENTRAL LOCKING CONTROL UNIT USING SCAN TOOL

V.A.G 1551, CODING (FUNCTION 07)

08 - Read measured value
block

MEASURED VALUE (DATA) BLOCK, READING

10 - Adaptation

RADIO FREQUENCY REMOTE CONTROL, PROGRAMMING

IGNITION KEYS (ADAPTATION)
