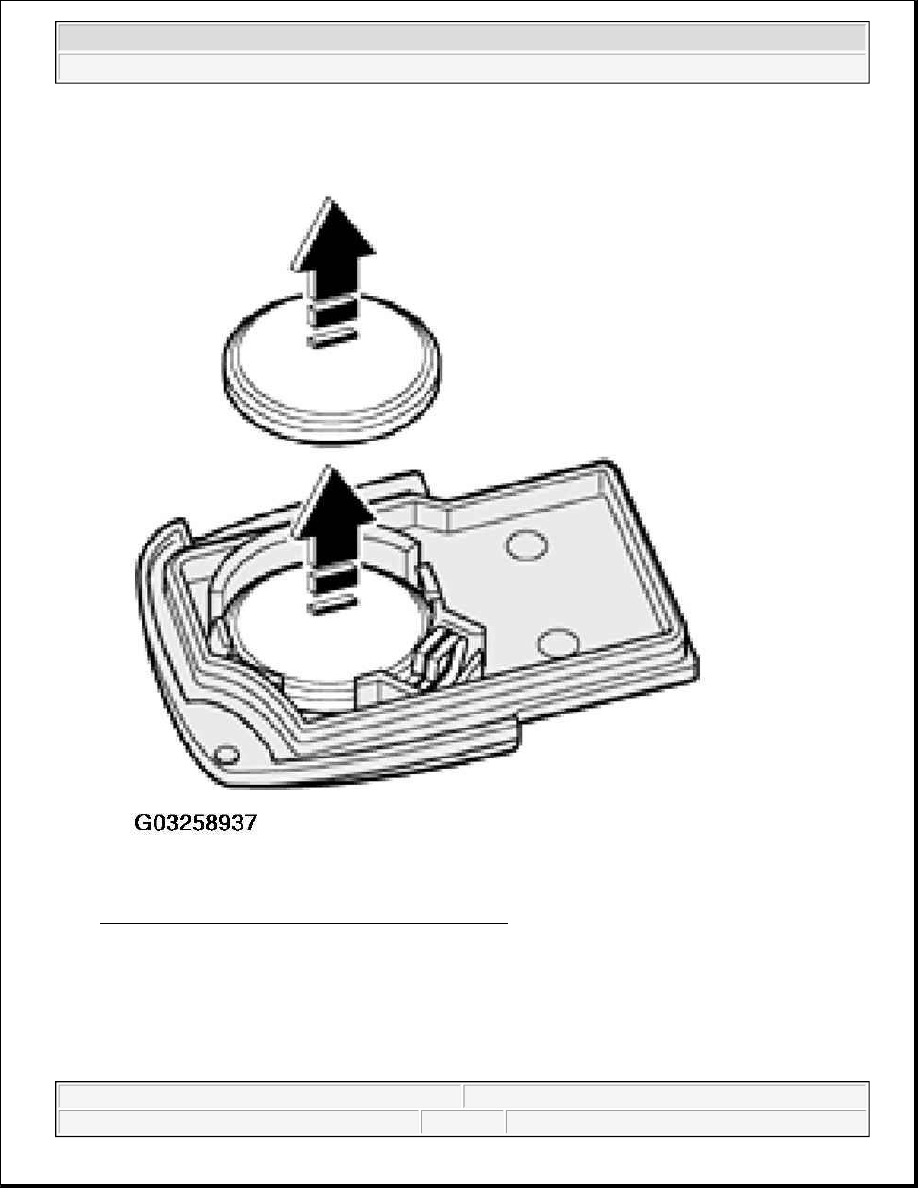

Fig. 137: Removing Batteries From Transmitter Unit
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

Note the polarity and correct position when installing the batteries.

z

Place the battery with the positive terminal downward into the sender unit (positive terminal is marked on



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



housing).

z

Engage battery in transmitter body by pressing down lightly.

z

Install cover on transmitter body (do not damage seal).

z

Then engage the transmitter unit with the main key.

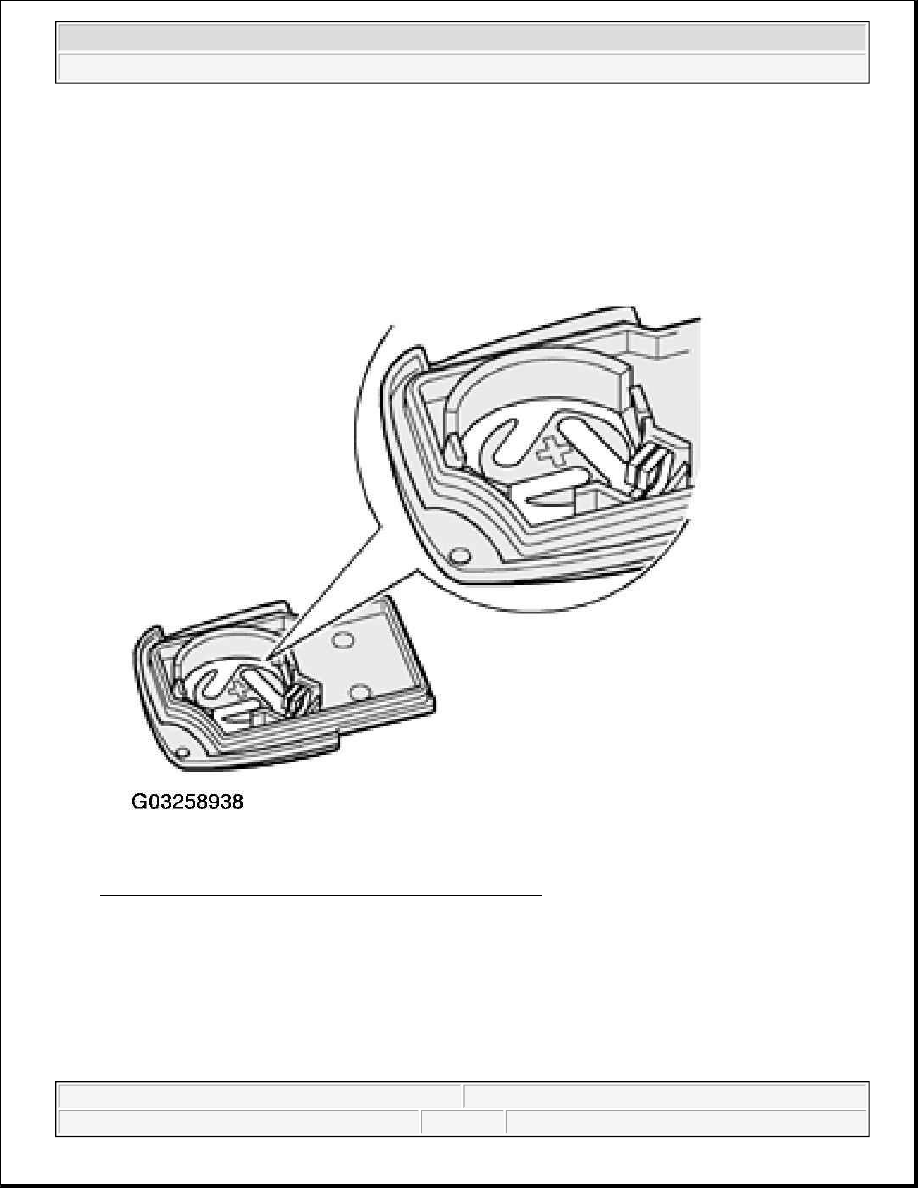

Fig. 138: Locating Positive Terminal Of Transmitter Unit
Courtesy of VOLKSWAGEN OF AMERICA, INC.

CENTRAL LOCKING, ON BOARD DIAGNOSIS (OBD)

FUNCTIONAL DESCRIPTION

The vehicle has as far as the On Board Diagnostic (OBD) is concerned has a central locking system (not
convenience system) when the vehicle is not equipped with electric windows with door control units.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



The central locking system works using the electric motor principle.

The locking units (door locks) located in the doors are equipped with electric motors.

After receiving a "lock" command from an external source (door lock, radio wave remote control) the doors are
locked, the anti-theft system is activated. If necessary, the sliding/tilting sunroof is closed. The feedback
message for the relevant control unit is via the contact switch in the lock unit.

The electrical central locking system can operate all the known convenience functions, that is, control of interior
lights, anti-theft alarm with interior monitoring, electric windows and mirrors as well as radio wave remote
control.

If an airbag is triggered this automatically sends a signal to the central locking control unit which unlocks the
doors and switches on the interior lights.

The control unit for the central locking control unit -J393- is located under the instrument panel and is secured
to the steering column by a bracket. It is equipped with a DTC memory. The On Board Diagnosis (OBD)
connection is located beneath the cover under the steering wheel.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

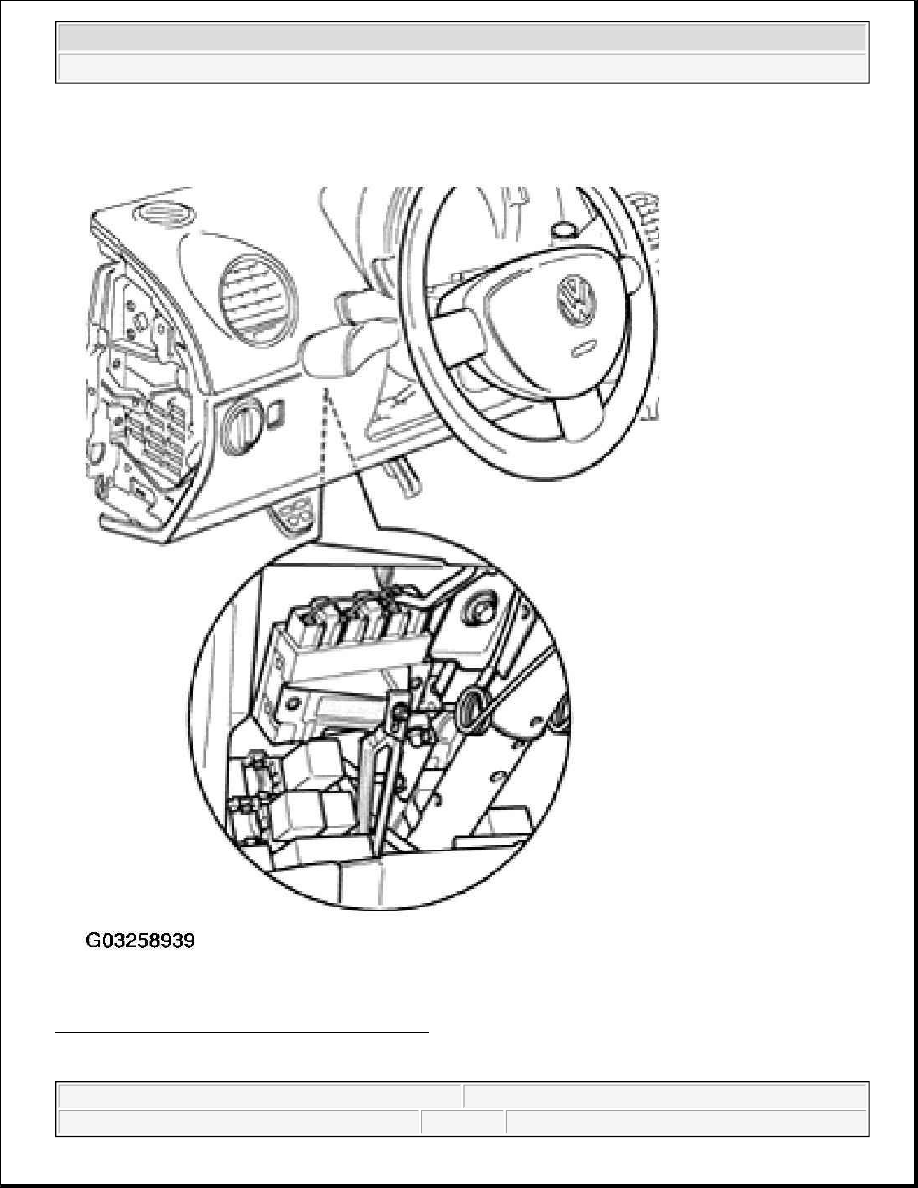

Fig. 139: Locating Central Locking Control Unit
