Volkswagen New Beetle. Manual - part 312

Fig. 129: Exploded View Of Remote Control
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Removing

z

Using screwdriver or coin, separate upper housing from lower housing.

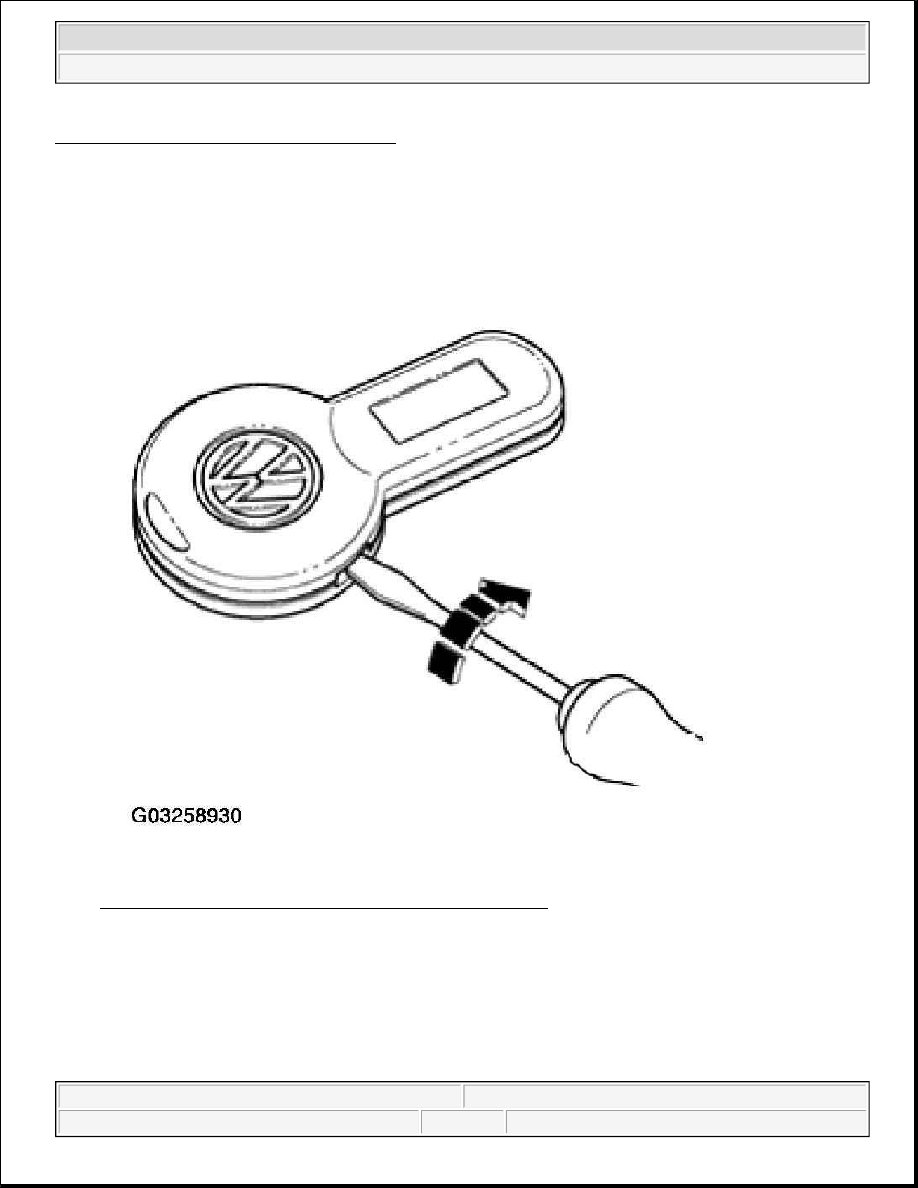

Fig. 130: Separating Upper Housing From Lower Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Using screwdriver, remove upper battery -1- from bracket -2- in direction of arrow.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 131: Removing Upper Battery From Bracket
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Metal contact -1- has two straight edges. Turn these edges toward catches and remove metal contact.

z

Remove lower battery using screwdriver.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



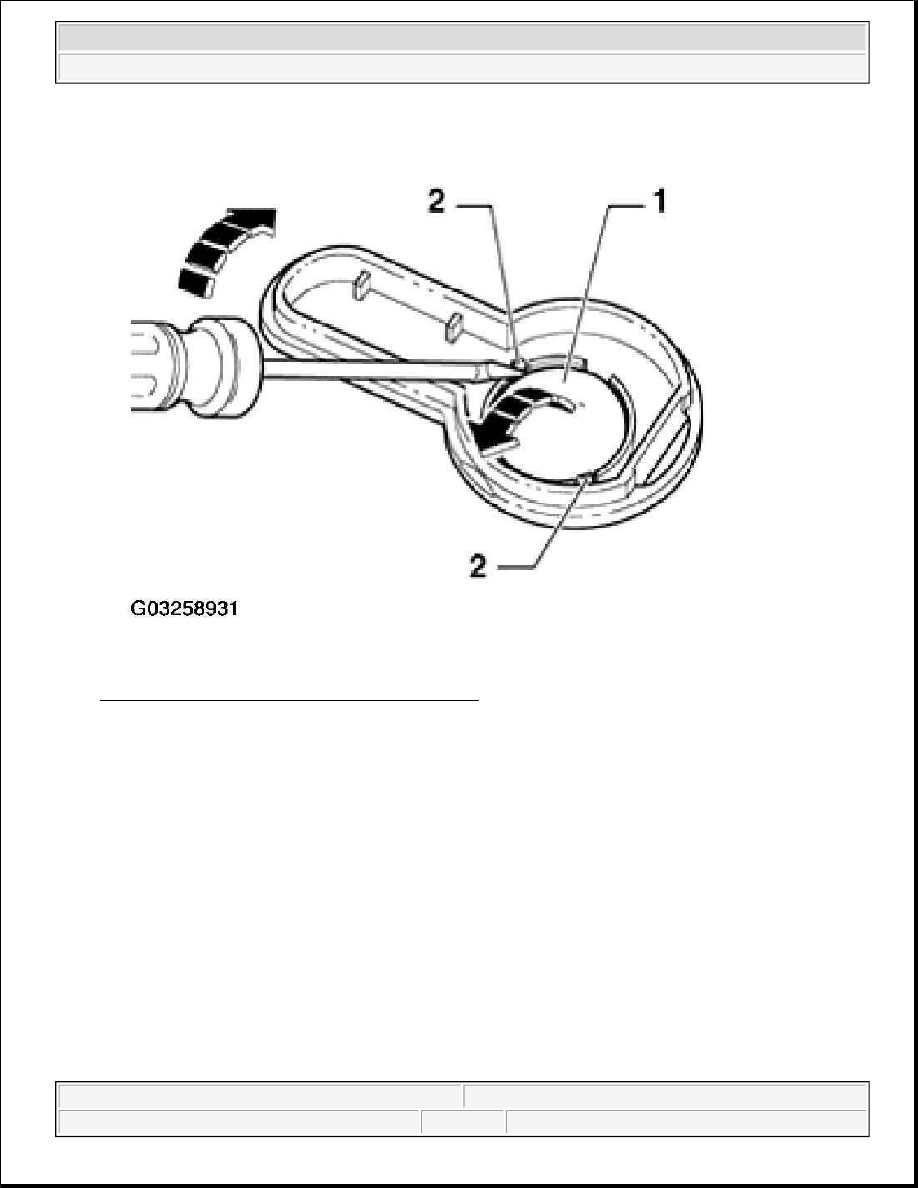

Fig. 132: Removing Lower Battery From Bracket
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

When installing batteries, make sure batteries are installed correctly according to polarity.

z

Install battery -4- positive side down in lower housing -5-. See Fig. 133 .

z

Place metal contact -3- on battery -4-.

z

Place battery -2- plus side down on metal contact -3- and lock in place.

z

Attach upper housing -1- with transmitter to lower housing -2- and lock in place.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



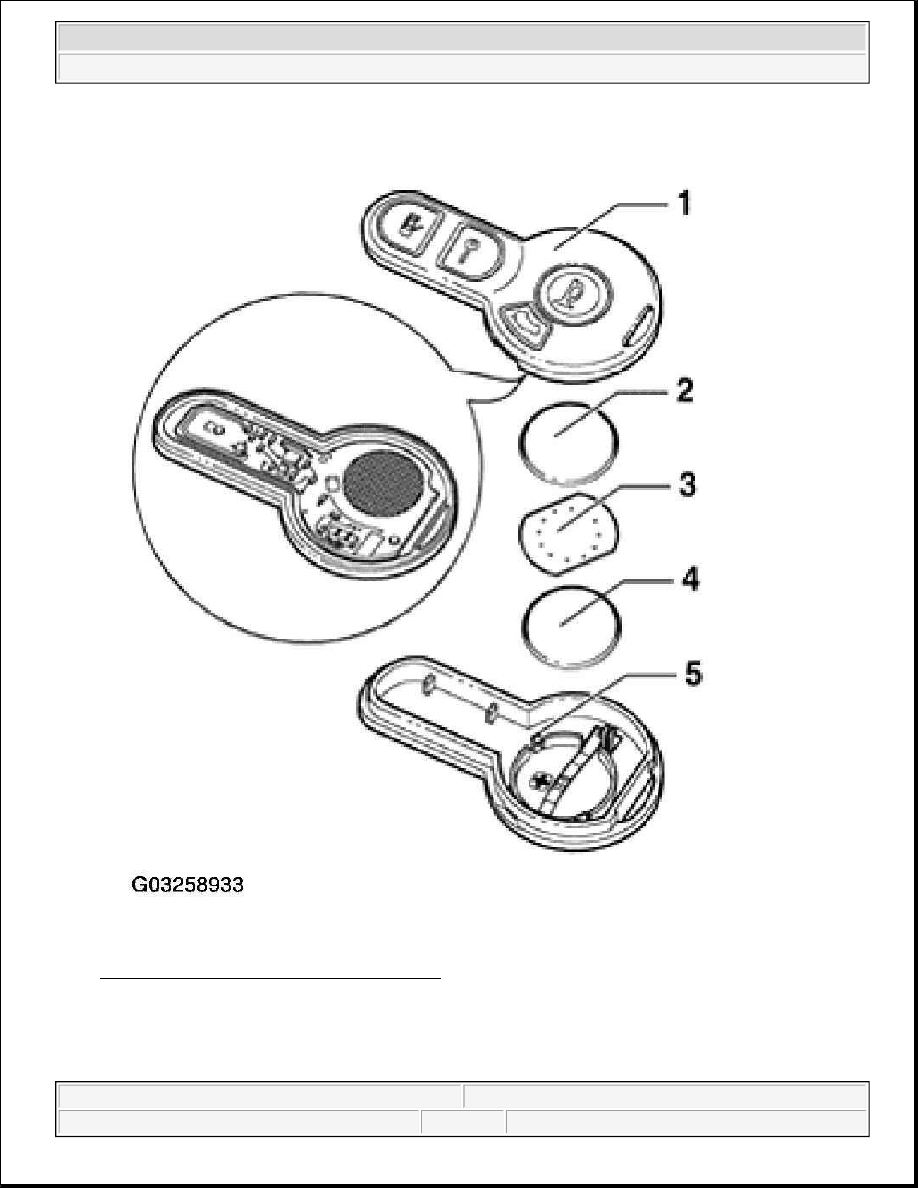

Fig. 133: Exploded View Of Remote Control
Courtesy of VOLKSWAGEN OF AMERICA, INC.

BATTERIES FOR MAIN KEY (FOLDING) WITH RADIO FREQUENCY REMOTE CONTROL,
REMOVING AND INSTALLING
