Volkswagen New Beetle. Manual - part 310

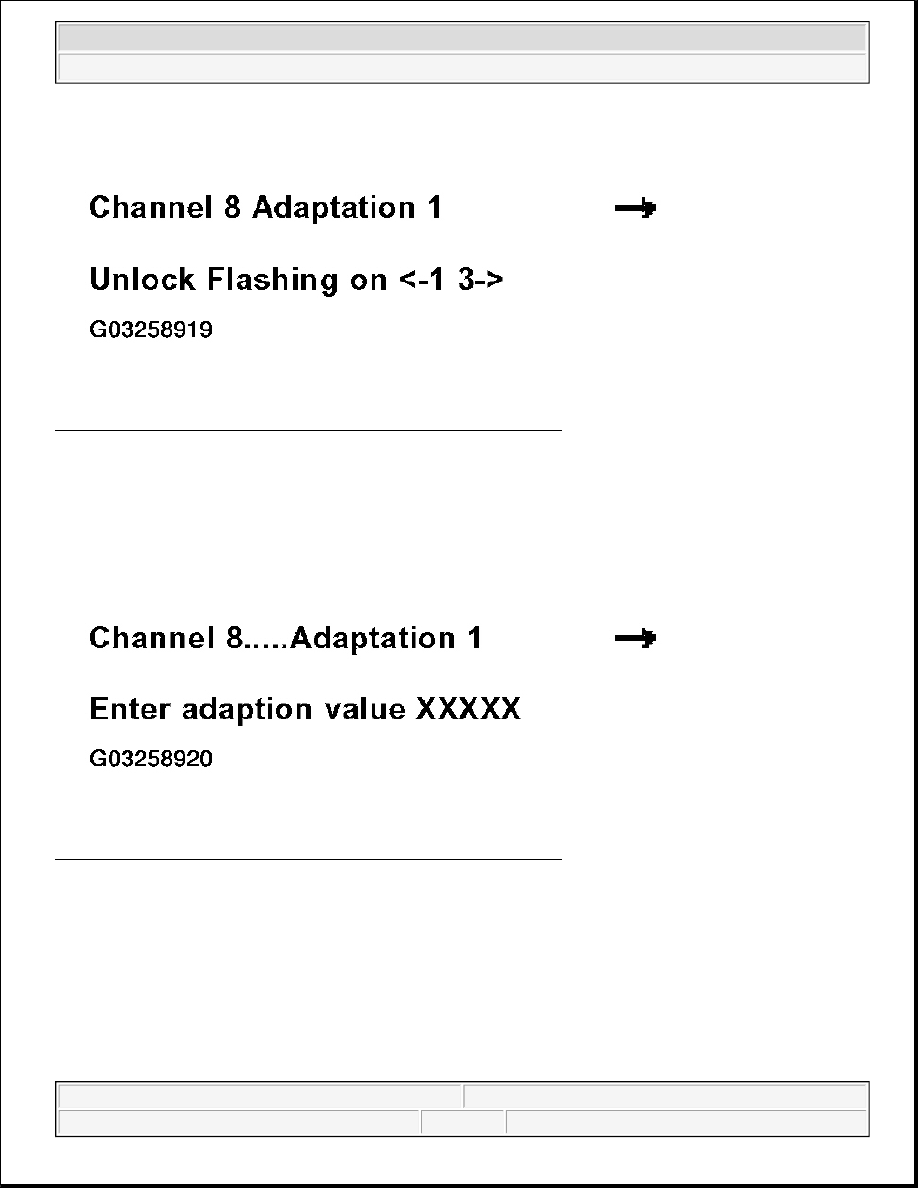

Fig. 119: Scan Tool Display - Comfort System Adaptions (4 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Indicated on display:

Fig. 120: Scan Tool Display - Comfort System Adaptions (5 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

z

Press button -0- five times (e.g. 00000).

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

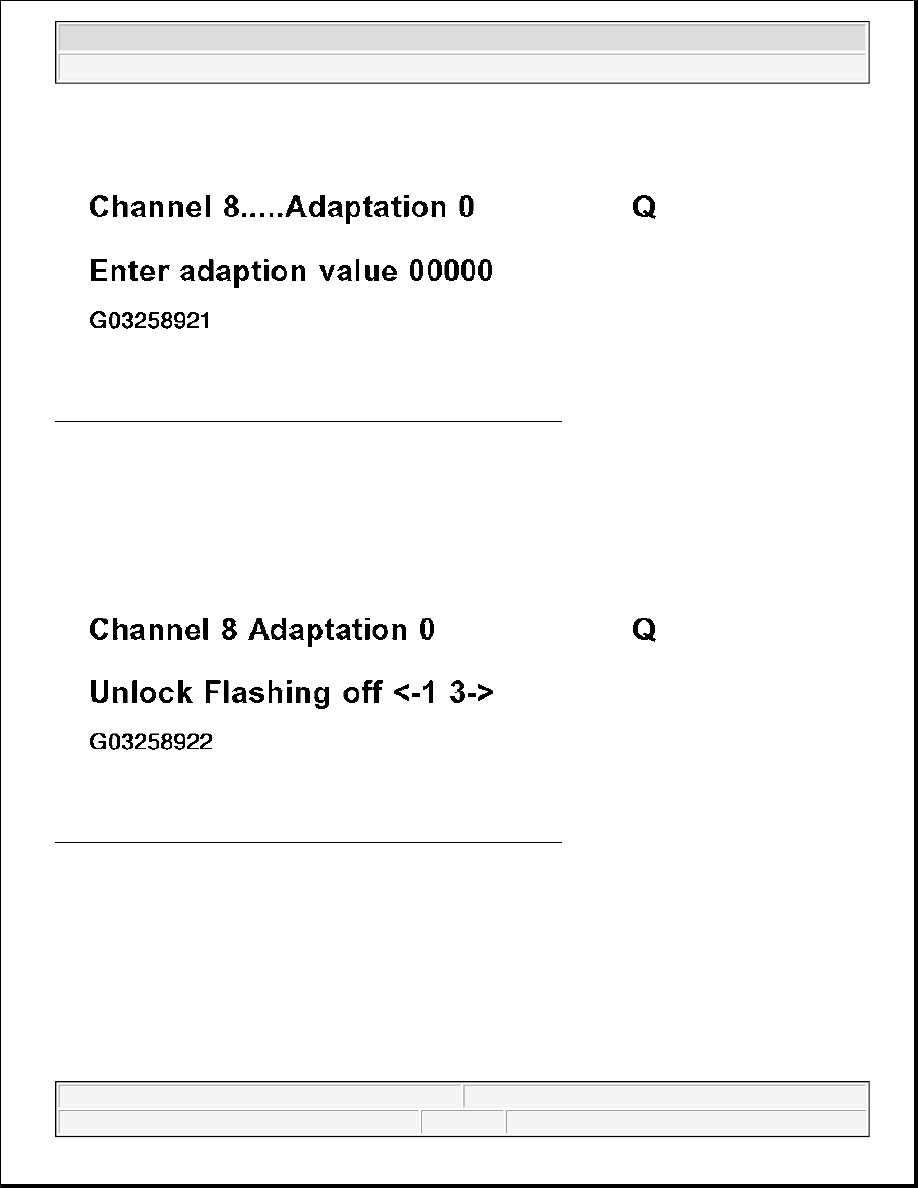

Fig. 121: Scan Tool Display - Comfort System Adaptions (6 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:

Fig. 122: Scan Tool Display - Comfort System Adaptions (7 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

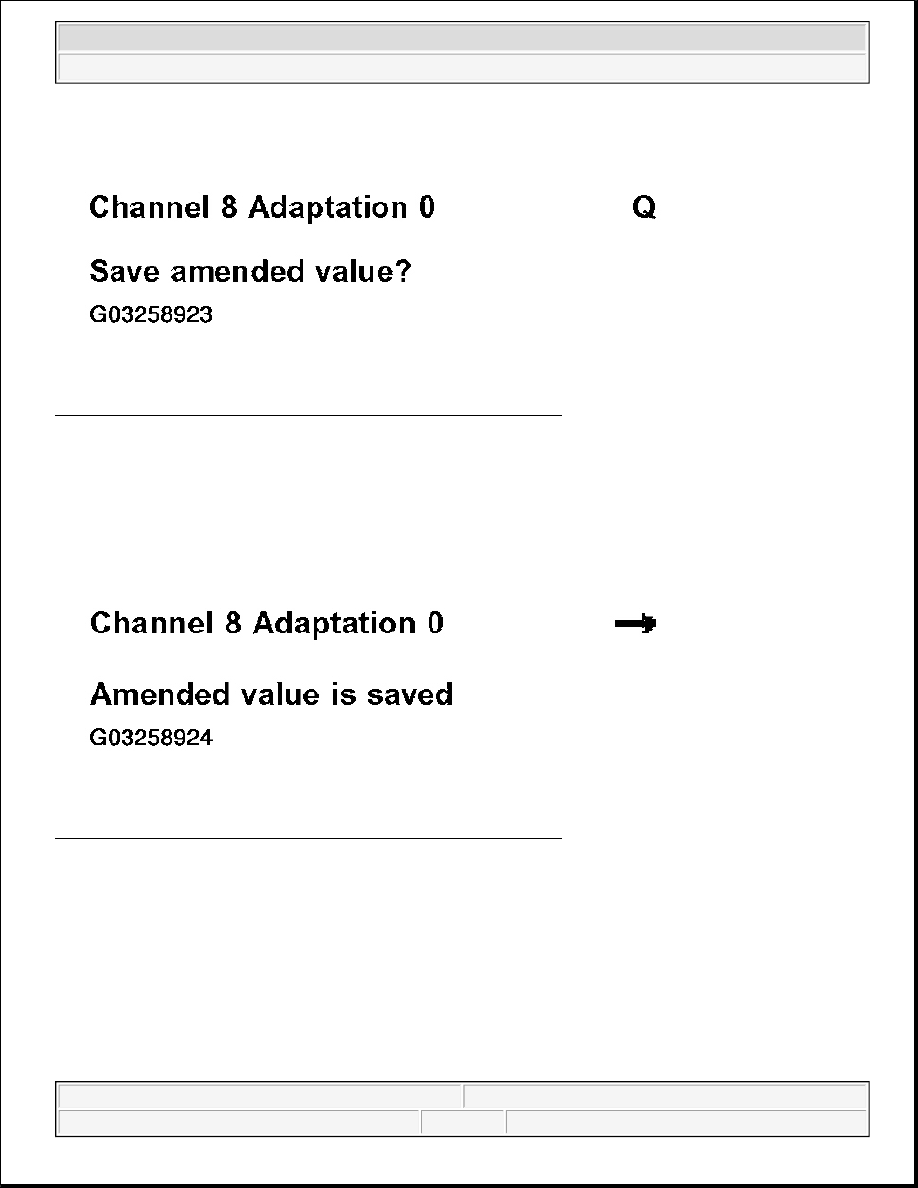

Fig. 123: Scan Tool Display - Comfort System Adaptions (8 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:

Fig. 124: Scan Tool Display - Comfort System Adaptions (9 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

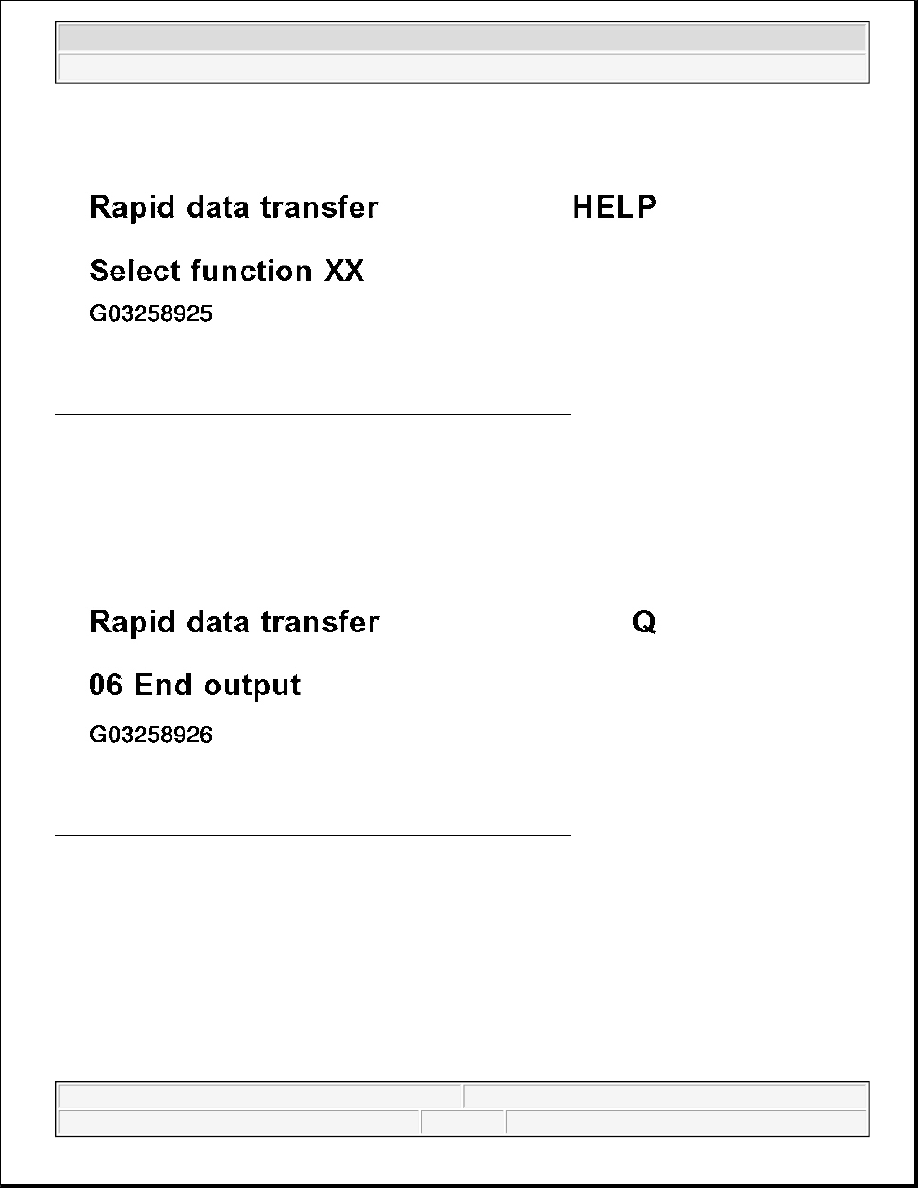

Fig. 125: Scan Tool Display - Comfort System Adaptions (10 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -6- to end the output.

Indicated on display:

Fig. 126: Scan Tool Display - Comfort System Adaptions (11 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
