Volkswagen New Beetle. Manual - part 308

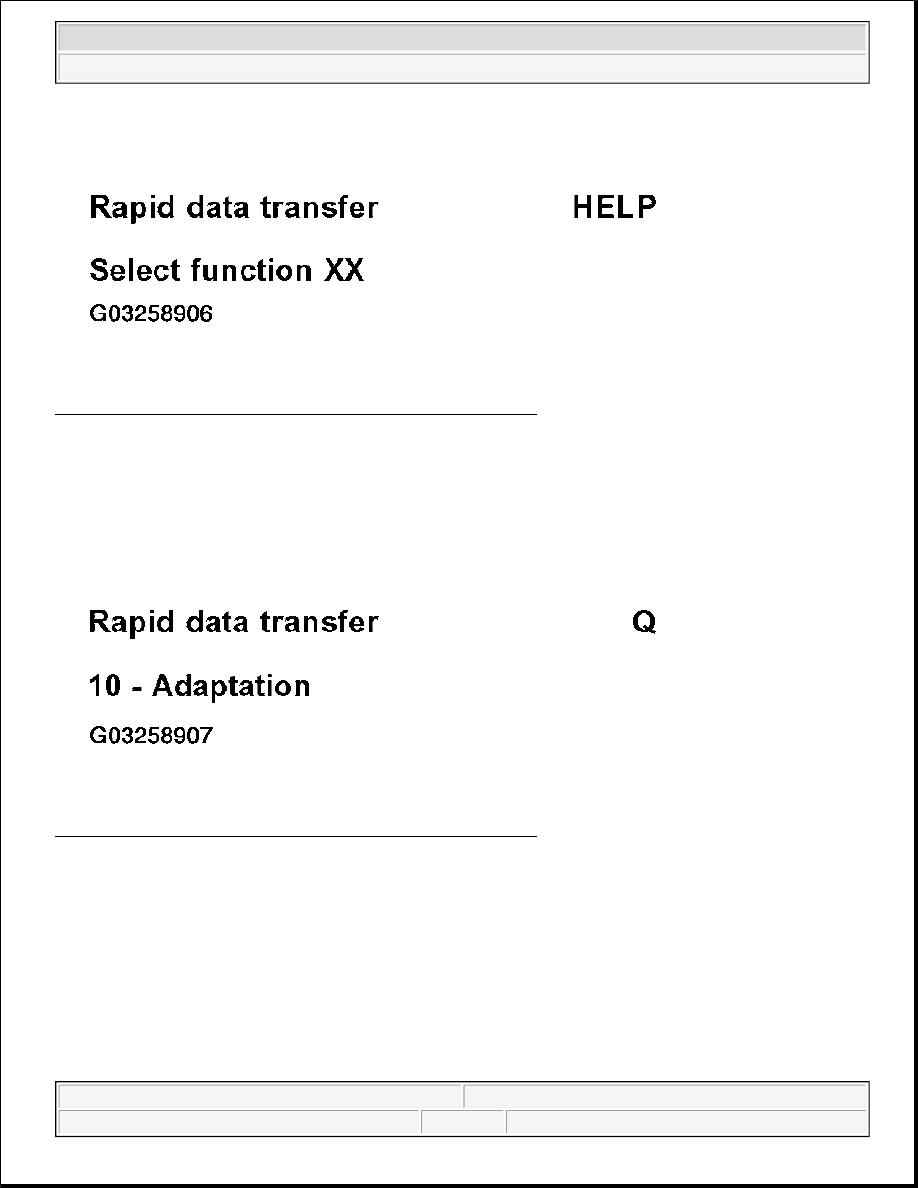

Fig. 106: Scan Tool Display - Adapt All Ignition Keys (6 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -1- and -0- (10 selects the "Adaptation" function).

Indicated on display:

Fig. 107: Scan Tool Display - Adapt All Ignition Keys (7 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

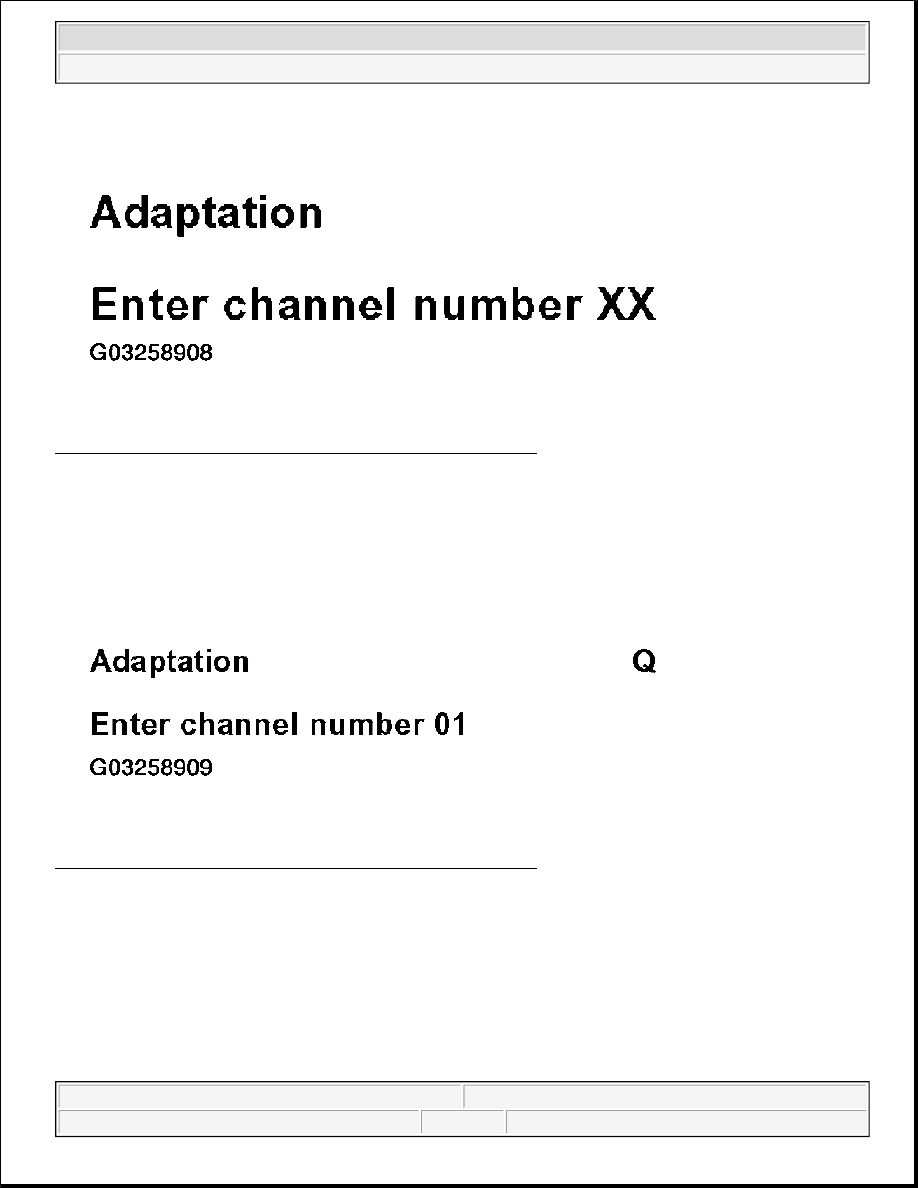

Fig. 108: Scan Tool Display - Adapt All Ignition Keys (8 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -1-. (all keys are "learned" with channel number 01.)

Indicated on display:

Fig. 109: Scan Tool Display - Adapt All Ignition Keys (9 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

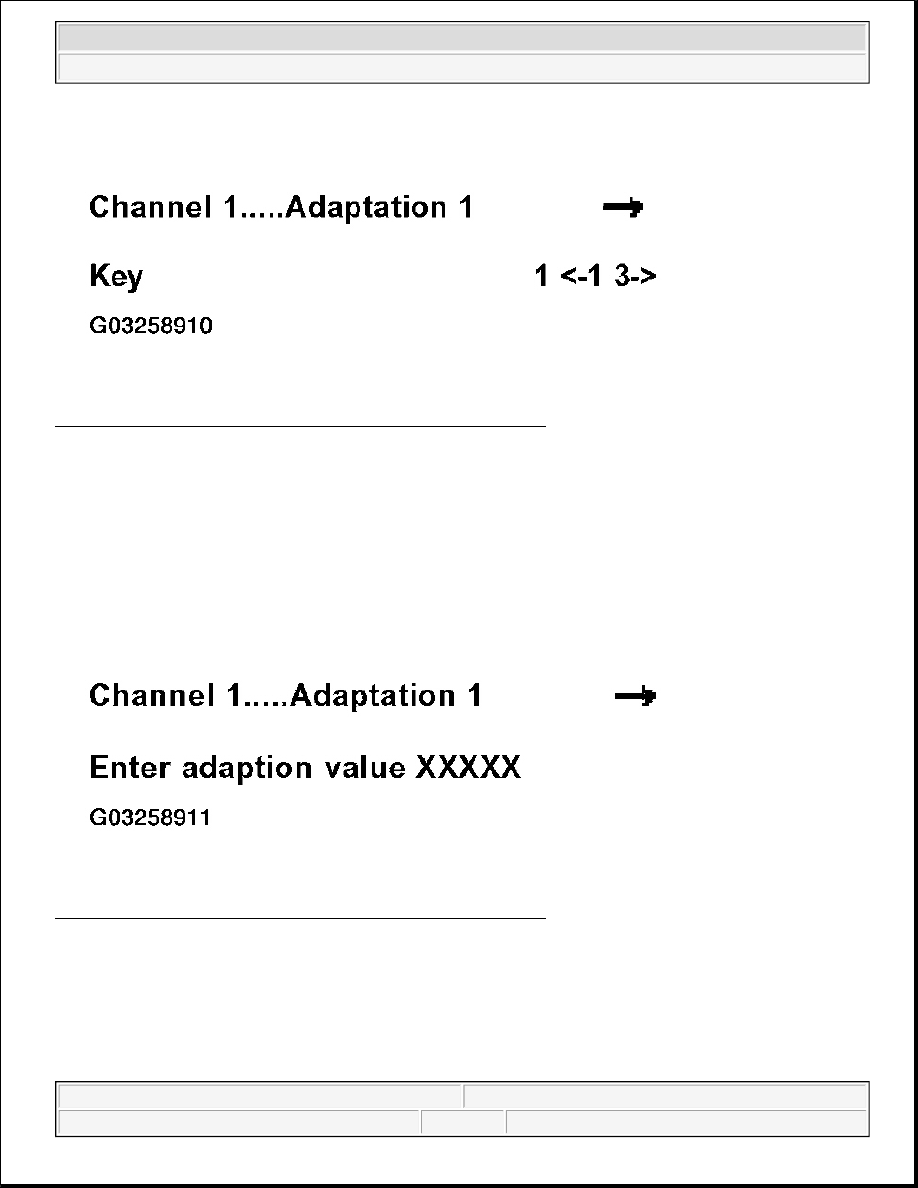

Fig. 110: Scan Tool Display - Adapt All Ignition Keys (10 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The top line displays number of keys to be learned (Standard =1). Select number of keys with buttons -1- and -
3-.

z

Press --> button.

Indicated on display:

Fig. 111: Scan Tool Display - Adapt All Ignition Keys (11 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press the -0- button four times and then enter the number of all ignition keys to be adapted, including the
existing key, (e.g. 00003); max. Qty of 4 possible.

z

Press --> button.

Indicated on display: Number of radio wave key to be "learned".



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

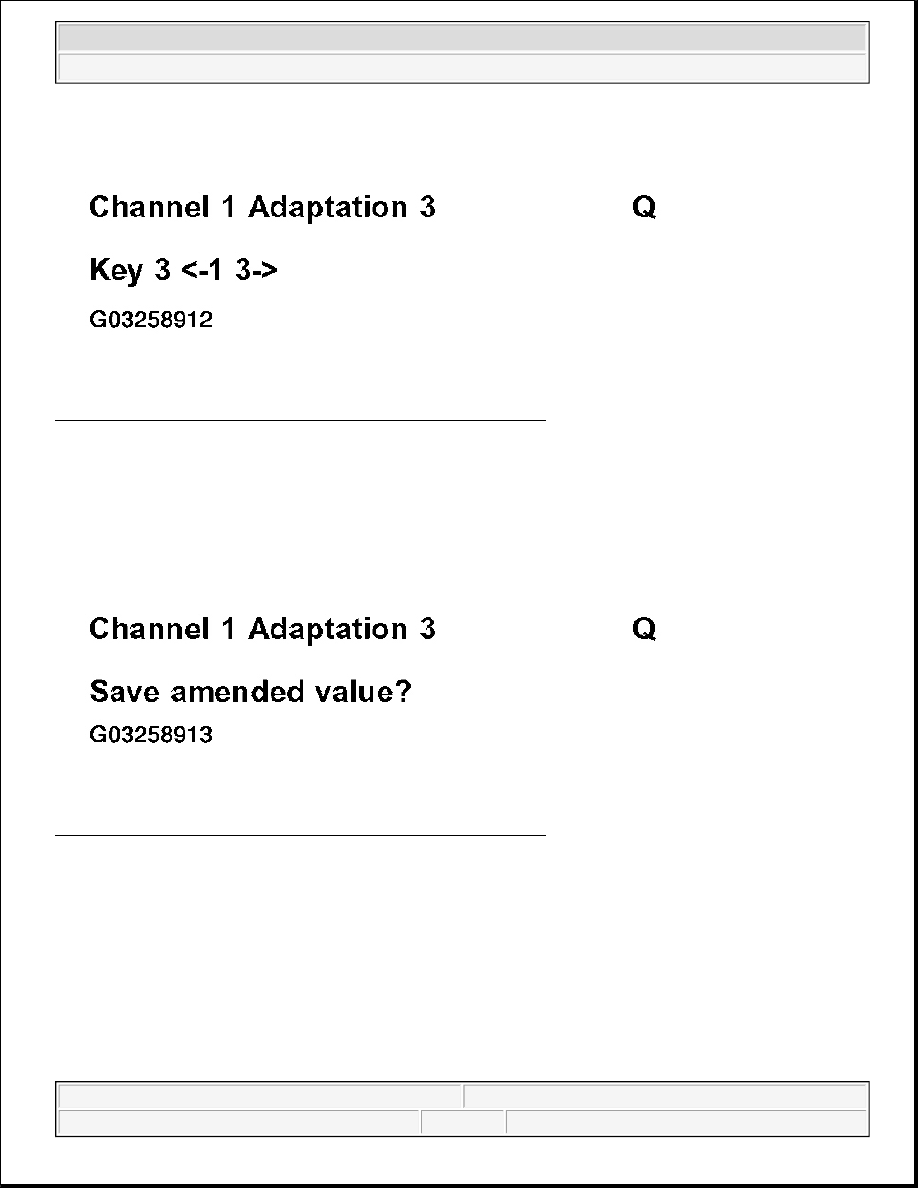

Fig. 112: Scan Tool Display - Adapt All Ignition Keys (12 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:

Fig. 113: Scan Tool Display - Adapt All Ignition Keys (13 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
