Volkswagen New Beetle. Manual - part 306





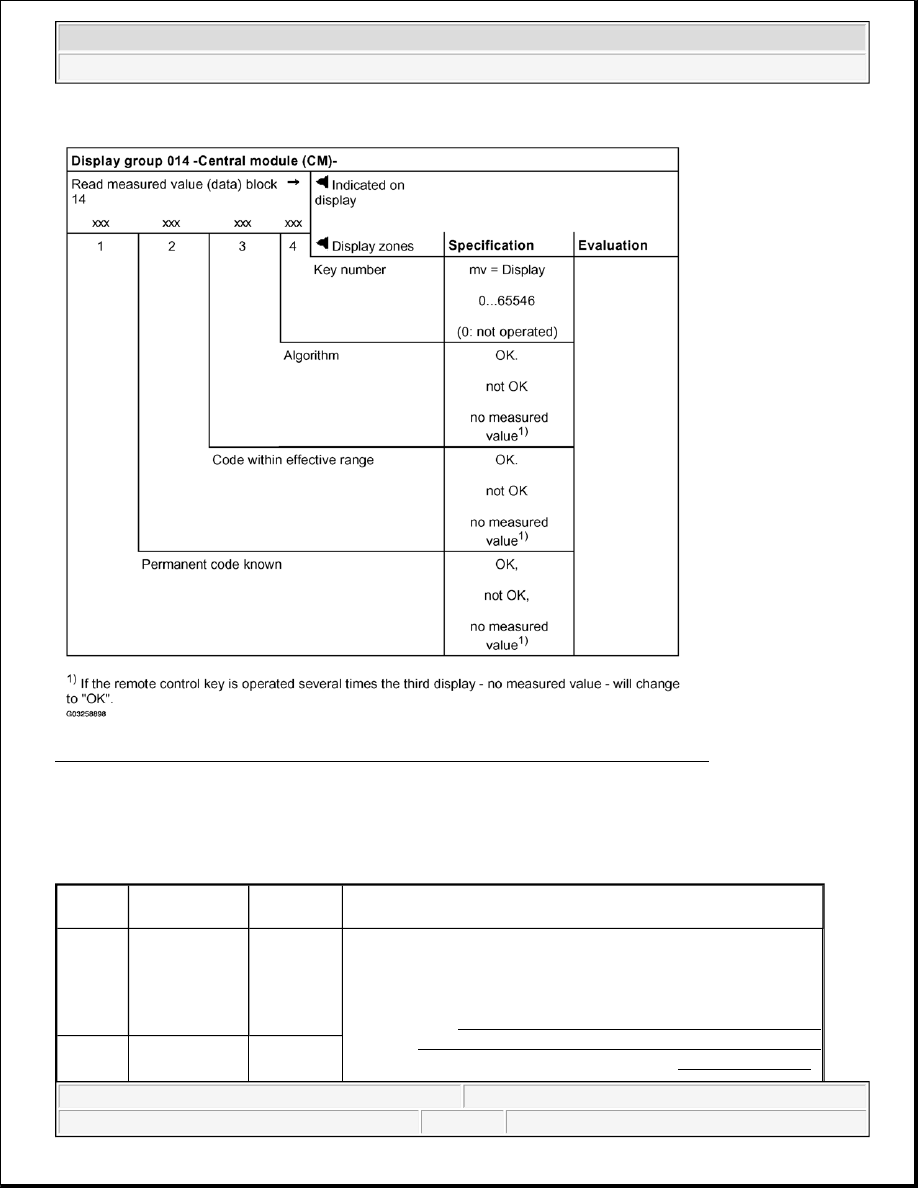

Fig. 98: Break Down Group Display 014 Chart - 3rd Generation Vehicles From 06.01
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluating display group number 014

EVALUATING DISPLAY GROUP NUMBER 014 CHART - 3RD GENERATION VEHICLES FROM
06.01


Display
zone

Designation

Display

contents

Corrective action

1

Permanent

code known

OK.

not OK

no

measured

value

(1)

For not OK:

z

Key code is outside the range of the receiver. Adapt radio

wave control unit again via function 10 (Adaptation) (see

RADIO FREQUENCY REMOTE CONTROL,

PROGRAMMING IGNITION KEYS, MATCHING

(ADAPTATION)

2

Code within

effective range

OK.

not OK



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Break down of display content for display group number 015

no

measured

value

(1)

For no measurement:

z

Battery in key is discharged (empty), change battery

z

Radio wave control unit is faulty, replace key unit

3

Algorithm

OK.

not OK

no

measured

value

(1)

4

Key number

mv = 1...4

(2)

When operating a "learned" radio wave remote control key, as
shown here, indicates in which position the key was
learned/taught.If the tester displays "0" even when the remote
button is pressed, this key must be "re-synchronised" using
adaption (10).

(1)

Key not operated at this moment. If the remote control key is operated several times the third display
- no measured value - will change to "OK".

(2)

A max. of 4 remote controls can be "learned".



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



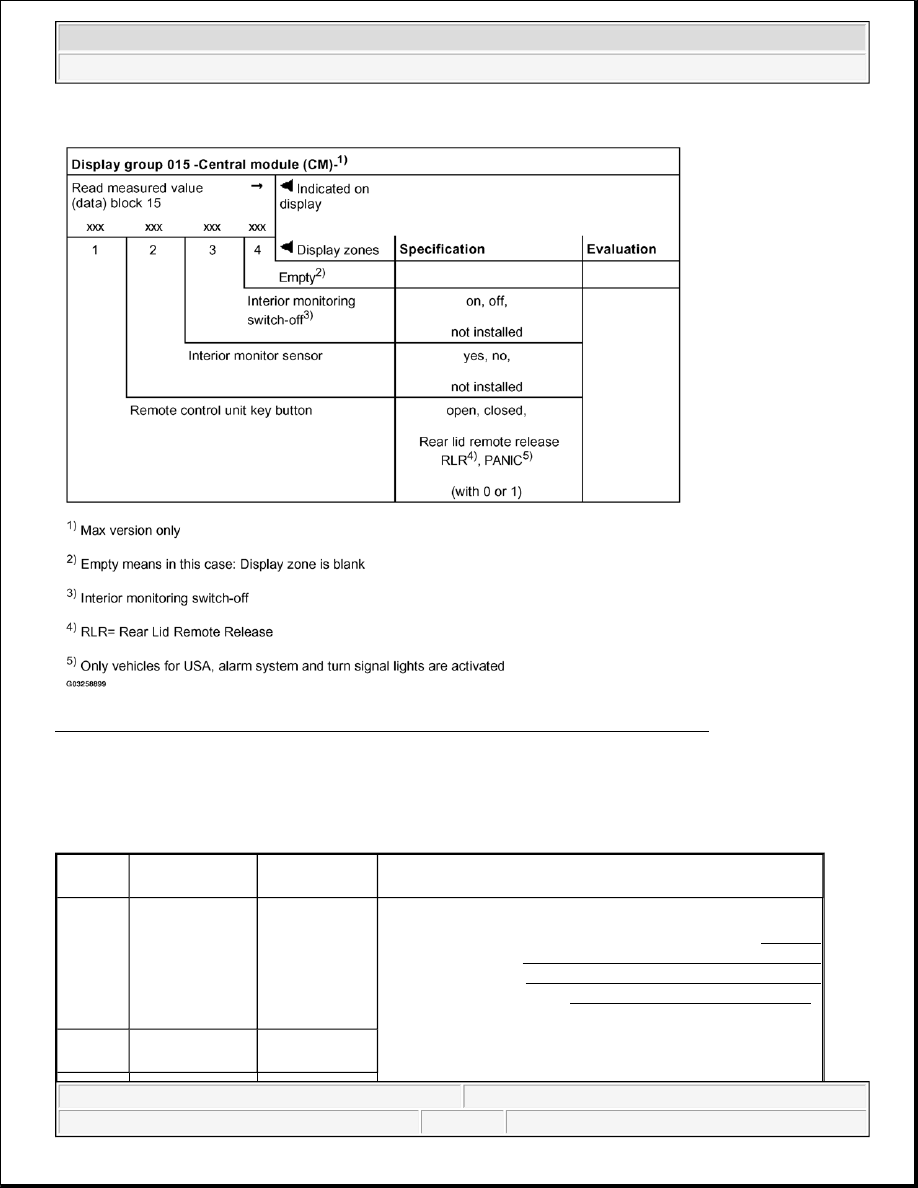

Fig. 99: Break Down Group Display 015 Chart - 3rd Generation Vehicles From 06.01
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluating display group number 015

EVALUATING DISPLAY GROUP NUMBER 015 CHART - 3RD GENERATION VEHICLES FROM
06.01


Display
zone

Designation

Display

contents

Corrective action

1

Remote control

unit key button

open, closed,

Rear lid

remote release

RLR

(1)

 ,

PANIC

(2)



(with 0 or 1)

z

Adapt remote control unit again if necessary

(Function 10, Adaptation, see RADIO

FREQUENCY REMOTE CONTROL,

PROGRAMMING IGNITION KEYS,

MATCHING (ADAPTATION)

2

Interior monitor

sensor

yes, no,

not installed



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Break down of display content for display group number 016

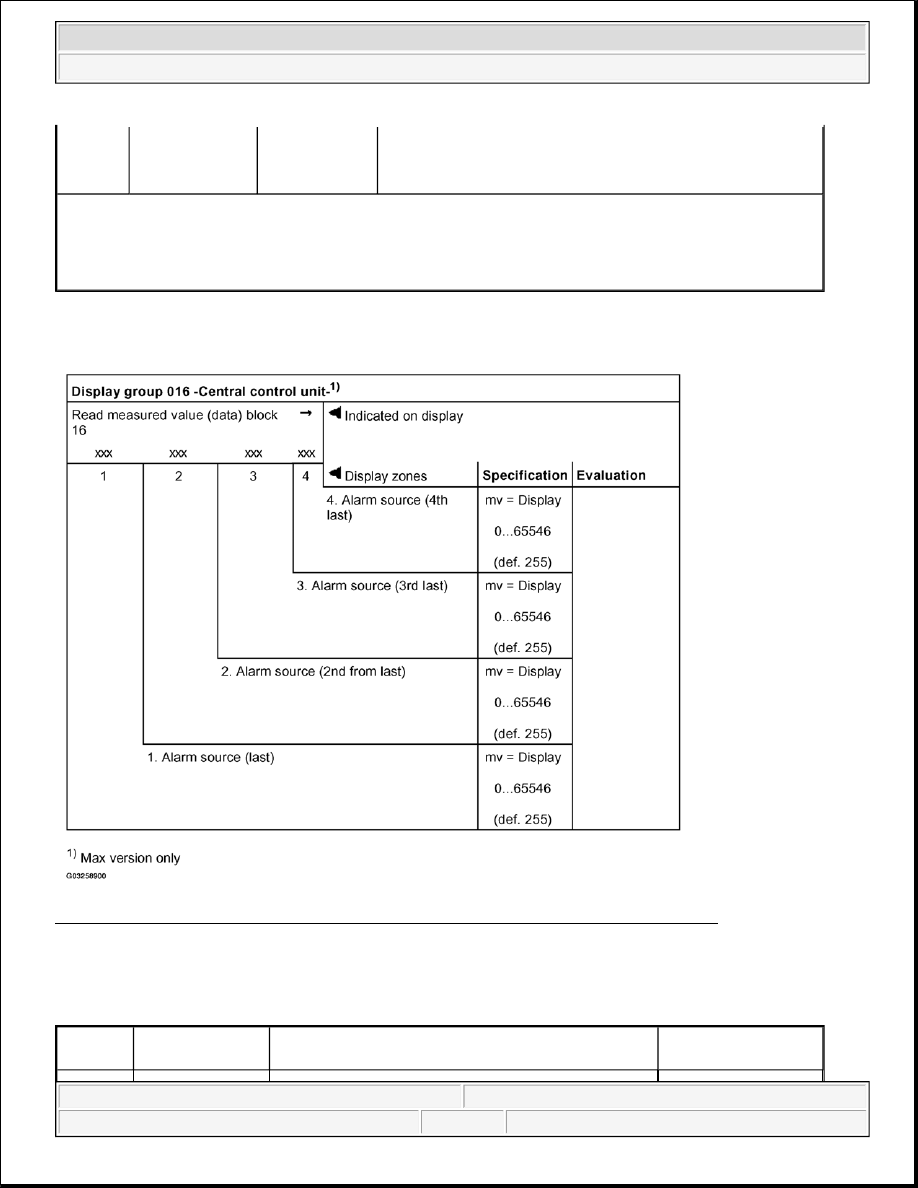

Fig. 100: Break Down Group Display 016 Chart - 3rd Generation Vehicles From 06.01
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Break down of display content for display group number 016

BREAK DOWN GROUP DISPLAY 016 CHART - 3RD GENERATION VEHICLES FROM 06.01

3

Interior

monitoring

switch-off

(3)

on, off,

not installed

(1)

RLR= Rear Lid Remote Release

(2)

Only vehicles for USA, alarm system and turn signal lights are activated

(3)

Interior monitoring switch-off

Display
zone

Designation

Display contents

Corrective action



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
