Volkswagen New Beetle. Manual - part 307





ANTI-THEFT ALARM SYSTEM SPECIFICATIONS - 3RD GENERATION VEHICLES FROM 06.01

RADIO FREQUENCY REMOTE CONTROL, PROGRAMMING IGNITION KEYS, MATCHING
(ADAPTATION)

1

Alarm source

(last)

Display, see ANTI-THEFT ALARM SYSTEM

SPECIFICATIONS - 3RD GENERATION

VEHICLES FROM 06.01 .

Only the last 4 ATA

(1)

 activations are

shown!

for example "64" =

Hood contact switch

(see table below for

possible sources of

alarm)

2

Alarm source
(2nd from last)

3

Alarm source
(3rd last)

4

Alarm source
(4th last)

(1)

Anti-theft alarm system

Possible sources of alarm

Display

Trunk lid/tailgate contact switch

1

Front passenger rotary latch switch

8

Ignition

16

Immobilizer

17

Interruption intelligent horn

18

Interior monitoring

32

Hood contact switch, radio

64

Driver's rotary latch switch

128

No alarm

255

NOTE:

z

If new or additional ignition keys are required they must be adapted to the
immobilizer and Comfort System (vehicles with power windows) control
electronics.

z

All the keys must be adapted, even the existing ignition keys.

z

All the keys must not be adapted again when including a new additional
key. See NEW ADDITIONAL KEY, ADAPTING .

z

The number of keys already adapted will be displayed when the adaption
function is selected.

z

With the introduction of this generation of Comfort System (vehicles with
power windows) it is possible to program additional functions. The
functions and the programming are described in COMFORT SYSTEM
(VEHICLES WITH POWER WINDOWS) FUNCTIONAL VARIATIONS .

z

The adaption procedure can be interrupted by pressing the "C" button on
the V.A.G 1551.

WARNING:

The V.A.G 1551 or the VAS 5051 dealership number (workshop code) will



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Adapt all ignition keys

Requirements:

z

All ignition keys available. If no old ignition key is available, see "Lost key procedure".

See Anti-theft Immobilizer; TRANSPONDER (KEY) .

z

Key fob with covered PIN number is available, if not see "Secret number, determining".

See Anti-theft Immobilizer; TRANSPONDER (KEY) .

z

Insert correct profile ignition key in the ignition lock.

z

Connecting V.A.G 1551 or VAS 5051, see SCAN TOOL, CONNECTING . Initiating On Board
Diagnosis (OBD), see ON BOARD DIAGNOSIS (OBD) FOR THE COMFORT SYSTEM
(VEHICLES WITH POWER WINDOWS), INITIATING
 .

The adaption shown here is only an example.

Indicated on display:

Fig. 101: Scan Tool Display - Adapt All Ignition Keys (1 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -1- and -0- (10 selects the "Adaptation" function).

be stored in immobilizer control unit when matching ignition keys.

NOTE:

Effective calendar date 03.11.2002, the immobilizer secret number is encoded
for increased security. The encoded number is now 7-digits and is referred to as
a "PIN" ("Personal Identification Number").



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Indicated on display:

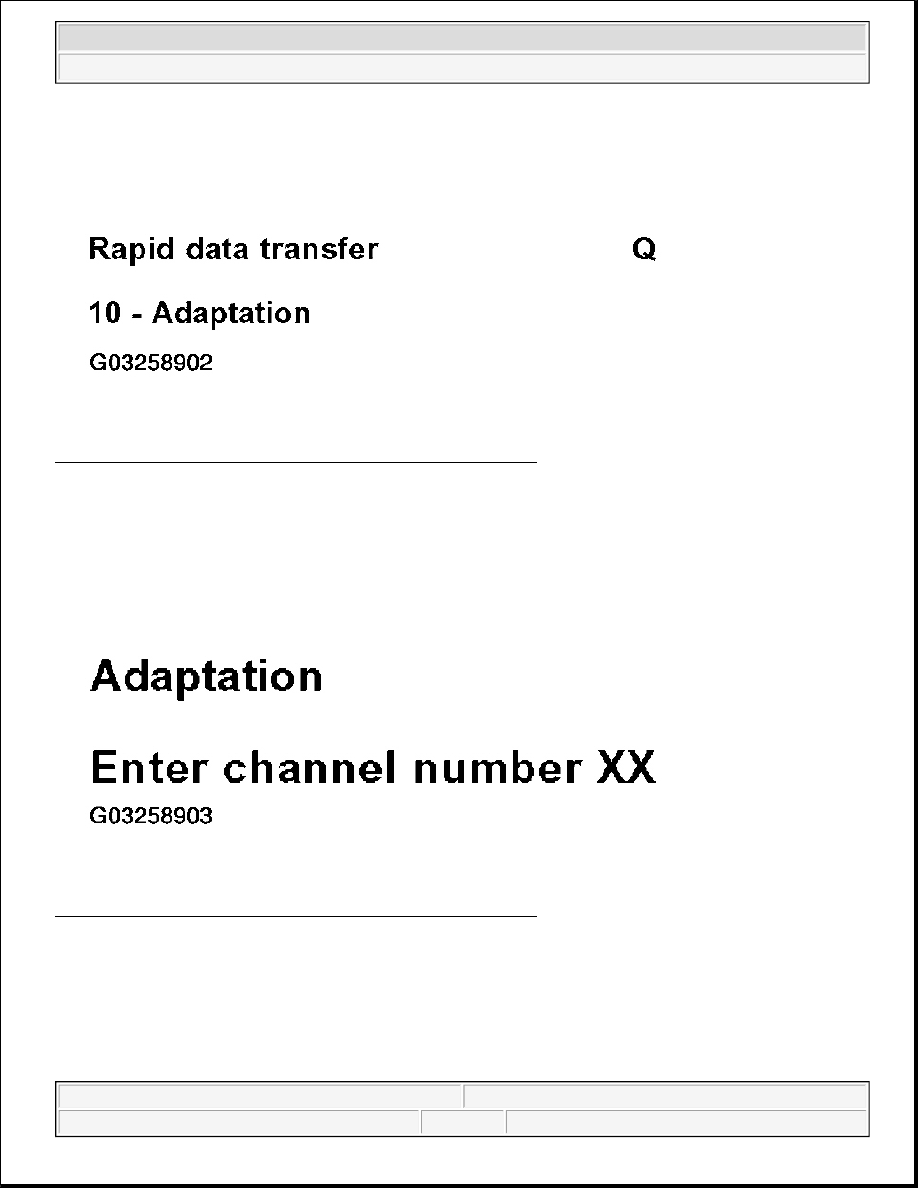

Fig. 102: Scan Tool Display - Adapt All Ignition Keys (2 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:

Fig. 103: Scan Tool Display - Adapt All Ignition Keys (3 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -0- (all keys are erased with channel number 00).

z

Confirm entry with -Q- button.

NOTE:

It is not possible to match a new or additional key (s) without erasing
existing learned/matched key (s).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Indicated on display:

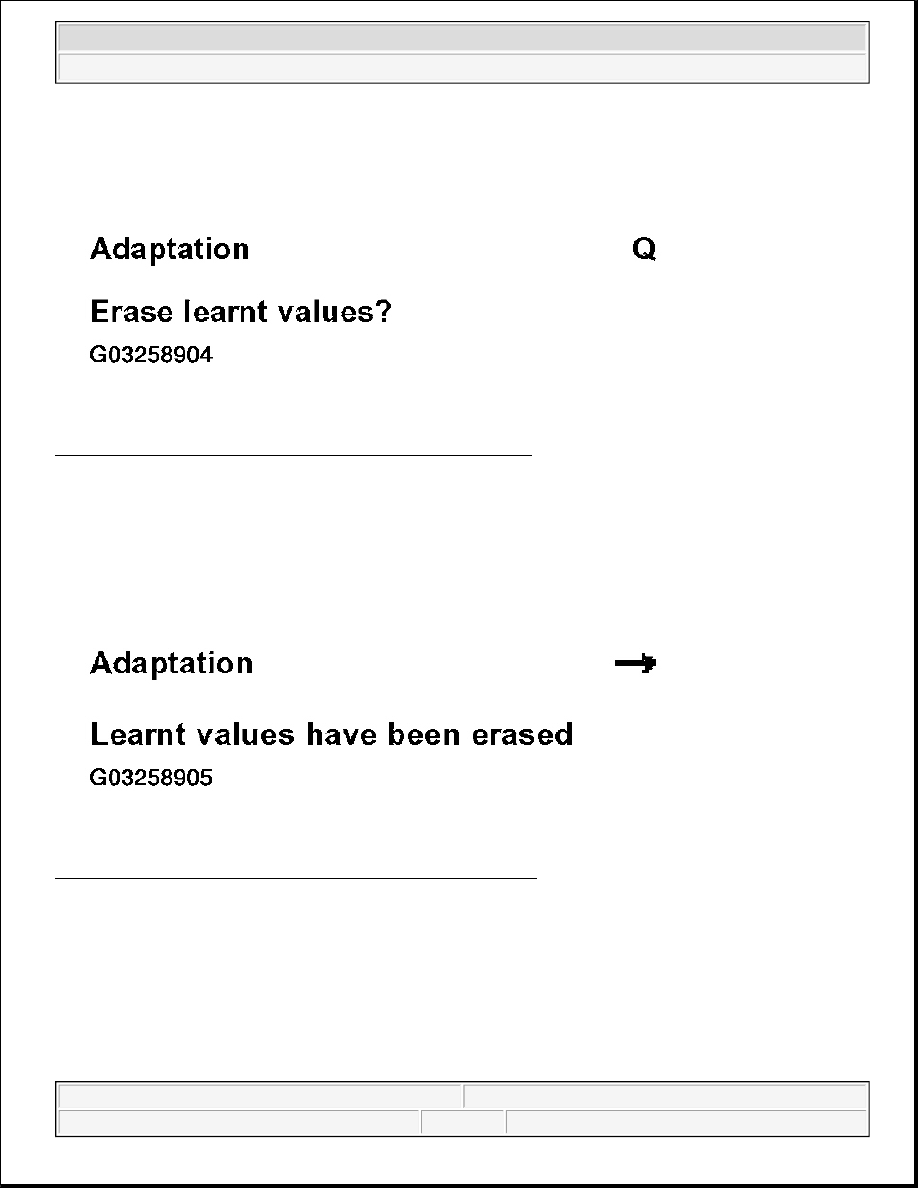

Fig. 104: Scan Tool Display- Adapt All Ignition Keys (4 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:

Fig. 105: Scan Tool Display - Adapt All Ignition Keys (5 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
