1. Transmitter unit - upper part (turned-over)

2. Main key with variable code transponder

3. Transmitter unit - lower part

4. Button battery

NOTE:

The following list refers to items in Fig. 134 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

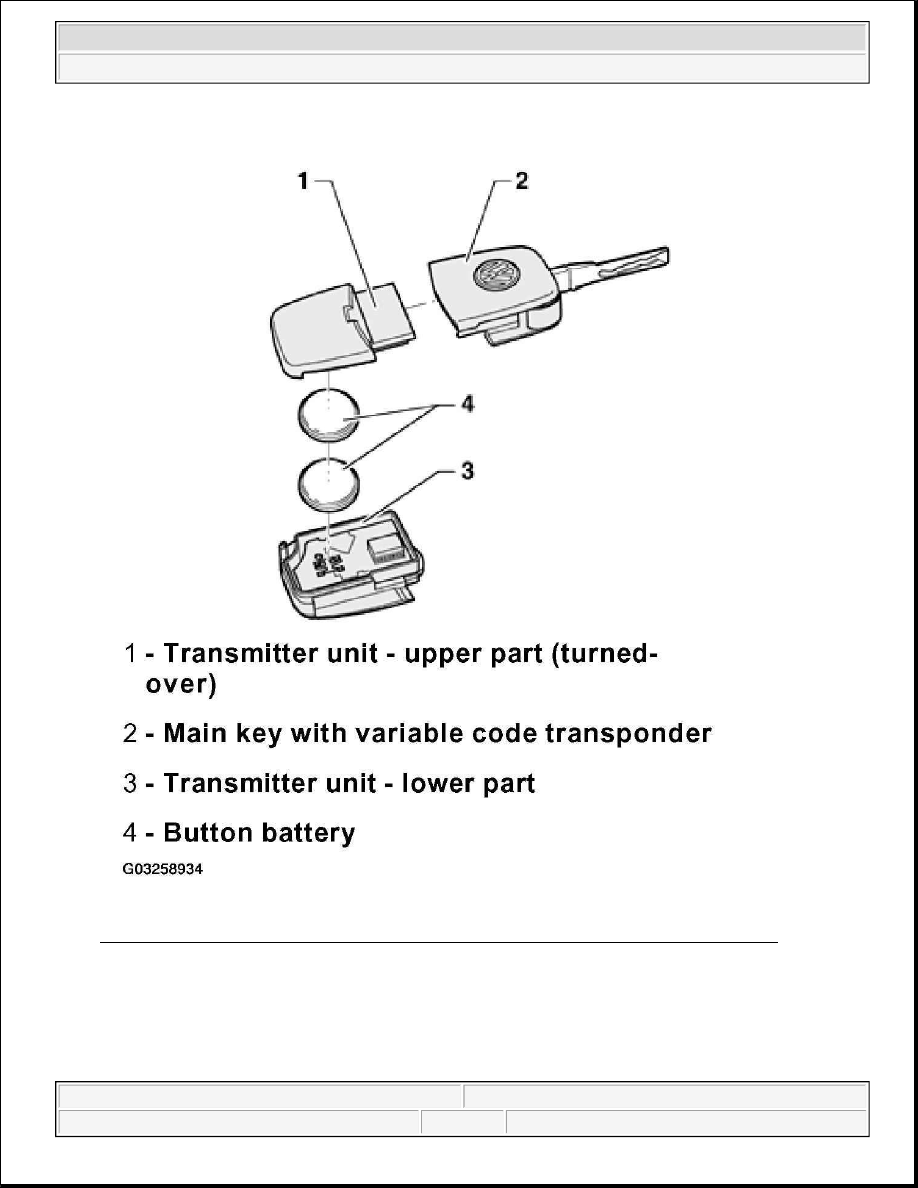

Fig. 134: Exploded View Of Main Key (Folding) With Radio Frequency Remote Control
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Removing

z

Insert a screwdriver in the slot between the transmitter unit -1- and the main key -2-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

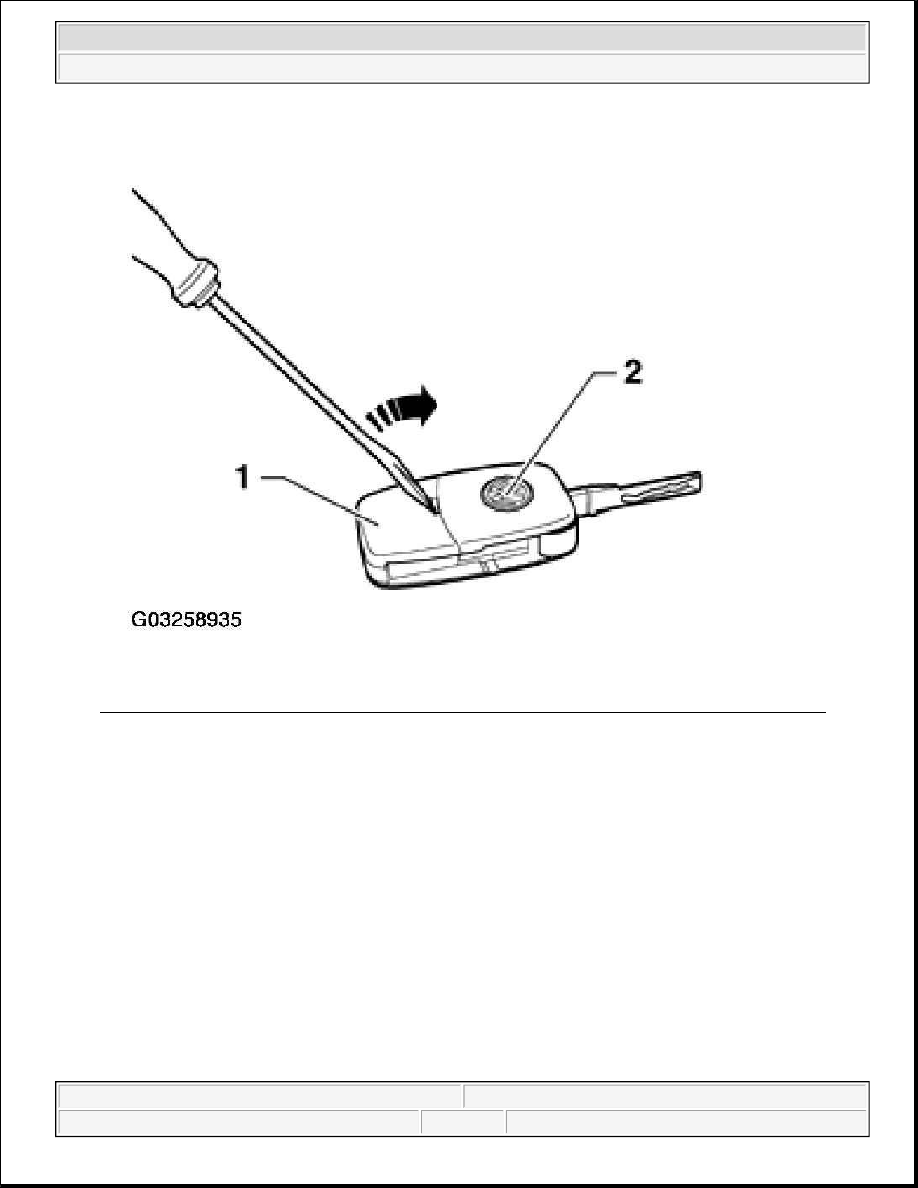

Fig. 135: Inserting Screwdriver In The Slot Between The Transmitter Unit And The Main Key
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Move the screwdriver in direction of arrow and unclip the transmitter unit from the main key.

z

Press the transmitter unit apart in direction of arrow.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

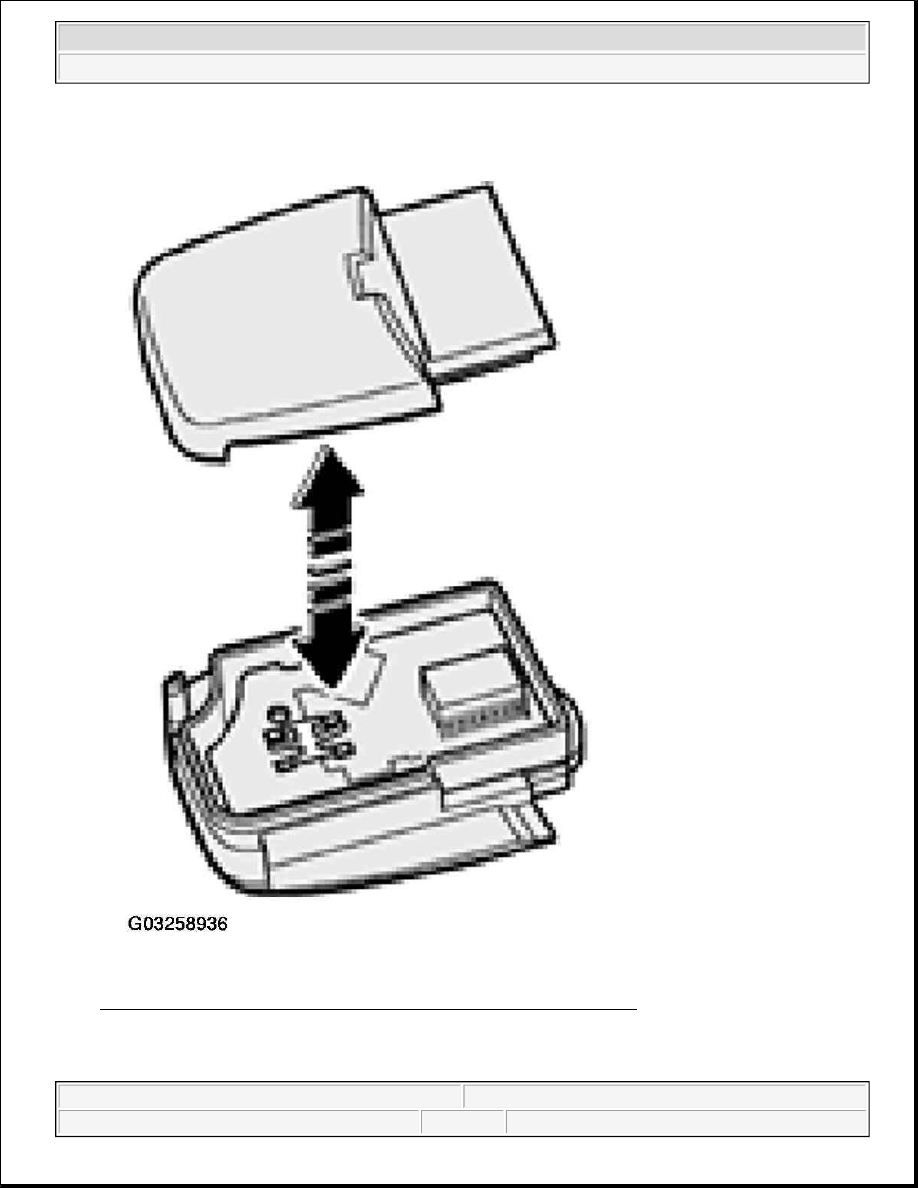

Fig. 136: Pressing The Transmitter Unit Apart In Direction Of Arrow
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Unclip batteries from the retainers in direction of arrow using a screwdriver.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
