Volkswagen New Beetle. Manual - part 297





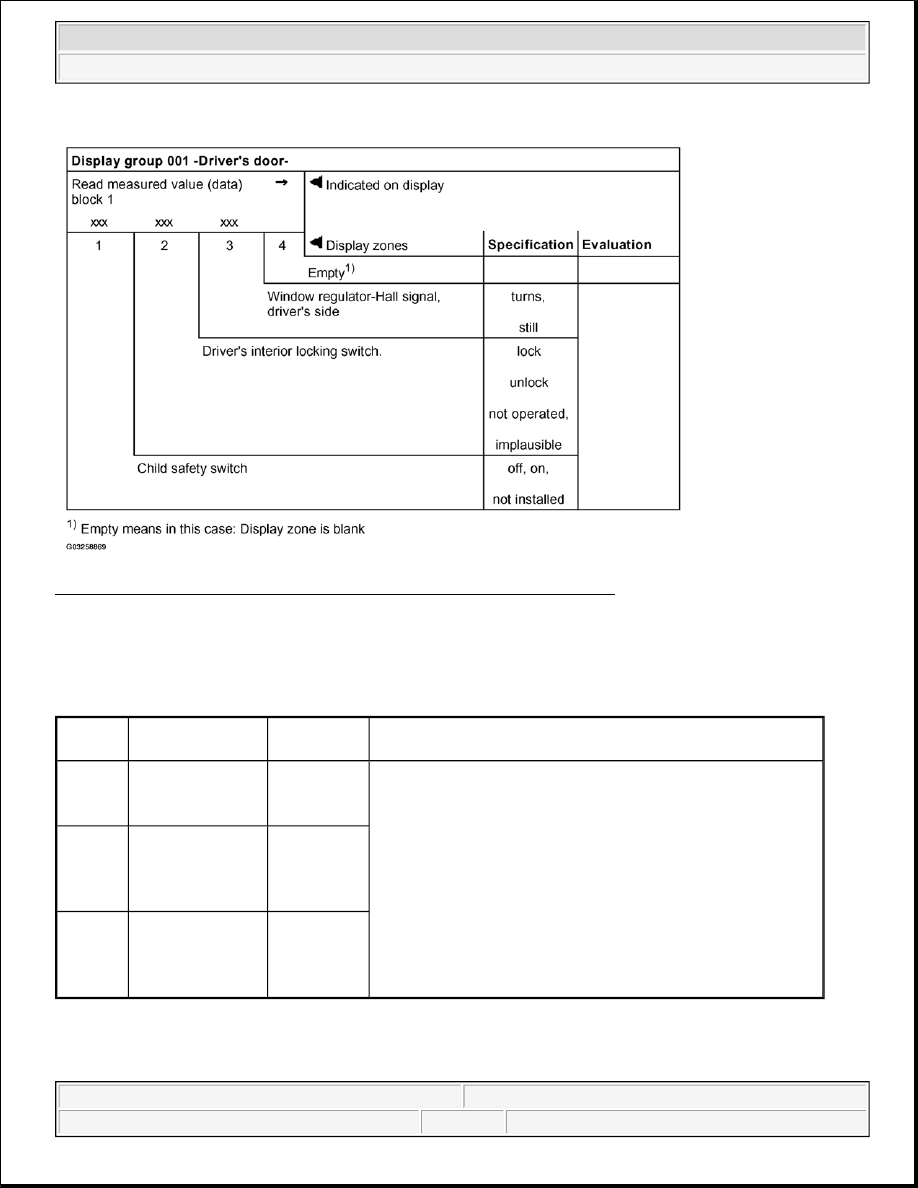

Fig. 69: Display Group 001 Chart - 2nd Generation Vehicles Up To 05.01
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluating display group number 001

EVALUATING DISPLAY GROUP NUMBER 001 CHART - 2ND GENERATION VEHICLES UP TO
05.01


Break down of display content for display group number 002

Display
zone

Designation

Display

contents

Corrective action

1

Child safety

switch

off

on

not installed

z

Visual check of wiring

z

Check that connections of relevant current circuit are

correctly connected and install tightly together while

simultaneously observing display. If the display does

not change after checking connections, correct

malfunction or replace relevant component

z

Erase DTC memory

z

Perform functional check

z

Interrogate DTC memory again

z

Functions only when ignition is "on"

2

Driver's interior

locking switch.

lock

unlock

not operated

implausible

3

Window

regulator-Hall

signal, driver's

side

turns

still



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



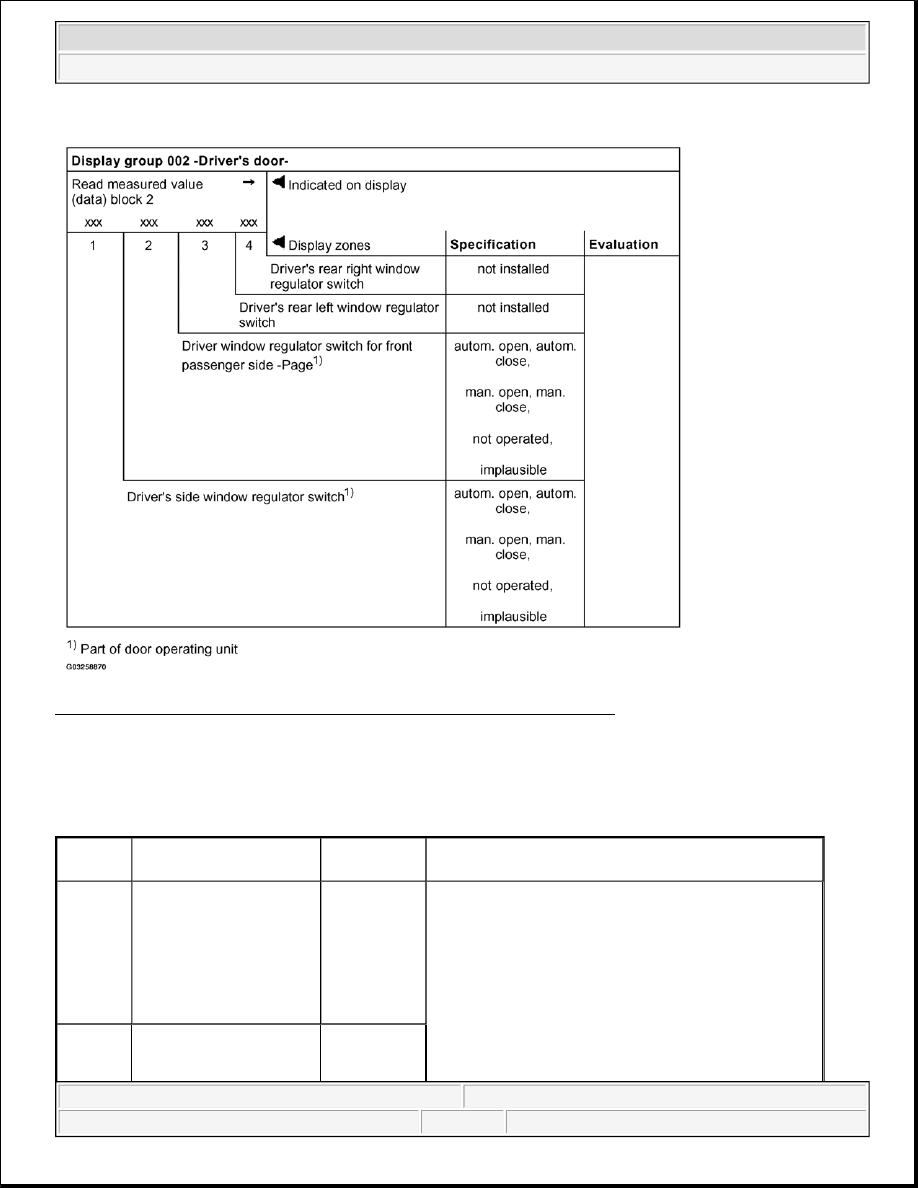

Fig. 70: Display Group 002 Chart - 2nd Generation Vehicles Up To 05.01
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluating display group number 002

EVALUATING DISPLAY GROUP NUMBER 002 CHART - 2ND GENERATION VEHICLES UP TO
05.01


Display
zone

Designation

Display

contents

Corrective action

1

Driver's side window

regulator switch

(1)

autom. open,

autom.

close,

man. open,

man. close,

not operated,

implausible

z

Visual check of wiring

z

Check that connections of relevant current

circuit are correctly connected and install

tightly together while simultaneously observing

display

z

If the display does not change after checking

connections, correct malfunction or replace

relevant component

2

Driver window

regulator switch for

autom. open,

autom.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Break down of display content for display group number 003

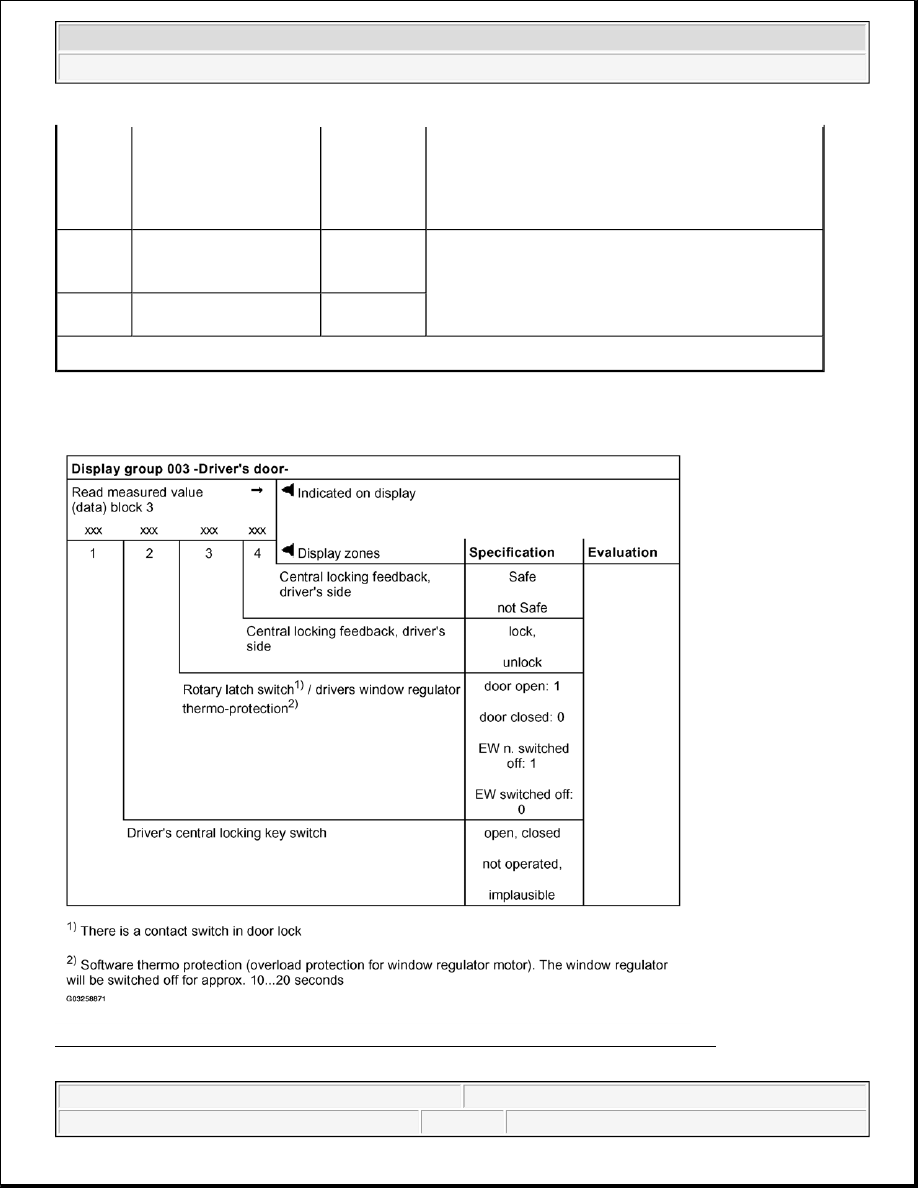

Fig. 71: Break Down Display Group 003 Chart - 2nd Generation Vehicles Up To 05.01
Courtesy of VOLKSWAGEN OF AMERICA, INC.

front passenger side

(1)

close,

man. open,

man. close,

not operated,

implausible

z

Perform functional check

z

Check DTC memory again

3

Driver's rear left

window regulator

switch

Not relevant

4

Driver's rear right
window regulator switch

Not relevant

(1)

Part of door operating unit



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Evaluating display group number 003

EVALUATING DISPLAY GROUP NUMBER 003 CHART - 2ND GENERATION VEHICLES UP TO
05.01


Break down of display content for display group number 003

Display
zone

Designation

Display

contents

Corrective action

1

Driver's central locking

key switch

open

closed

not operated

implausible

z

Visual check of wiring

z

Check lock mechanics

z

Check that connections of relevant current

circuit are correctly connected and install

tightly together while simultaneously

observing display

z

If the display does not change after checking

connections, correct malfunction or replace

relevant component

z

Erase DTC memory

z

Perform functional check

z

Check DTC memory again

2

Rotary latch switch

(1)

 /

drivers window regulator

thermo-protection

(2)

door open: 1

door closed: 0

EW n.

switched off:

EW switched

off:0

3

Central locking feedback

locked, driver's side

lock

unlock

4

Central locking feedback

"safe", driver's side

Safe

not Safe

(1)

There is a contact switch in door lock.

(2)

Software thermo protection (overload protection for window regulator motor). The window regulator
will be switched off for approx. 10-20 seconds.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
