DIAGNOSTIC TROUBLE CODE (DTC) - COMFORT SYSTEM (01362)

DIAGNOSTIC TROUBLE CODE (DTC) - COMFORT SYSTEM (01389)

DIAGNOSTIC TROUBLE CODE (DTC) - COMFORT SYSTEM (01483 & 01384)

(1)

is set when operated longer than 5 minutes

V.A.G 1551 printout

Possible cause

Corrective action

01362
Close switch for
tailgate/trunk lid -
F124-
Short to ground
(GND)

(1)

z

Wiring or connections

faulty

z

Lock mechanism

mechanics stiff or lock

cylinder stiff

z

Check wiring and connections referring to

Electrical Wiring Diagram

z

Check lock mechanism mechanics and

return to serviceable condition

z

Replace lock cylinder

z

Read measured value block, see

MEASURED VALUE (DATA) BLOCK,

READING (FUNCTION 08)

(1)

is set when operated longer than 5 minutes

V.A.G 1551 printout

Possible cause

Corrective action

01389
Open (unlock) switch
for tailgate/trunk lid -
F124-
Short to ground (GND)
Implausible signal

(1)

z

Wiring or connections

faulty

z

Lock mechanism

mechanics stiff or lock

cylinder stiff

z

Check wiring and connections referring

to Electrical Wiring Diagram

z

Check lock mechanism mechanics and

return to serviceable condition

z

Replace lock cylinder

z

Read measured value block, see

MEASURED VALUE (DATA)

BLOCK, READING (FUNCTION 08)

(1)

is set when operated longer than 5 minutes

V.A.G 1551
printout

Possible cause

Corrective action

01483
Activation of
tailgate remote
release
undefined
switching status

z

Wiring or connections

faulty

z

Check wiring and connections referring to

Electrical Wiring Diagram

01384
Locking key
button CL
Short to ground
(GND)

(1)

z

Wiring or connections

faulty

z

Lock mechanism

mechanics stiff or lock

cylinder stiff

z

Check wiring and connections referring to

Electrical Wiring Diagram

z

Check lock mechanism mechanics and return

to serviceable condition

z

Replace lock cylinder



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



DIAGNOSTIC TROUBLE CODE (DTC) - COMFORT SYSTEM (01385 & 65535)

OUTPUT DIAGNOSTIC TEST MODE (DTM) (FUNCTION 03)

The components displayed in the Output Diagnostic Test Mode (DTM) can differ depending upon the
equipment installed on the vehicle. For example on vehicles without ATA there will be no step "1" as listed in
the table below.

The Output Diagnostic Test Mode (DTM) activates the following components in the stated sequence. See
OUTPUT DIAGNOSTIC TEST MODE (DTM) - Function 03 (2nd Generation) and OUTPUT
DIAGNOSTIC TEST MODE (DTM) - Function 03 (3rd Generation)
 .

Comfort System (vehicles with power windows) 2nd generation

Output Diagnostic Test Mode (DTM) - Function 03 (2nd Generation)

z

Read measured value block, see

MEASURED VALUE (DATA) BLOCK,

READING (FUNCTION 08)

(1)

is set when operated longer than 5 minutes

V.A.G 1551
printout

Possible cause

Corrective action

01385
Unlocking key
button CL
Short to ground
(GND)

(1)

z

Wiring or connections

faulty

z

Lock mechanism

mechanics stiff or lock

cylinder stiff

z

Check wiring and connections referring to

Electrical Wiring Diagram

z

Check lock mechanism mechanics and return

to serviceable condition

z

Replace lock cylinder

z

Read measured value block, see MEASURED

VALUE (DATA) BLOCK, READING

(FUNCTION 08)

65535
Control unit
faulty

z

Wiring or connections

faulty

z

Control unit faulty

z

Check wiring and connections referring to

Electrical Wiring Diagram

z

Replace control unit

65535 No fault
detected

(2)

If "No fault recognized" appears after performing repairs, the On Board Diagnosis
(OBD) is terminated.

(1)

is set when operated longer than 5 minutes

(2)

for Comfort System (vehicles with power windows) 3rd generation

Step

Display in tester

Reaction



Alarm horn (for anti-theft alarm)

z

Horn sounds continuously



Turn signal lights activation (for anti-theft

alarm)

z

Activated continuously (lights up

continously)



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Comfort System (vehicles with power windows) 3rd generation

Output Diagnostic Test Mode (DTM) - Function 03 (3rd Generation)

Work sequence

z

Connecting V.A.G 1551 or VAS 5051, see SCAN TOOL, CONNECTING . Initiating On Board
Diagnosis (OBD), see ON BOARD DIAGNOSIS (OBD) FOR THE COMFORT SYSTEM
(VEHICLES WITH POWER WINDOWS), INITIATING
 .

Indicated on display:



Interior light, reading lights

z

Interior and reading lights are activated



Signal "Close" sunroof

z

Sliding roof closes

(1)



Central locking "Safe" warning lamp -K133-

z

"Safe" -LED lights up



Instrument illumination

z

Instrument illumination active

(2)



END

z

Information: End of regular final control test

(1)

When performing final control test the "signal close sliding sunroof", the ignition and S-terminal
must be inactive (no key in ignition/starter switch) and one of the front doors must be open.

(2)

Switch in operating unit.

Step

Display in tester

Reaction



Interior light, reading lights

z

Interior and reading lights are activated



Central locking "Safe" warning lamp -K133-

z

"Safe" -LED lights up



Instrument illumination

z

Instrument illumination active

(1)



Signal "Close" sunroof

z

Sliding roof closes

(2)



Turn signal lights activation (for anti-theft

alarm)

z

Activated continuously (lights up

continously)



Alarm horn (for anti-theft alarm)

z

Horn sounds continuously



END

z

Information: End of regular final control test

(1)

Switch in operating unit.

(2)

When performing final control test the "signal close sliding sunroof", the ignition and S terminal
must be inactive (no key in ignition/starter switch) and one of the front doors must be open.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

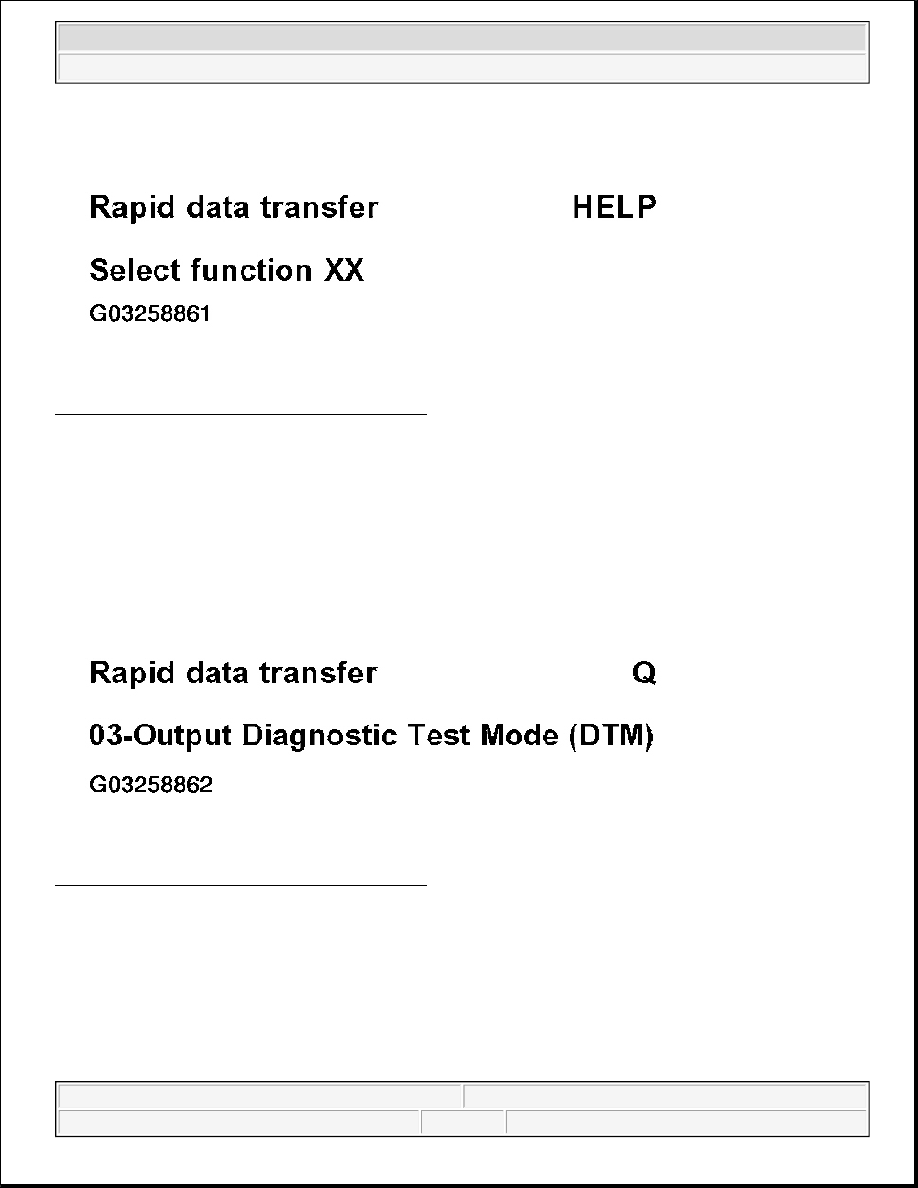

Fig. 61: Scan Tool Display - Function 03 (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Operate V.A.G 1551 or VAS 5051 taking into account the information on the display:

z

Input 03 for "Output Diagnostic Test Mode (DTM)" function.

z

Switch off ignition and remove ignition key from ignition lock.

Indicated on display:

Fig. 62: Scan Tool Display - Function 03 (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:
