Volkswagen New Beetle. Manual - part 296





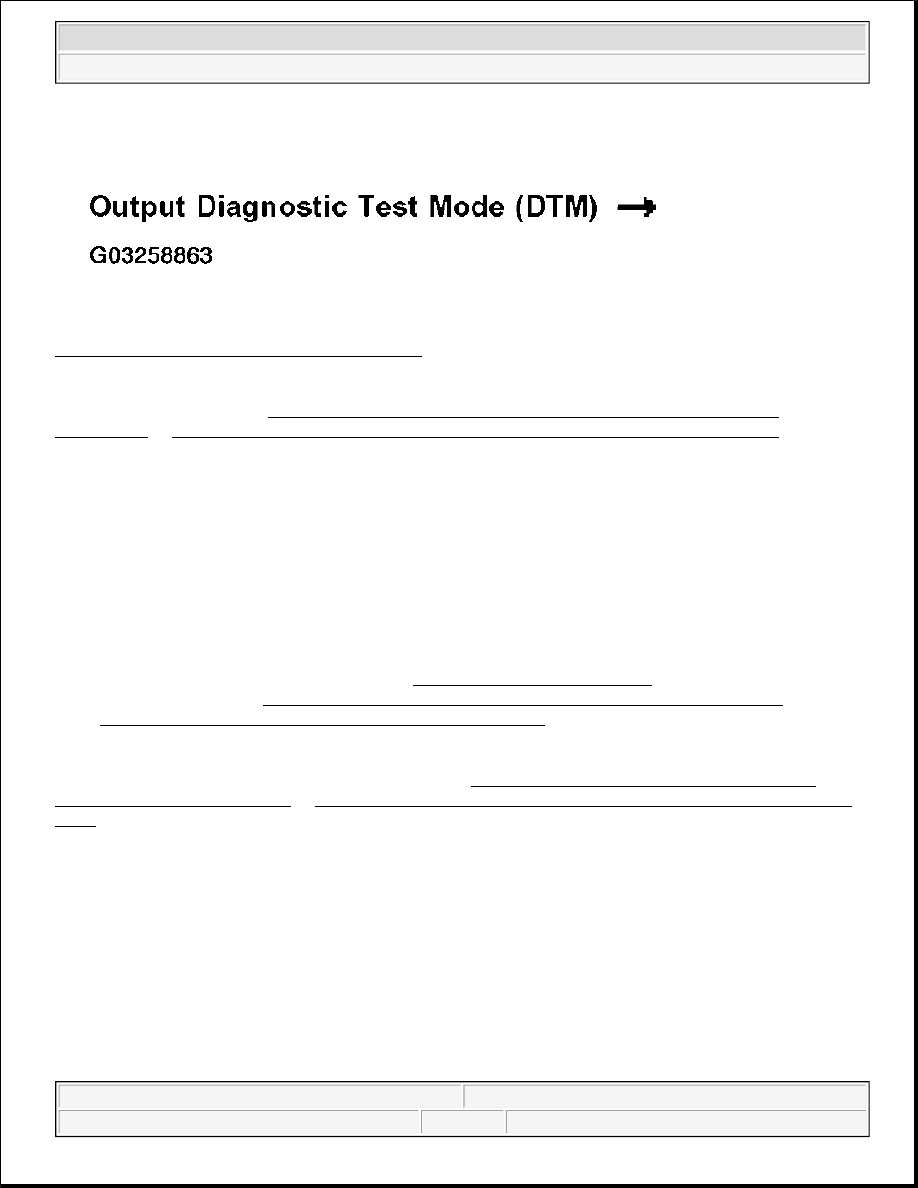

Fig. 63: Scan Tool Display- Function 03 (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Perform individual tests: See OUTPUT DIAGNOSTIC TEST MODE (DTM) - Function 03 (2nd
Generation)
 or OUTPUT DIAGNOSTIC TEST MODE (DTM) - Function 03 (3rd Generation) .

The Output Diagnostic Test Mode (DTM) can be aborted by pressing the -C- button.

z

Press --> button.

If a component does not function:

z

Continue Output Diagnostic Test Mode (DTM) to the end.

MEASURED VALUE (DATA) BLOCK, READING (FUNCTION 08)

z

Connecting V.A.G 1551 or VAS 5051, see SCAN TOOL, CONNECTING . Initiating On Board
Diagnosis (OBD), see ON BOARD DIAGNOSIS (OBD) FOR THE COMFORT SYSTEM
(VEHICLES WITH POWER WINDOWS), INITIATING
 .

The measured value block is divided into display group numbers. The assignment of the individual display
zones can be taken from the display group overview. See Display group overview Comfort System 2nd
generation vehicles up to 05.01
 or Display group overview Comfort System 3rd generation vehicles from
06.01
 .

Indicated on display:

NOTE:

Some of the display groups are only relevant for vehicles with the
corresponding equipment.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



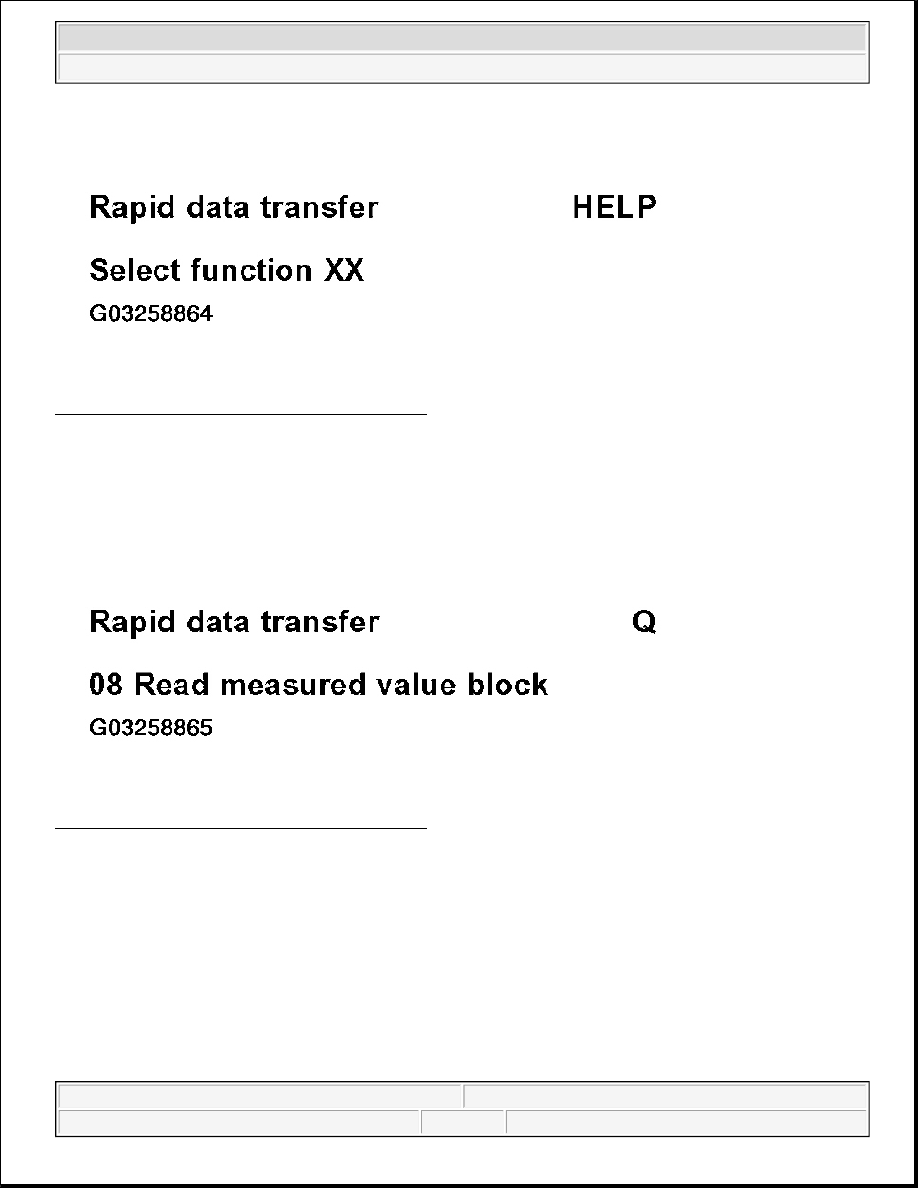

Fig. 64: Scan Tool Display - Function 08 (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -8- (08 initiates function "Read measured value block").

Indicated on display:

Fig. 65: Scan Tool Display - Function 08 (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



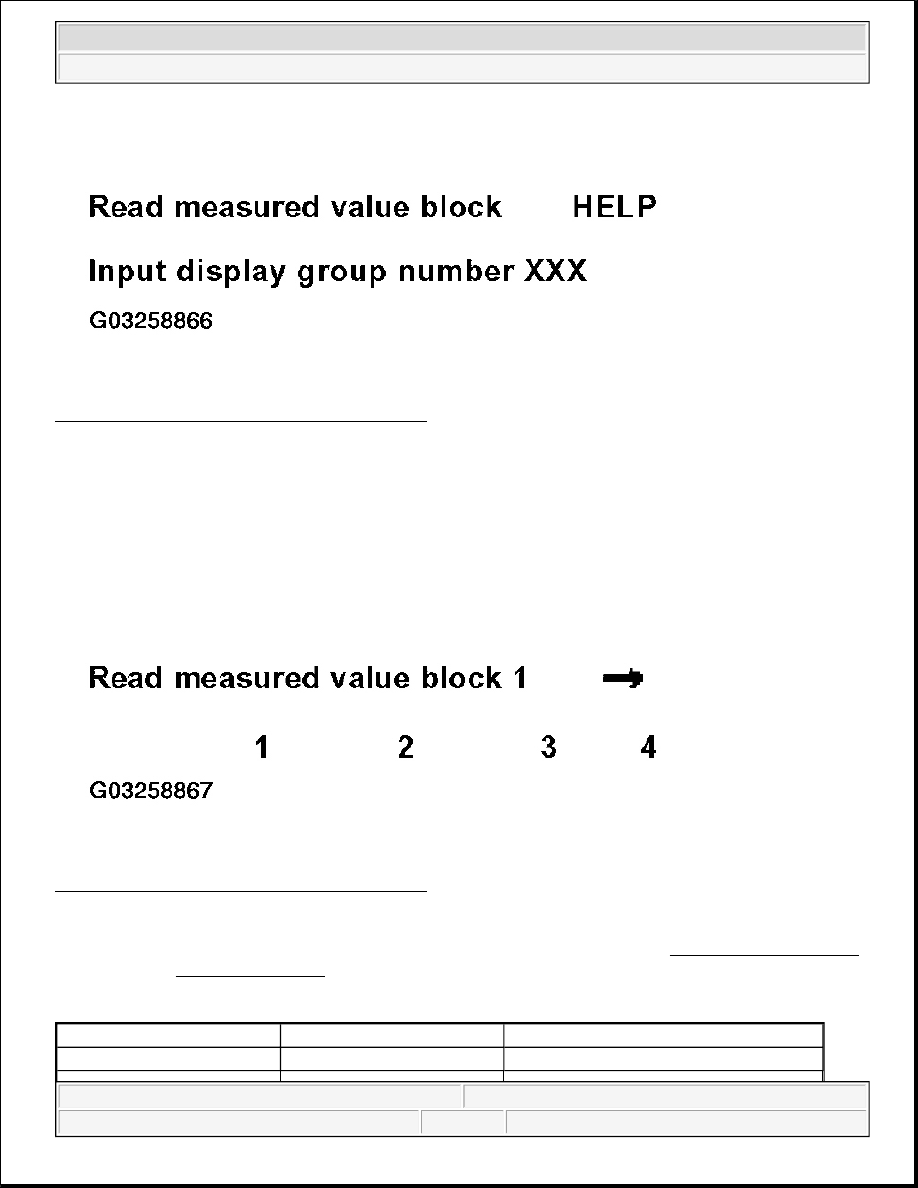

Fig. 66: Scan Tool Display - Function 08 (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -0- and -1- for "Display group number 1" and confirm entry with -Q- button.

Indicated on display: (1...4 = display zones)

Fig. 67: Scan Tool Display - Function 08 (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

SCAN TOOL DISPAY GROUP CHANGE

NOTE:

The display group number 001 is an example, to illustrate the sequence.

NOTE:

To change to another display group proceed as shown in SCAN TOOL DISPLAY
GROUP CHANGE .

Display group

V.A.G 1551

V.A.G 1552

Higher

Press button 3

Press "UARR" button



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



z

Displayed after pressing -C- button.

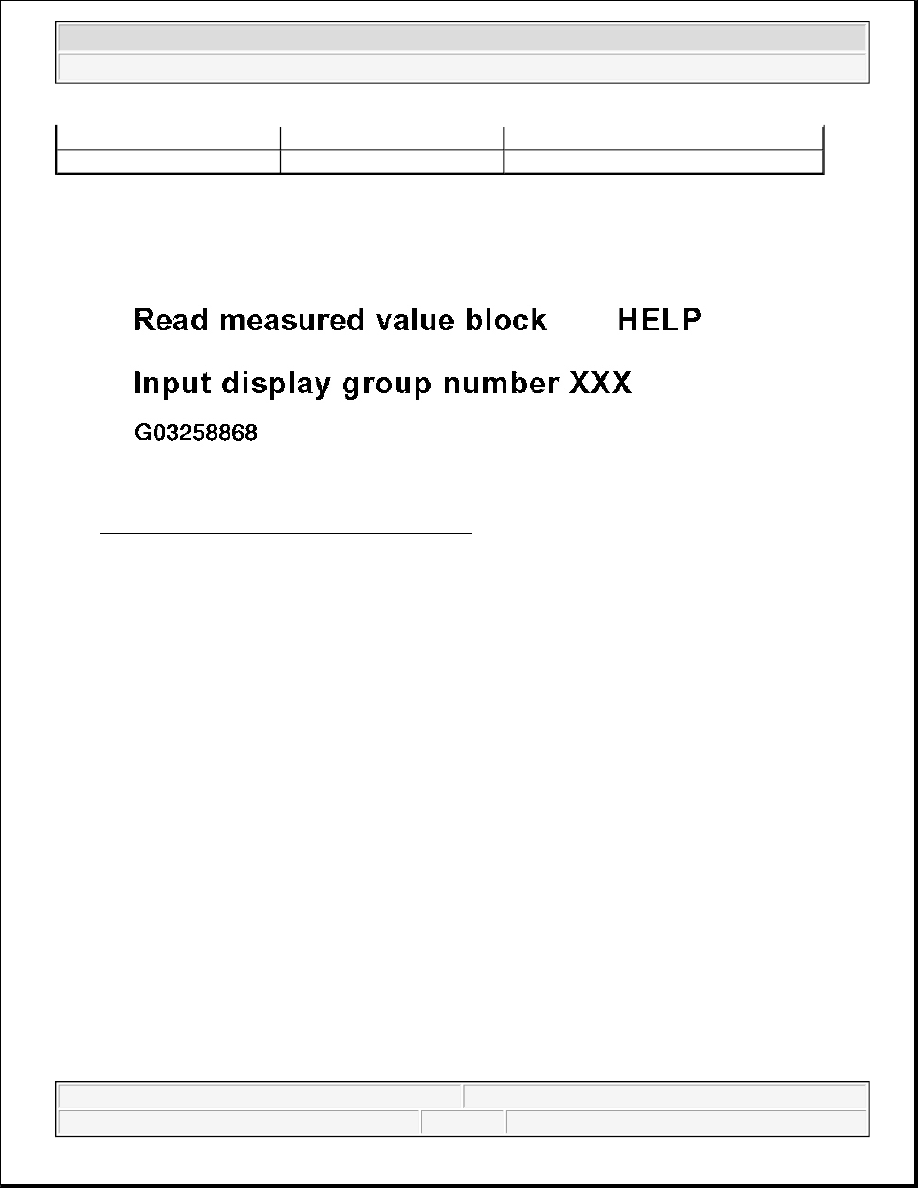

Fig. 68: Scan Tool Display - Function 08 (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Now enter the display group number required.

DISPLAY GROUP OVERVIEW COMFORT SYSTEM 2ND GENERATION VEHICLES UP TO 05.01

Break down of display content for display group number 001

Lower

Press button 1

Press "DARR" button

Skip

Press button C

Press button C



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
