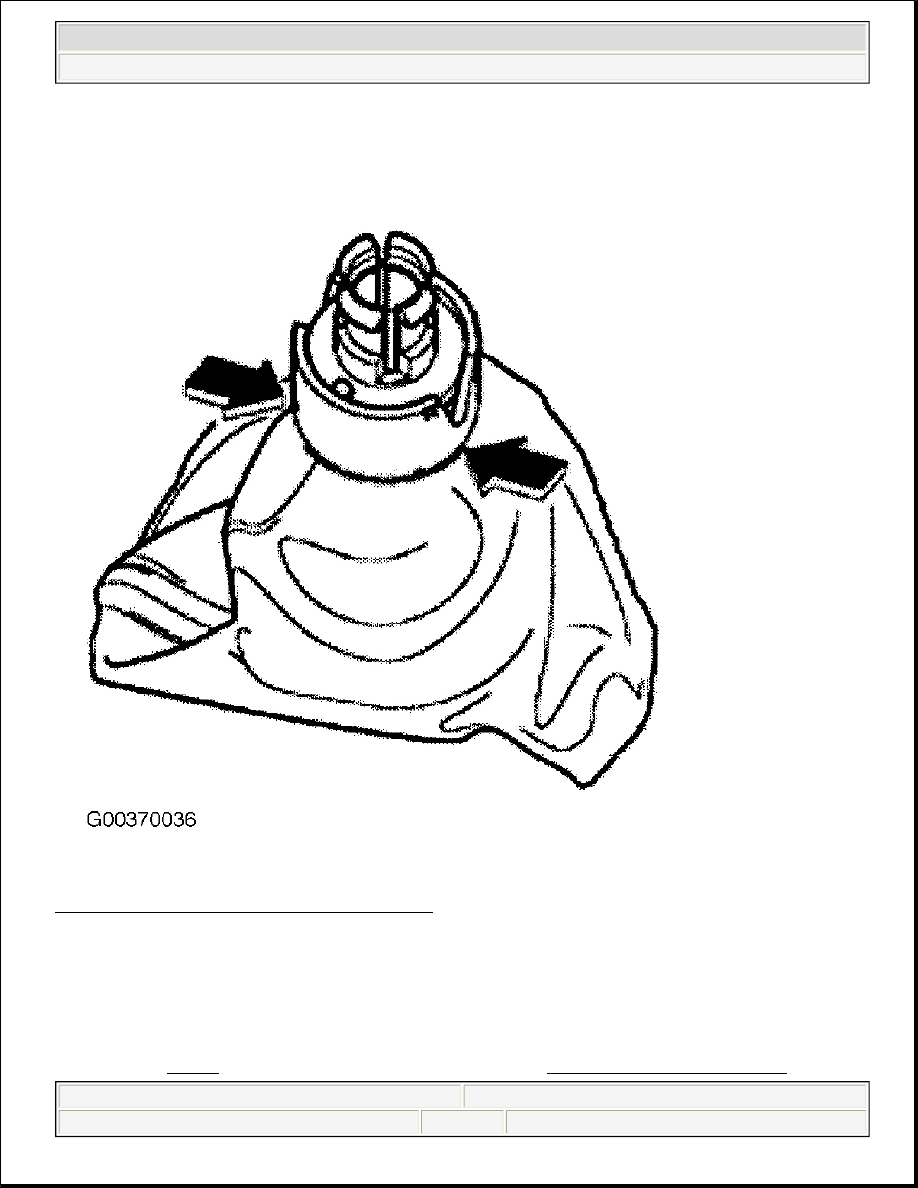

Fig. 25: Separating Cover From Gear Shift Knob
Courtesy of VOLKSWAGEN UNITED STATES, INC.

SELECTOR CABLES

Removal & Installation

Removal and installation information is not available from manufacturer. Use illustration as an aid for
procedure. See Fig. 26 . Tighten bolts and nuts to specification. See TORQUE SPECIFICATIONS .



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:28 AM

Page 28

© 2004 Mitchell Repair Information Company, LLC.

Install transmission selector lever (item 15) so master spline aligns with selector shaft. See Fig. 26 . Ensure
Transmission Selector Lever/Relay Lever is installed correctly. See Fig. 27 .

After installing, adjust gear selector mechanism. See SELECTOR MECHANISM under ADJUSTMENTS.

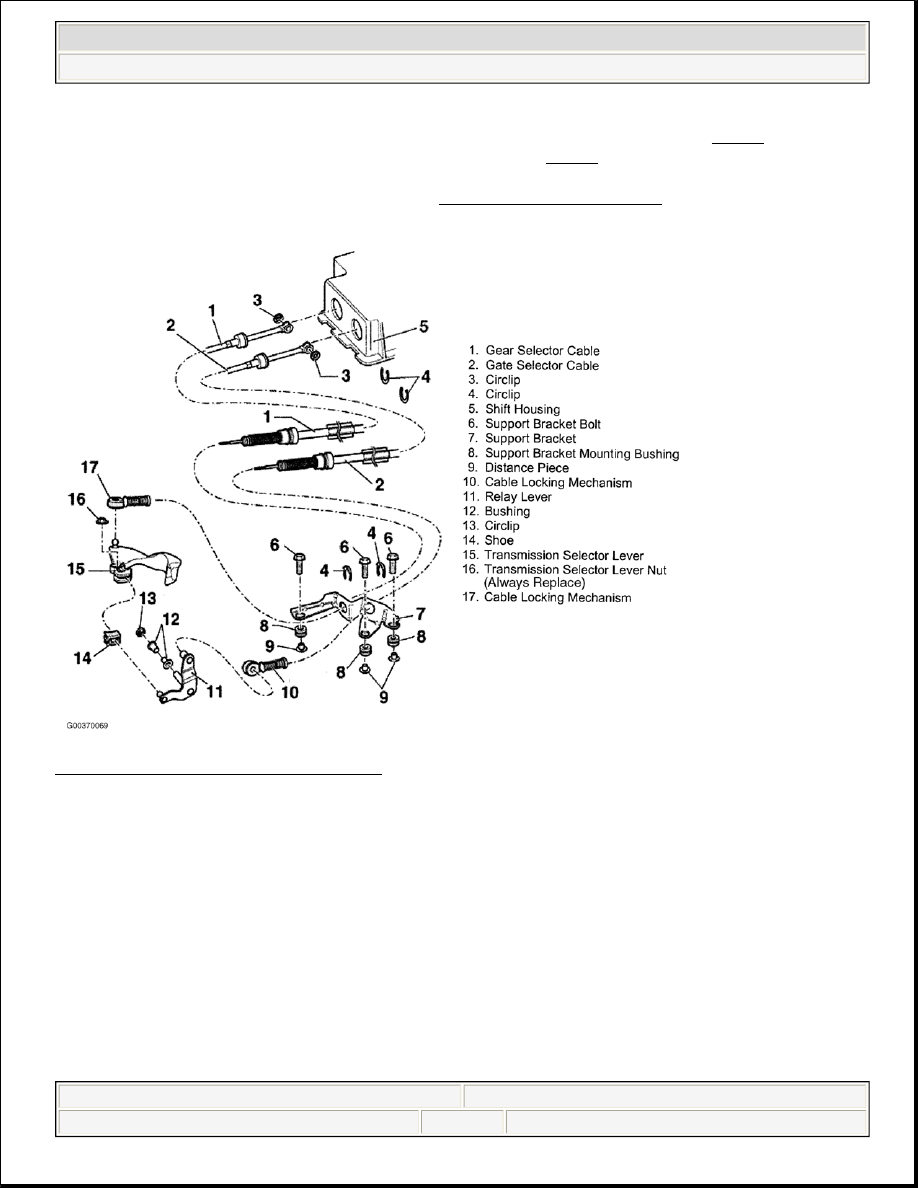

Fig. 26: Exploded View Of Selector Cables
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:28 AM

Page 29

© 2004 Mitchell Repair Information Company, LLC.

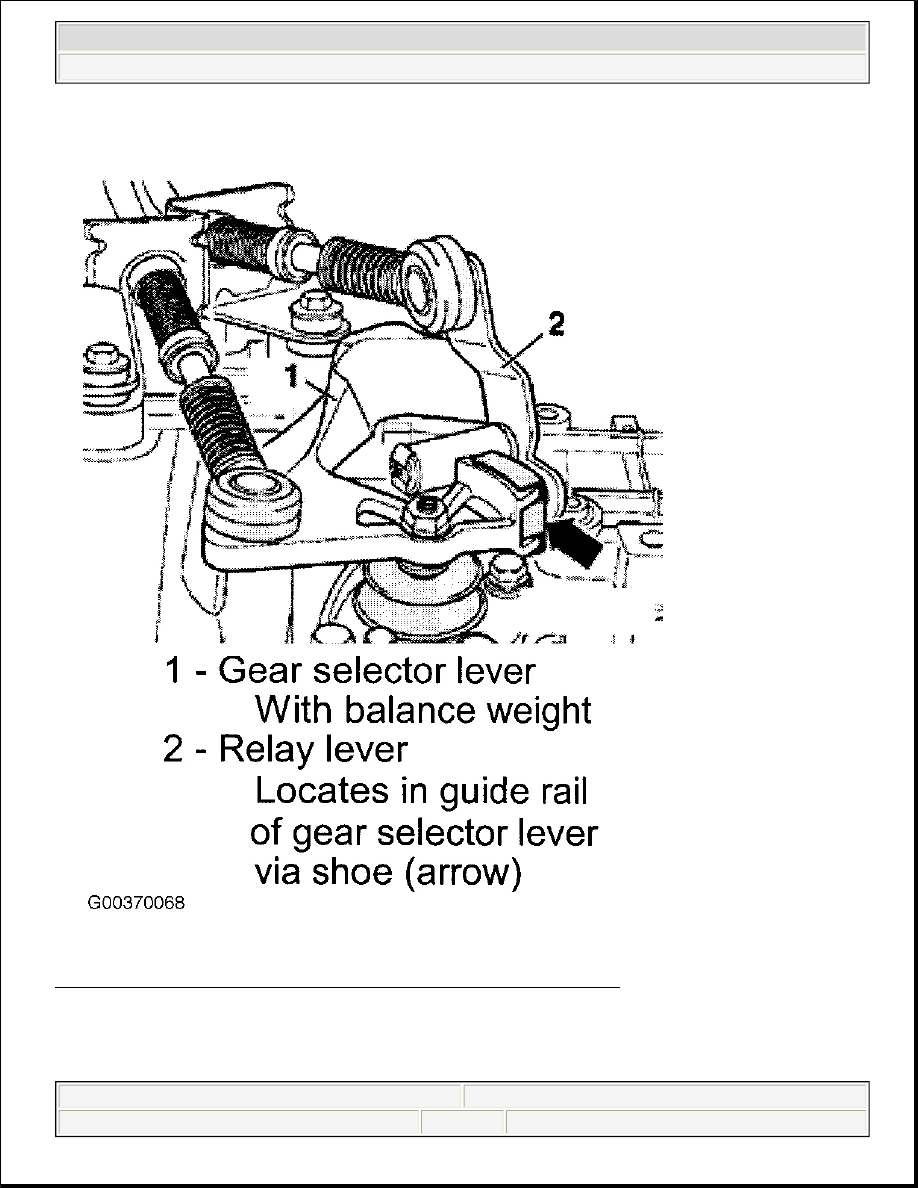

Fig. 27: Installation Position Of Transmission Selector Lever/Relay Lever
Courtesy of VOLKSWAGEN UNITED STATES, INC.

SELECTOR MECHANISM



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:28 AM

Page 30

© 2004 Mitchell Repair Information Company, LLC.

Removal & Installation

1. Remove securing clip (3) for gear selector cable, from gear selector lever (1). See Fig. 28 . Remove

securing clip (4) for gate selector cable from relay lever (2). Pry gate selector cable and gear selector
cable off pin (arrows).

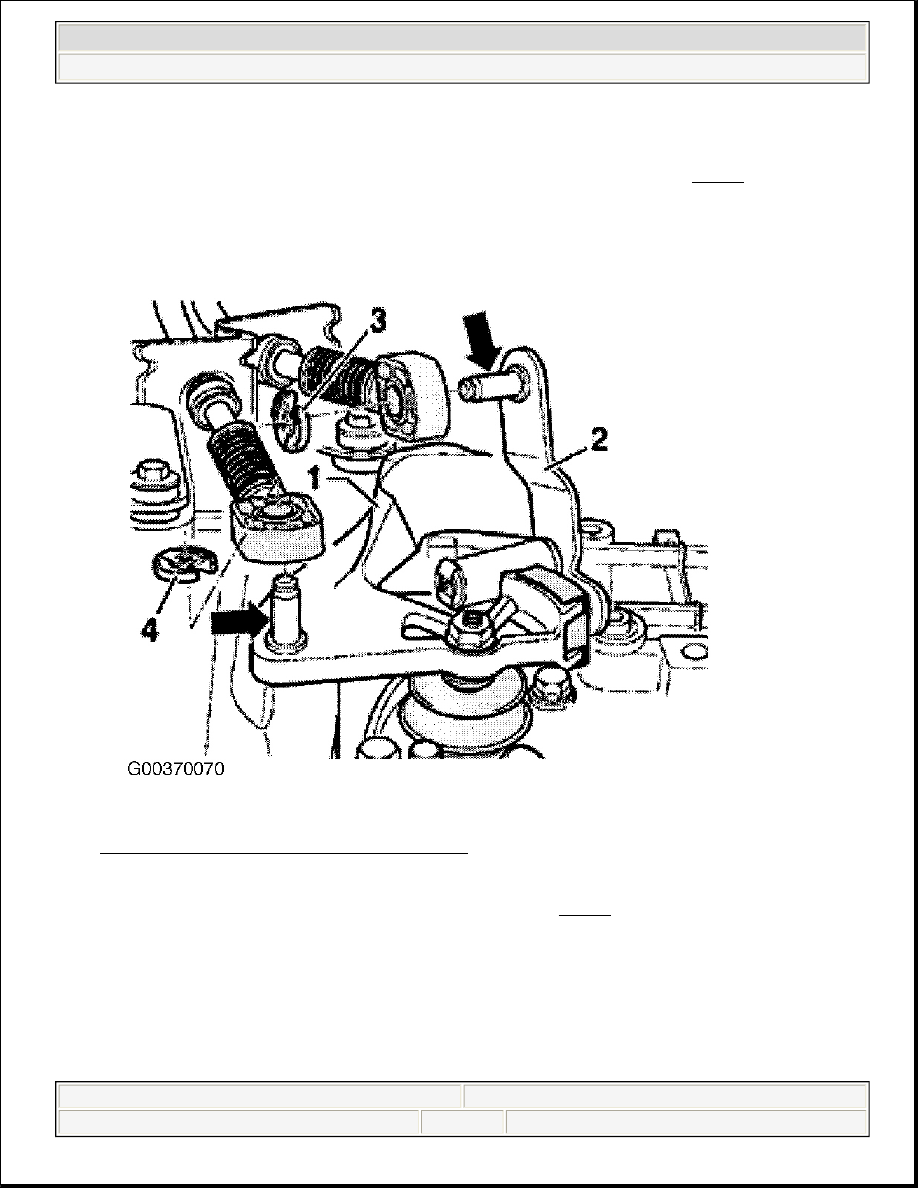

Fig. 28: Removing Gate & Gear Selector Cables
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2. Remove cable support bracket from transmission (arrows). See Fig. 29 . If necessary, unclip hose at cable

support bracket first.
