Volkswagen New Beetle. Manual - part 2570

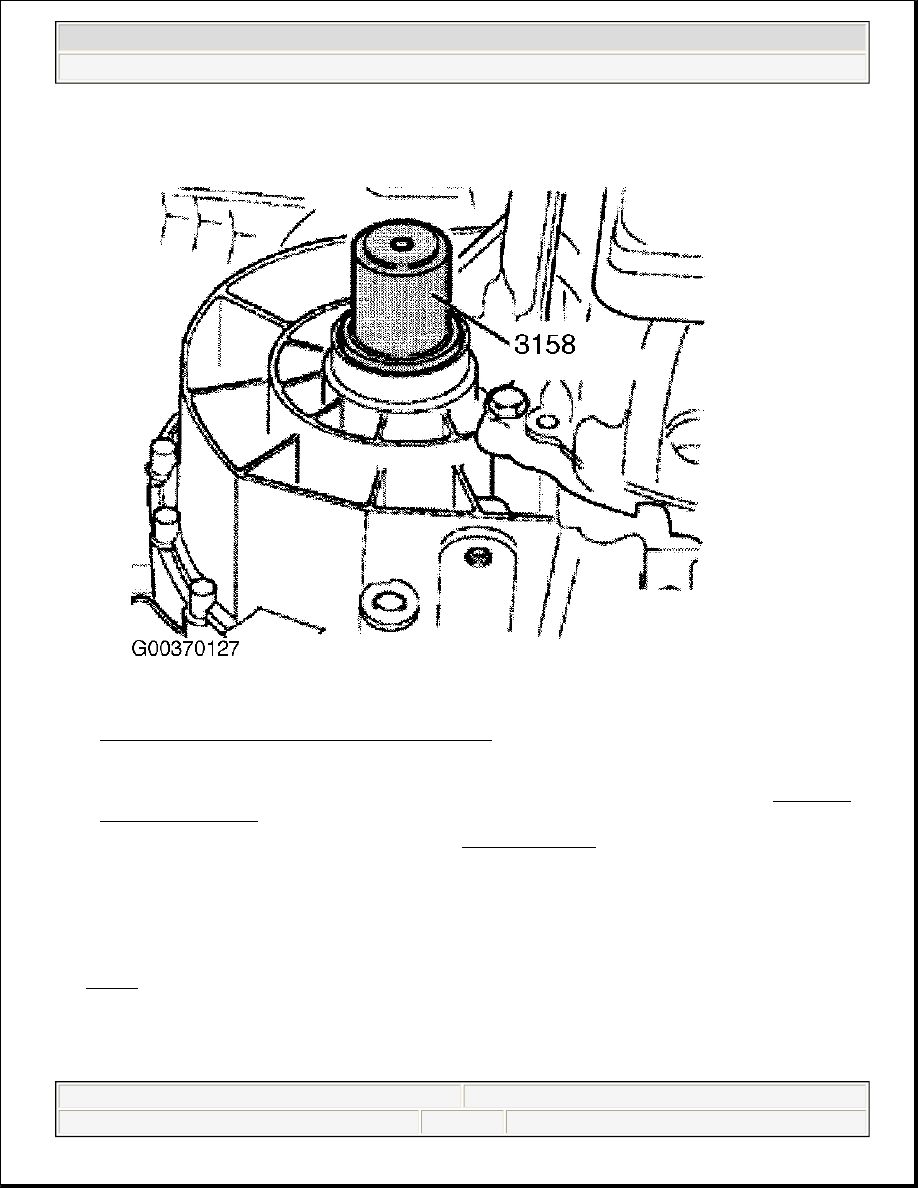

Fig. 18: Installing New Oil Seal (Right Flange Seal)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

5. Install drive axle shaft. Install NEW lower ball joint bolts. Tighten bolts to specification. See TORQUE

SPECIFICATIONS .

6. Check transmission oil. Top off as necessary. See LUBRICATION . Install sound insulation trays.

BACK-UP LIGHT SWITCH

Removal & Installation

Removal and installation procedure not available from manufacturer. Use illustration as an aid for procedure.
See Fig. 19 .



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:28 AM

Page 20

© 2004 Mitchell Repair Information Company, LLC.

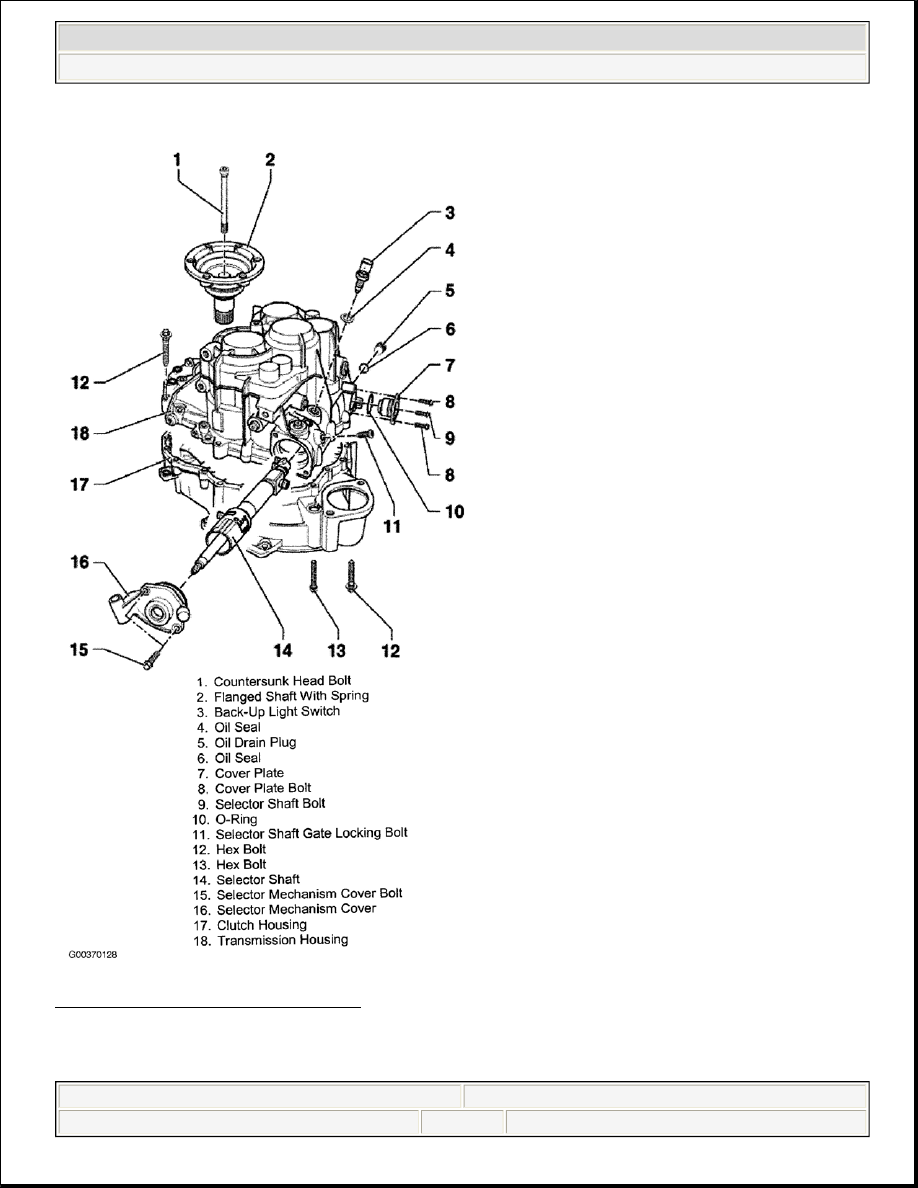

Fig. 19: Locating Back-Up Light Switch
Courtesy of VOLKSWAGEN UNITED STATES, INC.

GEAR SHIFT LEVER & HOUSING



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:28 AM

Page 21

© 2004 Mitchell Repair Information Company, LLC.

Removal & Installation

NOTE:

Removal and installation information is not available from manufacturer. Use
illustration as an aid for procedure. See Fig. 20 . Note the following points when
servicing.



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:28 AM

Page 22

© 2004 Mitchell Repair Information Company, LLC.

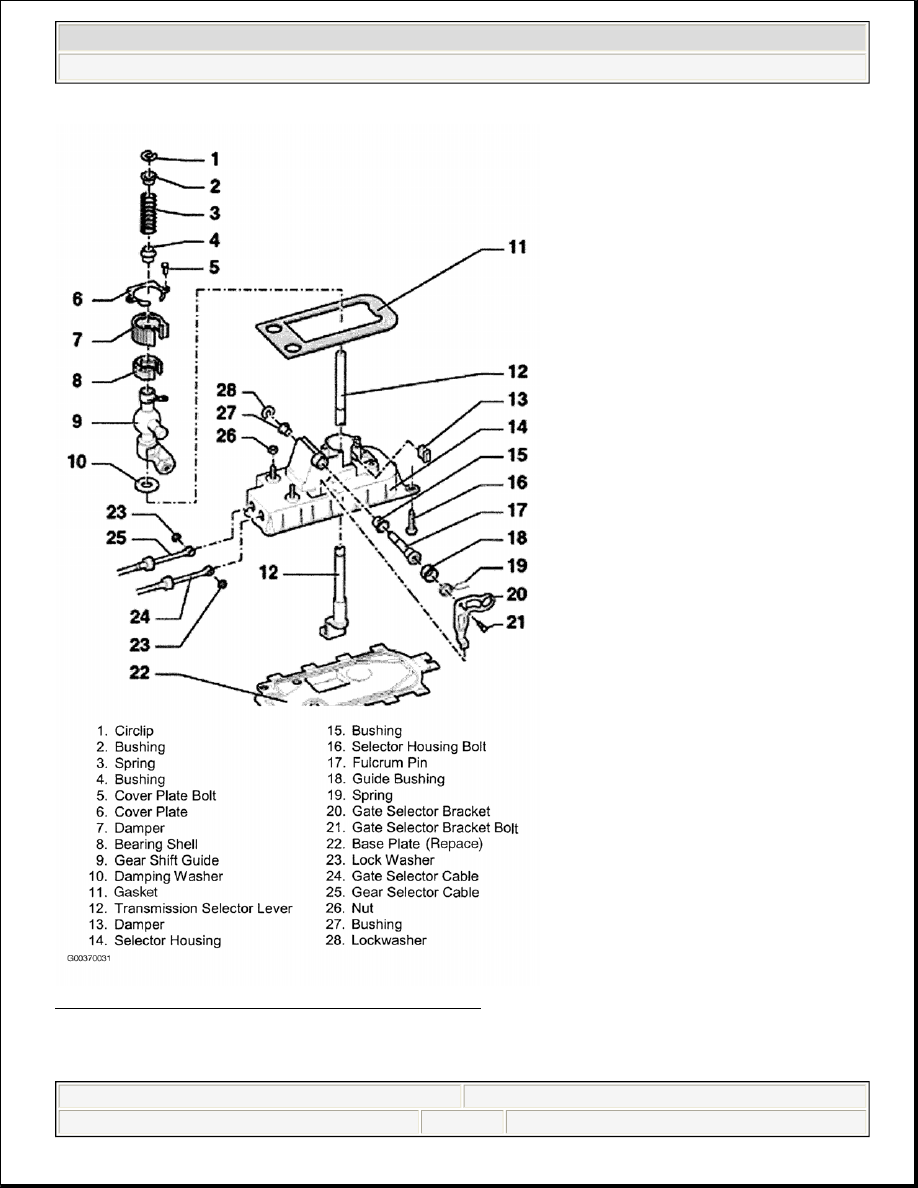

Fig. 20: Exploded View Of Gear Shift Lever & Housing
Courtesy of VOLKSWAGEN UNITED STATES, INC.

1. To remove and install circlip, use a screwdriver to pull gear lever in direction of arrow (A), while pushing



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:28 AM

Page 23

© 2004 Mitchell Repair Information Company, LLC.
