Volkswagen New Beetle. Manual - part 2568





into hole (B). See Fig. 10 .

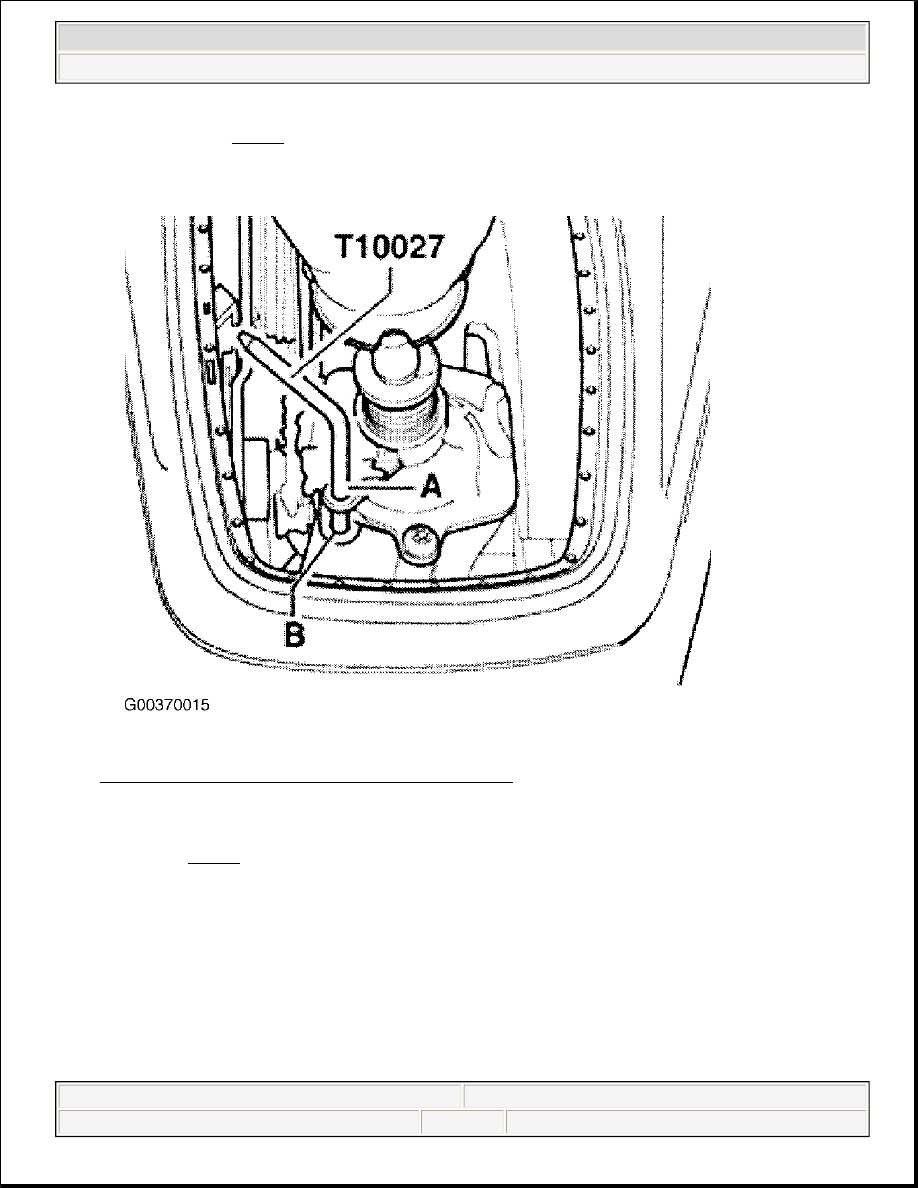

Fig. 10: Setting Gear Lever Using Guide pin (T10027)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

5. Turn locking mechanism on gear selector cable and gate selector cable to right onto stop (direction of

arrow). See Fig. 11 . Spring presses locking mechanism into normal position.



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:27 AM

Page 12

© 2004 Mitchell Repair Information Company, LLC.

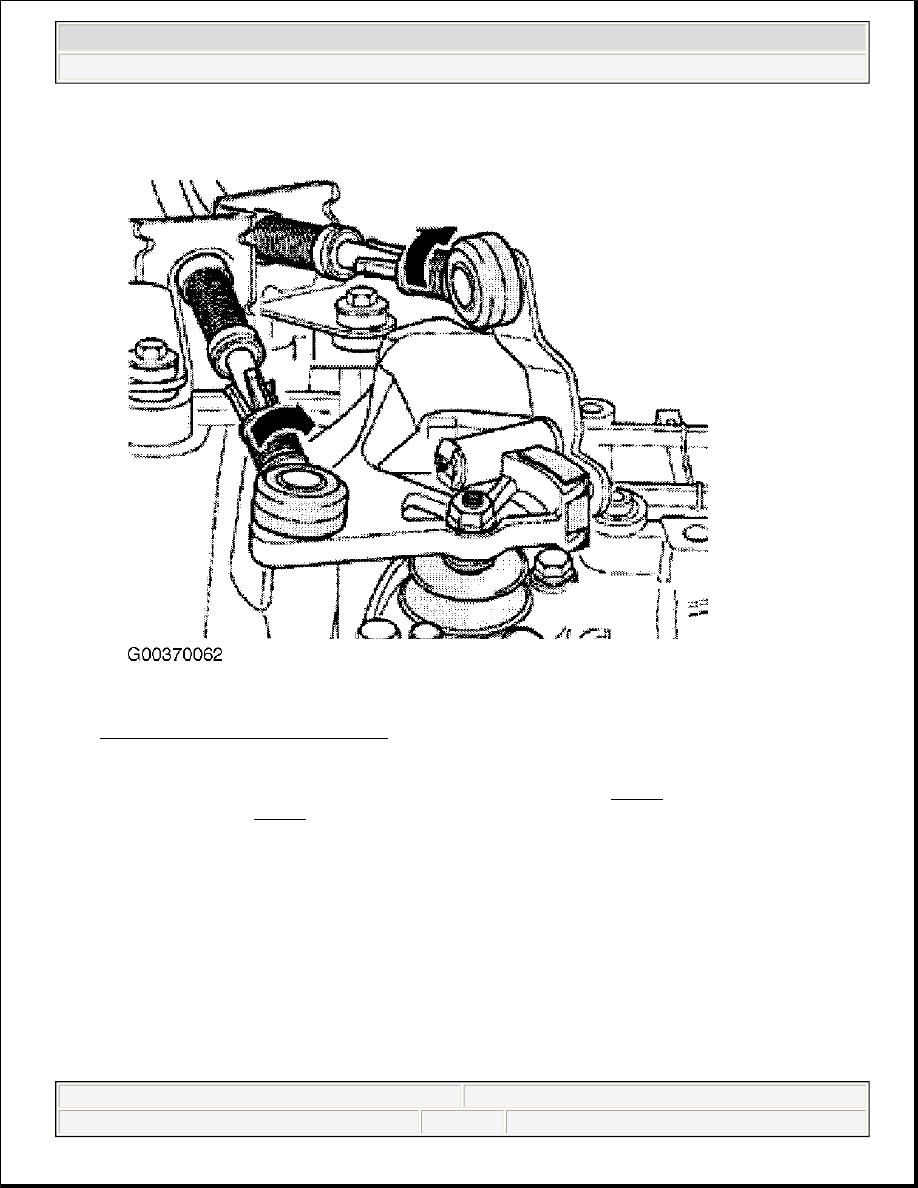

Fig. 11: Turning Locking Mechanism
Courtesy of VOLKSWAGEN UNITED STATES, INC.

6. Pull locking pin (A) back to original position (direction of arrow). See Fig. 12 . Pull pin (T10027) out of

holes (A and B). See Fig. 10 . Clip cover to frame.



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:27 AM

Page 13

© 2004 Mitchell Repair Information Company, LLC.

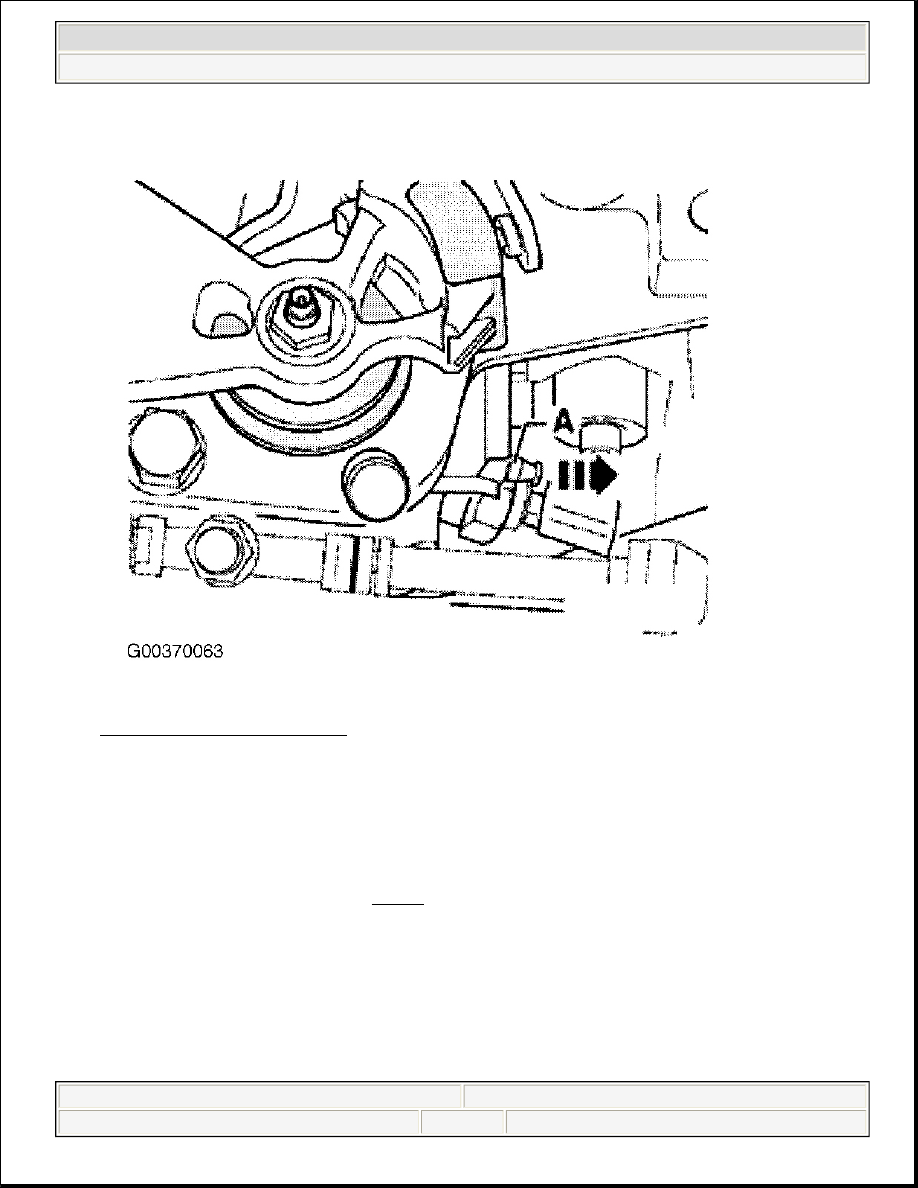

Fig. 12: Positioning Locking Pin
Courtesy of VOLKSWAGEN UNITED STATES, INC.

7.

Operate clutch. Select all gears several times. Pay particular attention to operation of reverse gear lock.
Should a gear fail to engage smoothly after repeated selection of 1st, 2nd, 5th or 6th gear, selector shaft
must move downward (arrow 1). See Fig. 13 . If shift mechanism is correctly adjusted, locking pin (A)
can now be pushed into transmission (direction of arrow). With aid from a second technician selector
shaft gate can be pushed into transmission. If not, repeat adjustment.

NOTE:

Gear shift lever must rest in 3rd/4th gear gate with transmission in Neutral.



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:27 AM

Page 14

© 2004 Mitchell Repair Information Company, LLC.

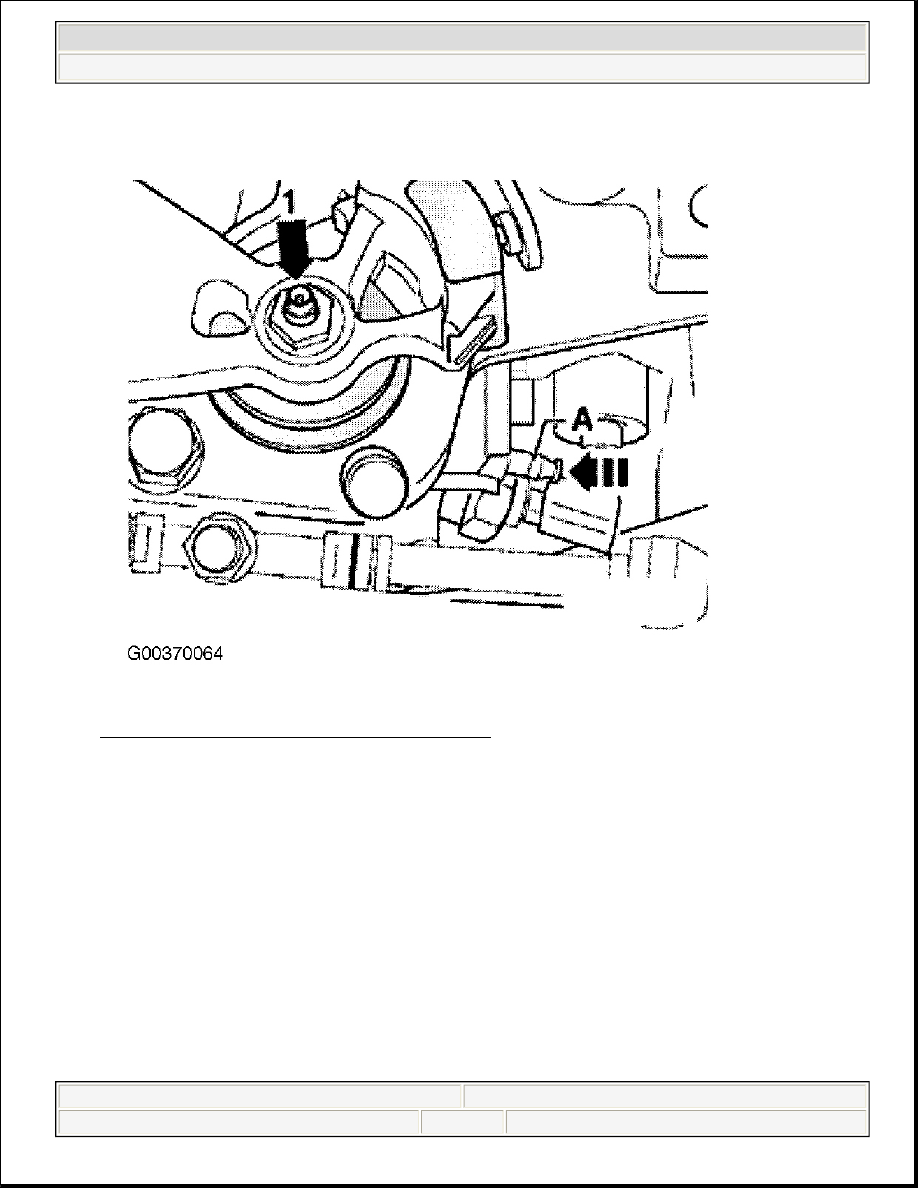

Fig. 13: Checking Selector Mechanism Adjustment
Courtesy of VOLKSWAGEN UNITED STATES, INC.

REMOVAL & INSTALLATION

AXLE SEALS

WARNING:

Vehicle is equipped with Supplemental Inflatable Restraint (SIR) system.
When servicing vehicle, use care to avoid accidental air bag deployment.
SIR system-related components are located in various locations
throughout interior and exterior of vehicle, depending on application. Do
not use electrical test equipment on or near these circuits. If necessary,
deactivate SIR system before servicing components. See appropriate AIR
BAG DEACTIVATION PROCEDURES article in GENERAL INFORMATION.

NOTE:

This procedure is performed with transmission installed.



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:28 AM

Page 15

© 2004 Mitchell Repair Information Company, LLC.
