Volkswagen New Beetle. Manual - part 2571





down spacer bushing onto stop, in direction of arrow (B). See Fig. 21 . DO NOT tilt spacer bushing when
pushing down.

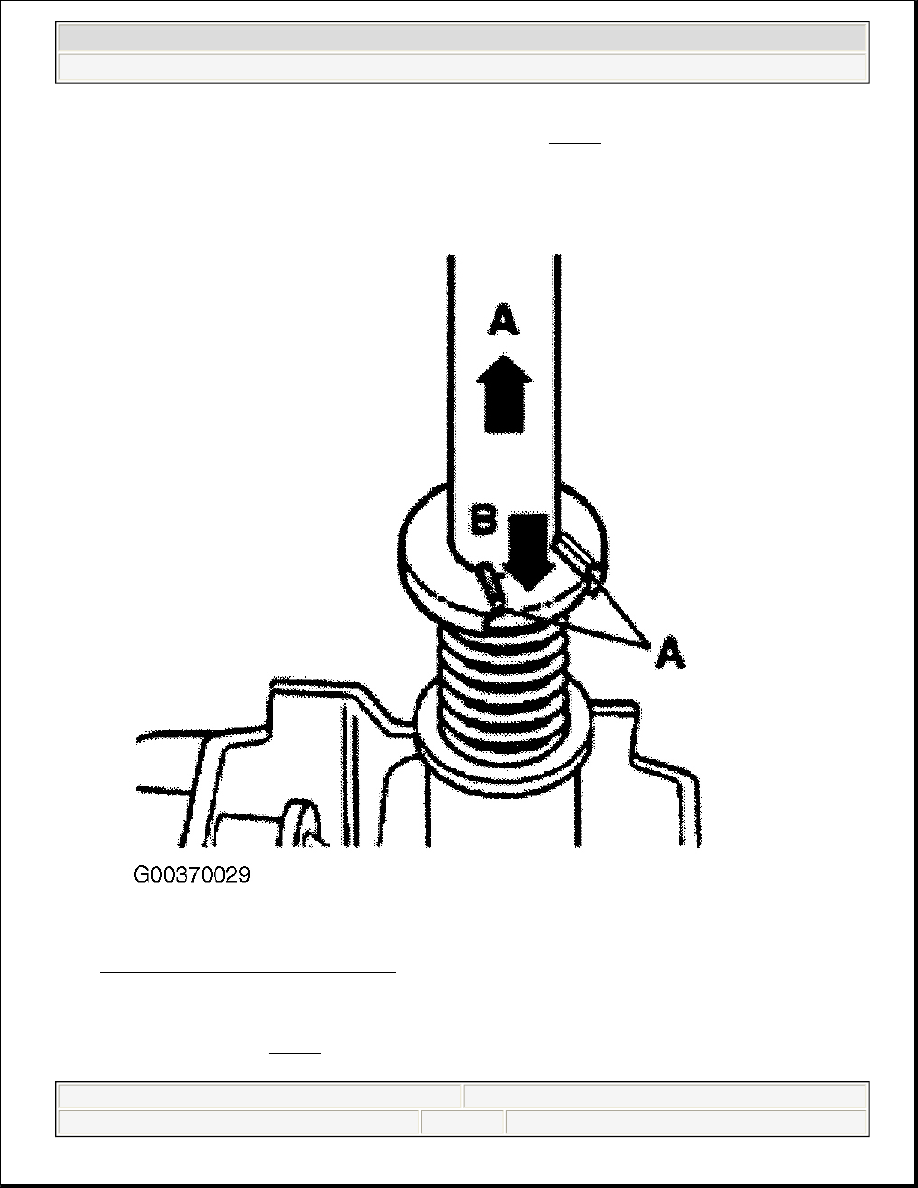

Fig. 21: Removing & Installing Circlip
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2. Carefully release pressure at groove in gear lever for circlip. Insert spring so spring extension (A) lies

above pin (arrow). See Fig. 22 .



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:28 AM

Page 24

© 2004 Mitchell Repair Information Company, LLC.

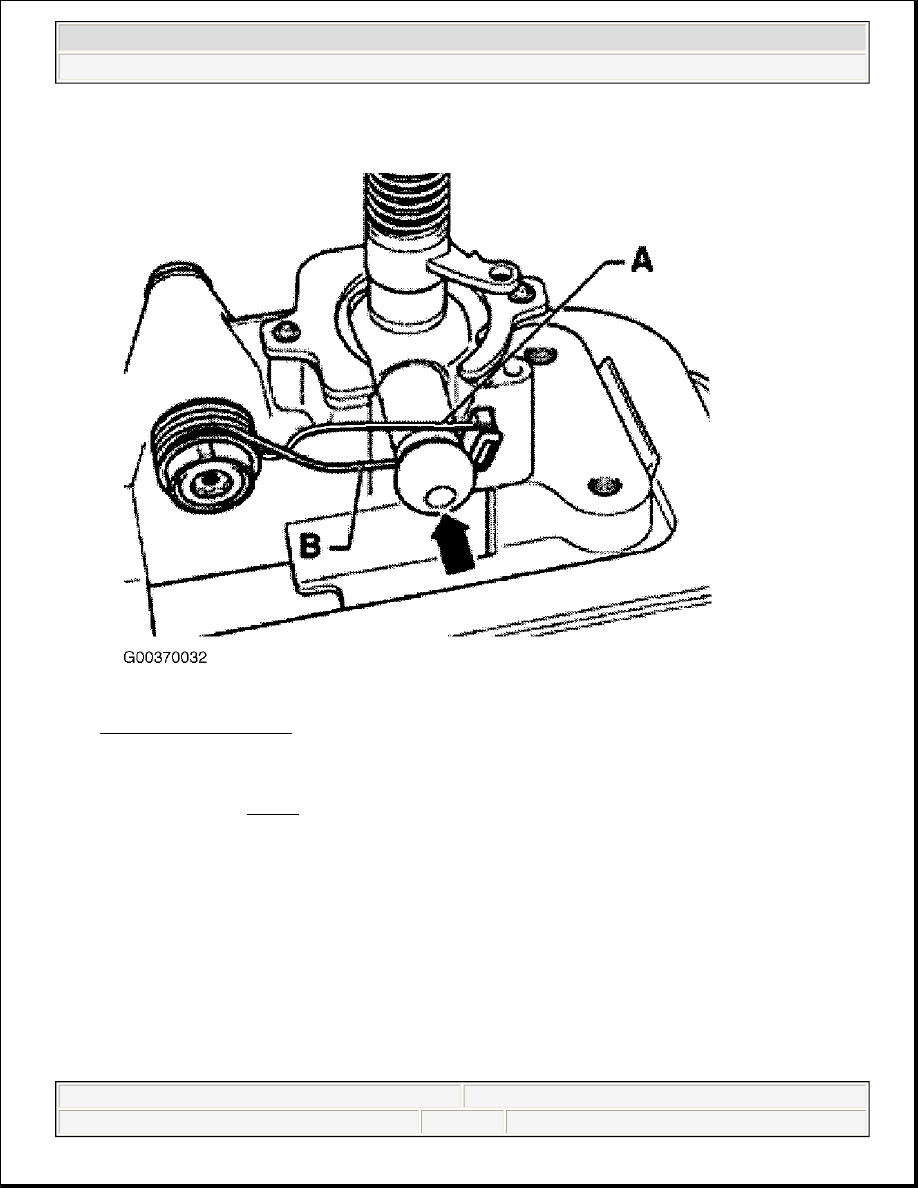

Fig. 22: Installing Spring
Courtesy of VOLKSWAGEN UNITED STATES, INC.

3. Pull spring extension (B) down so it reaches below pin (arrow). Install transmission selector lever/relay

lever as shown. See Fig. 23 . Relay lever (2) locates in guide rail of gear selector lever via shoe (arrow).
Lubricate all mountings and sliding surfaces with Polyurea grease (G 000 450 02). Tighten bolts and nuts.



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:28 AM

Page 25

© 2004 Mitchell Repair Information Company, LLC.

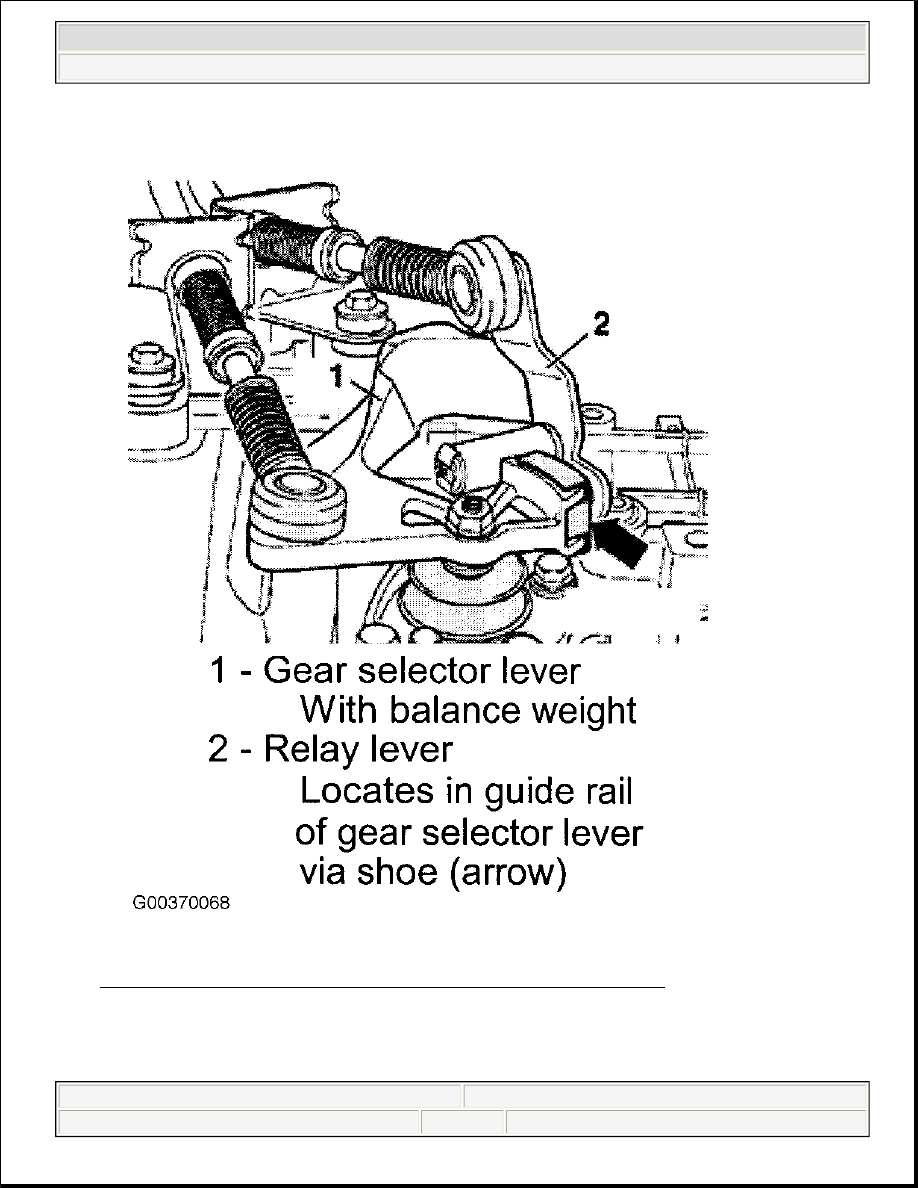

Fig. 23: Installation Position Of Transmission Selector Lever/Relay Lever
Courtesy of VOLKSWAGEN UNITED STATES, INC.

SELECTOR LEVER KNOB & BOOT



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:28 AM

Page 26

© 2004 Mitchell Repair Information Company, LLC.

Removal & Installation

Use illustration as an aid for procedure. See Fig. 24 . Turn boot inside out. Using a screwdriver, carefully pry
clamping sleeve (arrow). See Fig. 25 . Pull gear shift knob out. Insert gear shift knob in cover. Push clamping
sleeve onto gear shift knob, and engage. Install gear shift knob and boot together.

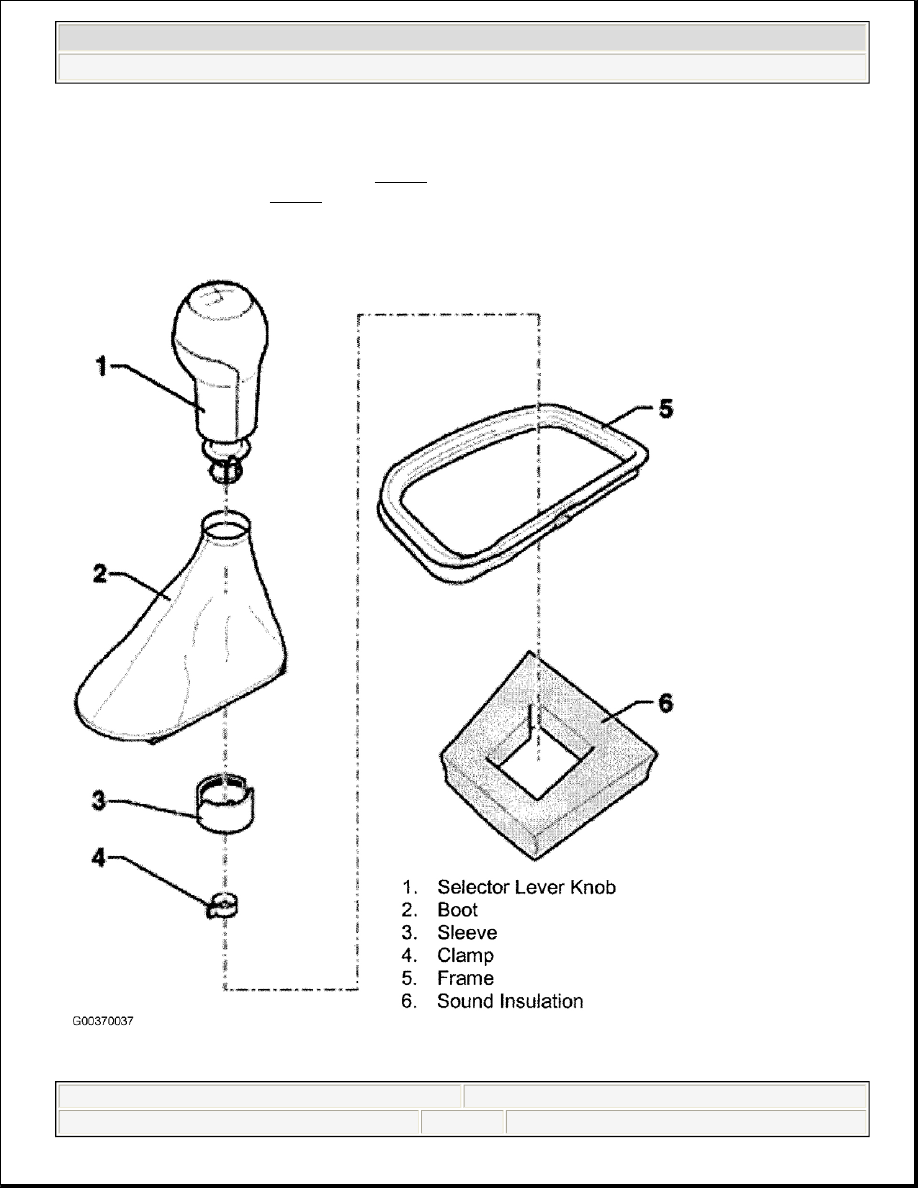

Fig. 24: Exploded View of Selector Lever Knob & Boot



2003 Volkswagen New Beetle GLS

2002-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:11:28 AM

Page 27

© 2004 Mitchell Repair Information Company, LLC.
