With introduction of the modified 1st gear synchronizer the shoulder has the same width on both sides of
synchro-hub.

The shoulder has a chamfer on one side (arrow B).

After assembly the shoulder of the synchro-hub and the outer splines of the locking collar (arrow A) face same
direction.

Recesses for locking pieces on synchro-hub and locking collar (arrow C) must align one over another.

Installation position of locking collar/synchro-hub 1st and 2nd gear

The locking collar splines (arrow) point to splines for 3rd/4th gear synchro-hub -A-.

z

Remove the 1st gear synchro-hub as described and install again.



2003 Volkswagen New Beetle GLS

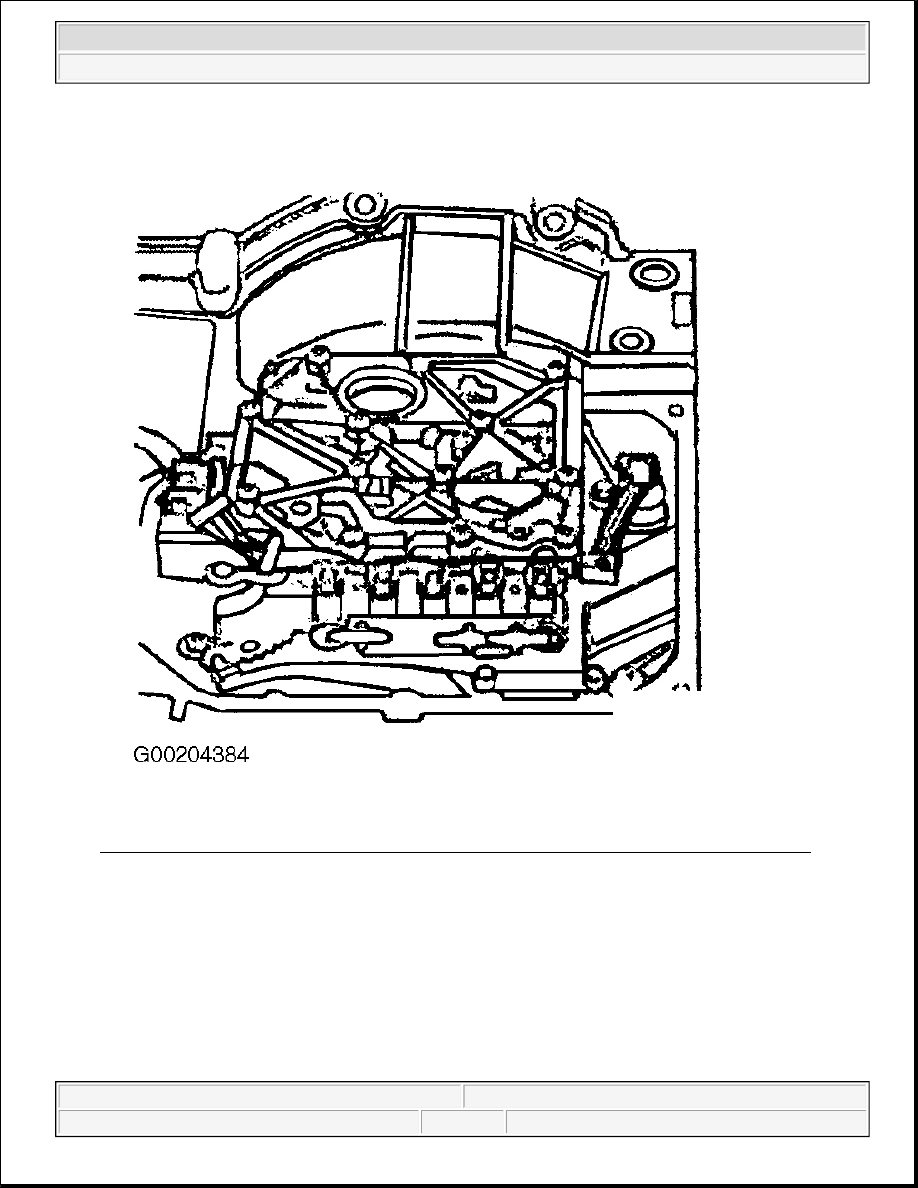

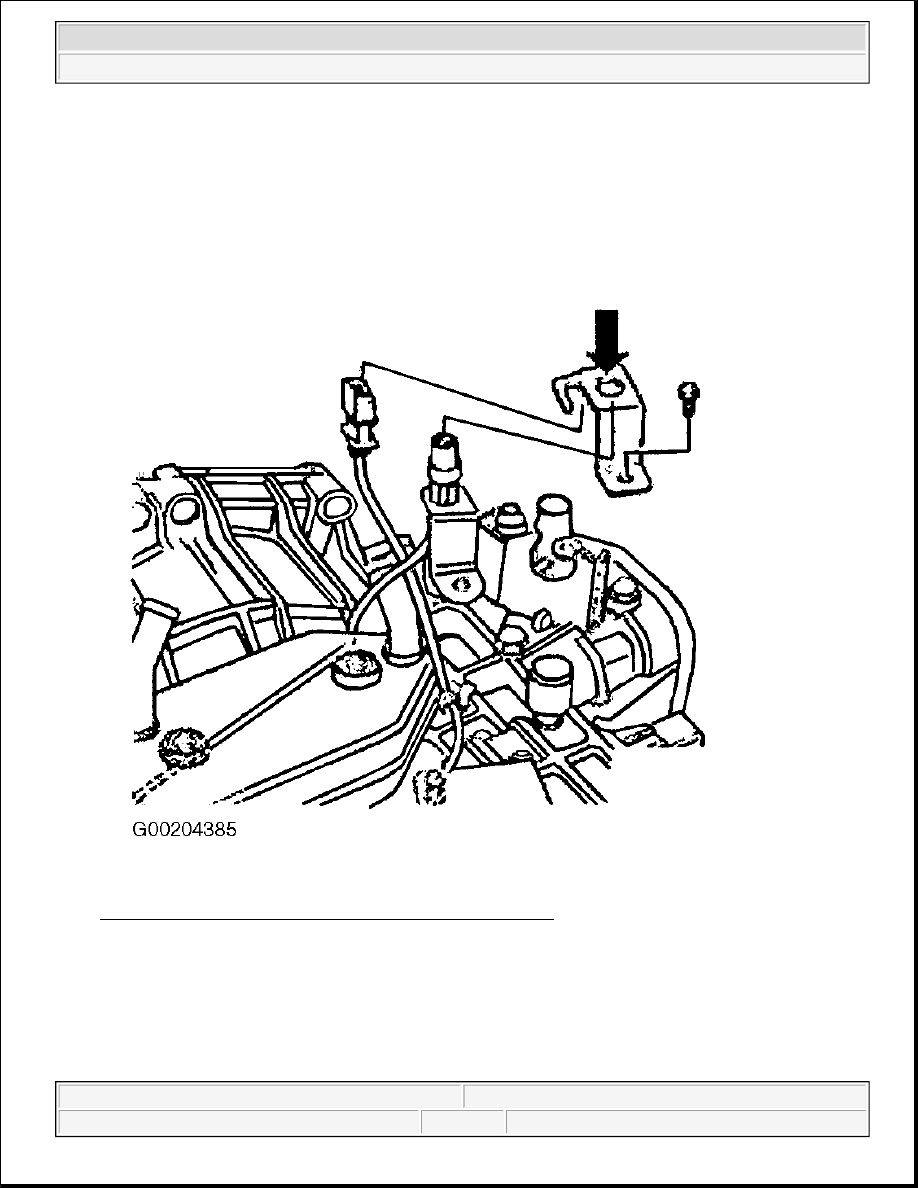

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 142: Identifying Installation Position Of Locking Collar/Synchro-Hub 1st And 2nd Gear
Courtesy of VOLKSWAGEN OF AMERICA, INC.

OUTPUT SHAFT, ADJUSTING

(Determining shim for output shaft)

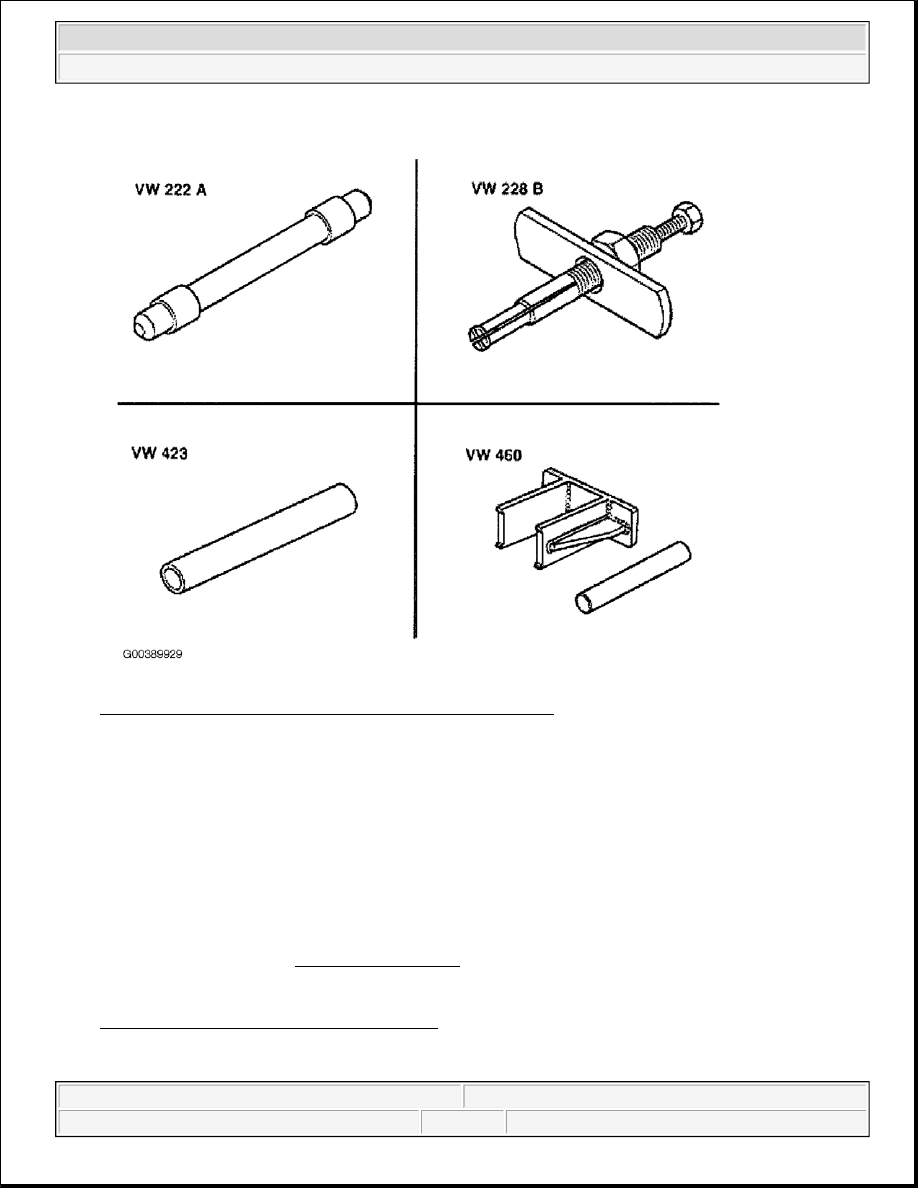

Special tools and equipment

z

VW 387 Universal dial gauge bracket

z

VW 385/17 End measuring plate



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



z

VW512 Press disk3114/2 Straightening tool

z

VW 407 Press tool

z

V.A.G1331 Torque wrench

z

Measuring dial gauge

Fig. 143: Identifying Special Tools And Equipment (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

1 - Kukko 21/6 Internal extractor

z

4 - Kukko 22/2 Retainer



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 144: Identifying Special Tools And Equipment (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

It is necessary to readjust the output shaft when the following components are replaced:

z

Final drive

z

Clutch housing

or

z

Tapered roller bearing

Adjustment overview. See Adjustment overview

z

Press small tapered roller bearing outer race together with a 0.65 mm thick shim into clutch housing. See
Output shaft, disassembling and assembling .

z

Insert output shaft and tighten nuts for bearing support to 25 N.m, then turn 90°.

z

Mount dial gauge (3 mm measuring range) and set to "0" with 1 mm preload.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle
