Volkswagen New Beetle. Manual - part 2536





Fig. 145: Mounting Dial Gauge With 1 mm Preload
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



z

Move output shaft up and down and note dial gauge reading (example: 0.30 mm).

Determining thickness of shim

The specified bearing preload is obtained by adding a constant preload figure of (0.20 mm) to the reading
obtained (0.30 mm) and the thickness of the shim installed (0.65 mm).

Example:

DETERMINING THICKNESS OF SHIM (EXAMPLE)

z

Remove output shaft and pull out small tapered roller bearing outer race. See Output shaft,
disassembling and assembling


The following adjustment shims are available:

SHIM THICKNESS SPECIFICATION (OUTPUT SHAFT)

Varying tolerances make it possible to obtain the exact shim thickness required.

z

Press in small tapered roller bearing outer race together with correct shim (See Output shaft,
disassembling and assembling

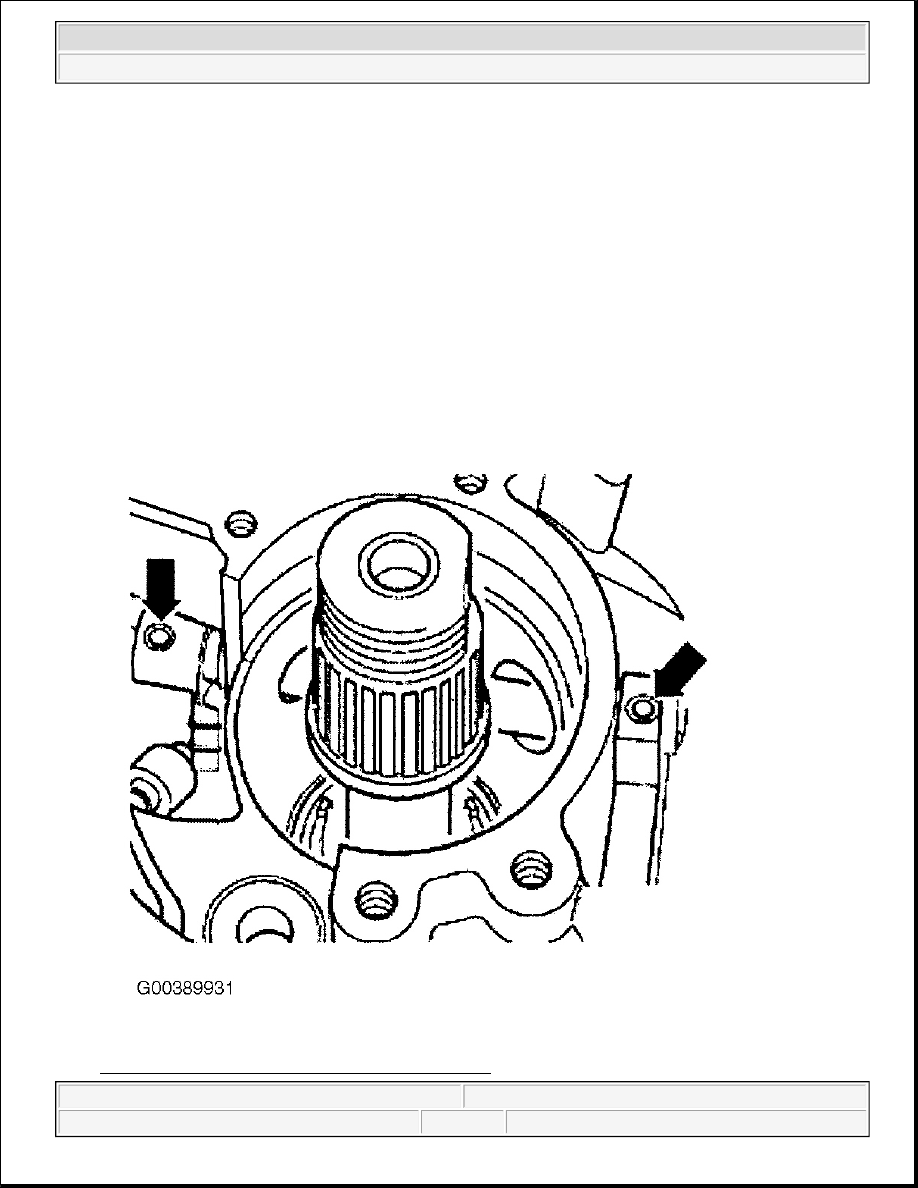

 ) and install output shaft. Tighten bearing support nuts in clutch housing

Shim installed

0.65 mm

+ Reading

0.30 mm

+ Preload (constant)

0.20 mm

Thickness of shim

1.15 mm

Size (mm)

Part No.

0.65

020 311 391 P

0.70

020 311 391 Q

0.75

020 311 391

0.80

020 311 391 A

0.85

020 311 391 B

0.90

020 311 391 C

0.95

020 311 391 D

1.00

020 311 391 E

1.05

020 311 391 F

1.10

020 311 391 G

1.15

020 311 391 H

1.20

020 311 391 J

1.25

020 311 391 K

1.30

020 311 391 L

1.35

020 311 391 M

1.40

020 311 391 N



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



to 25 N.m an additional 1/4 turn 90°.

REVERSE SHAFT, DISASSEMBLING AND ASSEMBLING

Special tools and equipment

z

VW 454 Press piece

z

VW 447 H Press plate

z

VW 411 Press tool

z

12-551 Centering mandrel

z

VW 401 Press plate

z

VW 408 A Press tool

Fig. 146: Identifying Special Tools And Equipment



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

1. Clutch housing

2. Needle roller bearing

z

Pulling out. See Pulling needle roller bearing out of clutch housing

z

Pressing in. See Pressing needle roller bearing into clutch housing

3. Reverse gear wheel

4. Circlip

z

Always replace

5. Reverse sliding gear wheel

z

Before replacing remove circlip

z

Shoulder faces to reverse gear wheel

6. Reverse shaft

z

Removing. See Assembly sequence

7. Needle roller bearing

z

Pressing out. See Pressing needle roller bearing out of reverse shaft support

z

Pressing in. See Pressing needle roller bearing into reverse shaft support

8. Reverse shaft support

z

Removing and installing. See Assembly sequence

NOTE:

After disassembling, always replace needle roller bearing in clutch housing and
reverse shaft support.

NOTE:

The following list refers to items in Fig. 147 .



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle
