Volkswagen New Beetle. Manual - part 2484





Fig. 163: Identifying Special Tools And Equipment (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

VW 408 A Press tool

z

VW 473 Thrust piece

z

30-205 Thrust plate

z

3144 Sleeve

z

2007 Thrust pad



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



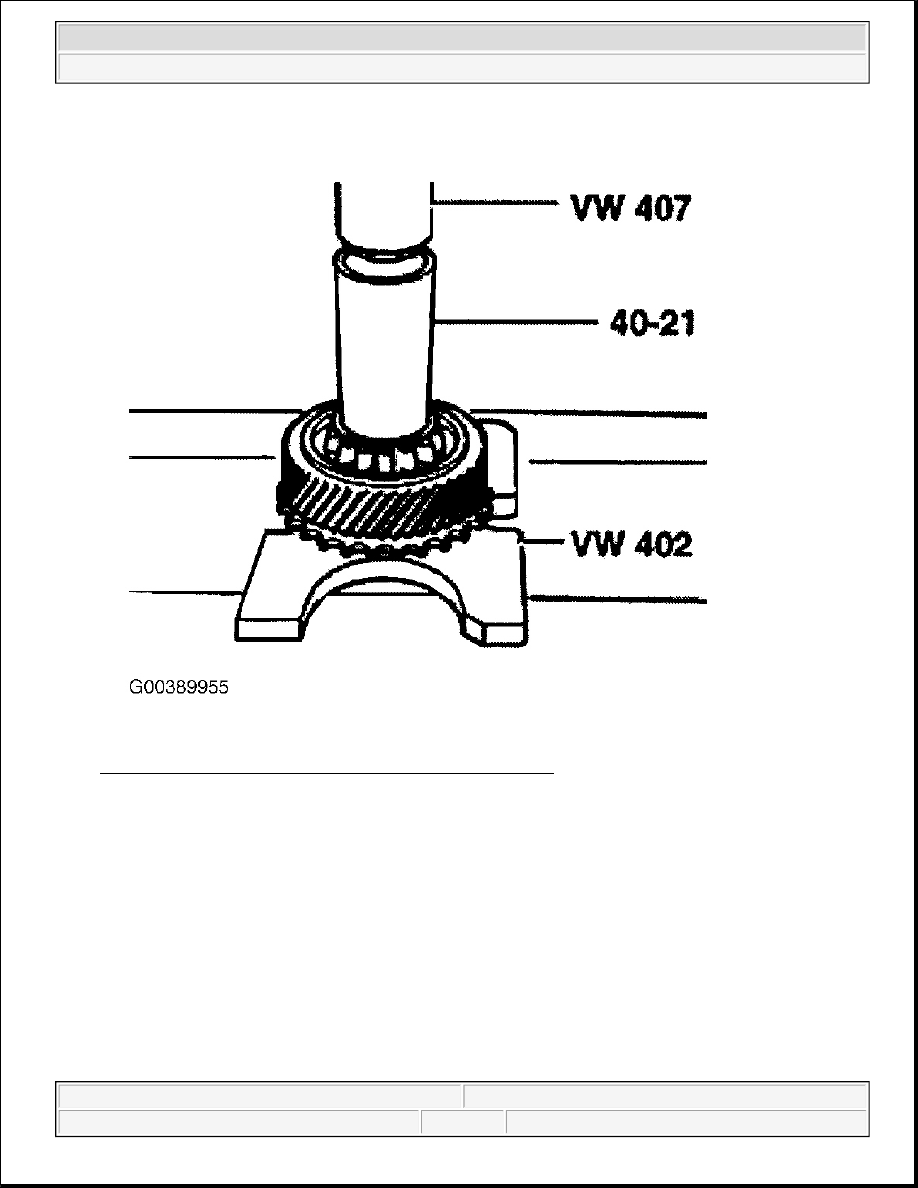

Fig. 164: Identifying Special Tools And Equipment (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

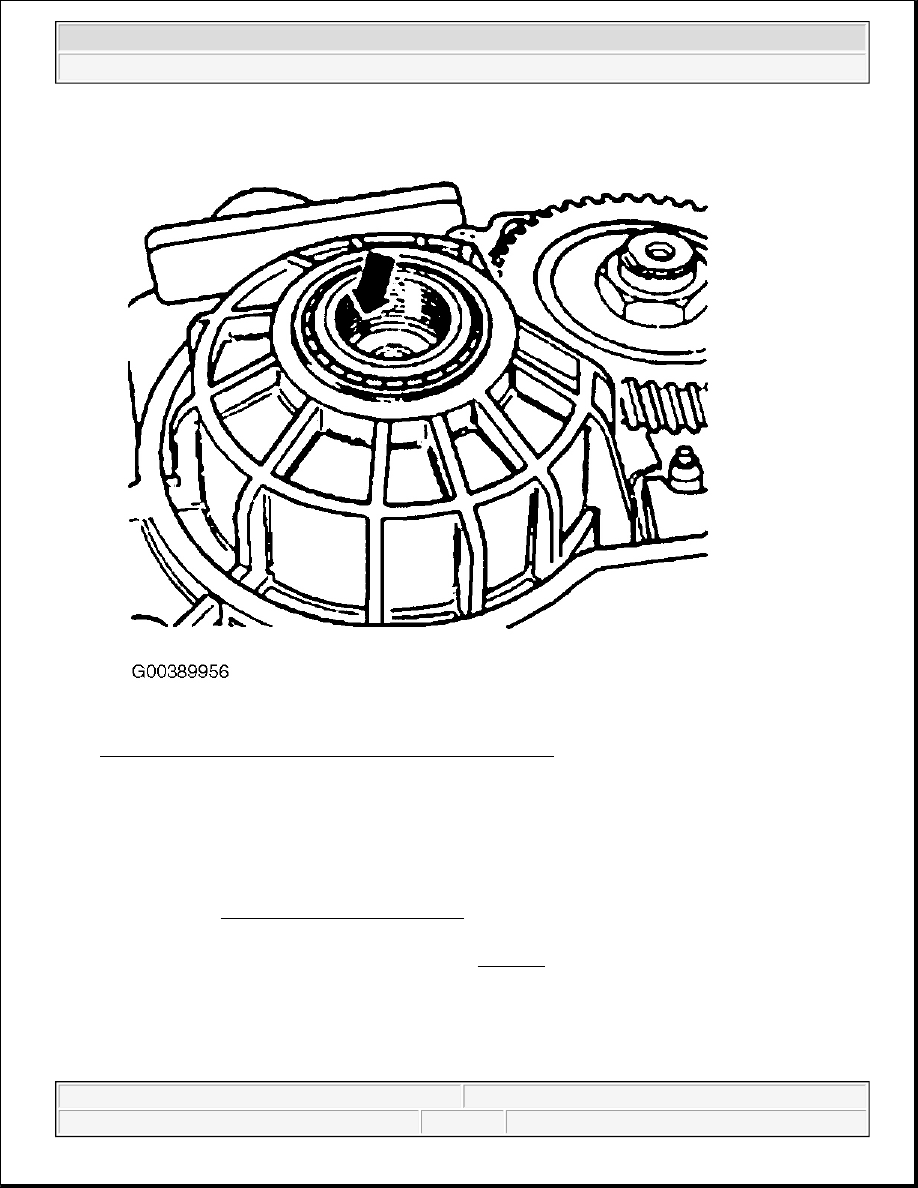

1. Transmission housing

2. Bolt

3. Differential cage

NOTE:

z

Heat tapered roller bearing inner race to 100° C before installing.

z

Always replace both tapered roller bearings together as a set.

z

Adjust differential if tapered roller bearings, differential housing,
transmission housing or clutch housing are being replaced. See
DIFFERENTIAL, ADJUSTING .

NOTE:

The following list refers to items in Fig. 165 .



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



z

Bolt to final drive gear

4. Final drive gear wheel

z

Riveted in production

z

Is paired with output shaft, only replace as a set

z

Pressing off. See Pressing off final drive gear

z

Installation position. See Installation position of final drive gear wheel

z

Heat to 100° C before installing

z

Install to differential housing. See Heating final drive gear wheel to approx. 100° C and
installing
 .

z

Bolted. See Bolting final drive gear and differential housing together

5. Backing plate

6. Nut, 70 N.m 7

7. Shim

z

For differential

z

Determining thickness. See DIFFERENTIAL, ADJUSTING

8. Tapered roller bearing outer race

z

Pulling out Pulling tapered roller bearing outer race out of transmission housing

z

Pressing in. See Pressing tapered roller bearing outer race into transmission housing

9. Tapered roller bearing inner race

z

Pulling off. See Pulling off tapered roller bearing inner race

z

Pressing on Pressing on tapered roller bearing inner race

10. Differential housing

z

With riveted final drive gear

z

When replacing final drive gear drill out rivet heads. See Drilling out rivet heads

z

Attaching final drive gear with bolts. See Bolting final drive gear and differential housing
together


11. Speedometer drive wheel

z

Install onto differential housing as far as stop before pressing on inner race

12. Tapered roller bearing inner race

z

Pulling off. See Pulling off tapered roller bearing inner race

z

Pressing on Pressing on tapered roller bearing inner race

13. Tapered roller bearing outer race

z

Pressing out. See Pressing tapered roller bearing outer race out of clutch housing

z

Pressing in. See Pressing tapered roller bearing outer race into clutch housing

14. Clutch housing

15. 15-Sleeve

z

Installed together with springs behind flange shafts

z

To accept oil seal (item 16)



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



z

Removing and installing. See Pulling sleeve in

16. Oil seal

z

Replacing with transmission installed. See FLANGE SHAFT OIL SEALS (TRANSMISSION
INSTALLED), REPLACING
 .

17. One piece oil seal and sleeve

z

If seal is damaged, replace oil seal and sleeve together. See FLANGE SHAFT OIL SEALS
(TRANSMISSION INSTALLED), REPLACING
 .

18. Cone head bolt, 25 N.m

z

Bolt into threaded piece (item 26)

19. Flange shaft

z

Removing and installing. See FLANGE SHAFT OIL SEALS (TRANSMISSION
INSTALLED), REPLACING


20. Spring for flange shaft

z

Installed behind flange shafts

21. Thrust washer

z

Installation position: Shoulder toward spring, tongue to tapered ring

z

Installation position with changed thrust washer. See Changed thrust washer for tapered ring .

22. Tapered ring

z

With grooves to secure thrust washer

z

Installation position: Taper toward differential housing

23. Securing clip

z

Holds tapered ring, thrust washer and spring in position when drive flange is removed

24. One-piece thrust washer

z

Coat with transmission oil when installing

25. Sun gear

z

Installing. See Installing differential side gears and pinion gears

26. Threaded piece

z

Installing. See Installing differential side gears and pinion gears

27. Differential pinion shaft

z

Knock out with drift

z

Installing. See Installing differential side gears and pinion gears

28. Spring pin

z

For securing planet pinion axis shaft

z

Removing and installing. See Removing and installing differential pinion shaft spring pin

29. Differential pinion gear

z

Installing. See Installing differential side gears and pinion gears

30. Differential side gear

z

Installing. See Installing differential side gears and pinion gears



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle
