Volkswagen New Beetle. Manual - part 2483





Fig. 161: Installing Right Seal And Sleeve Into Flange Shaft (Seal And Sleeve Are Driven Out In
One Piece)

Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



A. Turn the spindle from the assembly device 3066 in the threaded piece from the differential.

B. Nut M12

z

Pull in seal with sleeve using press piece T10148 onto stop by turning the nut -B-.

z

Fill space between sealing lip and dust lip with sealing grease G052 128 A1.

z

Insert flange shaft.

Continued for all vehicles

z

Install flange shaft with cone head bolt and tighten to prescribed torque. See REMOVING , item 18.

z

Disconnect oil return line for turbocharger from engine, if installed (arrow).

See CHARGE AIR SYSTEM WITH TURBOCHARGER, TURBOCHARGER WITH
ATTACHMENTS, REMOVING AND INSTALLING

z

Connect drive shaft -1- to flange shaft.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 162: Disconnecting Oil Return Line For Turbocharger From Engine
Courtesy of VOLKSWAGEN OF AMERICA, INC.

See FRONT AXLE SHAFT

z

Screw drive shaft protective cover if installed

z

Screw protective cover for drive shaft if installed.

z

Top off transmission oil. See CHECKING FLUID LEVEL



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



z

Install sound insulation tray.

Tightening torques:

z

Flange shaft to transmission (conical head bolt). See REMOVING , item 18.

z

Protective cover for drive shaft to engine

DIFFERENTIAL, DISASSEMBLING AND ASSEMBLING

Special tools and equipment

z

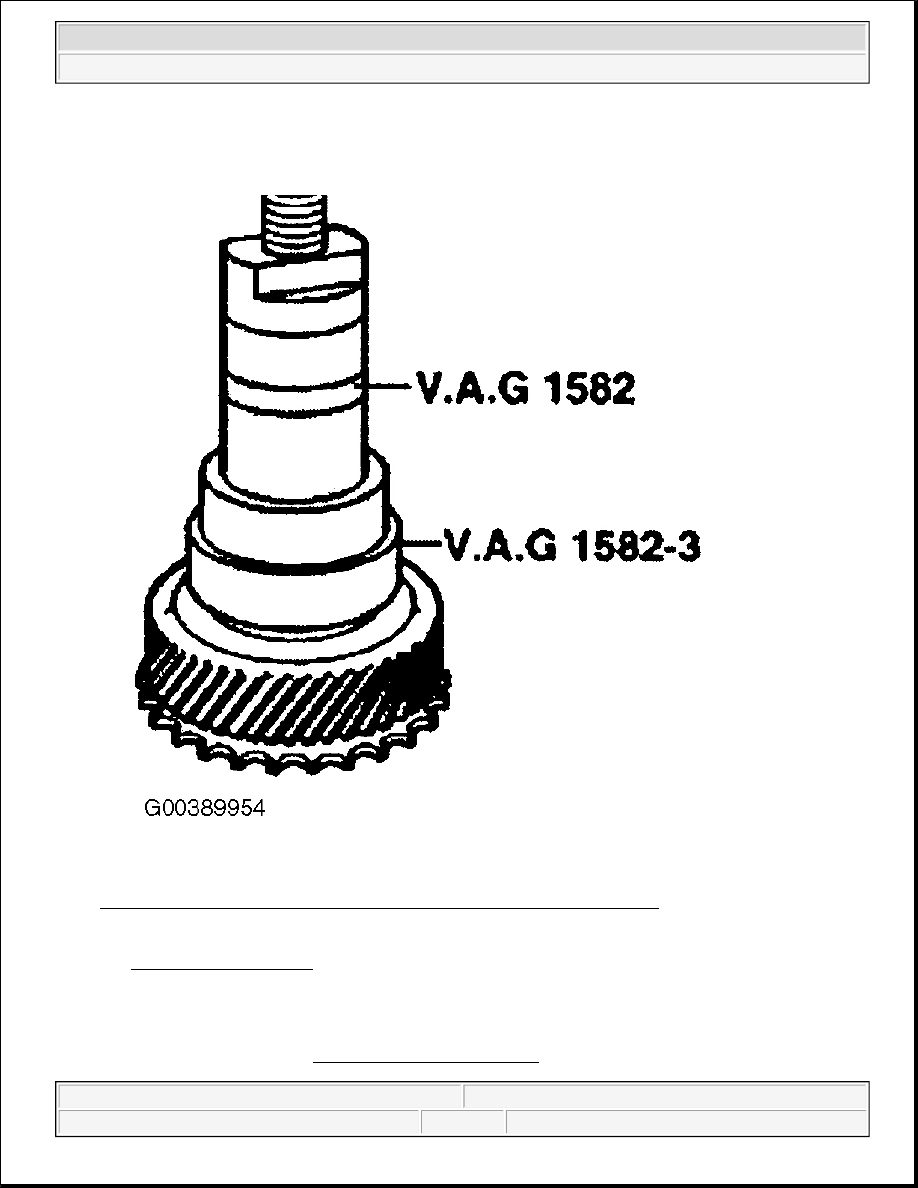

V.A.G 1582 Puller

z

V.A.G 1582/3 Grip

z

VW 412 Press tool

z

40-105 Thrust plate

z

VW 401 Press plate

z

VW 402 Press plate



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle
