Volkswagen New Beetle. Manual - part 2479

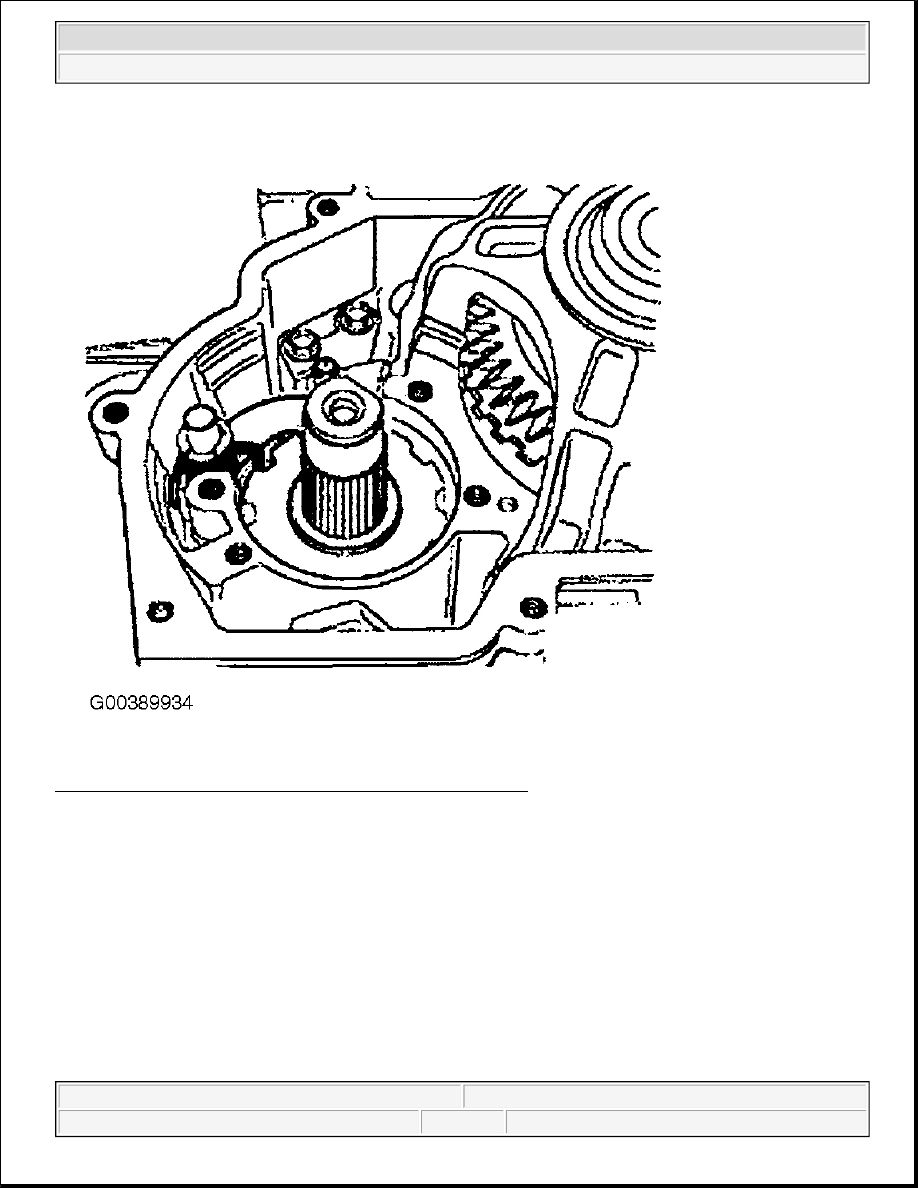

Fig. 149: Pressing Needle Roller Bearing Into Clutch Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Pressing needle roller bearing out of reverse shaft support



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle

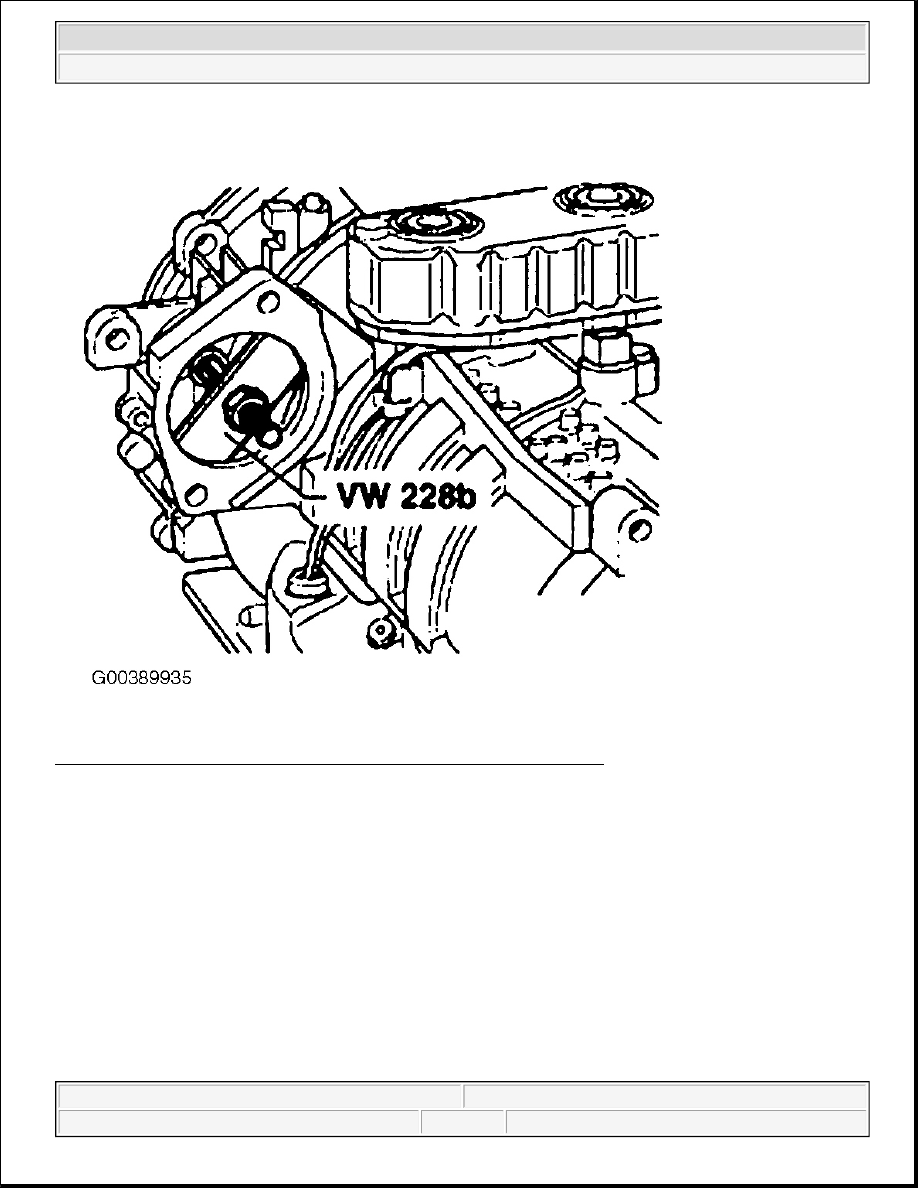

Fig. 150: Pressing Needle Roller Bearing Out Of Reverse Shaft Support
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Pressing needle roller bearing into reverse shaft support



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle

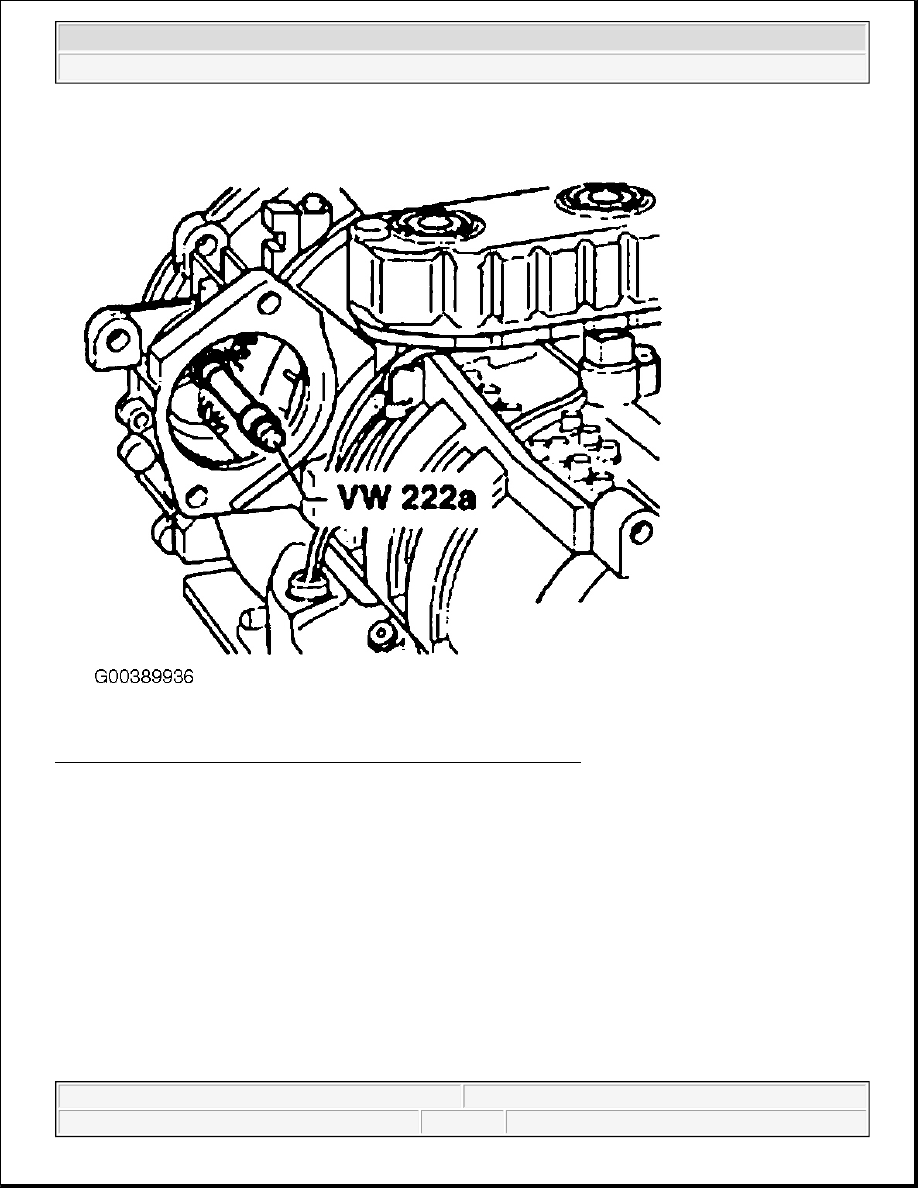

Fig. 151: Pressing Needle Roller Bearing Into Reverse Shaft Support
Courtesy of VOLKSWAGEN OF AMERICA, INC.

FINAL DRIVE, DIFFERENTIAL

FLANGE SHAFT OIL SEALS (TRANSMISSION INSTALLED), REPLACING

Left flange shaft oil seal, removing

Special tools and equipment



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 152: Identifying Special Tools And Equipment
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

VW 771 Multipurpose tool

z

VW 771/37 Puller hooks

z

3106 Drift

z

V.A.G 1331 Torque wrench

z

V.A.G 1332 Torque wrench

Removing

z

Remove center and left noise insulation tray under engine/transmission if installed.

z

Remove drive shaft

See FRONT AXLE SHAFT



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle
