Volkswagen New Beetle. Manual - part 2458





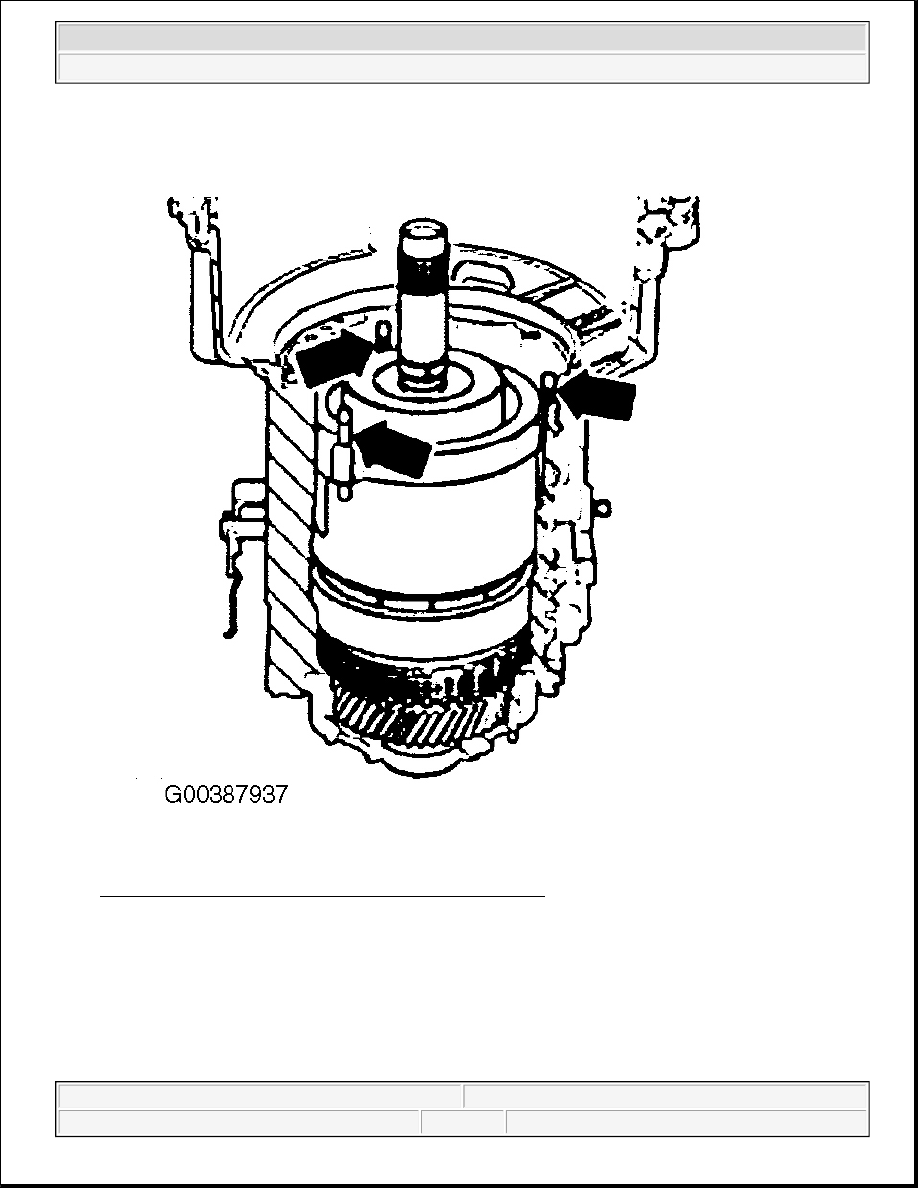

Fig. 80: Pressing Inner Race In Selector Fork Onto Stop
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The hollow in press piece 3290/1 points to bearing.

Selector Fork With Selector Segments Installed



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



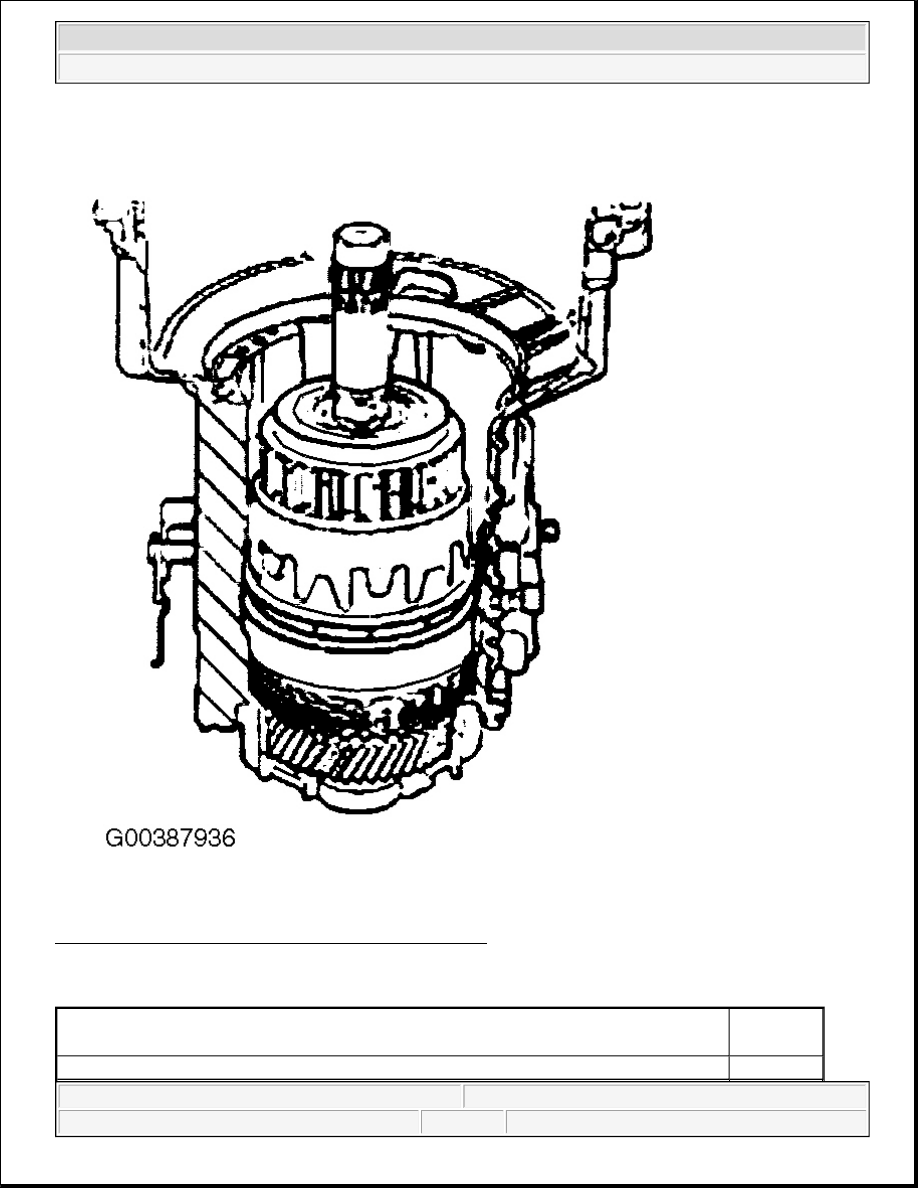

Fig. 81: Installing Selector Fork With Selector Segments
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Selector Fork Measurements

Application

(1)

 Dim. -a-

(mm)

1st/2nd gear selector fork

87.2 ... 87.9



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Selector segment assignment. See Identifying Selector Segments .

MANUAL TRANSMISSION - GEARS, SHAFTS

INPUT SHAFT, DISASSEMBLING AND ASSEMBLING

Special tools and equipment

z

VW 407 H Press tool

z

VW 447 H Press plate

z

VW412 Press tool

z

VW 422 Tube

z

VW 401 Press plate

z

VW 408 A Press tool

1st and 2nd gear selector segments with changed synchronization. See Changed springs
for 5th gear synchronizer from transmission manufacture date November 11 01

88.4 ... 89.1

3rd/4th gear selector forks

96.0 ... 96.7

(1)

For dimension a, see Fig. 81 .



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 82: Identifying Special Tools And Equipment (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

VW 421 Tube

z

VW 454 Press piece

z

VW 447 i Thrust plate

z

VW510 Press piece

z

41-501 Drift sleeve



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle
