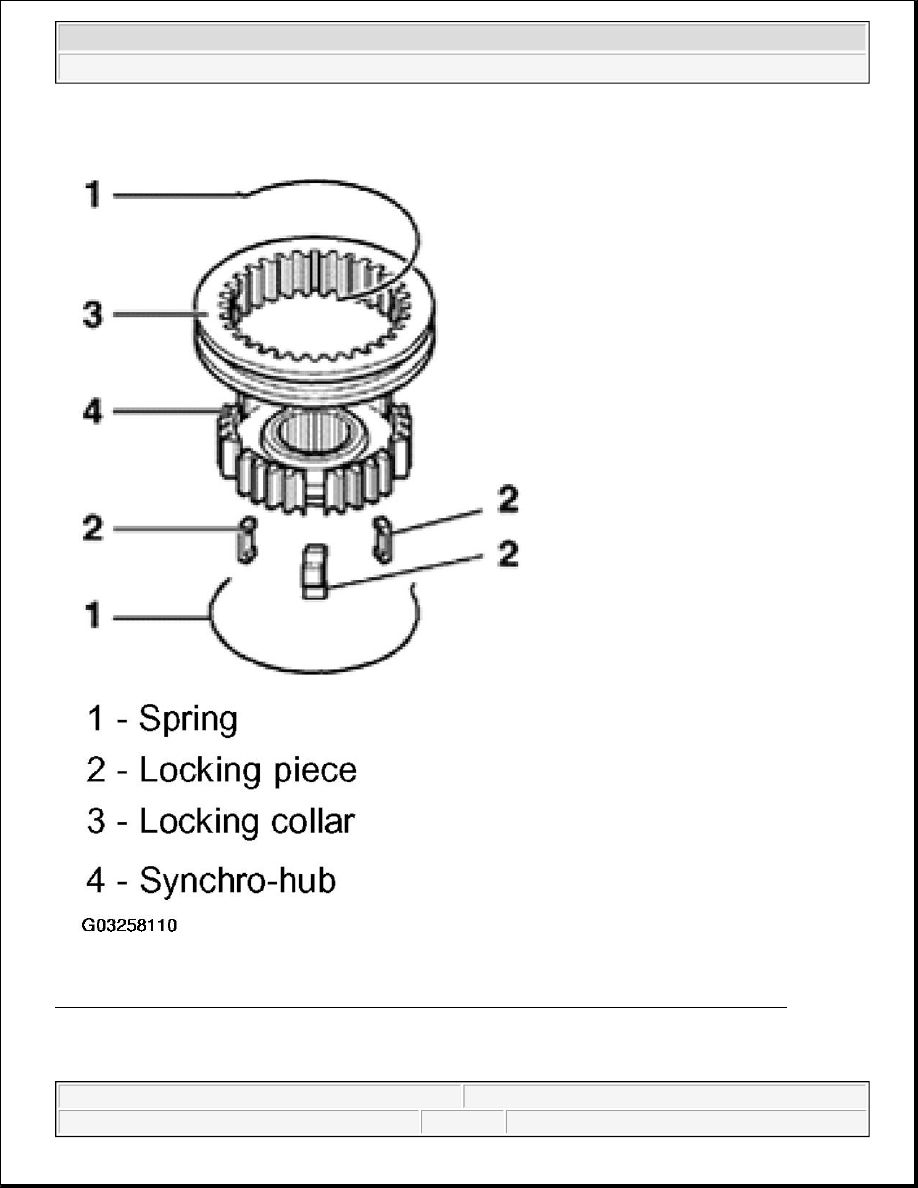

Fig. 141: Disassembling And Assembling 5Th And 6Th Gear Locking Collar And Synchro-Hub
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Assembling 5th and 6th gear locking collar/synchro-hub



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

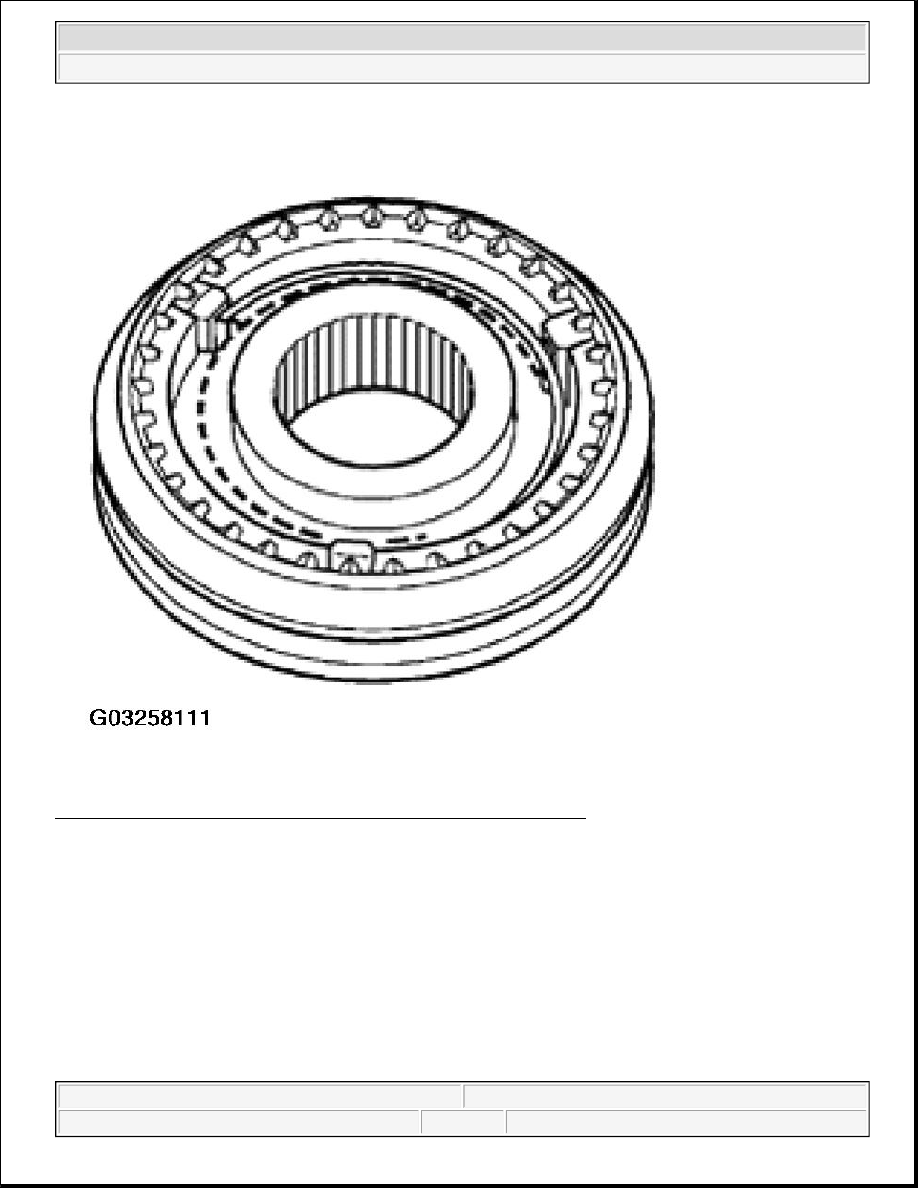

Fig. 142: Assembling 5th And 6th Gear Locking Collar/Synchro-Hub
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The locking collar has been pushed over the synchro-hub.

z

Insert locking pieces and install springs 120 offset. Angled end of spring must locate in hollow locking
piece.

Pressing on 5th and 6th gear locking collar/synchro-hub



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

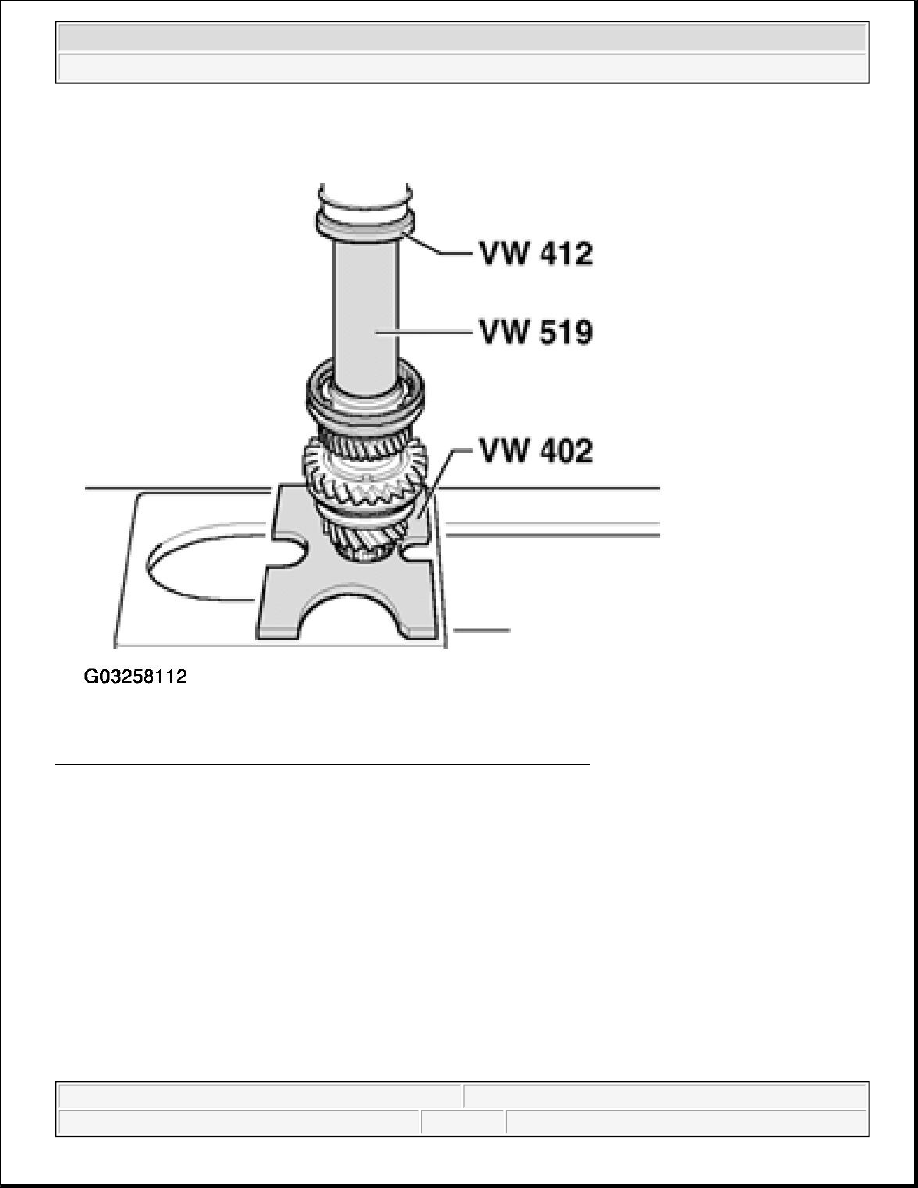

Fig. 143: Pressing On 5th And 6th Gear Locking Collar/Synchro-Hub
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Positioning spacer sleeve toward 5th gear locking collar/synchro-hub



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



Fig. 144: Positioning Spacer Sleeve Toward 5th Gear Locking Collar/Synchro-Hub
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Lugs (arrow -1-) of spacer sleeve must line up with recesses in synchro-hub (arrow -2-).

Lock pieces (arrow -3-) must rest on collar of spacer sleeve.

Pressing on 5th gear locking collar/synchro-hub together with spacer sleeve



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle
