shim (1.70 mm) and adding a constant for pressing (0.20 mm).

Example:

SHIM THICKNESS (OUTPUT SHAFT FOR 1ST-4TH GEARS, EXAMPLE ADJUSTING)

z

Determine thickness of shim from table. See SHIM TABLE .

z

Remove transmission housing and pull tapered roller bearing outer race out of housing.

A. Counter support, e.g. Kukko 22/2

B. Internal puller 46 to 58 mm, e.g. Kukko 21/7

z

Remove inserted shim (1.70 mm thick) from clutch housing.

Inserted shim

1 70 mm

- Measured value

0.14 mm

+ Preloading (constant)

0.20 mm

Shim thickness

1.76 mm

NOTE:

The following list refers to items in Fig. 120 .



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



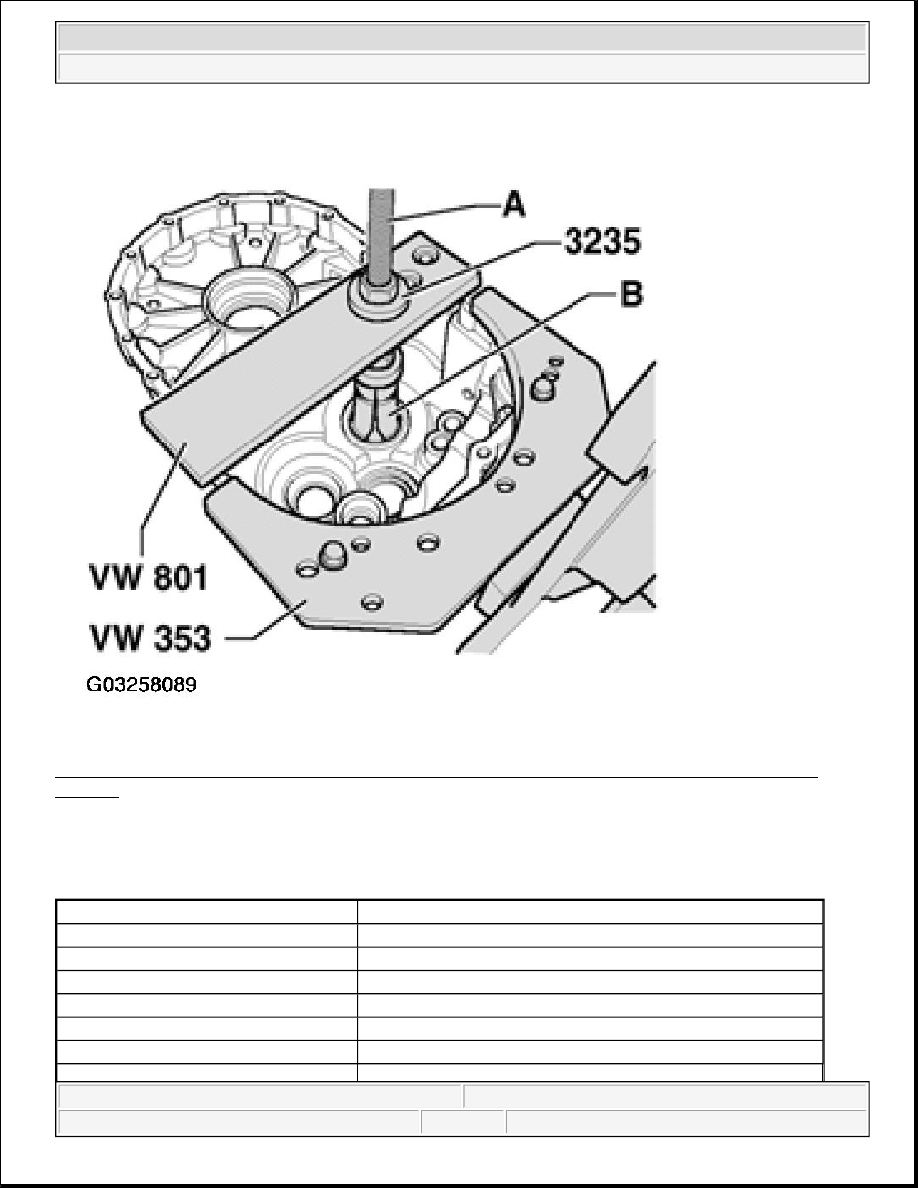

Fig. 120: Removing Transmission Housing And Pulling Tapered Roller Bearing Outer Race Out Of
Housing

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Shim table

SHIM (OUTPUT SHAFT FOR 1ST-4TH GEARS)

Size (mm)

Part No.

1.40

084 409 383 AF

1.45

084 409 383 AG

1.50

084 409 383 AH

1.55

084 409 383 AJ

1.60

084 409 383 AK

1.65

084 409 383 AL



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



Varying tolerances make it possible to obtain the exact shim thickness required.

z

Press in tapered roller bearing outer race together with determined shim (in example 1.75 mm) while
supporting transmission housing with thrust piece 2050 directly under bearing support.

1.70

084 409 383 AM

1.75

084 409 383 AN

1.80

084 409 383 AP

1.85

084 409 383 AQ

1.90

084 409 383 AR

1.95

084 409 383 AS

2.00

084 409 383 AT

2.05

084 409 383 BA

2.10

084 409 383 BB

2.15

084 409 383 BC

2.20

084 409 383 BD



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

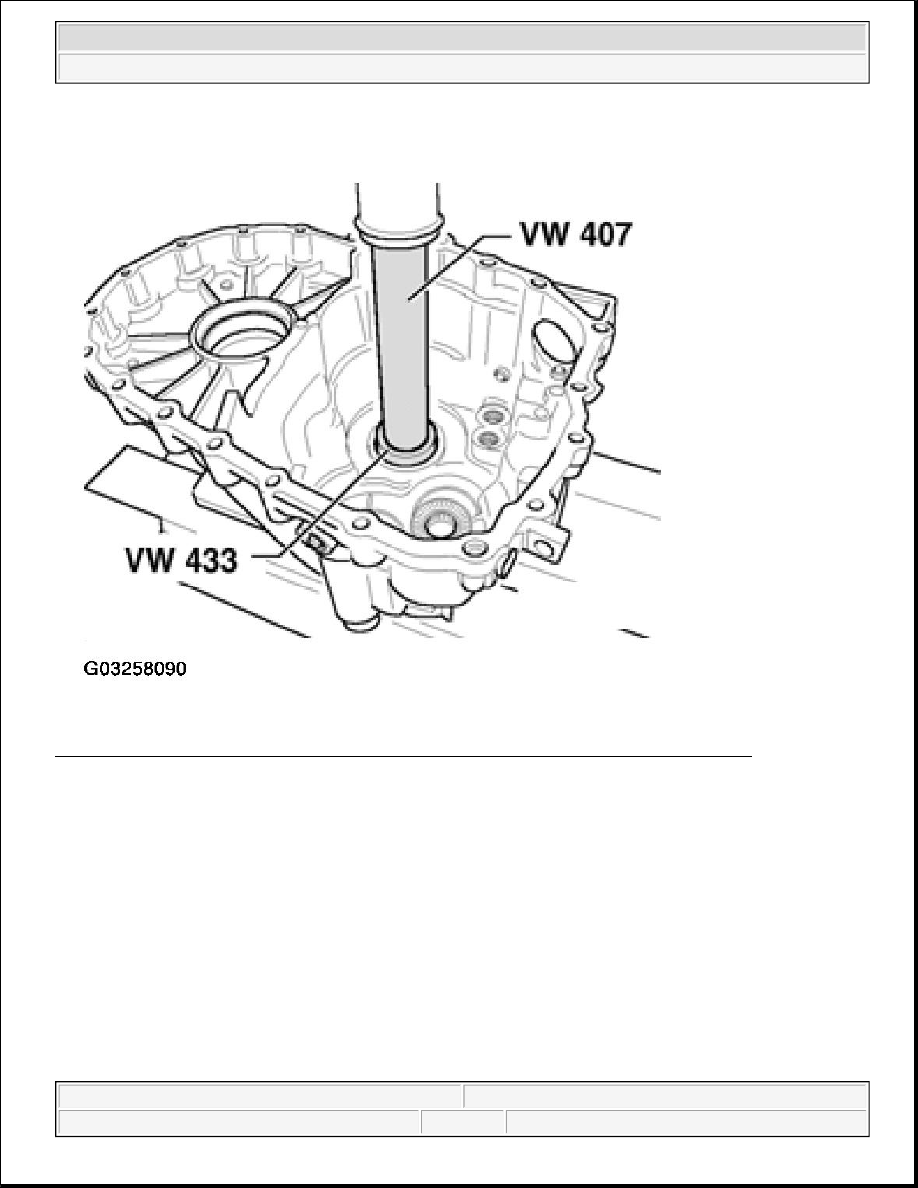

Fig. 121: Pressing In Tapered Roller Bearing Outer Race Together With Determined Shim
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Perform check measurement

z

Determined shim installed.

{

Install measuring tools and secure with bolt (arrow) to transmission housing.
