Volkswagen New Beetle. Manual - part 2398

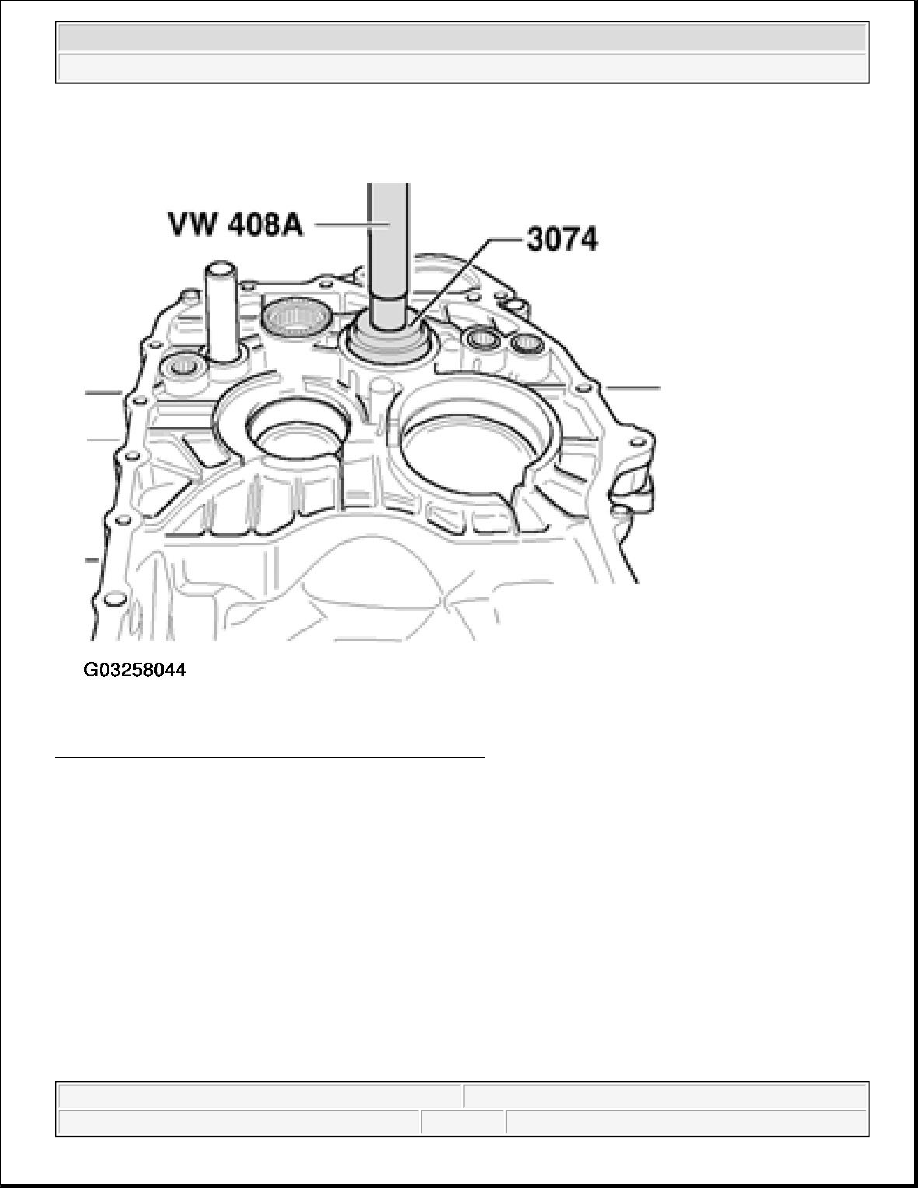

Fig. 75: Pressing In Tapered Roller Bearing Outer Race
Courtesy of VOLKSWAGEN OF AMERICA, INC.

INPUT SHAFT, ADJUSTING

(Determining input shaft adjustment shim)

Special tools and equipment

z

VW 309 Holding plate

z

VW 353 Transmission support

z

VW 385/17 End measuring plate

z

VW 387 Universal dial gauge bracket

z

VW 407 Press tool

z

VW 433 Press piece



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

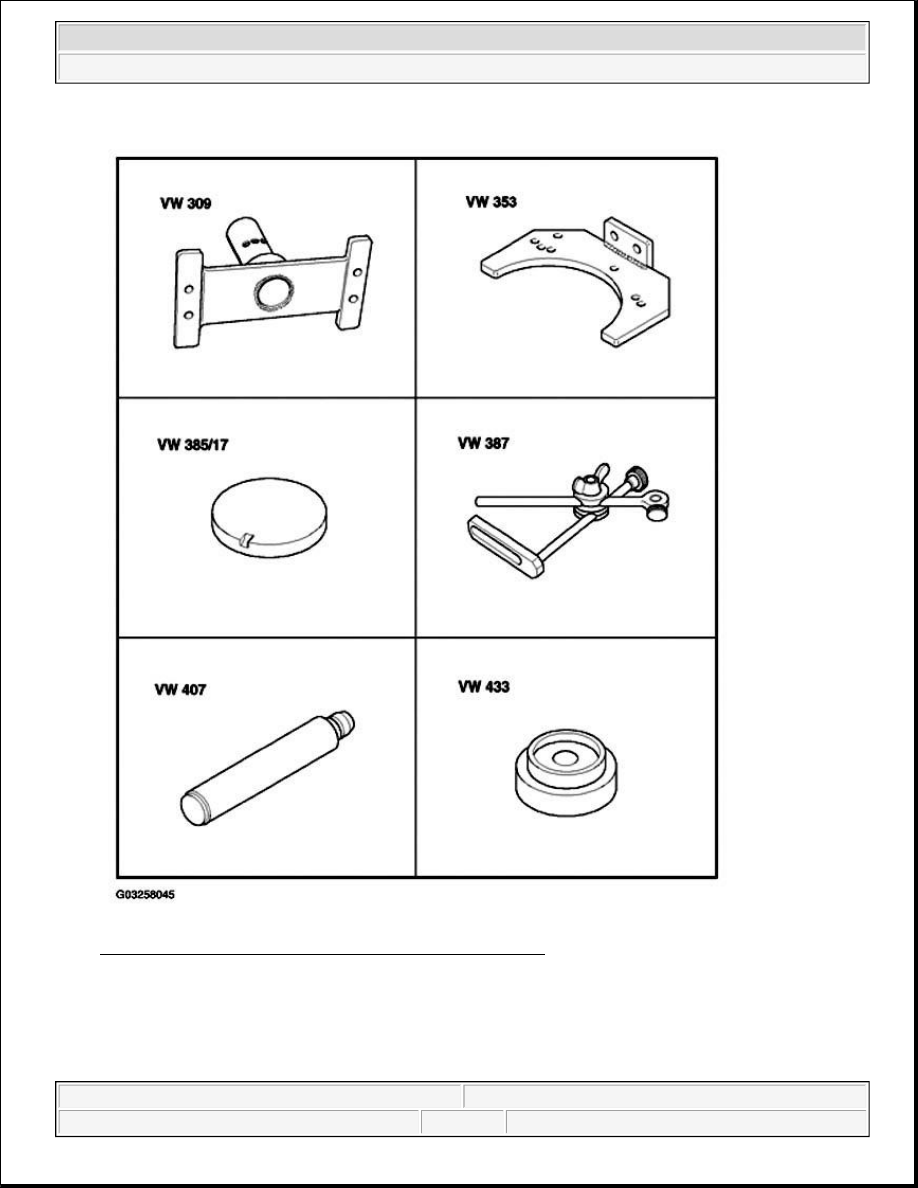

Fig. 76: Identifying Special Tools And Equipment (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

VW 457 Support rails

z

VW 801 Holding plate

z

V.A.G 1331 Torque wrench



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



z

1 -Kukko 21/7 Internal puller

z

4 - Kukko 22/1 Counter-support

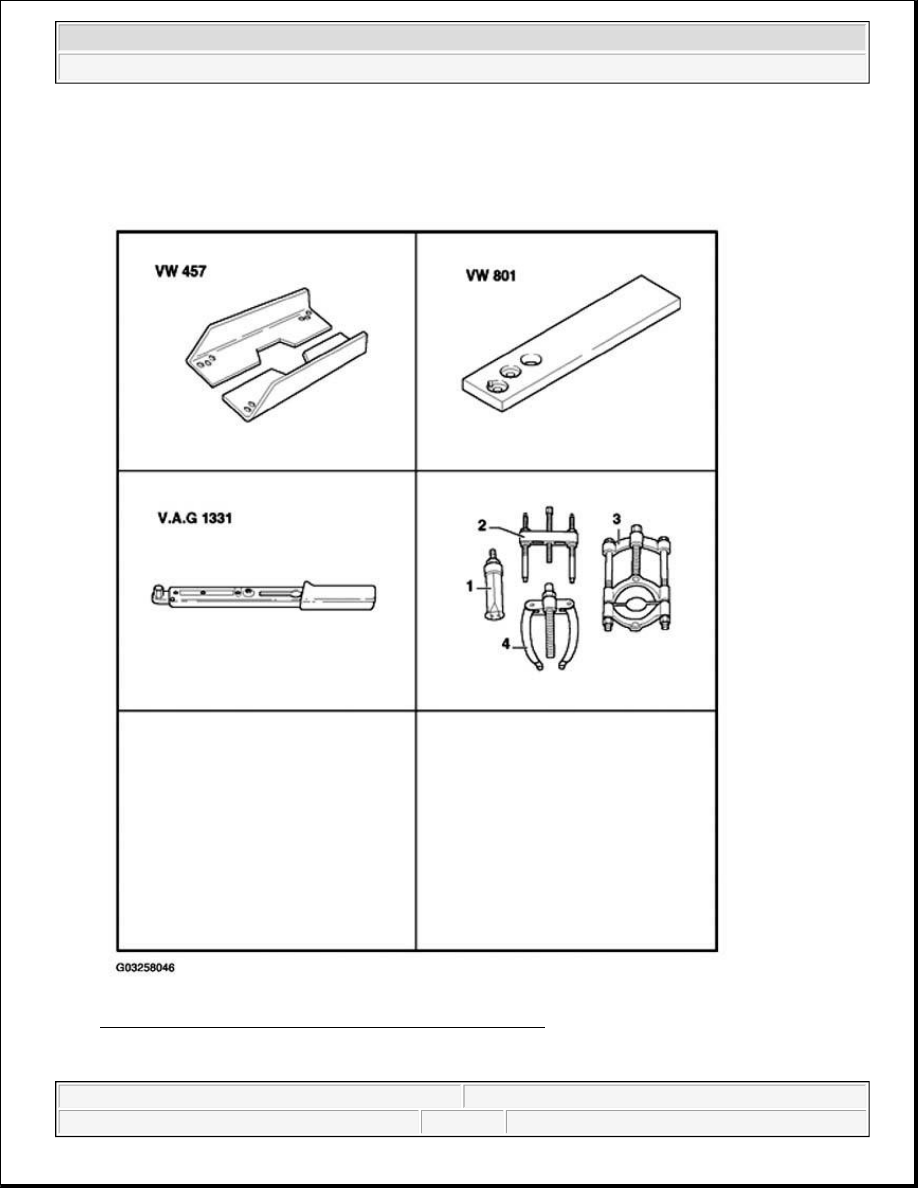

Fig. 77: Identifying Special Tools And Equipment (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



It is only necessary to readjust the input shaft when the following components are replaced:

z

Transmission housing

z

Clutch housing

z

Input shaft

or the

z

Tapered roller bearings

Adjustment overview. See Adjustment overview .

z

Shims of determined thickness are installed for both output shafts.

z

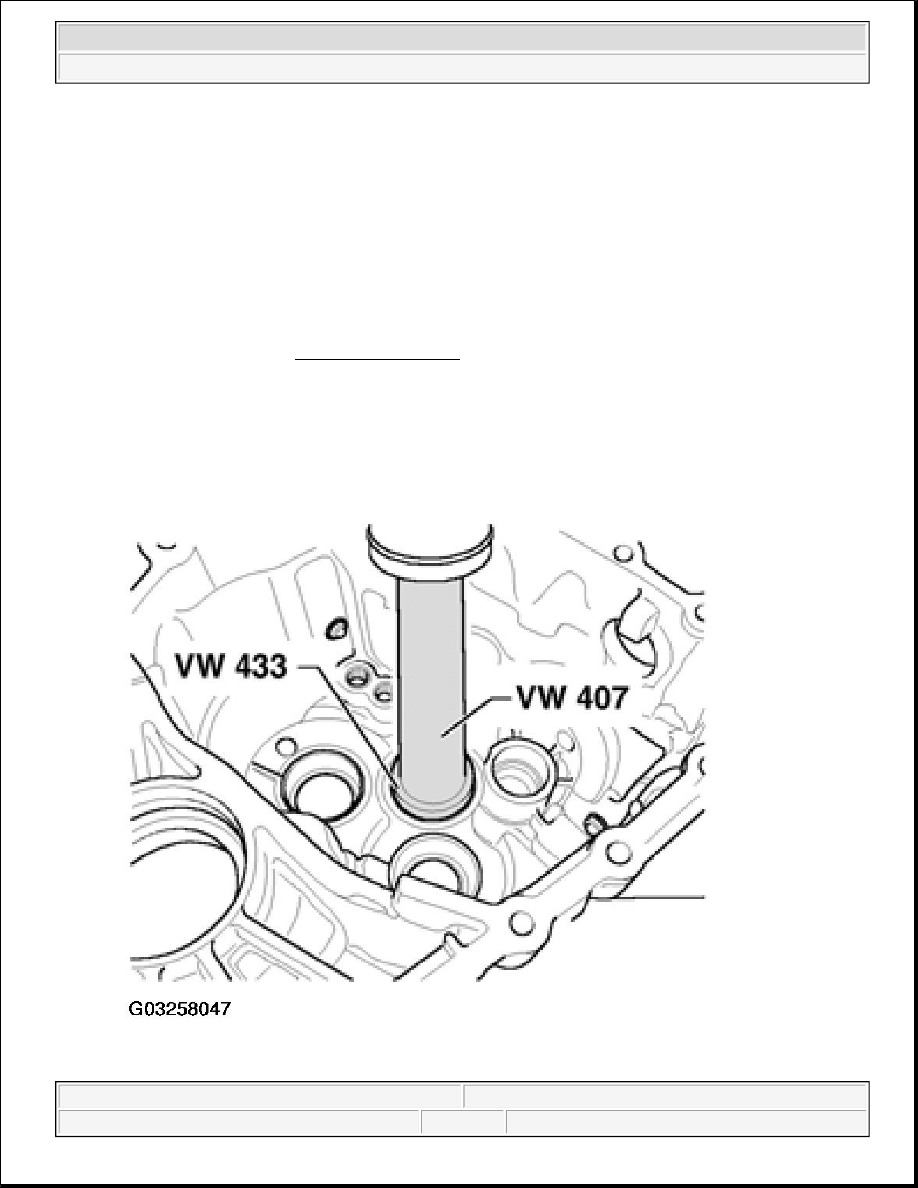

Press tapered roller bearing outer race without shim into transmission housing onto stop.
