Volkswagen New Beetle. Manual - part 2391





Pressing Ball Sleeve From Selector Mechanism Cover

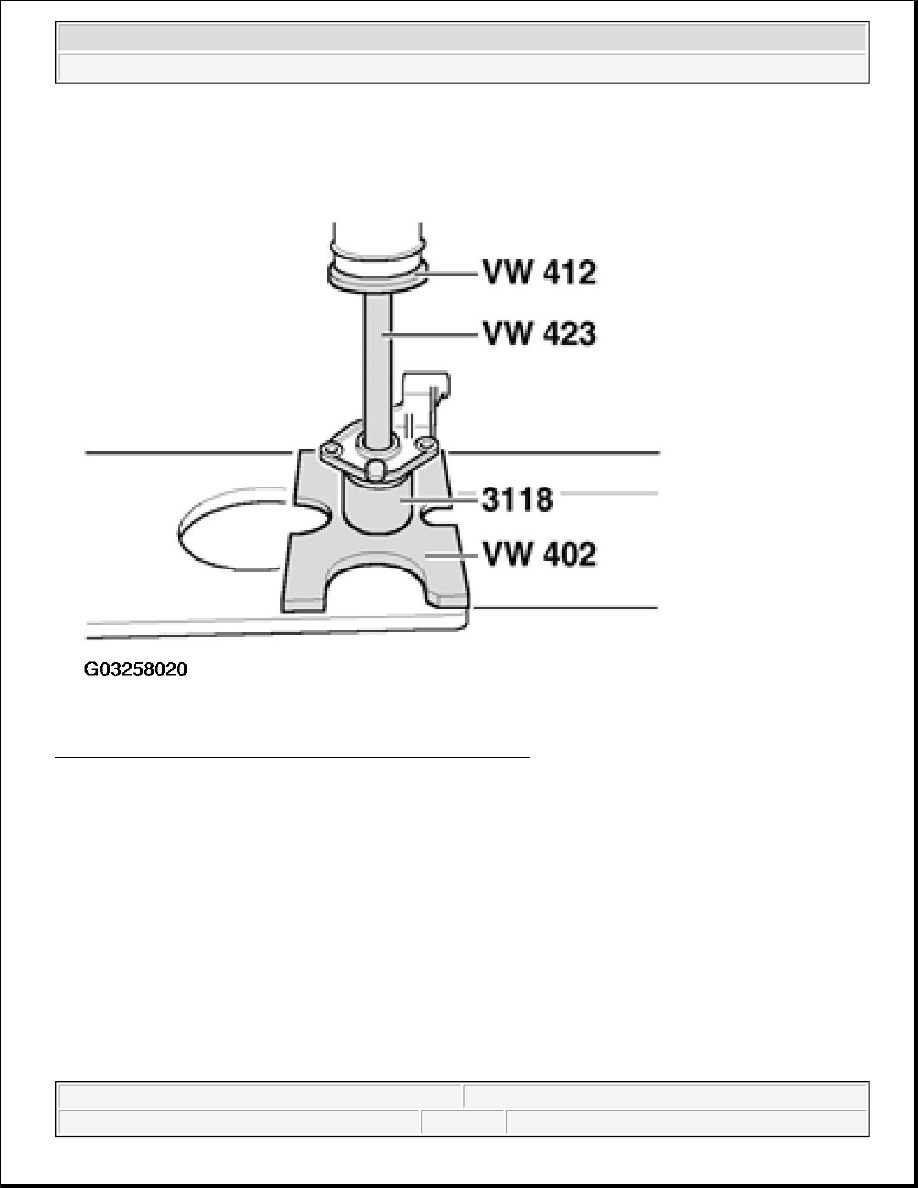

Fig. 51: Pressing Ball Sleeve From Selector Mechanism Cover
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Pressing Ball Sleeve Into Selector Mechanism Cover



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



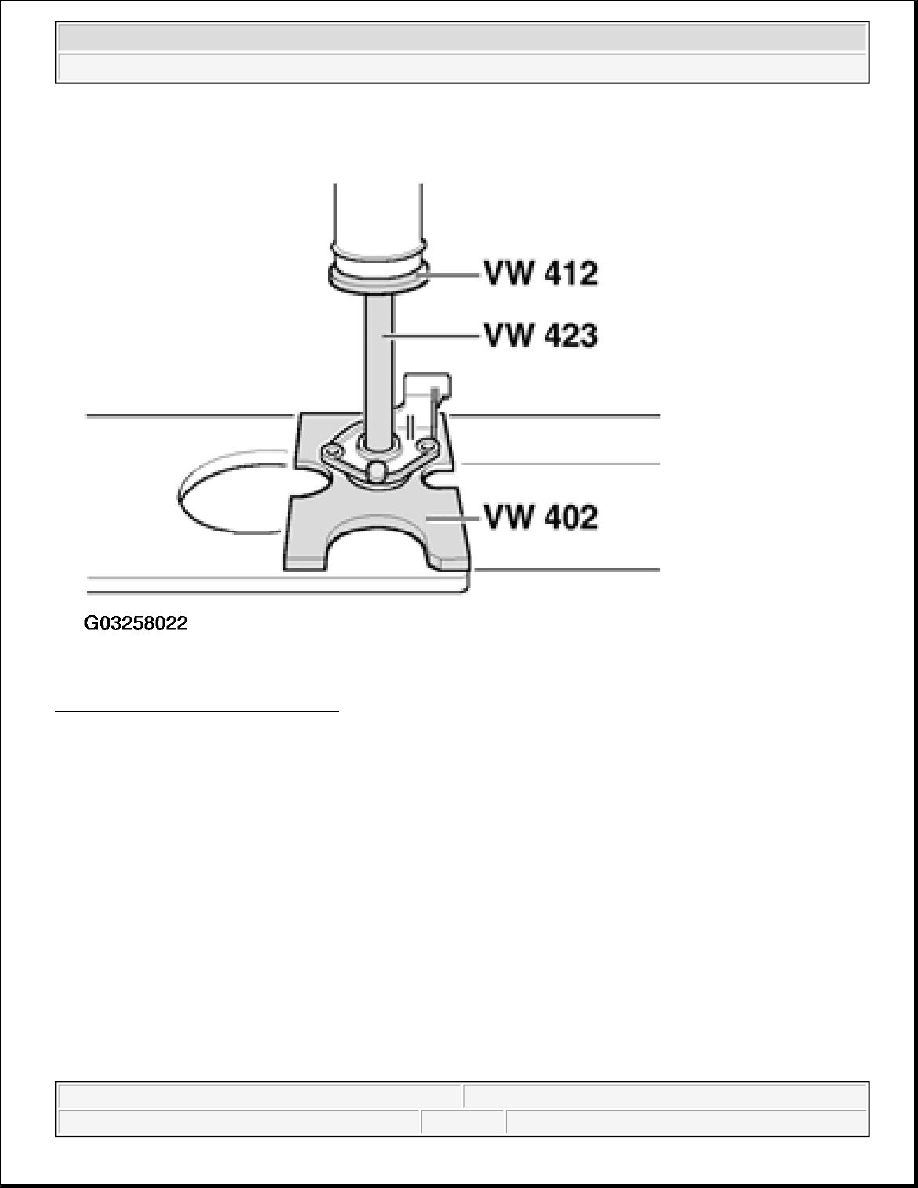

Fig. 52: Pressing Ball Sleeve Into Selector Mechanism Cover
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press ball sleeve to contact with press plate VW 402.

Installing Oil Seal Onto Stop



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



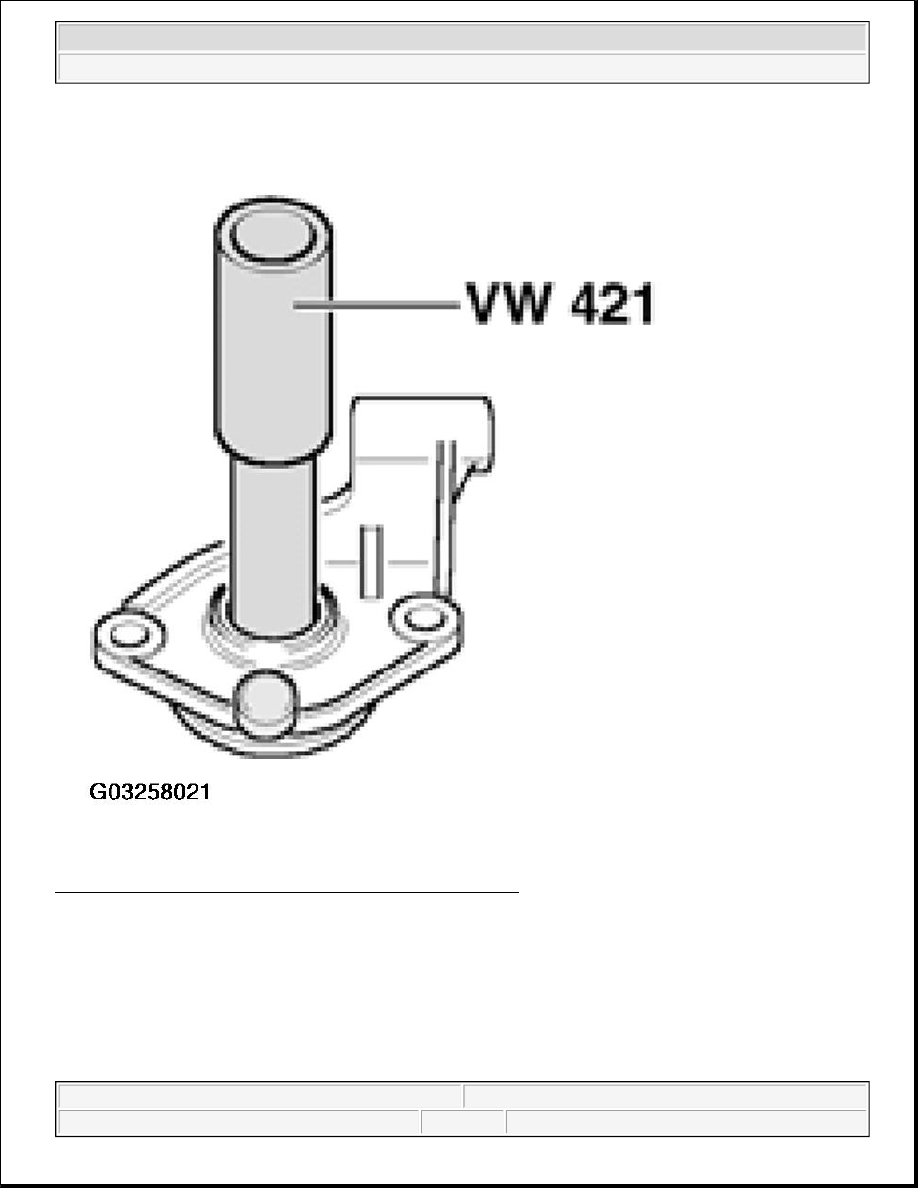

Fig. 53: Installing Oil Seal Onto Stop
Courtesy of VOLKSWAGEN OF AMERICA, INC.

SELECTOR FORKS, DISASSEMBLING AND ASSEMBLING

Special tools and equipment

z

VW 402 Thrust plate

z

VW 411 Press tool

z

VW 426 Tube

z

VW 431 Press piece

z

1 - Kukko 21/3 Internal puller

z

4 - Kukko 22/1 Counter-support



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



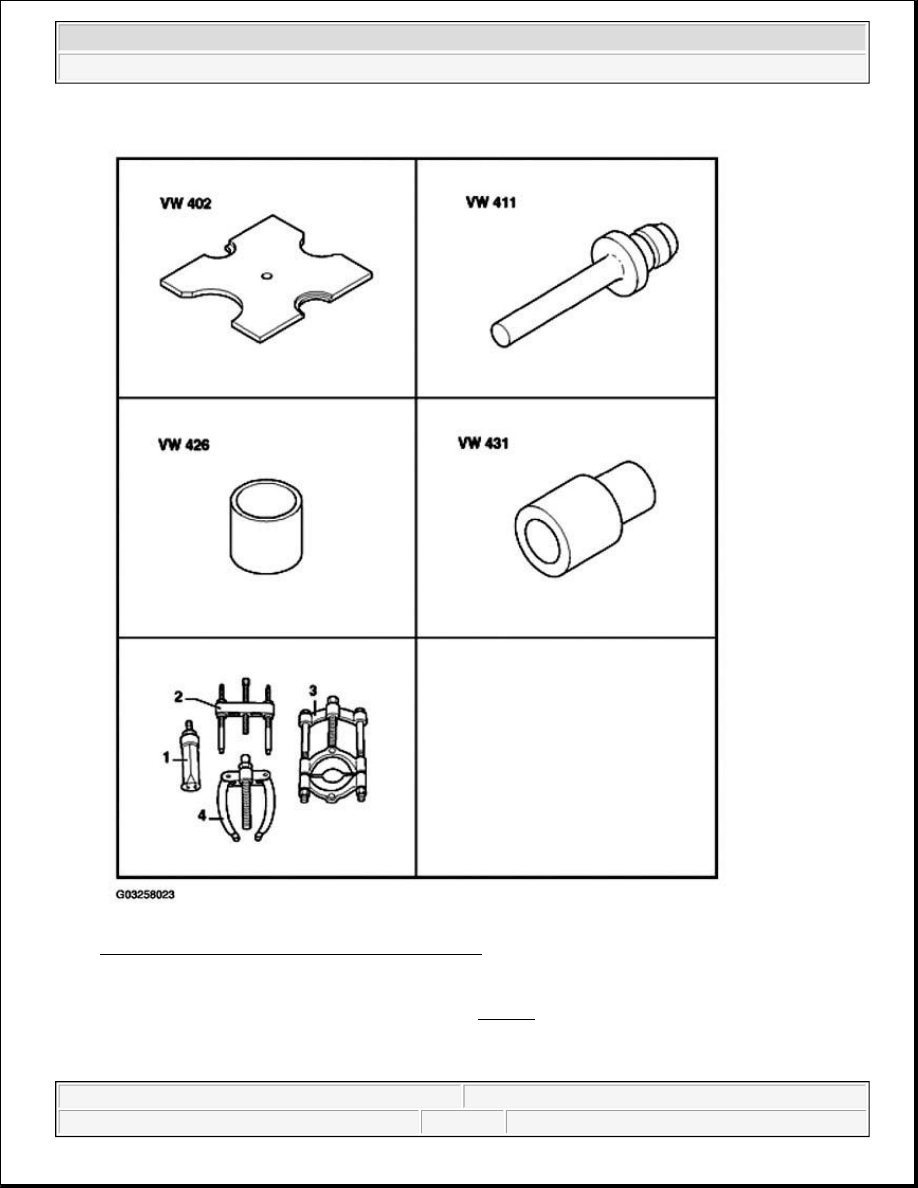

Fig. 54: Identifying Special Tools And Equipment
Courtesy of VOLKSWAGEN OF AMERICA, INC.

1. Selector rod with 1st and 2nd gear selector forks

NOTE:

The following list refers to items in Fig. 55 .



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle
