Volkswagen New Beetle. Manual - part 2390

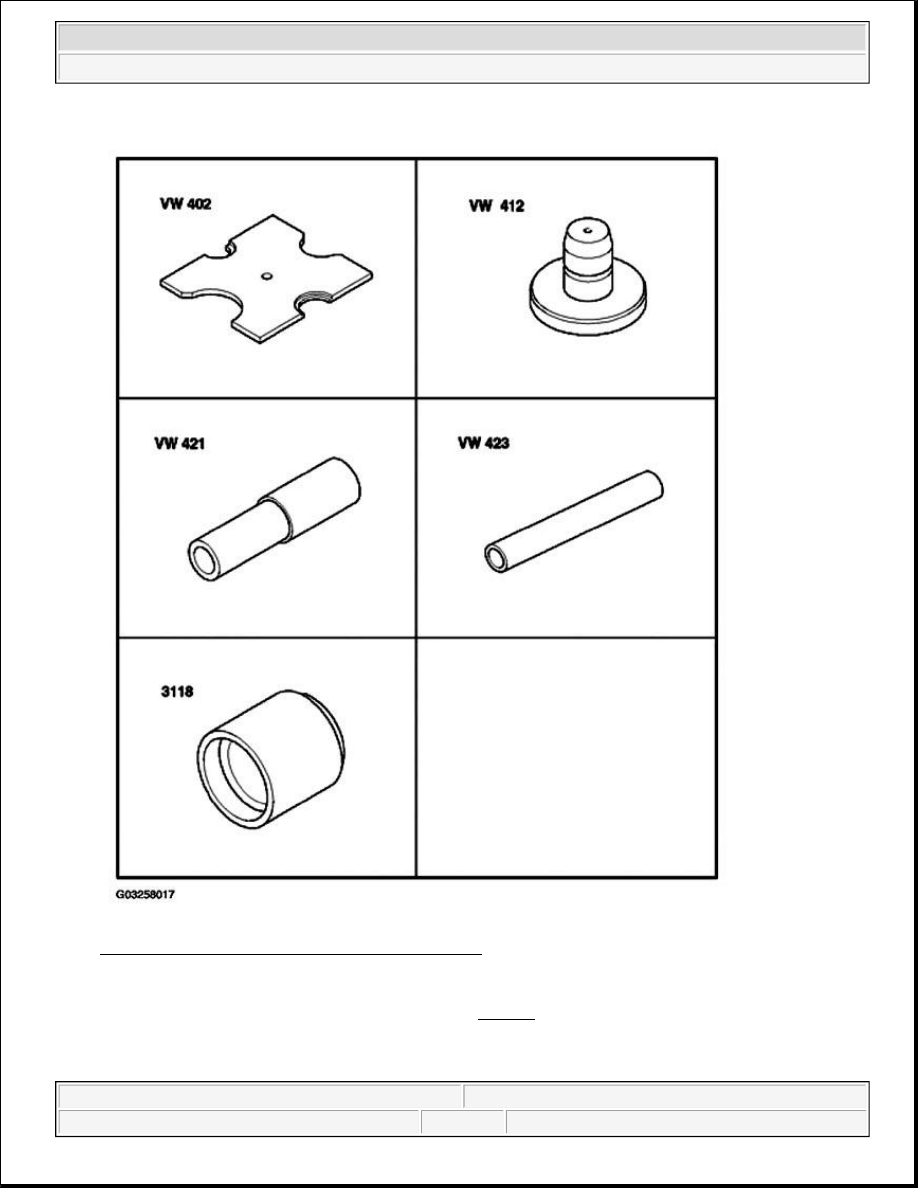

Fig. 48: Identifying Special Tools And Equipment
Courtesy of VOLKSWAGEN OF AMERICA, INC.

1. Hex nut, 20 N.m

NOTE:

The following list refers to items in Fig. 49 .



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



z

Self-locking

z

Always replace

2. Gear selector lever

z

Install so that master spline aligns with selector shaft

z

Can be replaced with selector mechanism installed

z

Installation position. See GEAR SHIFT LEVER & HOUSING .

3. Shoe

z

Clip into relay lever -item 6-

4. Lock washer

z

Removing. See Removing Relay Lever Lock Washer .

5. Bushing

6. Relay lever

z

Installation position. See GEAR SHIFT LEVER & HOUSING .

7. Selector mechanism cover

8. Ball sleeve

z

For selector shaft

z

Removing. See Pressing Ball Sleeve From Selector Mechanism Cover .

z

Pressing in. See Pressing Ball Sleeve Into Selector Mechanism Cover .

9. Selector shaft

10. O-ring

z

Always replace

11. O-ring

z

Always replace

12. End cover

13. Oil seal

z

Pry out with screwdriver

z

Installing. See Installing Oil Seal Onto Stop .

14. Protective cap

z

For selector shaft

15. Cap

z

For transmission breather



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

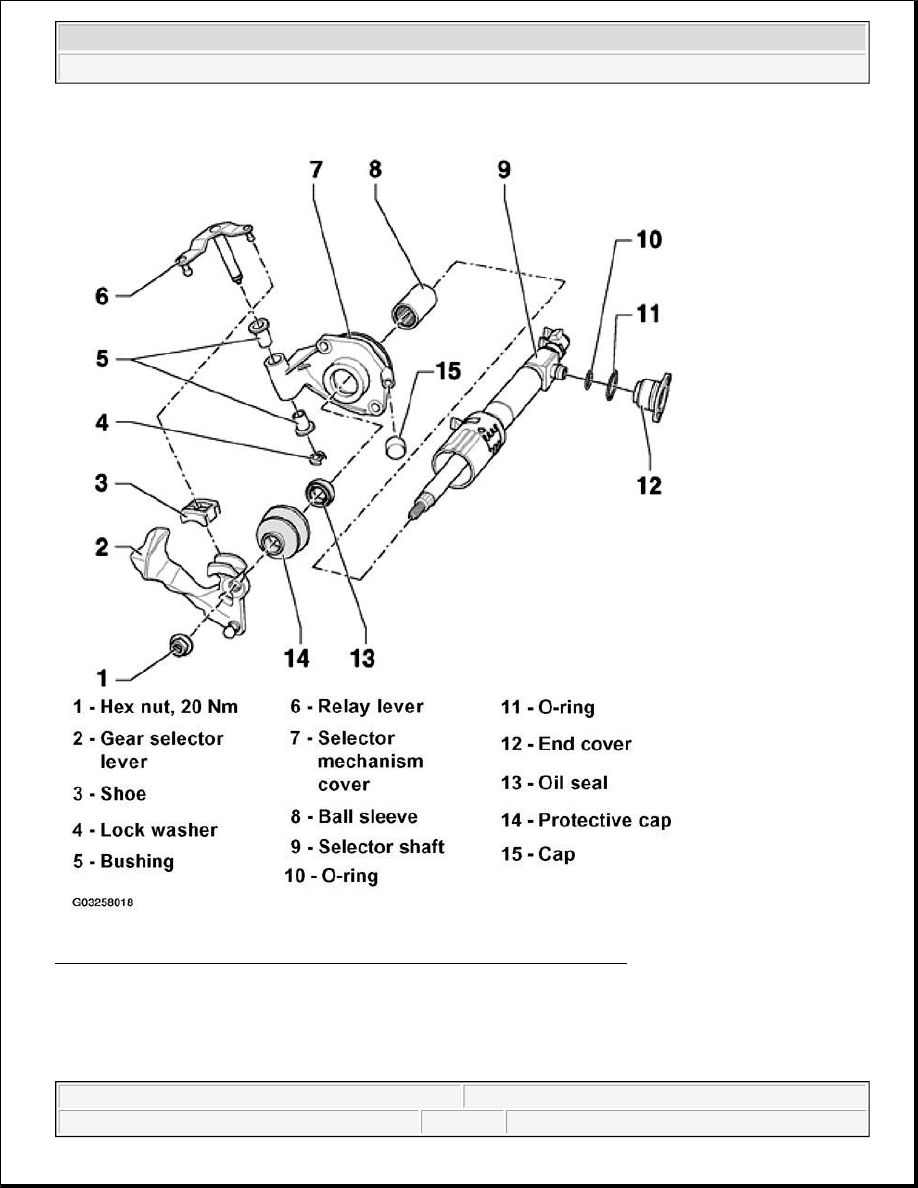

Fig. 49: Disassembling And Assembling Transmission Selector Mechanism
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Removing Relay Lever Lock Washer



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

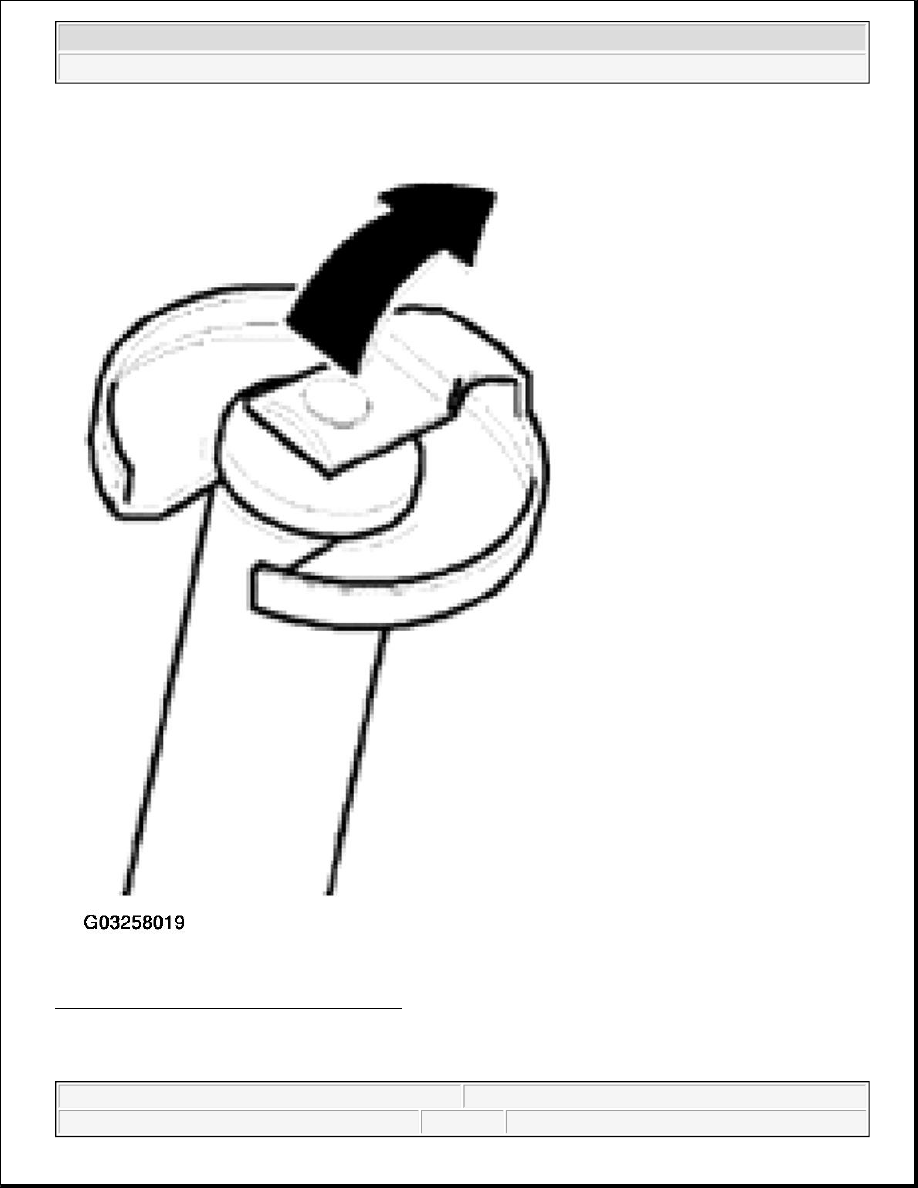

Fig. 50: Removing Relay Lever Lock Washer
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Lift tab in direction of arrow.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle
