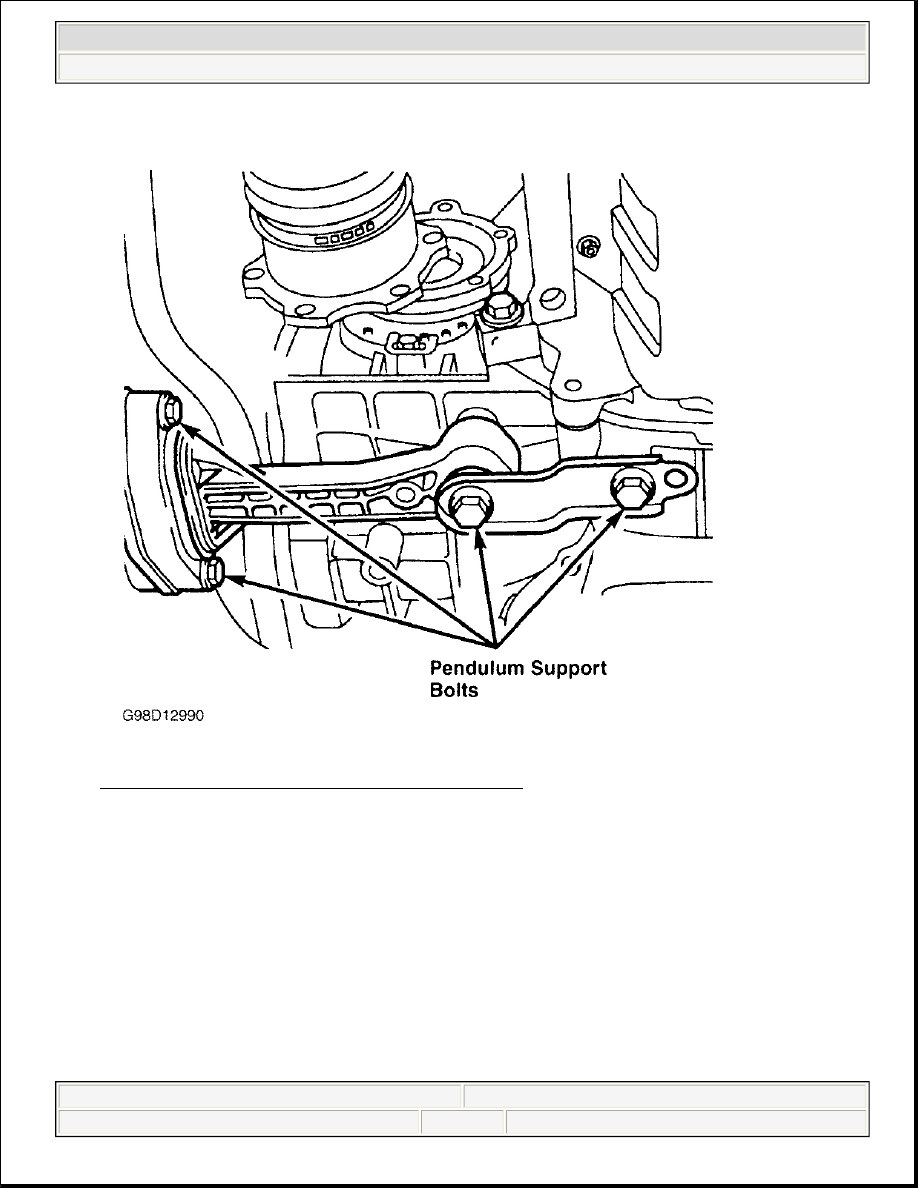

Fig. 62: Identifying Pendulum Support Mounting Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:04 AM

Page 69

© 2004 Mitchell Repair Information Company, LLC.

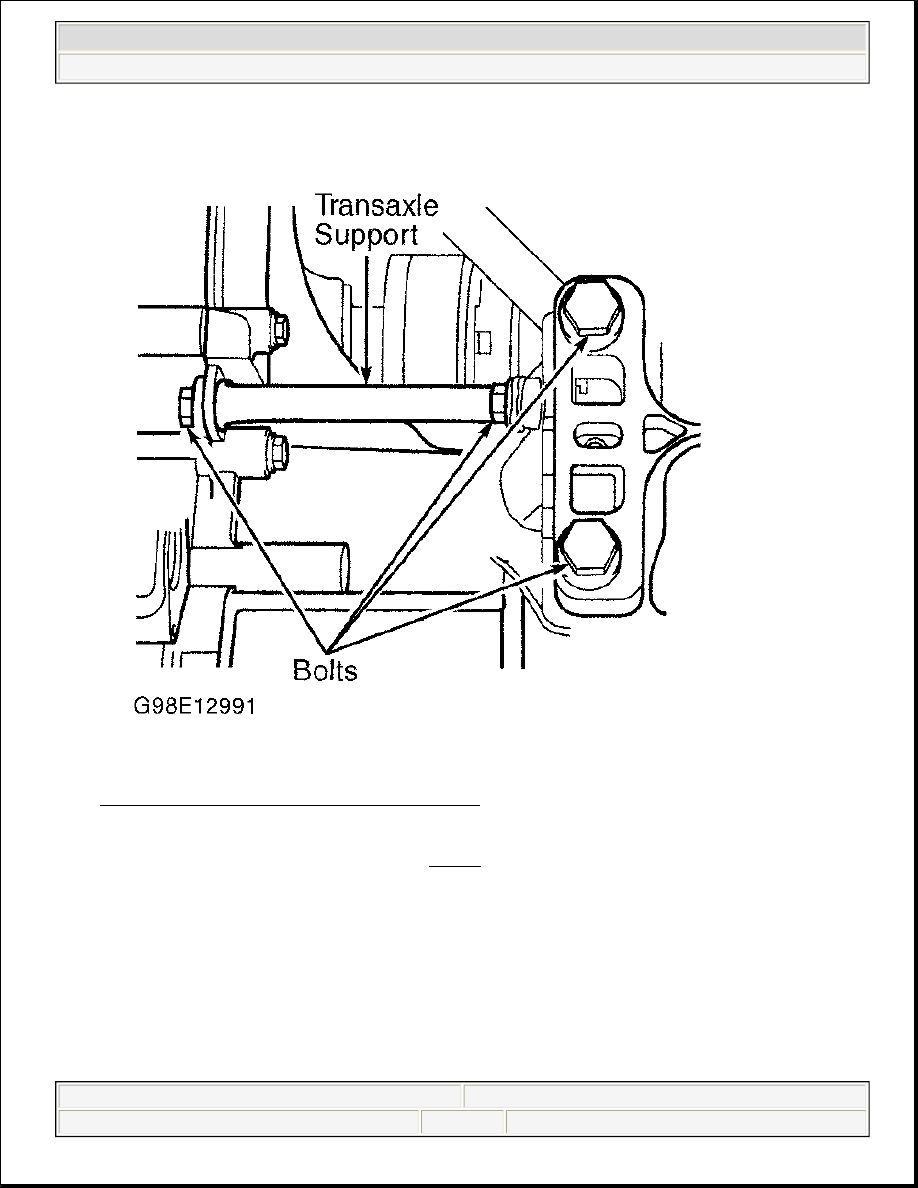

Fig. 63: Identifying Transmission Mounting Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.

17. Remove transmission mount (arrows A). See Fig. 64 . Remove additional fan on right-hand side of

vehicle, if equipped.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:04 AM

Page 70

© 2004 Mitchell Repair Information Company, LLC.

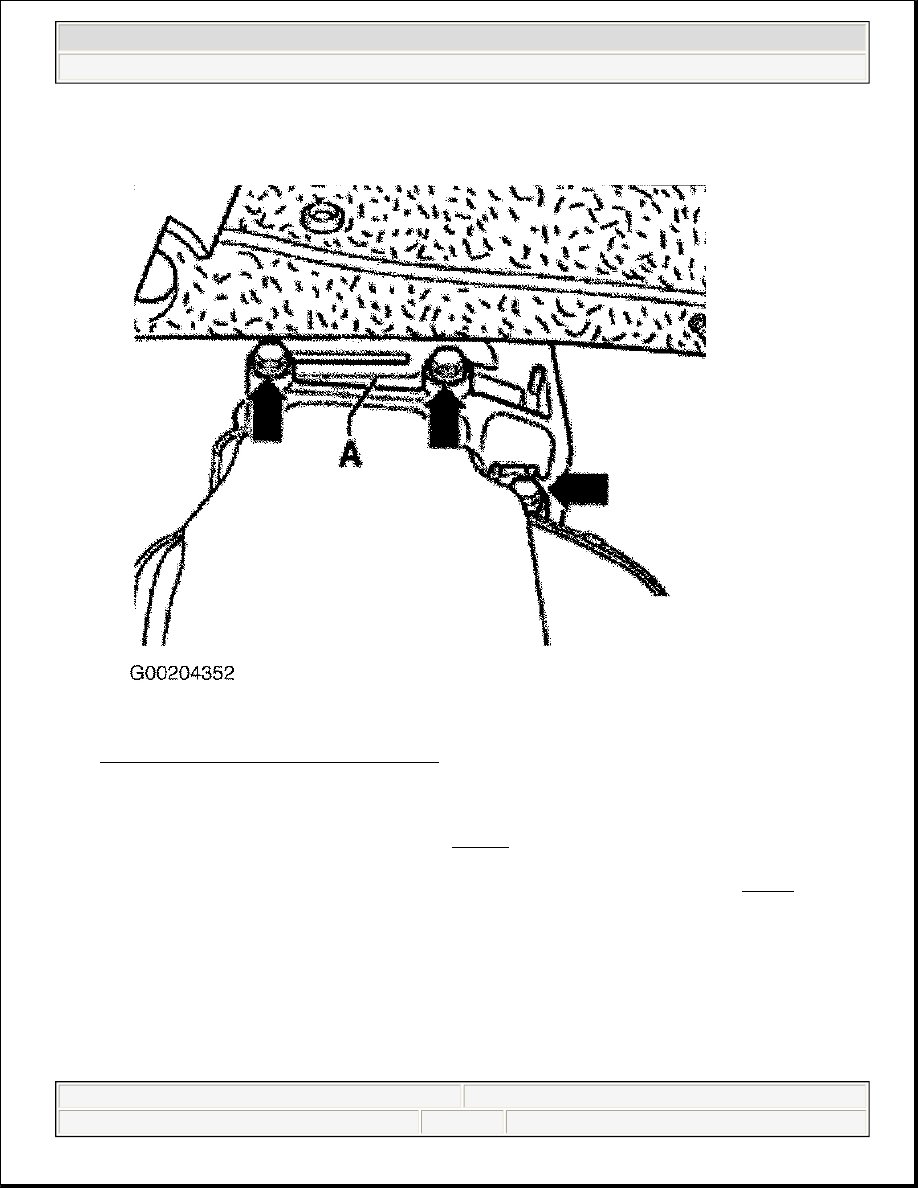

Fig. 64: Locating Transmission Mount Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.

18.

Bolt support rail (VW 457/1) to both pendulum support securing holes on subframe. See Fig. 65 . When
installing support rail, spacers equaling 0.24" (6 mm) must be installed between subframe and support rail
(457/1). Mounting rail (T10036) can be used instead of mounting rail (VW 457/1). Install support
(3300A) and secure.

NOTE:

"A" use bolts M8 x 25. See Fig. 65 .



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:04 AM

Page 71

© 2004 Mitchell Repair Information Company, LLC.

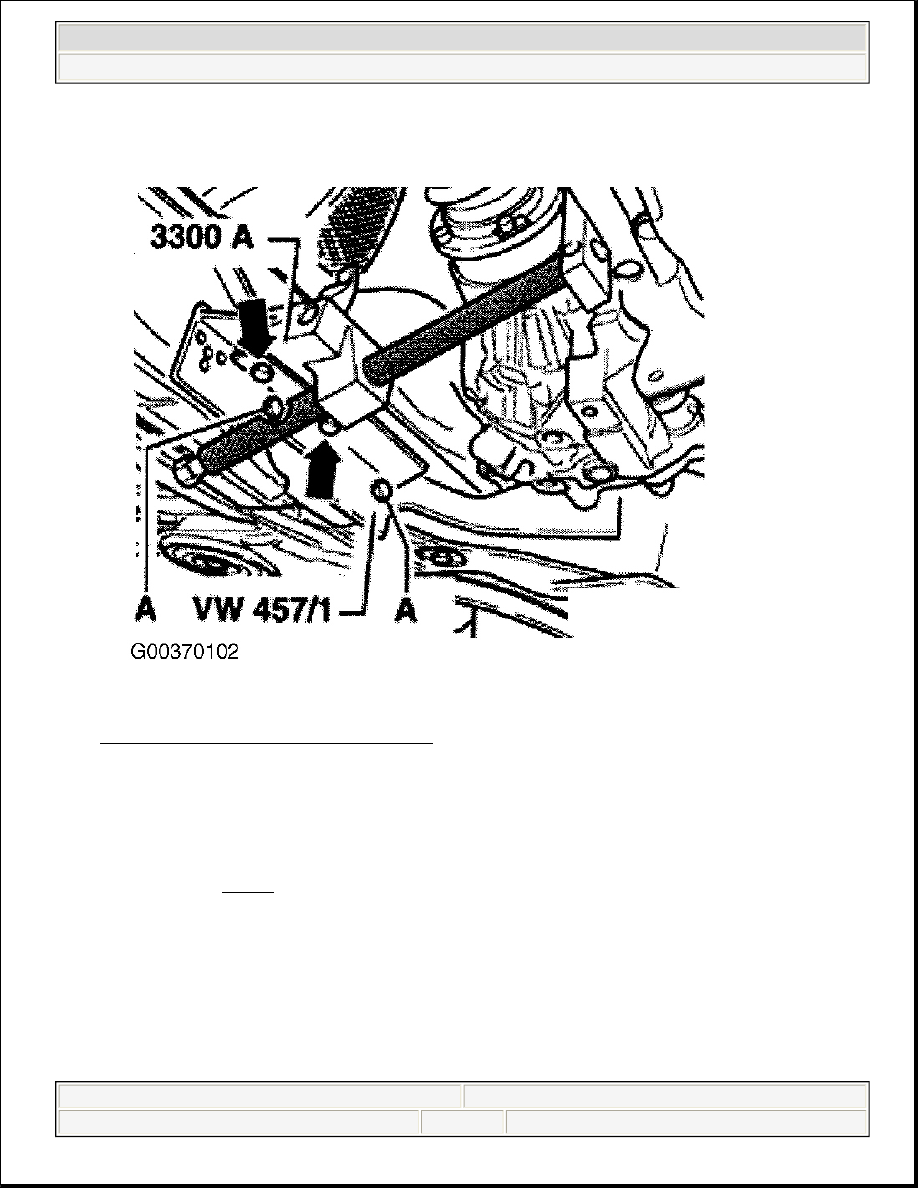

Fig. 65: Installing Support Rail (VW 457/1)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

19.

On models equipped with 1.8L, remove lower engine/transmission securing bolts, so support (3300A) can
be installed. See Fig. 66 . Support (3300A) must be installed directly next to transmission on engine.

NOTE:

On all other models without 1.8L engine, go to next step.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:04 AM

Page 72

© 2004 Mitchell Repair Information Company, LLC.
