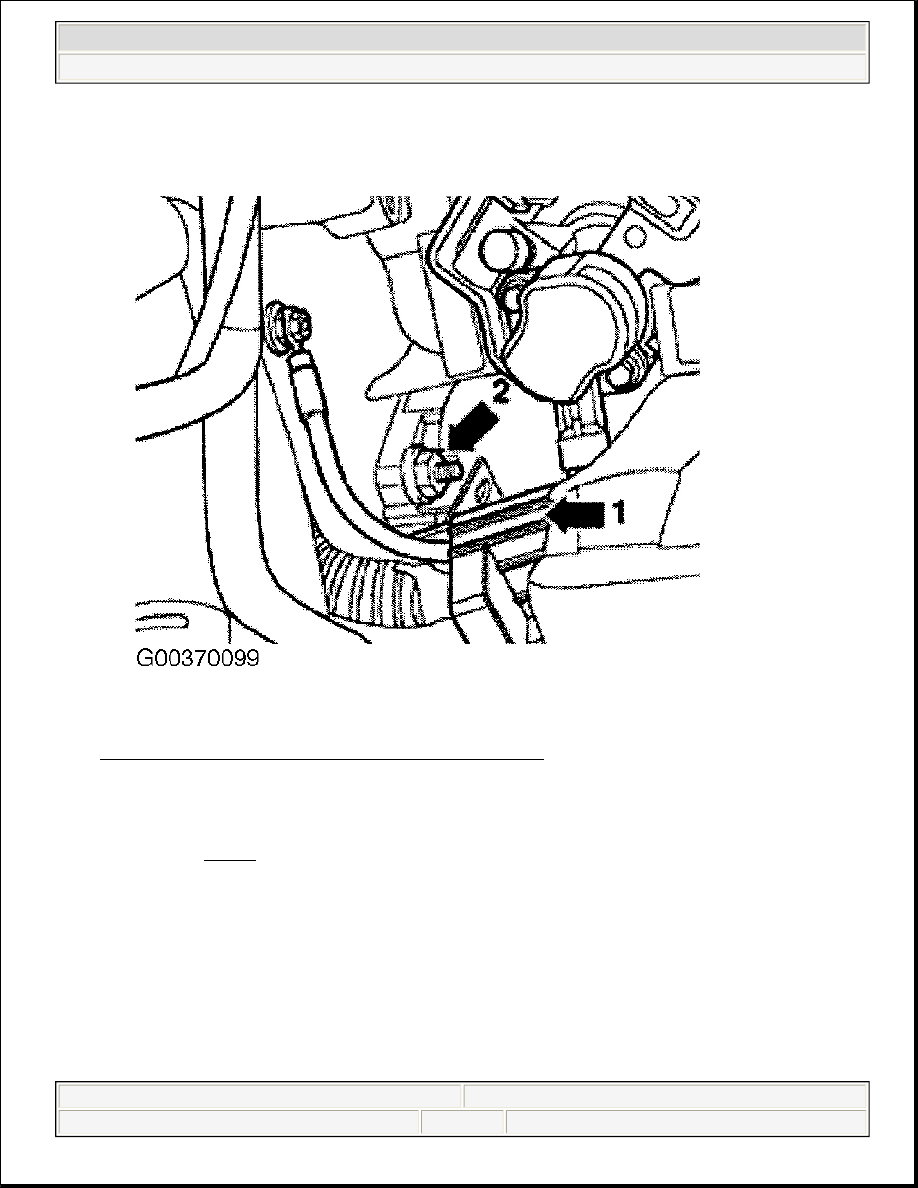

Fig. 58: Removing Cable Retainer & Upper Securing Bolt
Courtesy of VOLKSWAGEN UNITED STATES, INC.

12. If there are hoses and cable connections in area of engine mounting eye, these will need to be removed, so

support (10-222A) can be attached to mounting eye. Erect support device (10-222A) with adapters (10-
222 A/8). See Fig. 59 . DO NOT seat adapters (10-222 A/8) on securing bolts for front end fender. Take
weight of engine/transmission assembly on spindles. Remove noise insulation tray.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:03 AM

Page 65

© 2004 Mitchell Repair Information Company, LLC.

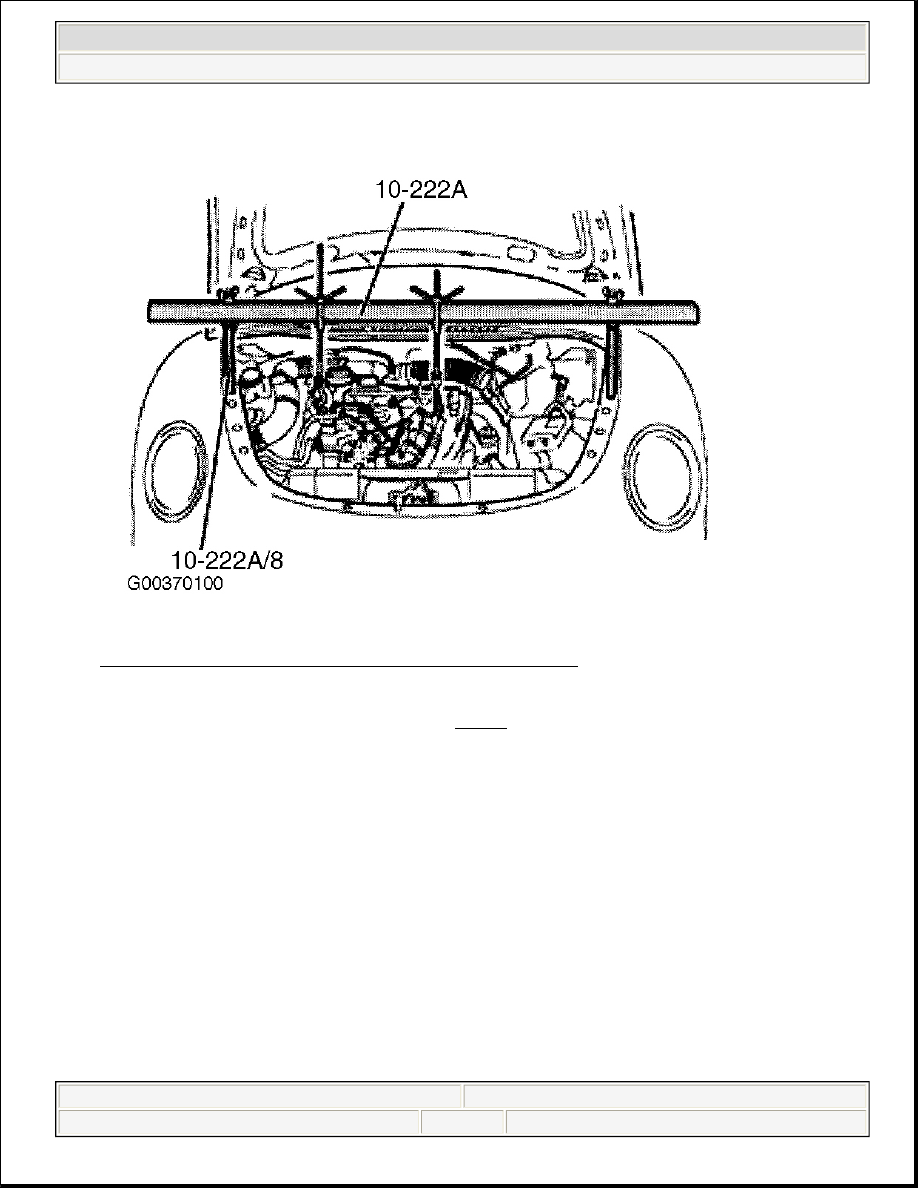

Fig. 59: Installing Support (10-222A) & Adapters (10-222 A/8)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

13. Remove left noise insulation panel (arrows). See Fig. 60 . Remove power steering line from starter and

transmission. Remove starter.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:04 AM

Page 66

© 2004 Mitchell Repair Information Company, LLC.

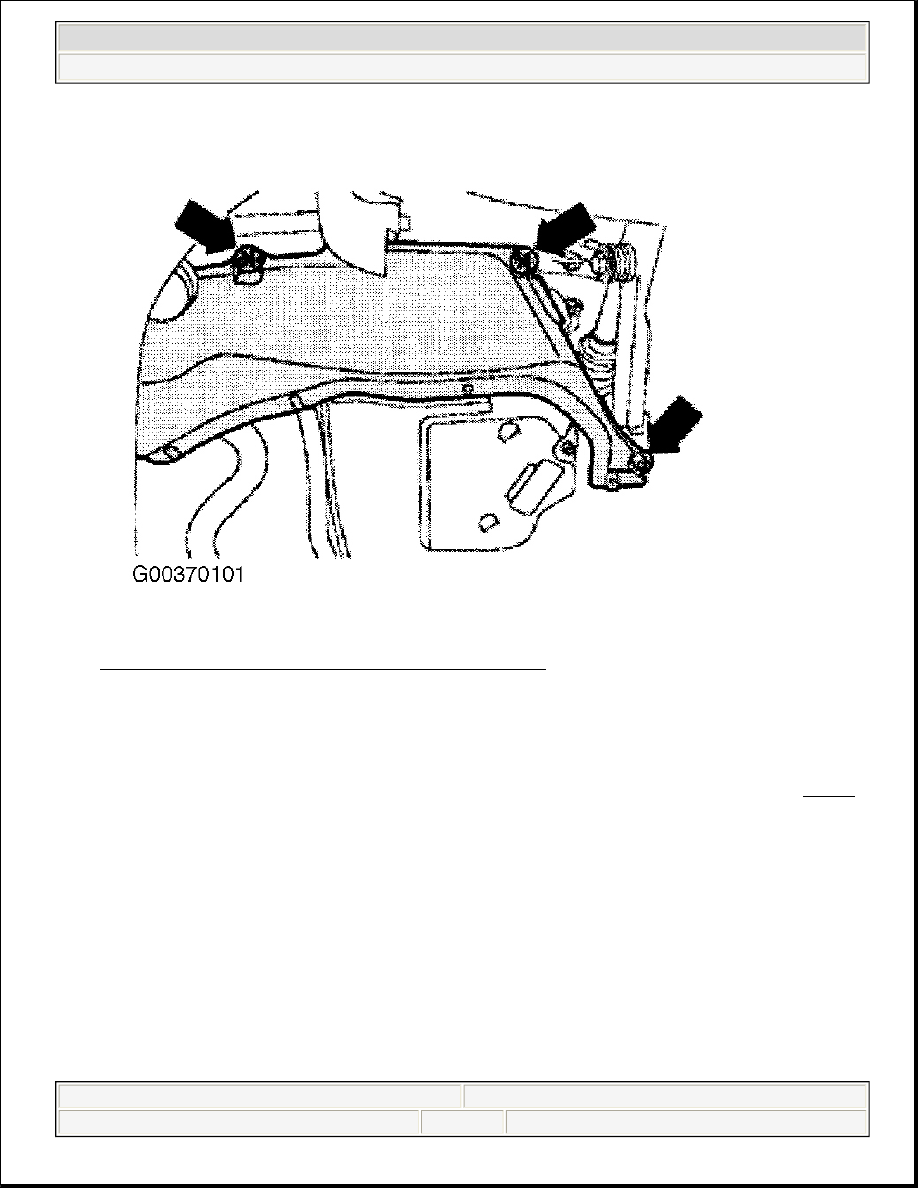

Fig. 60: Identifying Left Noise Insulation Mounting Points
Courtesy of VOLKSWAGEN UNITED STATES, INC.

14. Remove right-hand inner constant velocity joint protective cover from engine, if equipped. Turn wheels

fully onto left lock. Disconnect drive axle shafts from transmission flange, and wire up as high as
possible. Ensure to NOT damage surface protection of axle shafts.

15. Remove flywheel small over plate (A) behind right-hand flanged shaft (arrows), if equipped. See Fig. 61 .

Disconnect exhaust system, after front exhaust line at double clamp (A). Remove front exhaust line
supports from subframe, if necessary.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:04 AM

Page 67

© 2004 Mitchell Repair Information Company, LLC.

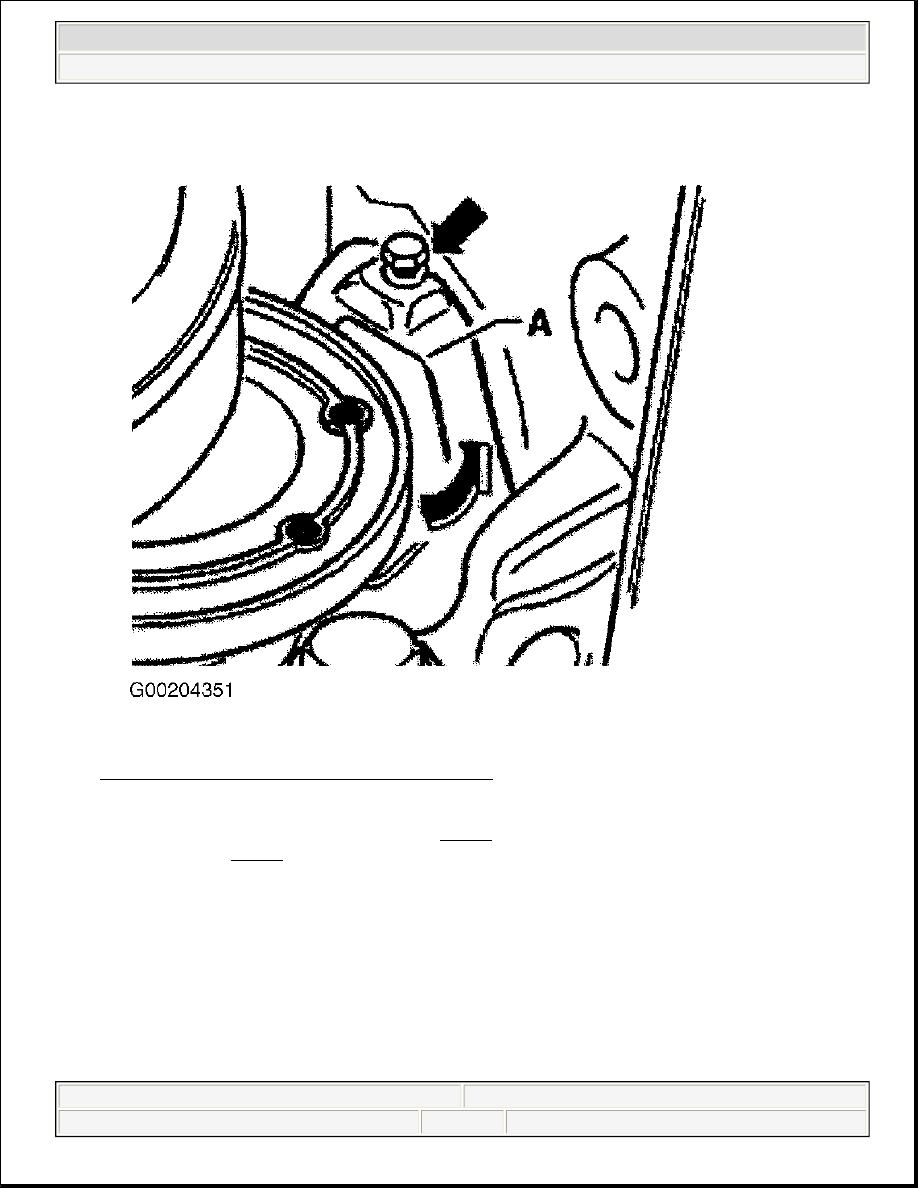

Fig. 61: Removing Small Cover Plate (If Equipped)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

16. Remove pendulum support bolts (arrows). See Fig. 62 . Remove transmission support (arrows) from

transmission. See Fig. 63 . Remove bolts from left-hand assembly mounting (arrows).



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:04 AM

Page 68

© 2004 Mitchell Repair Information Company, LLC.
