Volkswagen New Beetle. Manual - part 2365

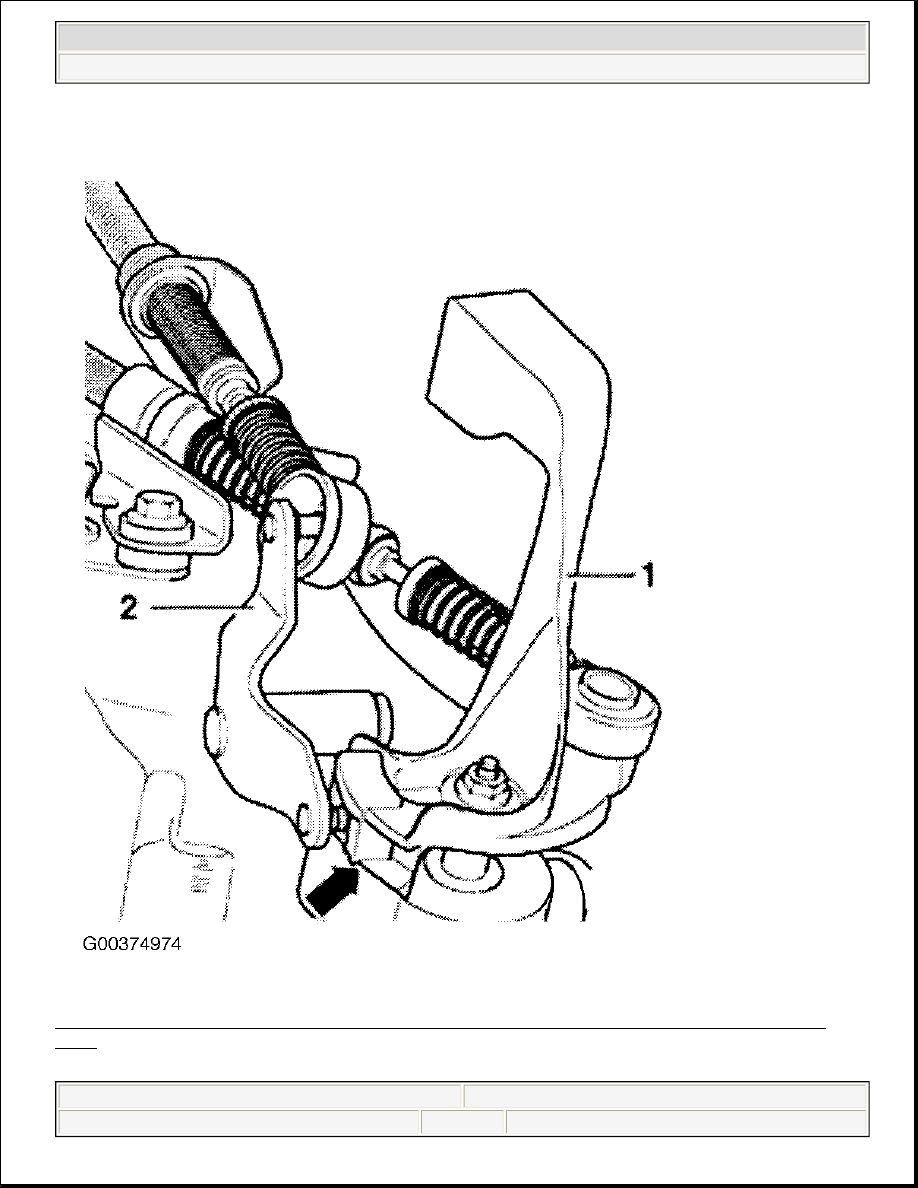

Fig. 43: Installation Position Of Transmission Selector Lever/Relay Lever (Vehicles Built From June
1999)

Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:03 AM

Page 49

© 2004 Mitchell Repair Information Company, LLC.

SELECTOR LEVER KNOB & BOOT

Removal & Installation (Vehicles Built From June 1999)

Use illustration as an aid for procedure. See Fig. 44 . Note the following points when servicing.

Selector lever knob screws on and off together with the boot. To separate and assemble cover to and from gear
shift knob, turn boot inside out. Using a screwdriver, carefully pry clamping sleeve (arrow). See Fig. 45 . Pull
gear shift knob out.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:03 AM

Page 50

© 2004 Mitchell Repair Information Company, LLC.

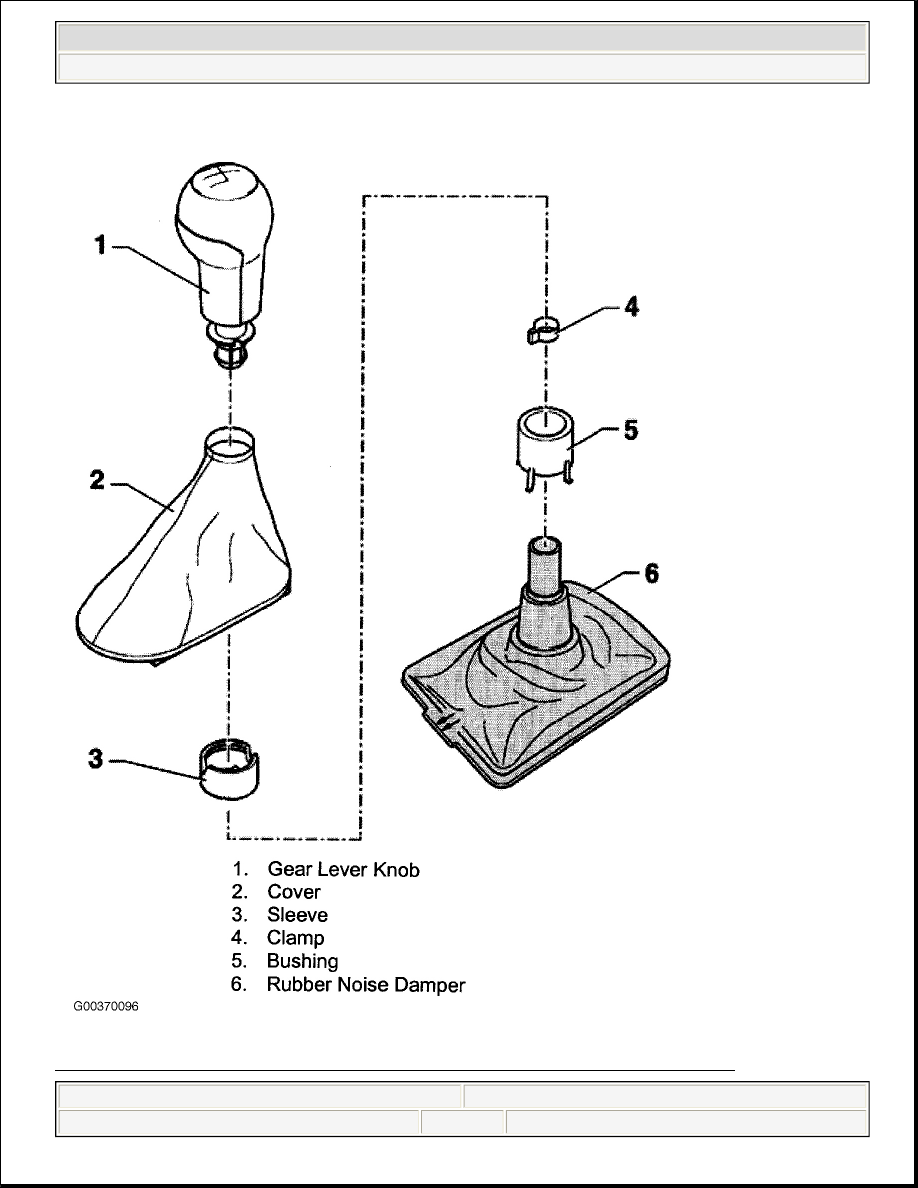

Fig. 44: Exploded View Of Selector Lever Knob & Boot (Vehicles Built From June 1999)



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:03 AM

Page 51

© 2004 Mitchell Repair Information Company, LLC.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

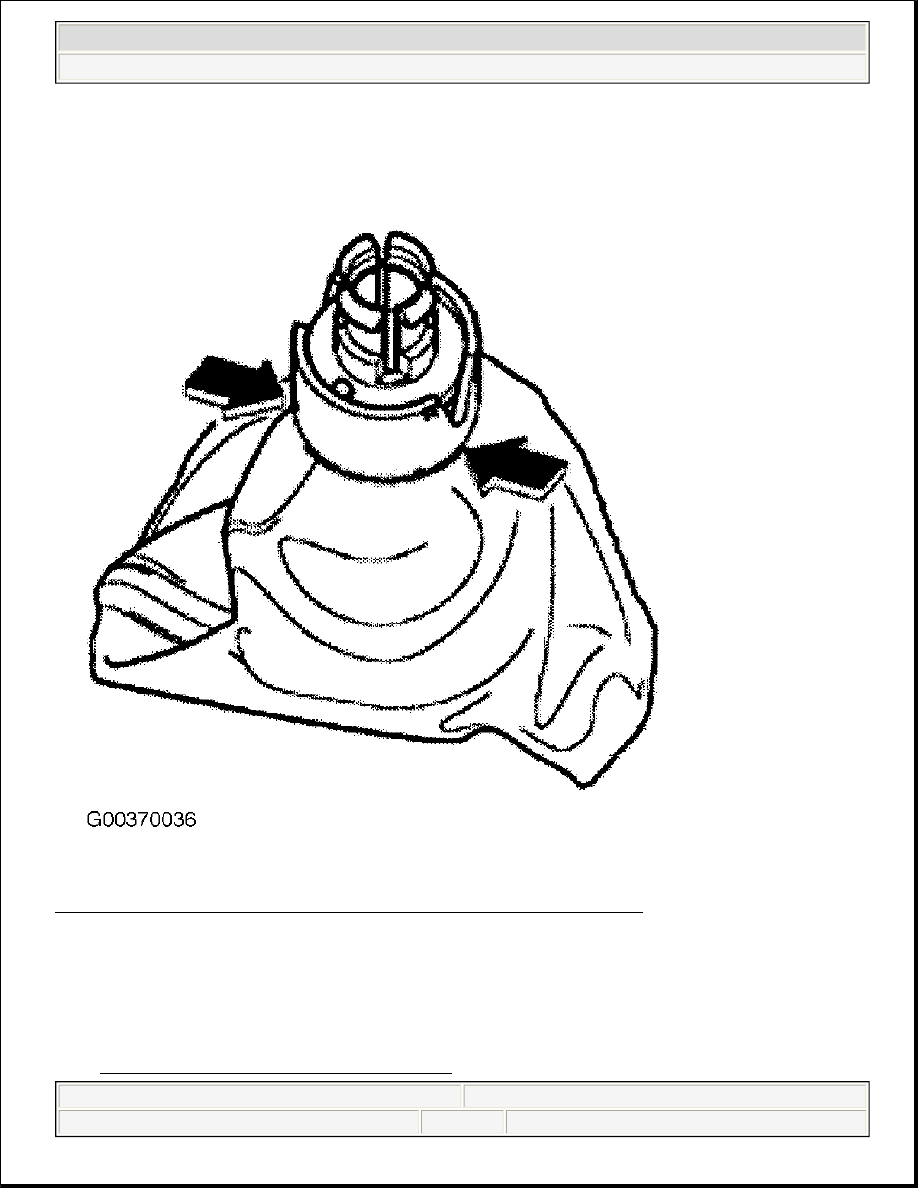

Fig. 45: Separating Cover From Gear Shift Knob (Vehicles From June 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

SELECTOR MECHANISM

Removal & Installation (Vehicles Built Up To May 1999)

1. Obtain radio code. Turn ignition switch to OFF position. Disconnect negative battery cable. See
