CLUTCH RELEASE BEARING/SLAVE CYLINDER

Removal & Installation

Removal and installation information is not available from manufacturer. Use illustration as an aid for
procedure. See Fig. 27 .

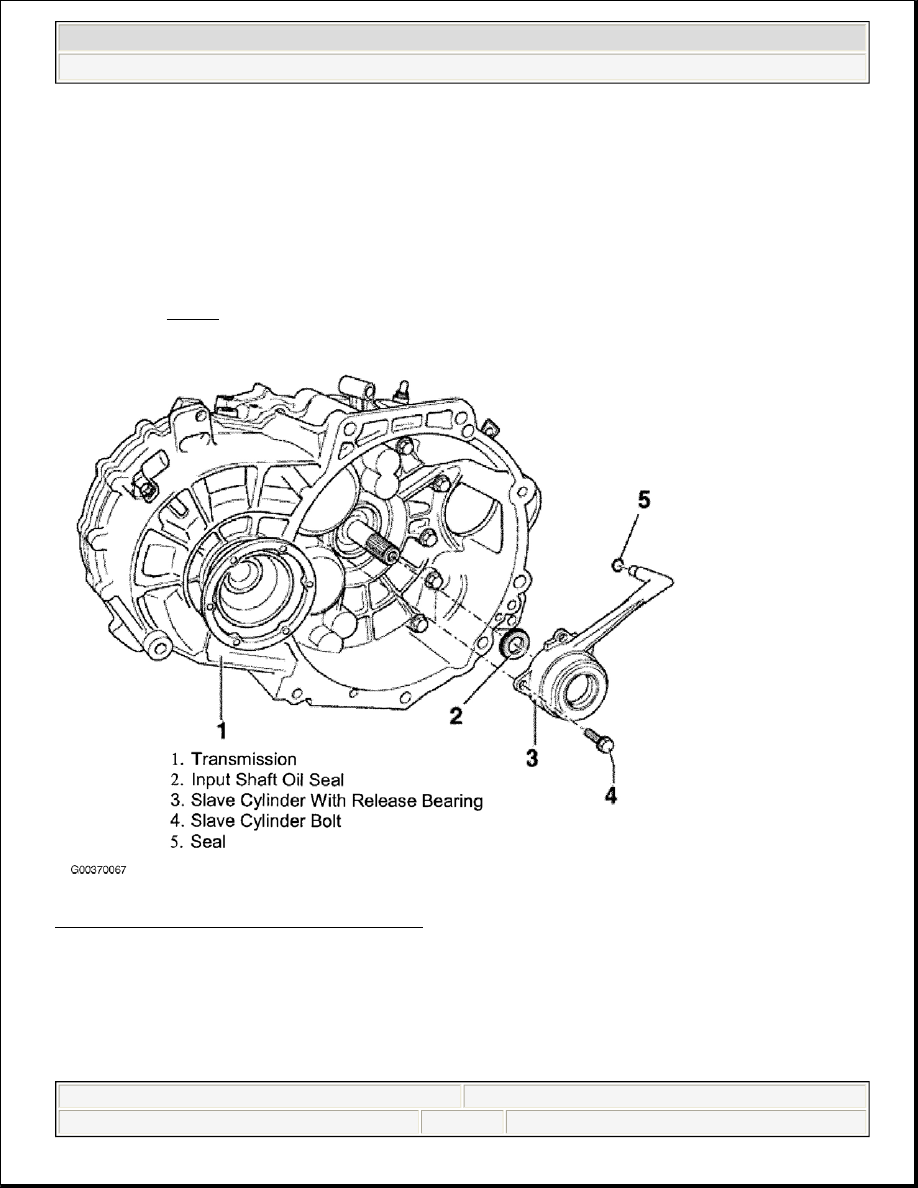

Fig. 27: Identifying Clutch Release Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.

GEAR SHIFT LEVER & HOUSING

Removal & Installation

CAUTION: DO NOT wash out bearing. Replace noisy bearing. Release bearing and

slave cylinder are an integral unit.

NOTE:

Removal and installation information is not available from manufacturer. Use



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:54 AM

Page 29

© 2004 Mitchell Repair Information Company, LLC.

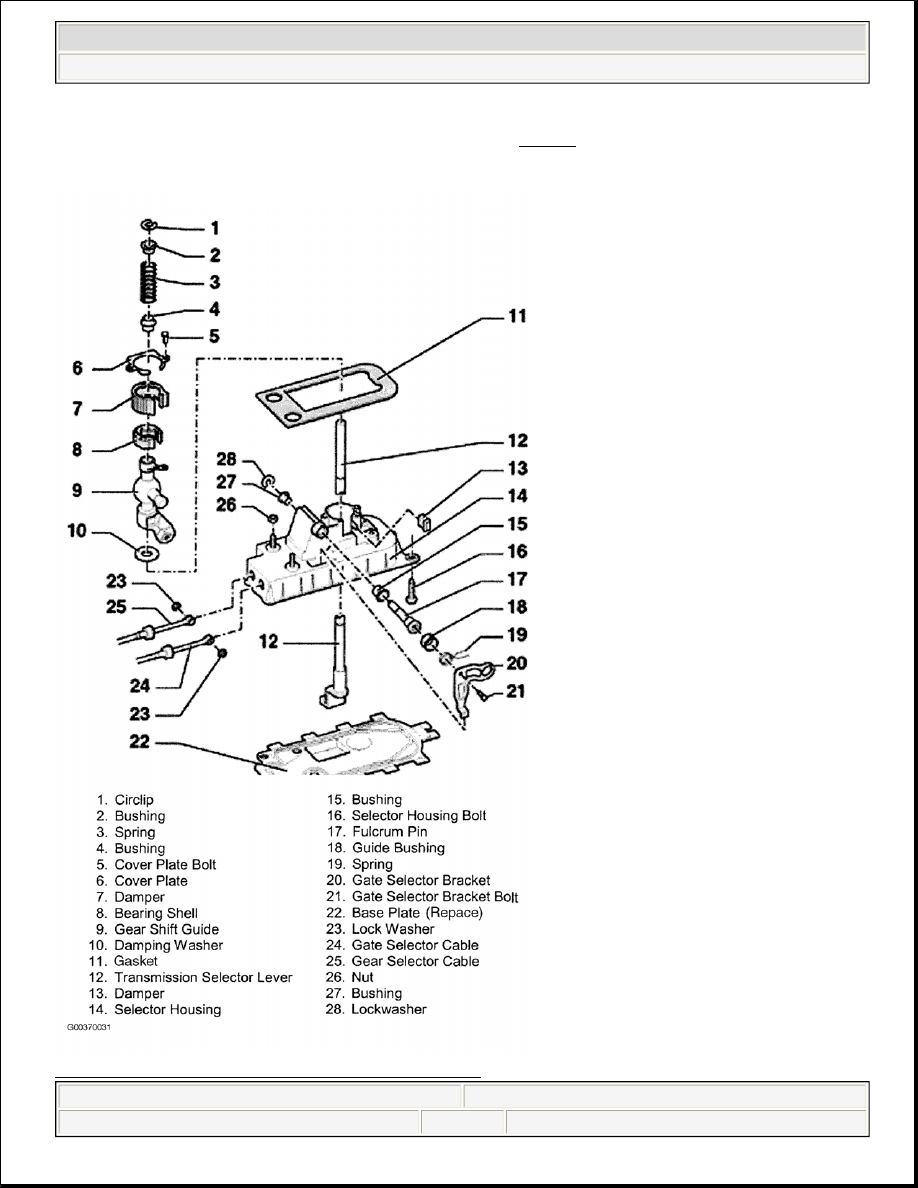

Fig. 28: Exploded View Of Gear Shift Lever & Housing

illustration as an aid for procedure. See Fig. 28 . Note the following points when
servicing.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:54 AM

Page 30

© 2004 Mitchell Repair Information Company, LLC.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

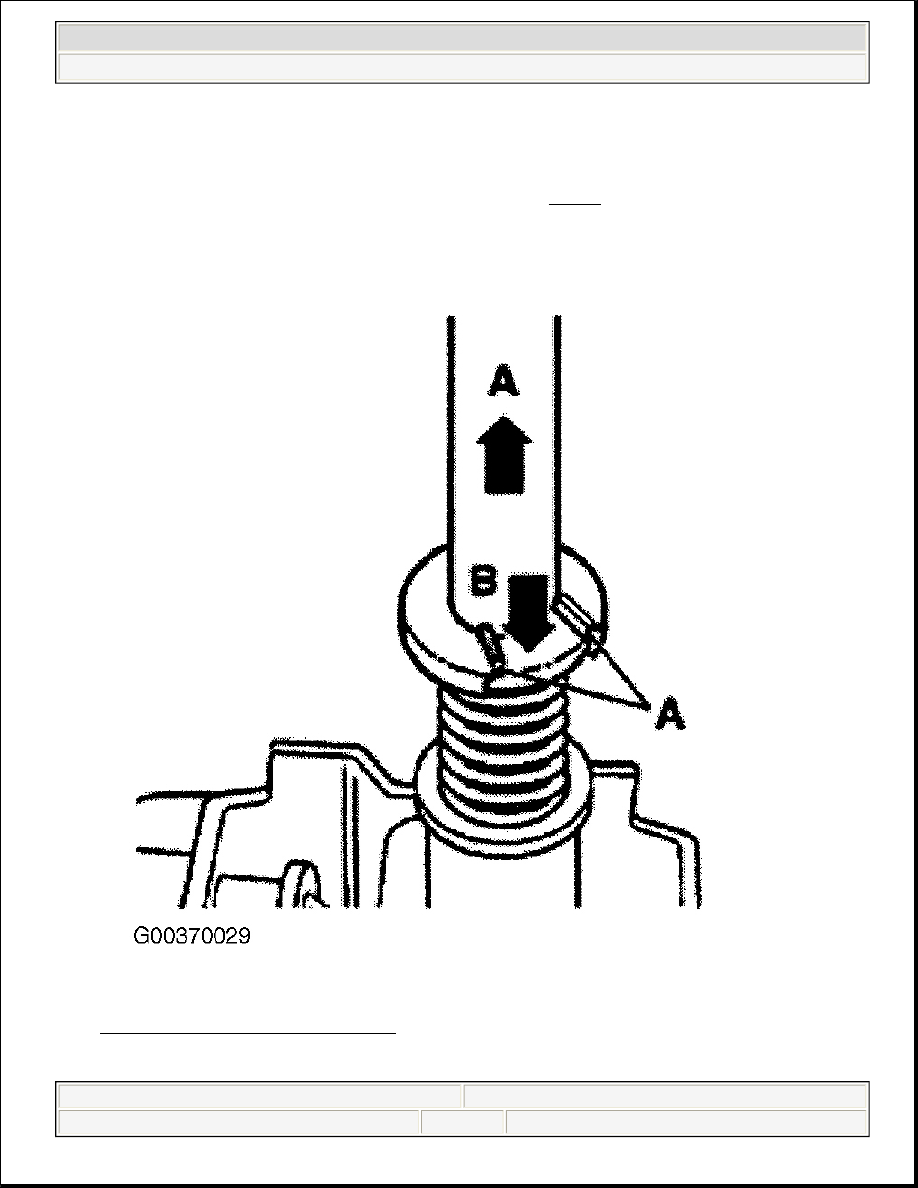

1. To remove and install circlip, use a screwdriver to pull gear lever in direction of arrow (A), while pushing

down spacer bushing onto stop, in direction of arrow (B). See Fig. 29 . DO NOT tilt spacer bushing when
pushing down.

Fig. 29: Removing & Installing Circlip
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:54 AM

Page 31

© 2004 Mitchell Repair Information Company, LLC.

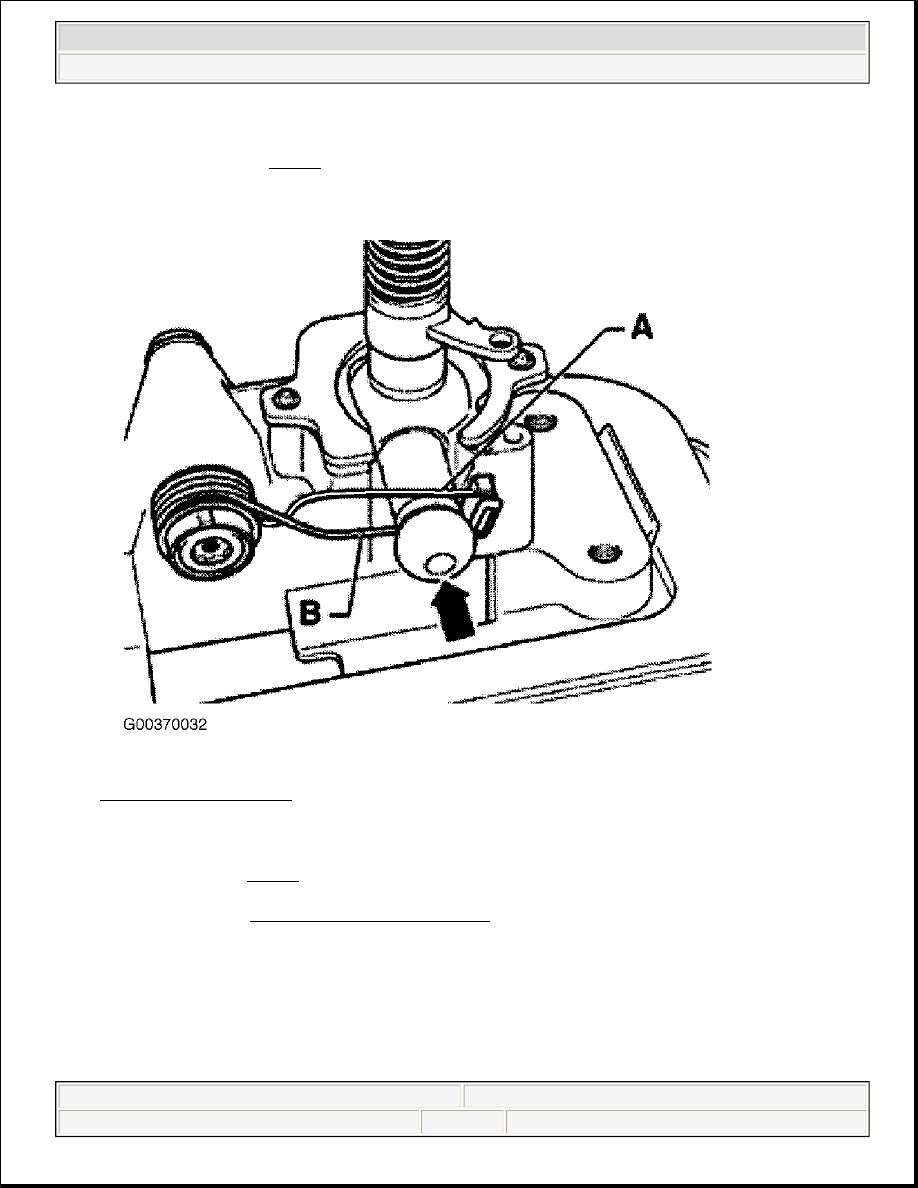

2. Carefully release pressure at groove in gear lever for circlip. Insert spring so spring extension (A) lies

above pin (arrow). See Fig. 30 .

Fig. 30: Installing Spring
Courtesy of VOLKSWAGEN UNITED STATES, INC.

3. Pull spring extension (B) down so it reaches below pin (arrow). Install transmission selector lever/relay

lever as shown. See Fig. 31 . Relay lever (2) locates in guide rail of gear selector lever via shoe (arrow).
Lubricate all mountings and sliding surfaces with Polyurea grease (G 000 450 02). Tighten bolts and nuts
to specification. See TORQUE SPECIFICATIONS



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:54 AM

Page 32

© 2004 Mitchell Repair Information Company, LLC.
