Volkswagen New Beetle. Manual - part 2341





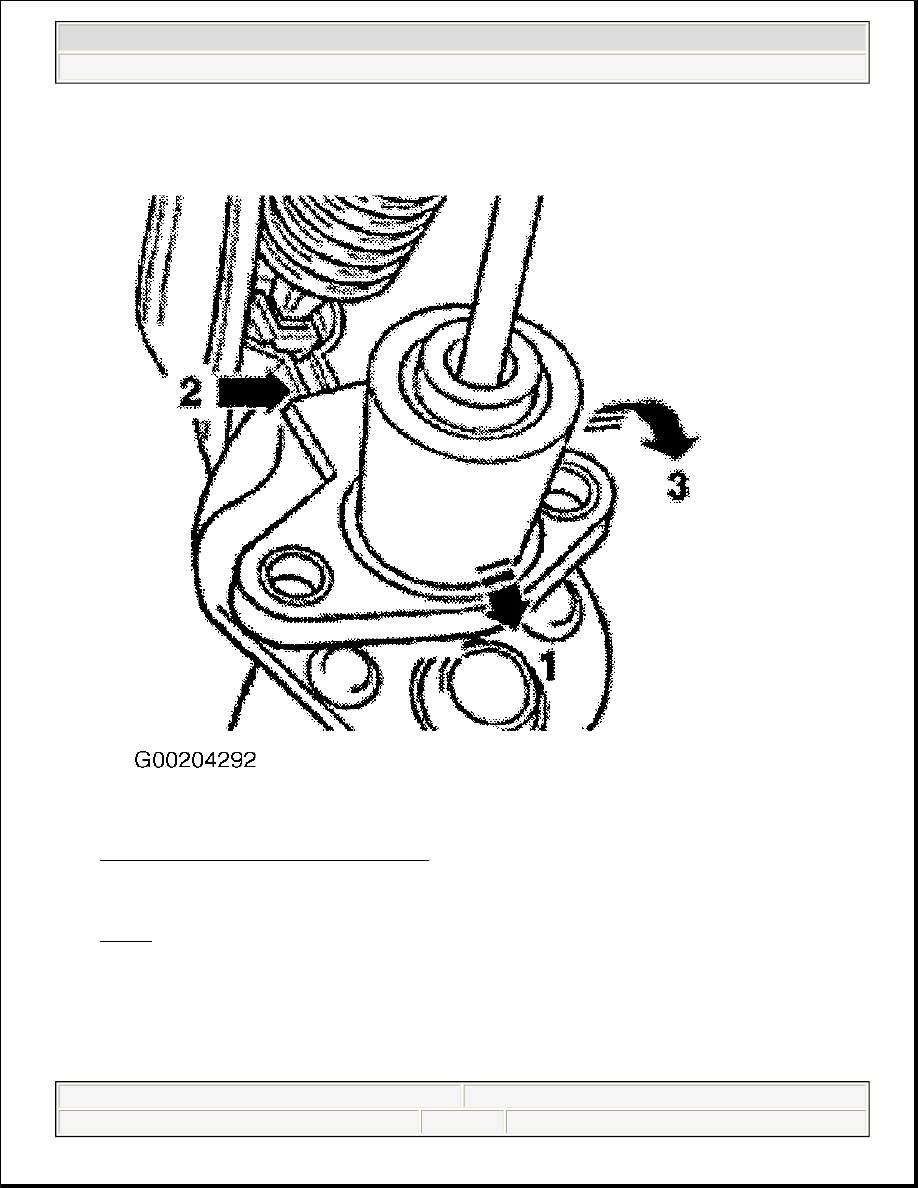

Fig. 23: Removing Clutch Master Cylinder
Courtesy of VOLKSWAGEN UNITED STATES, INC.

8. To install, reverse removal procedure. Install retainer (A) to clutch master cylinder operating rod (B). See

Fig. 24 . Pull piston rod out of clutch master cylinder slightly and hold using a pair of pliers. Press clutch
pedal in direction of arrow to engage. Ensure retainer is installed in correct location.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:53 AM

Page 25

© 2004 Mitchell Repair Information Company, LLC.

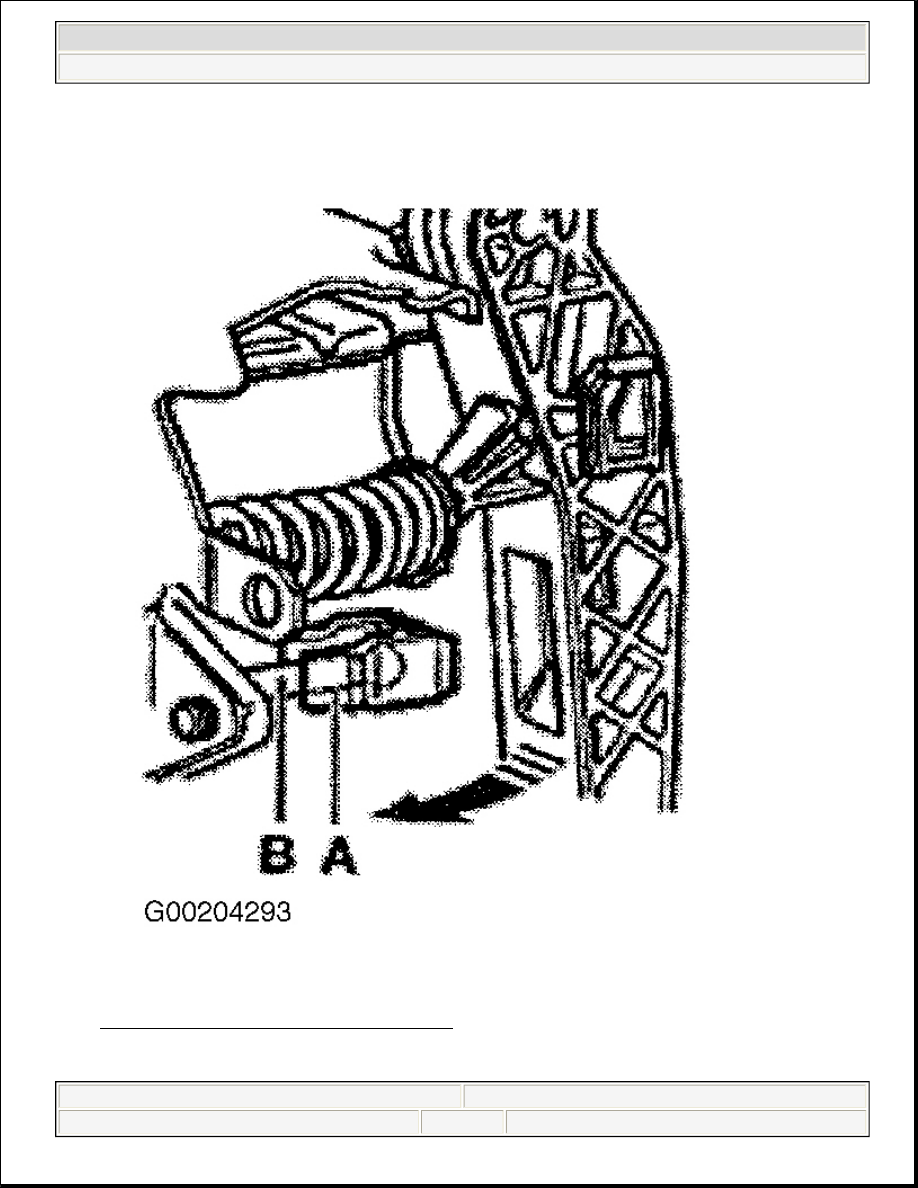

Fig. 24: Installing Retainer To Operating Rod
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:54 AM

Page 26

© 2004 Mitchell Repair Information Company, LLC.

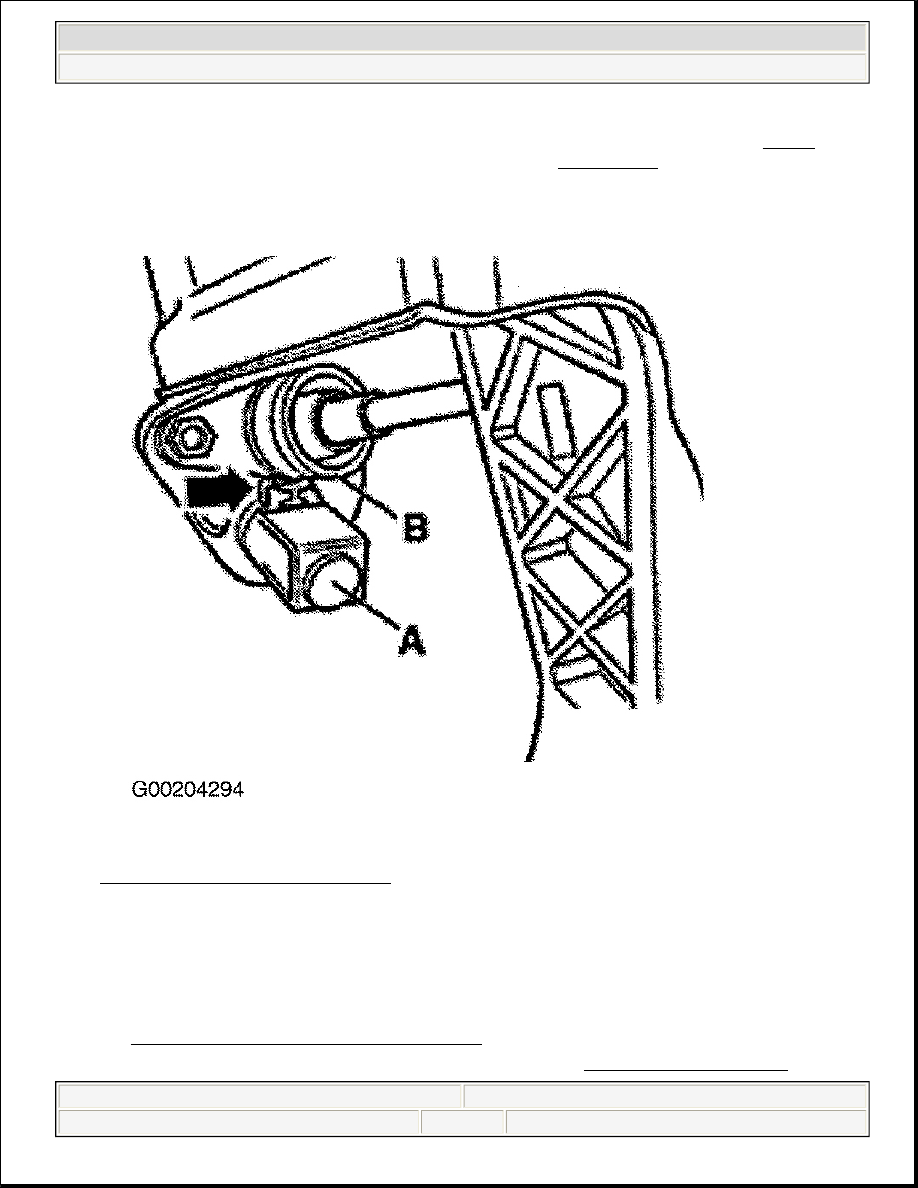

9. Install stop (A) for clutch pedal. Arm (arrow) points toward clutch master cylinder (B). See Fig. 25 .

Bleed clutch system after installing clutch master cylinder. See BLEEDING

Fig. 25: Fitting Stop For Clutch Pedal
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CLUTCH PEDAL

Removal & Installation

1. Obtain anti-theft coding. With ignition switch turned to OFF position, disconnect battery negative cable.

See BATTERY DISCONNECT PRECAUTIONS .

2. Remove cover in driver's footwell. Remove overcenter spring. See OVERCENTER SPRING



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:54 AM

Page 27

© 2004 Mitchell Repair Information Company, LLC.

3. Remove clutch pedal from clutch master cylinder, and press operating rod until it reaches engine

compartment. Remove nut (A). See Fig. 26 . Pull bolt out until clutch pedal can be removed.

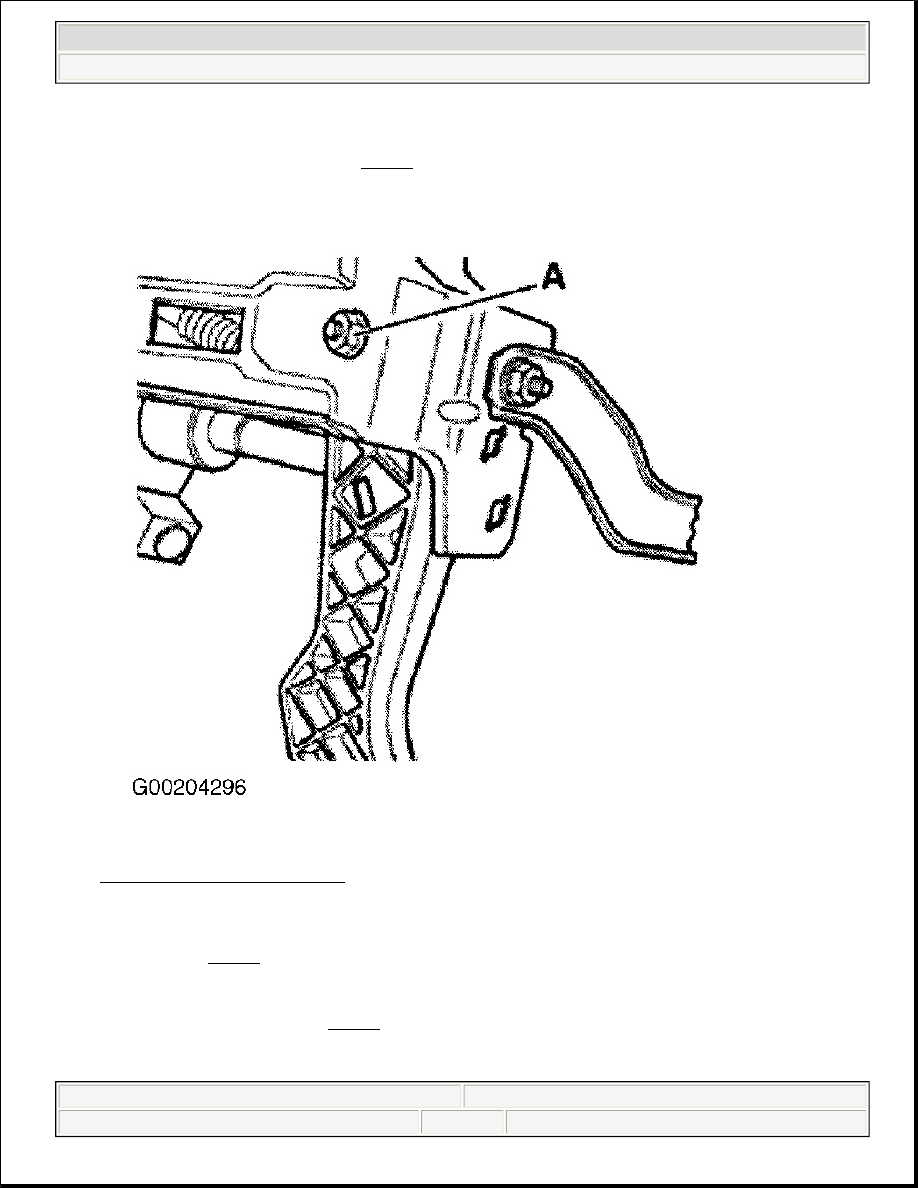

Fig. 26: Removing Clutch Pedal
Courtesy of VOLKSWAGEN UNITED STATES, INC.

4. Pull clutch pedal lightly toward passenger compartment. Press both sides of mounting inward using Pliers

(T10005). See Fig. 19 . Separate master cylinder operating rod from clutch pedal. Push operating rod
toward engine compartment until stopped.

5. To install, reverse removal procedure. Install overcenter spring. Install retainer (A) to clutch master

cylinder operating rod (B). See Fig. 25 . Press clutch pedal in direction of arrow to engage. Ensure
retainer is installed in correct location. Place clutch pedal switch in mounting hole, and turn 45 degrees to
right.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:54 AM

Page 28

© 2004 Mitchell Repair Information Company, LLC.
