2002-04 AUTOMATIC TRANSMISSION

Overhaul - New Beetle, 09G

APPLICATION

TRANSMISSION APPLICATION

IDENTIFICATION

Transmission code letters are given on type plate (arrow). See Fig. 1 . Transmission code letters are also given
on vehicle data plate.

Application

Transmission Model

1.8L (2002-2004)

09G, 6-Speed

2.0L (2003-2004)

09G, 6-Speed



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G





2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G

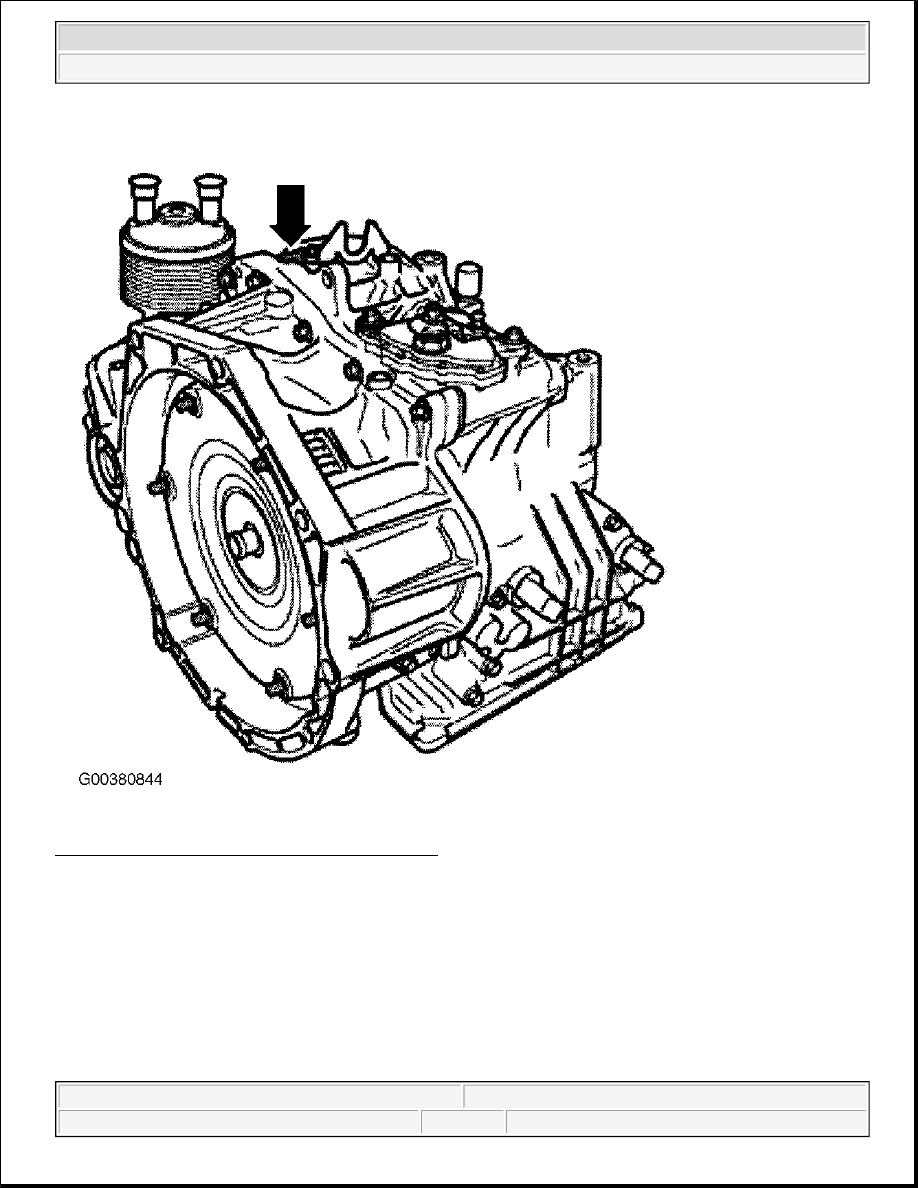

Fig. 1: Locating Transmission Identification Code
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CODE LETTERS, TRANSMISSION APPLICATION, RATIOS, EQUIPMENT



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G

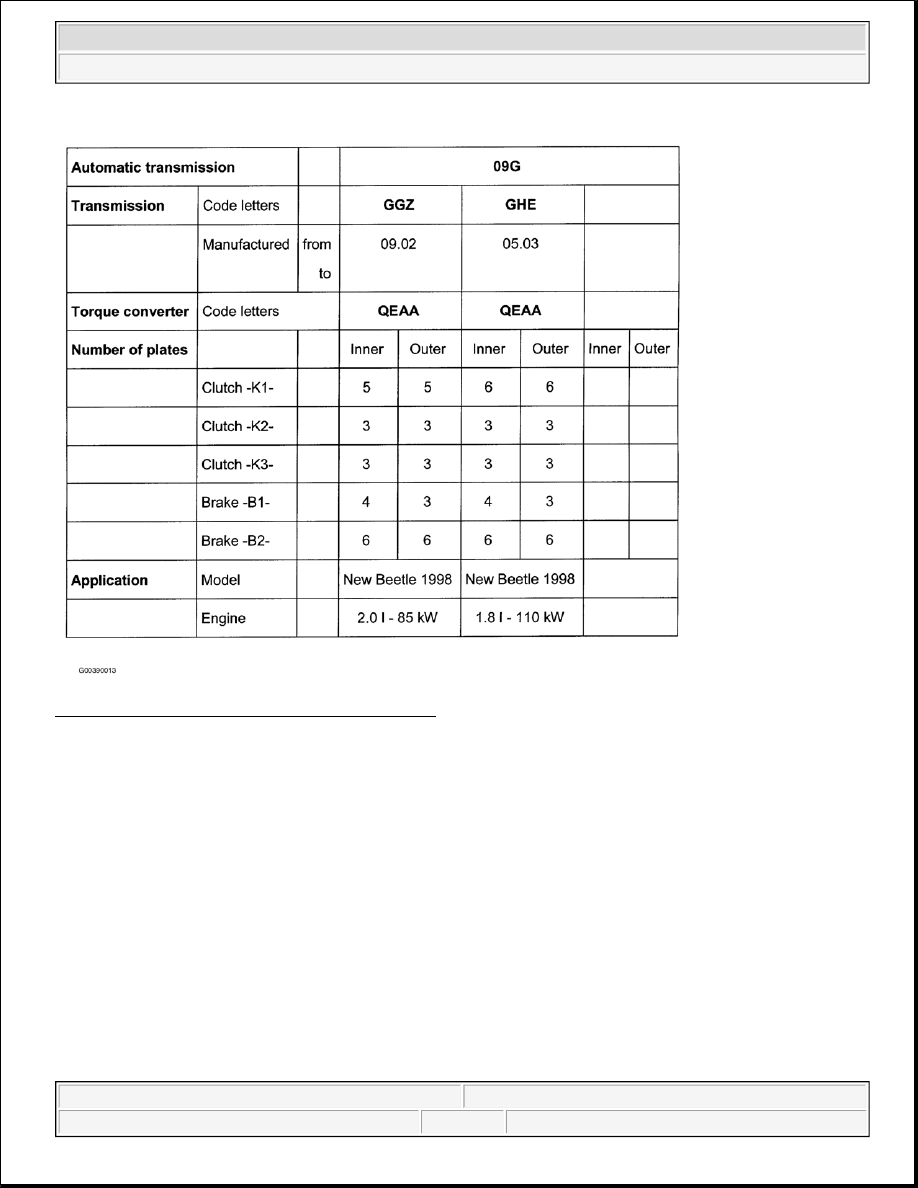

Fig. 2: Transmission Codes GGZ & GHE (1 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G

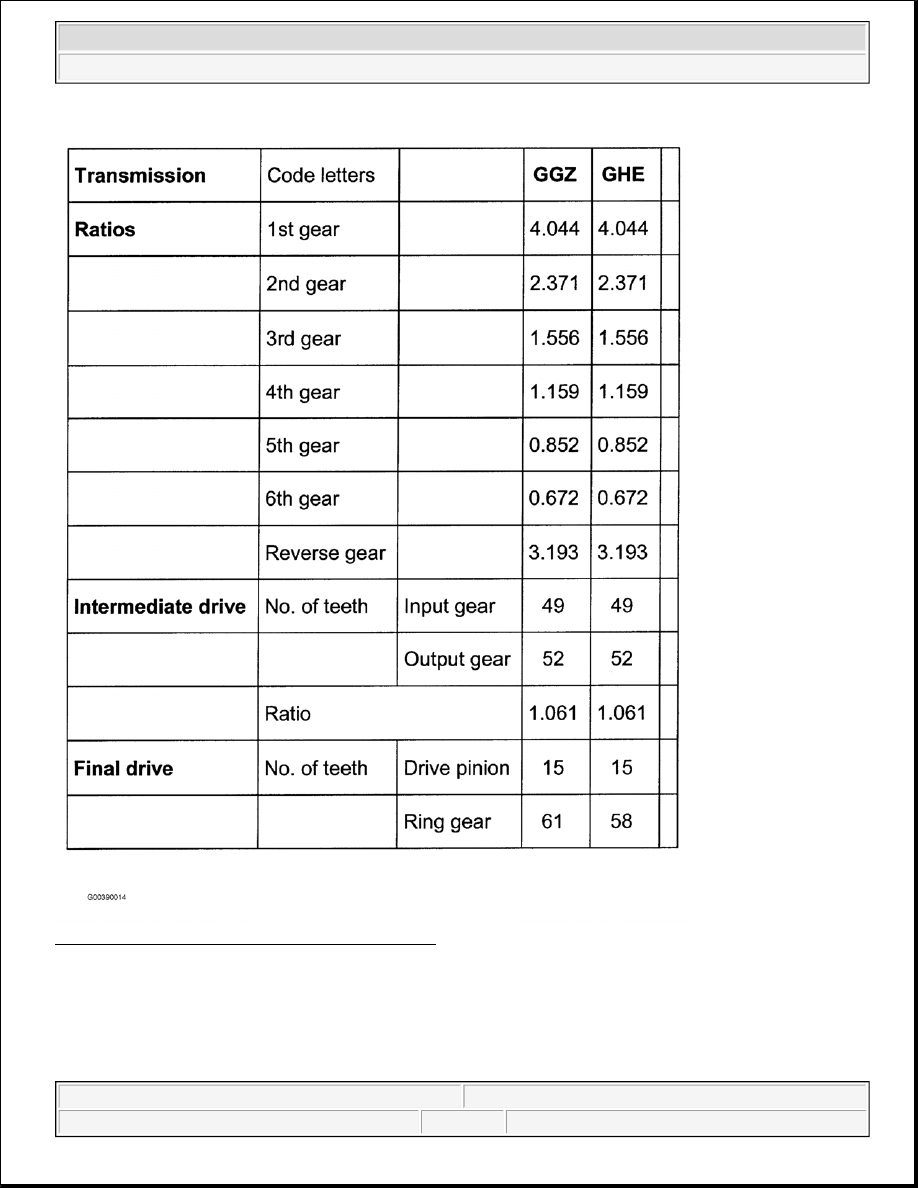

Fig. 3: Transmission Codes GGZ & GHE (2 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DESCRIPTION & OPERATION

TRANSMISSION
