Volkswagen New Beetle. Manual - part 2267

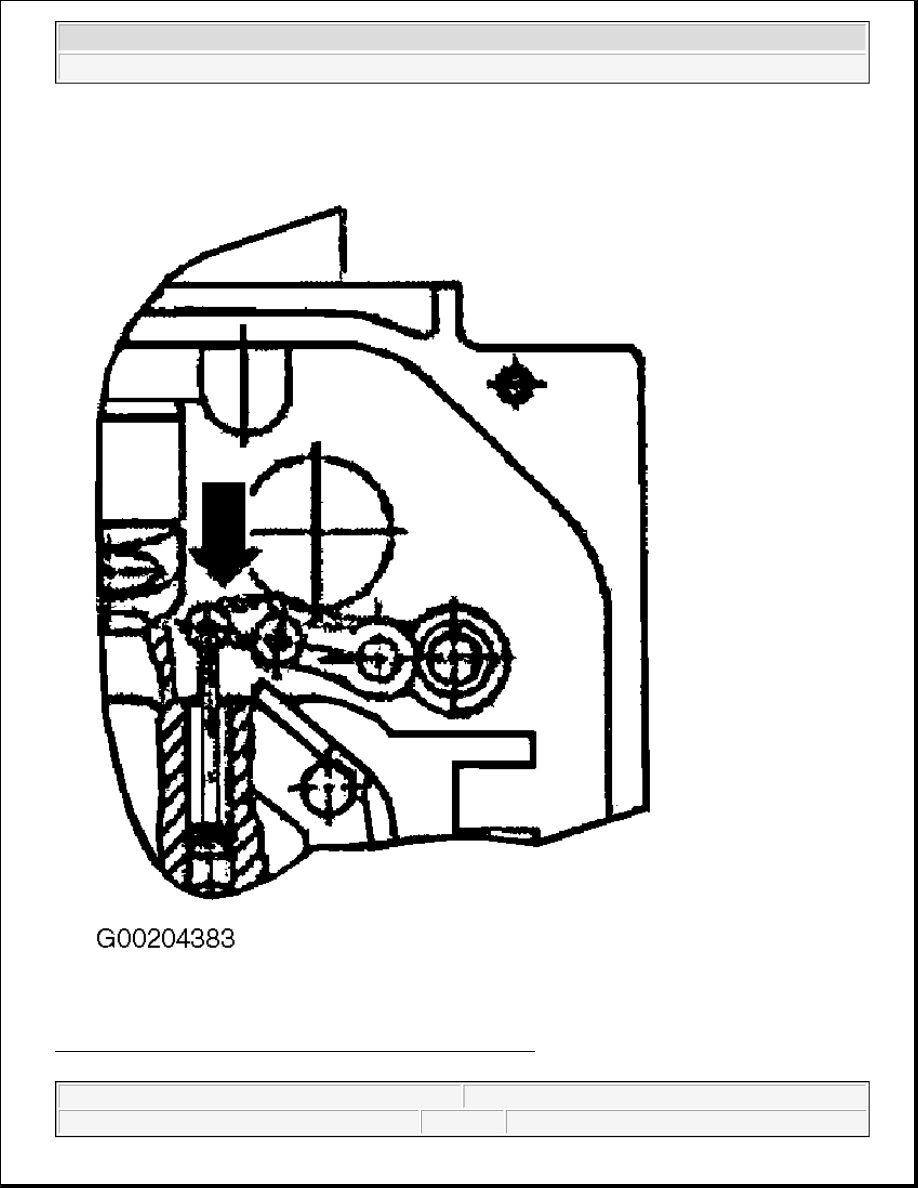

Fig. 141: Adjusting Operating Rod For Manual Selector Valve
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



Install valve body and bolts. Tighten the two centering bolts first by hand. Tighten bolts to 44 INCH lbs. (5
N.m). When installing conductor strip, route conductor strip as shown. See Fig. 142 . Ensure conductor strip is
not kinked or twisted.

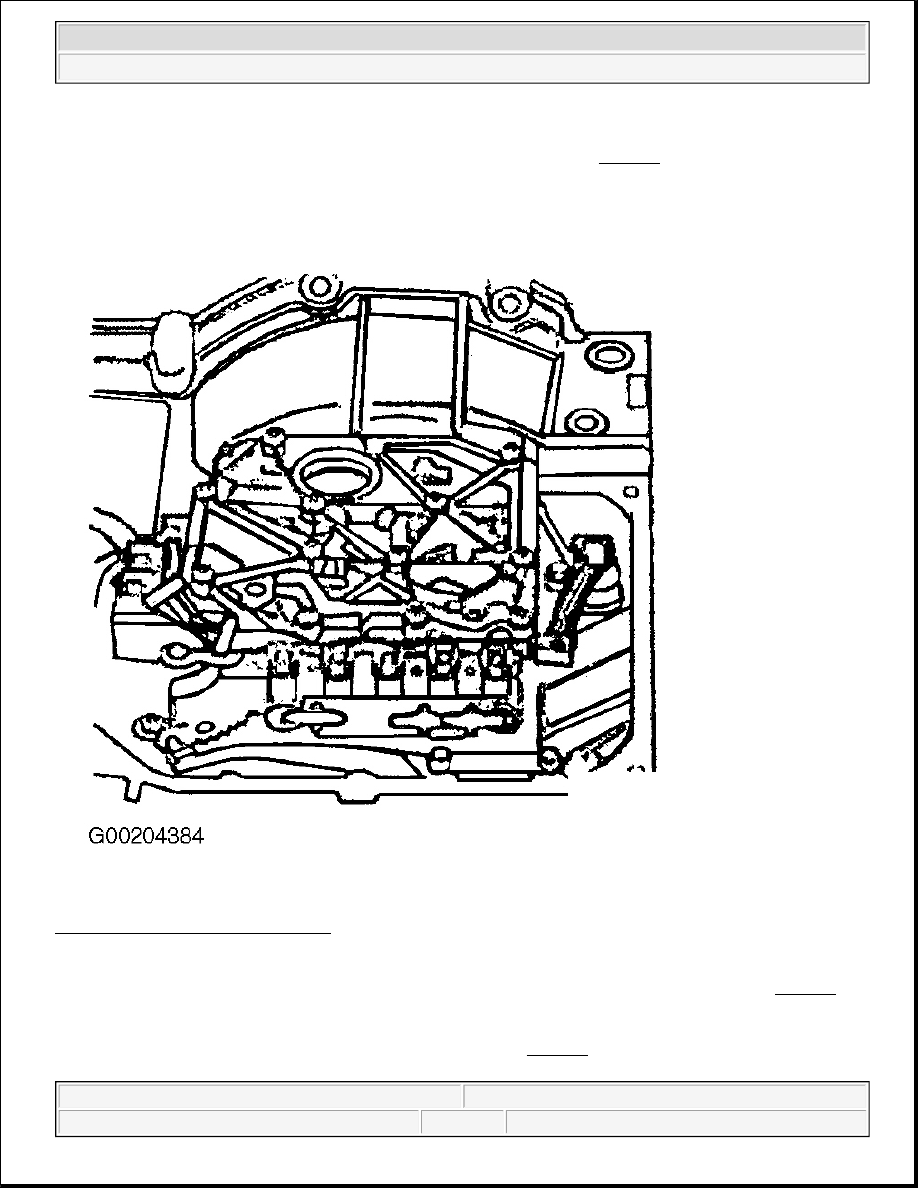

Fig. 142: Installing Conductor Strip
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Before installing ATF filter, insert seal in valve body. Firmly press ATF filter onto valve body. See Fig. 137 .

Secure clip with bolt for conductor strip connector by connecting conductor strip connector to lower retainer.
Install upper retainer with recess (arrow) onto connector tab. See Fig. 143 . Tighten bolt to 15 ft. lbs. (20 N.m).



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

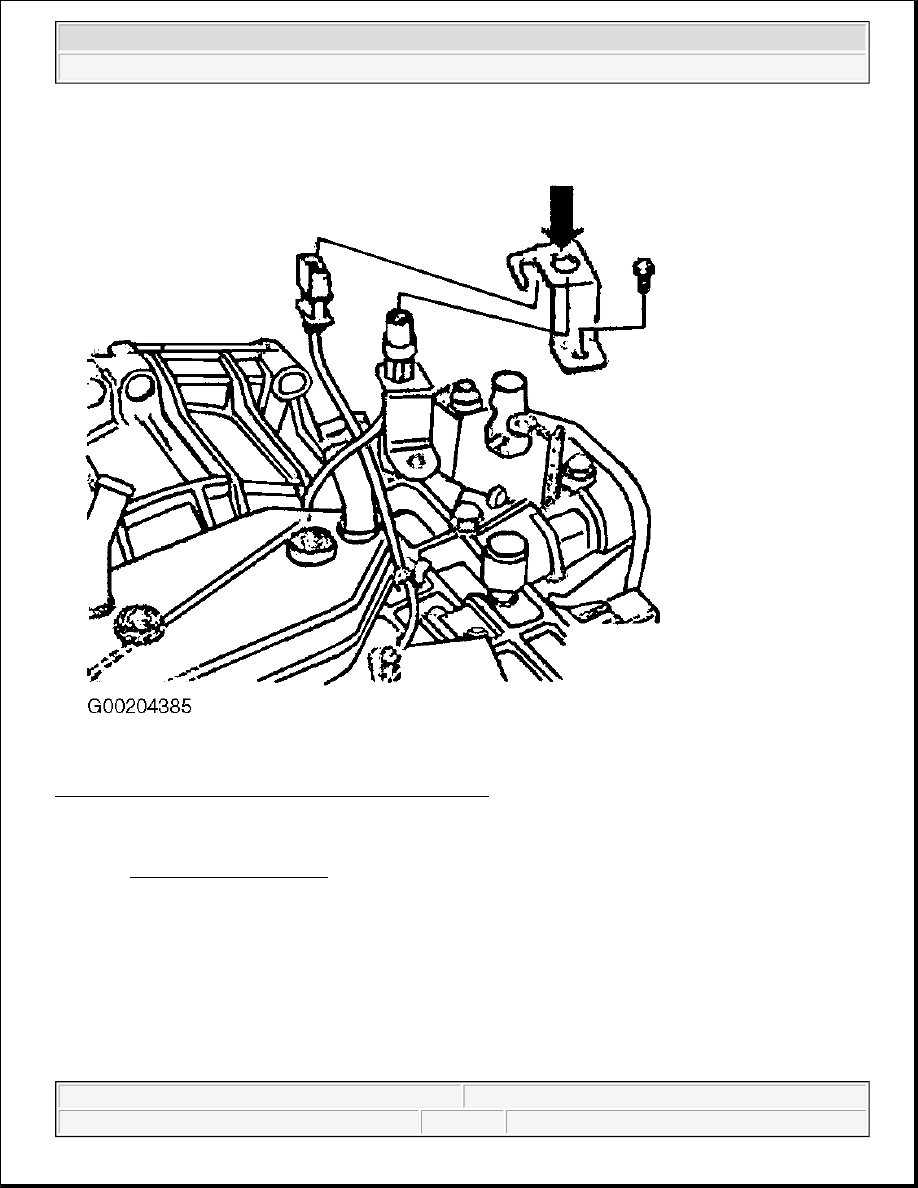

Fig. 143: Installing Upper Retainer Onto Connector Tab
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install oil pan, gasket and bolts. Tighten oil pan bolts to 106 INCH lbs. (12 N.m). Check transmission fluid
level. See SERVICING - A/T (01M) article.

PARKING LOCK

Special Tools And Equipment

z

VW 222 A Drift

z

VW 228 B Puller

z

VW 423 Tube

z

VW 460/2 Mandrel



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

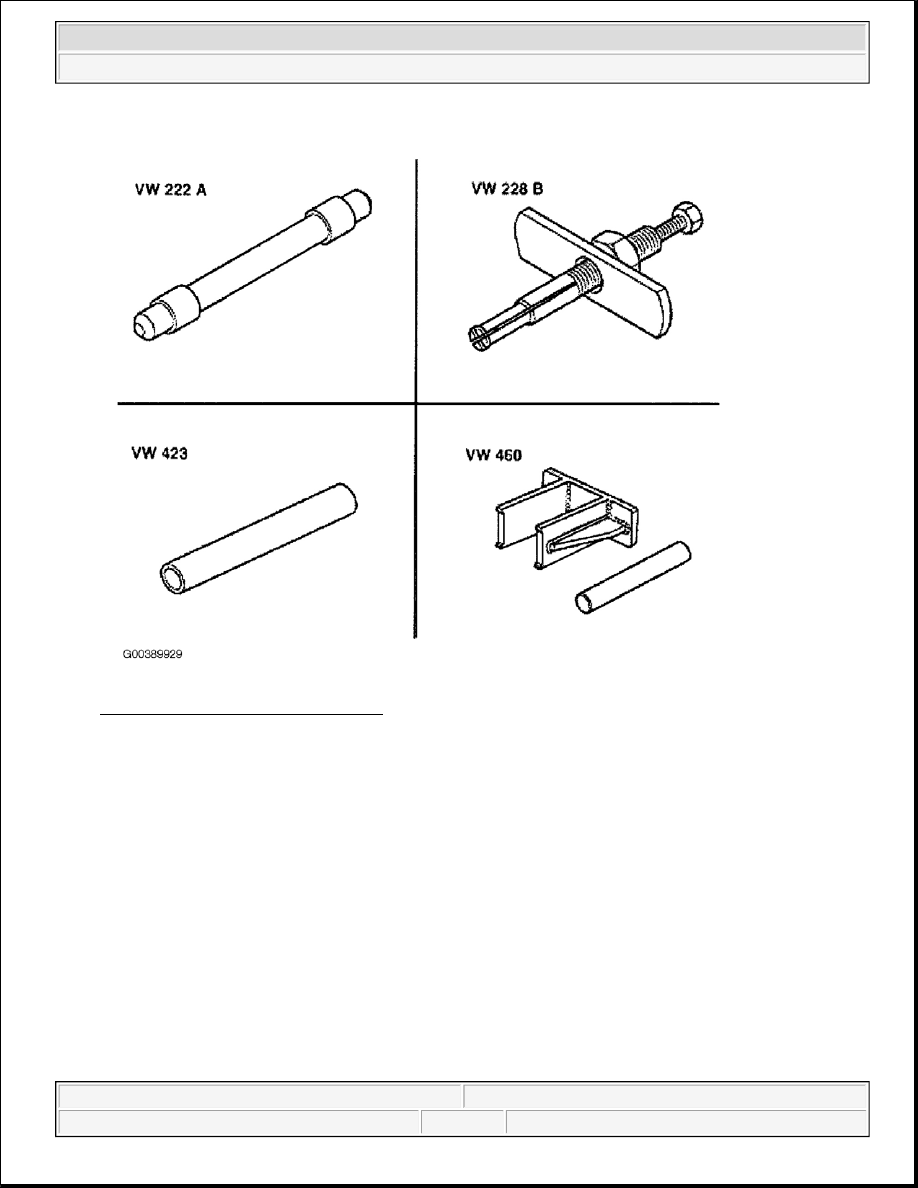

Fig. 144: Parking Lock Special Tools
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
