Remove oil pan bolts, oil pan, gasket and ATF screen. See Fig. 137 .

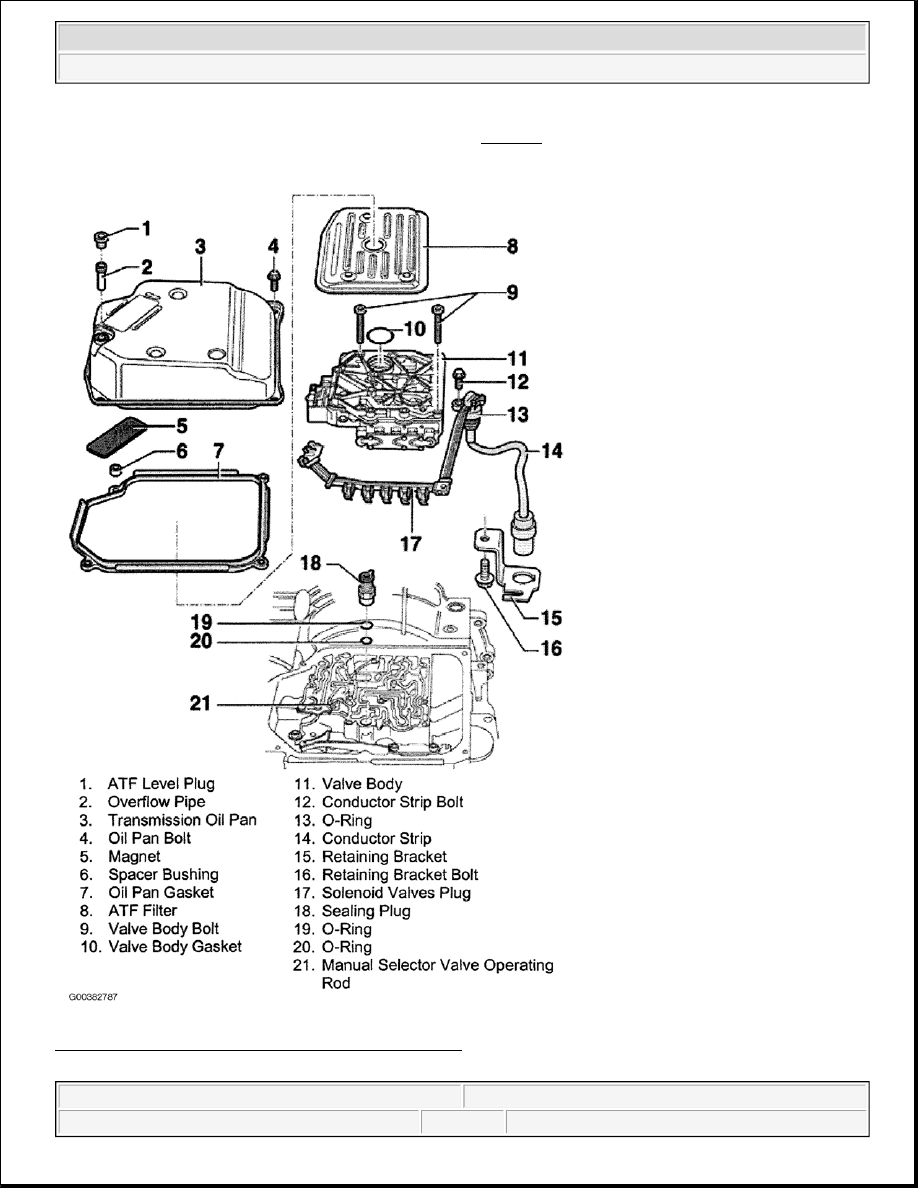

Fig. 137: Exploded View Of Valve Body Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



Remove conductor strip, by placing Pry Bar (3373) onto stop under solenoid valve plug. Pull plug off, with pry
bar in direction of arrow. See Fig. 138 . Remove bolt (1), and conductor strip.

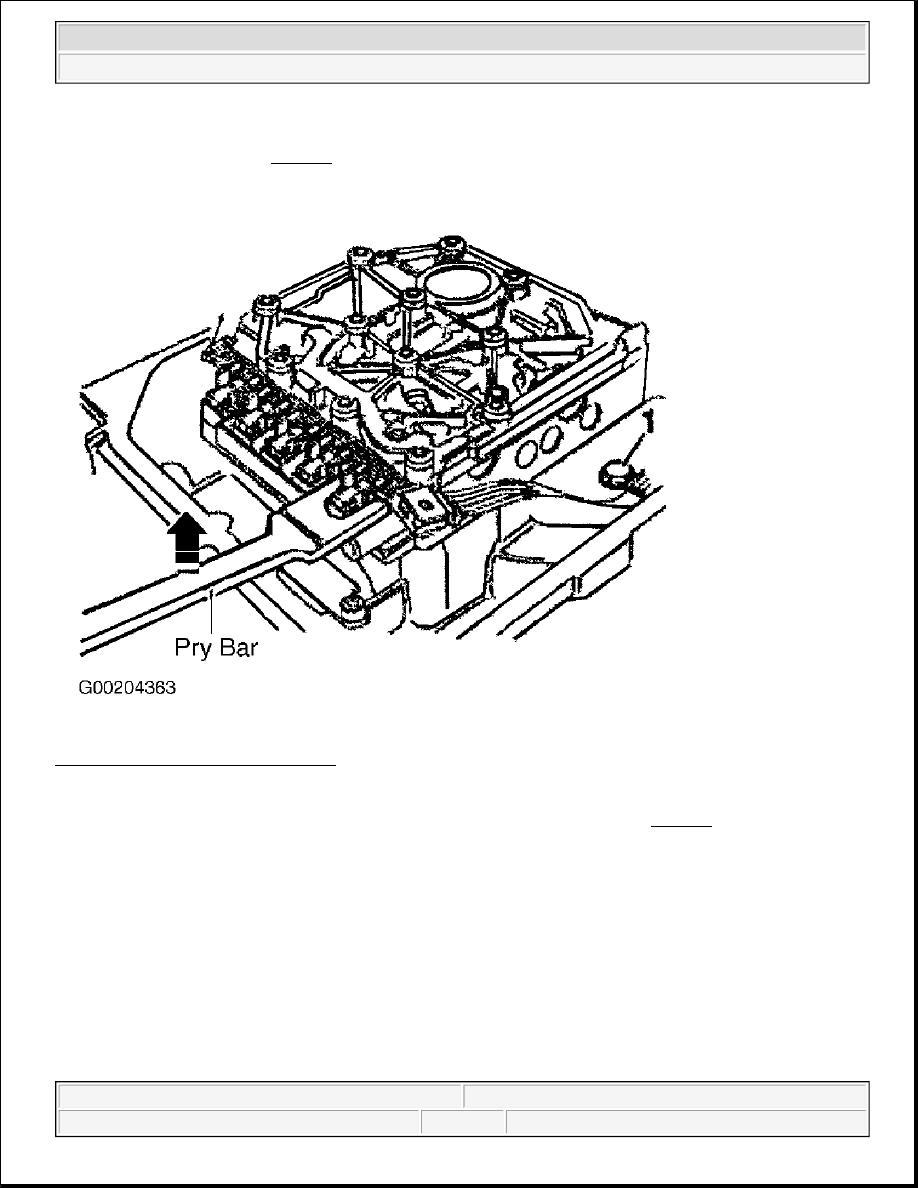

Fig. 138: Removing Conductor Strip
Courtesy of VOLKSWAGEN UNITED STATES, INC.

When removing valve body, manual selector valve (1) remains in valve body. See Fig. 139 . Remove valve
body bolts and valve body. Shift selector lever/shaft into position 1. Pull manual selector valve out, until it is
just possible to unhook operating rod (2). Secure manual selector valve so it cannot fall out.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

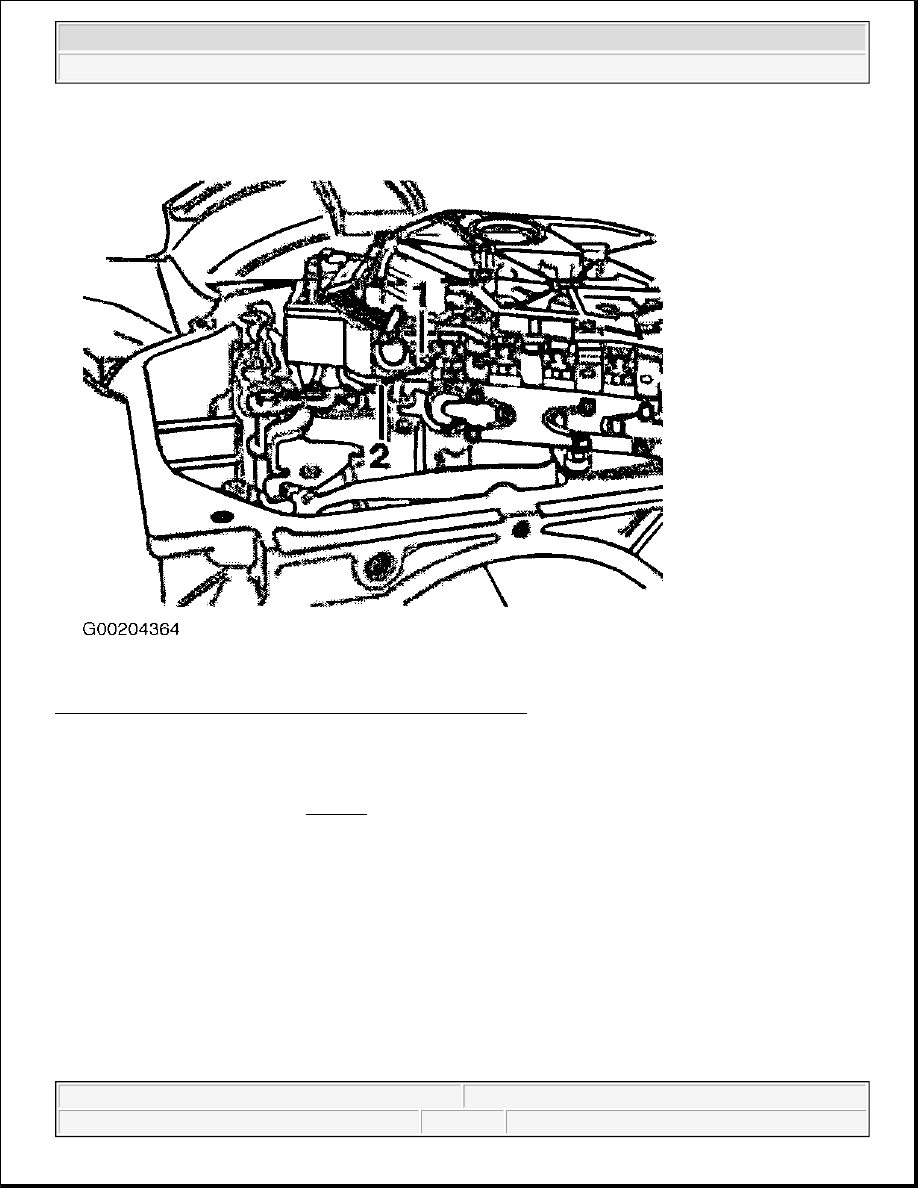

Fig. 139: Removing Valve Body & Unhooking Operating Rod
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pull sealing plug out of housing before removing and installing free wheel, otherwise sealing plug and O-ring
will be damaged. Moisten 2 NEW O-rings with ATF and install to sealing plug. Insert sealing plug in hole in
transmission housing (arrow). See Fig. 140 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

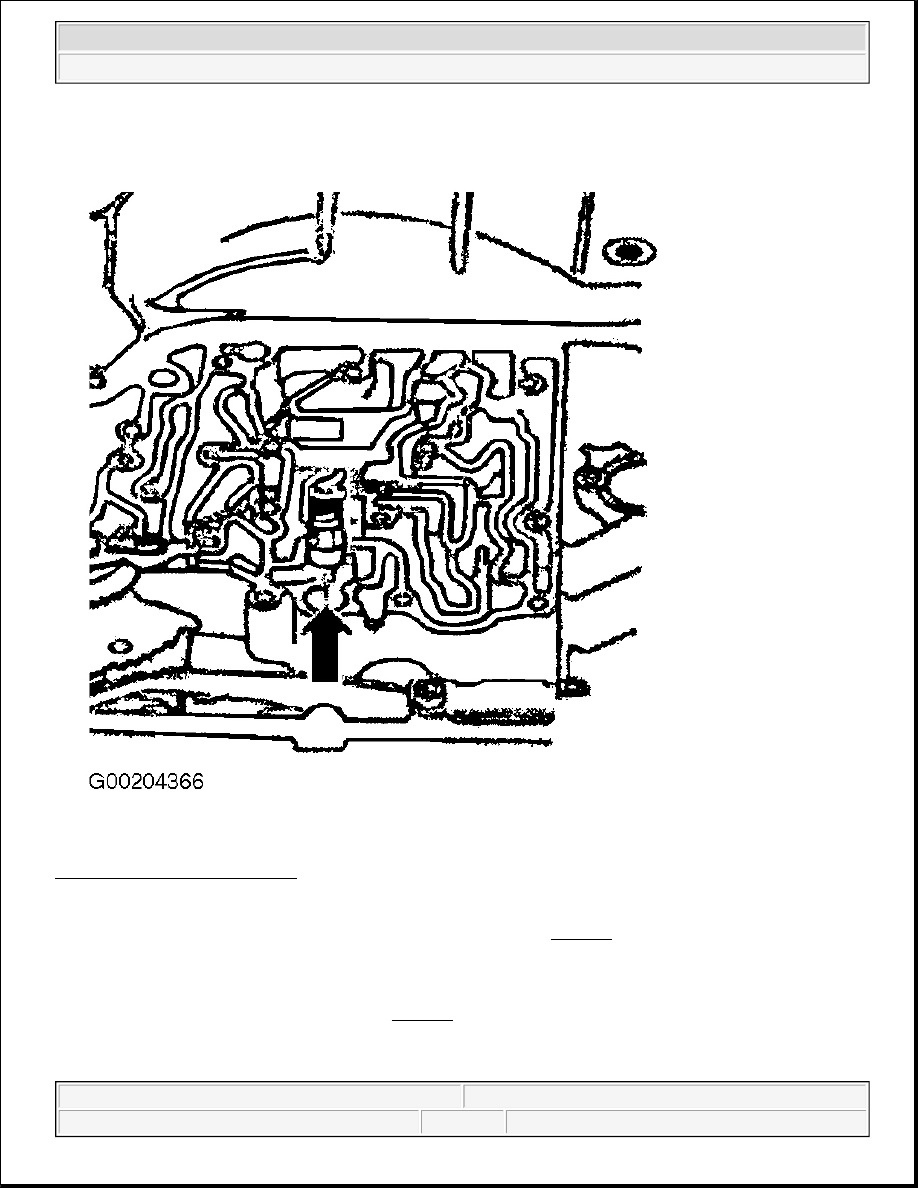

Fig. 140: Inserting Sealing Plug
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Turn manual selector valve (1), so shoulder faces operating rod. See Fig. 139 . Guide operating rod (2) with
manual selector valve into valve body. Install with stepped side of rod facing manual selector valve.

To adjust operating rod, move selector shaft to position "P". Push operating rod with manual selector valve into
valve body onto stop (direction of arrow). See Fig. 141 . Tighten bolt to 35 INCH lbs. (4 N.m). Ensure selector
valve is resting against stop. Counter-hold (in direction of arrow) when tightening bolt. Always replace bolt and
manual selector valve retaining clip.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
