Fig. 132: Identifying 3rd & 4th Gear Clutch Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.


Disassembling And Assembling

Press down carefully on piston cap until circlip can be installed. See Fig. 133 .

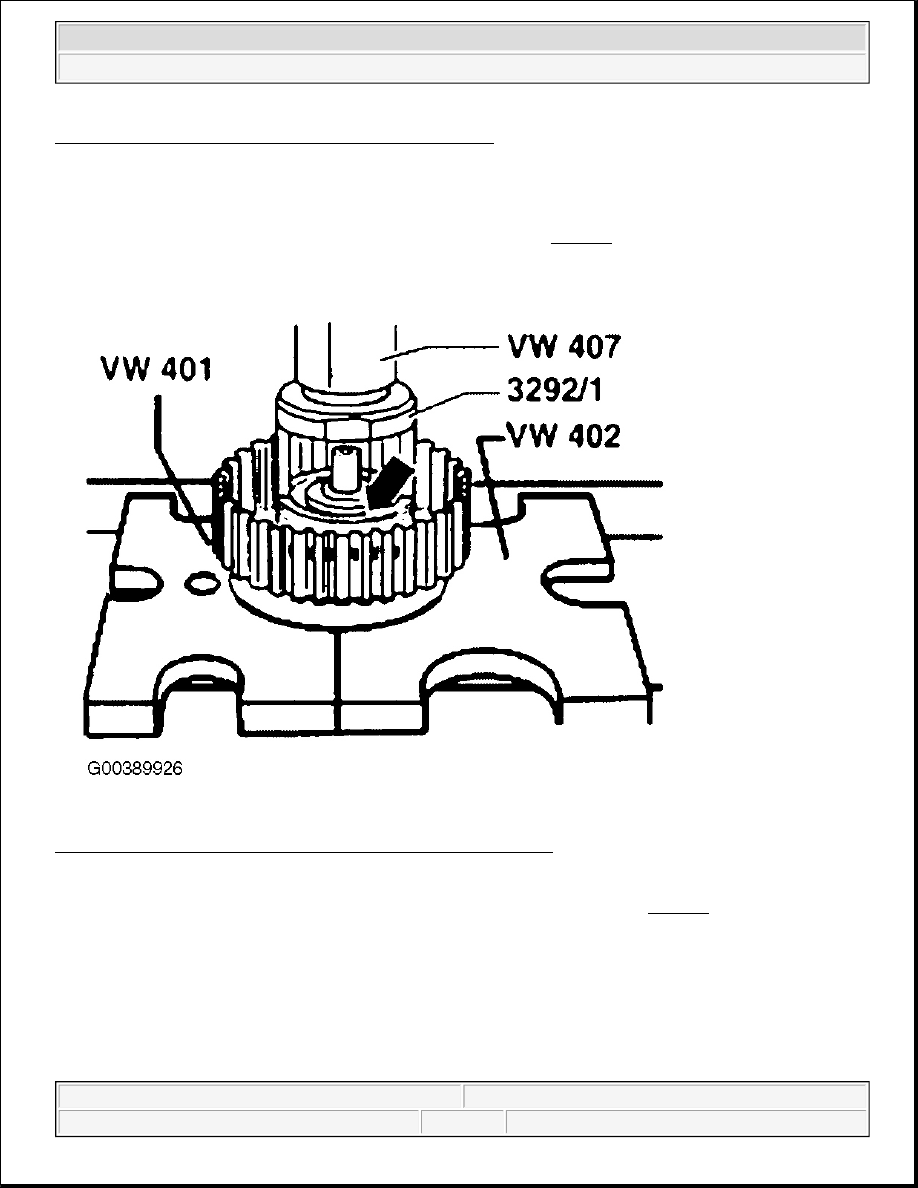

Fig. 133: Removing & Installing Circlip (3rd & 4th Gear Clutch)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

A piston ring is installed on the pump shaft inside the clutch housing (arrow). See Fig. 134 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

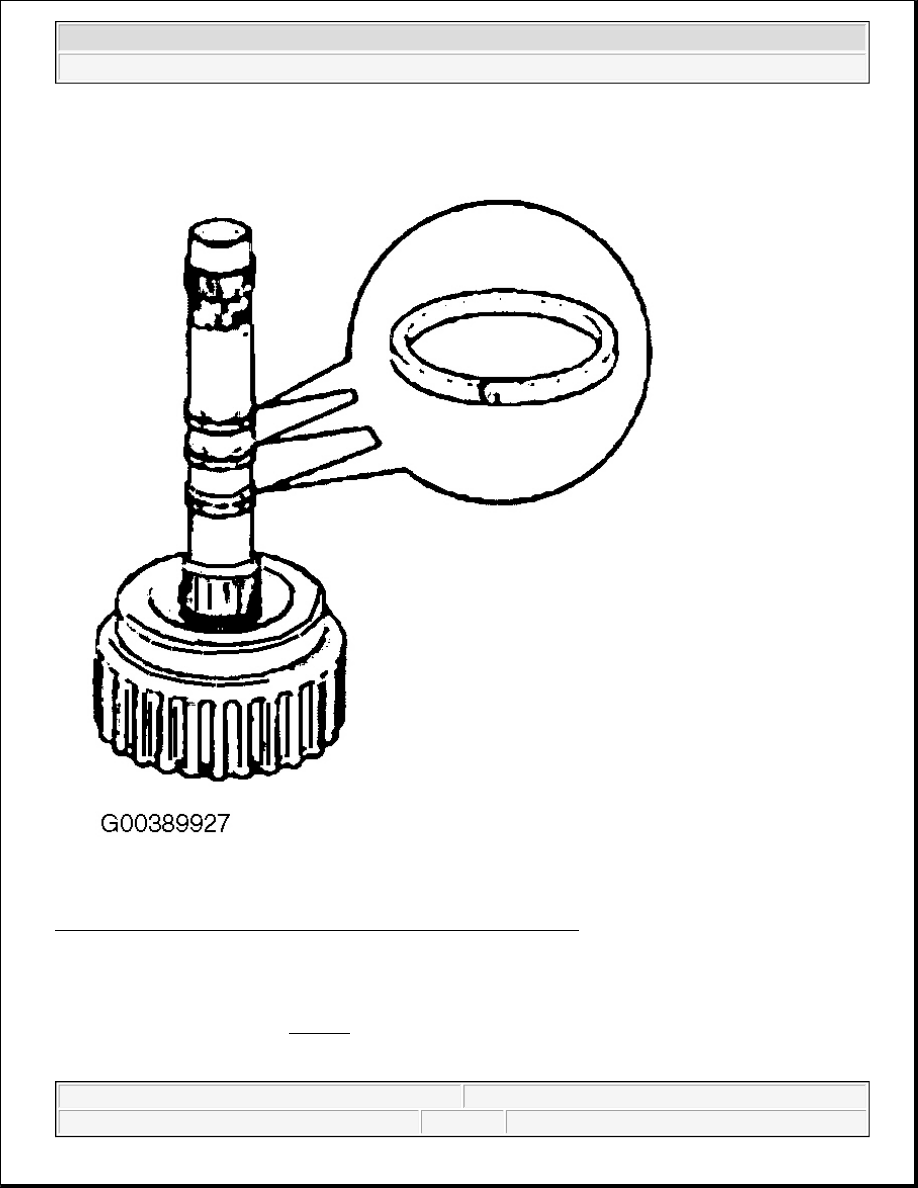

Fig. 134: Checking Seating Of Piston Rings (3rd & 4th Gear Clutch)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Make sure that ends of piston rings are hooked together.

Place piston ring in groove. See Fig. 115 .

Hook ends together by pressing sides of ring in and guiding ends over one another.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



Insert O-ring in recess in turbine shaft (arrow). See Fig. 135 .

NOTE:

Do not twist piston ring out of groove on one side.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

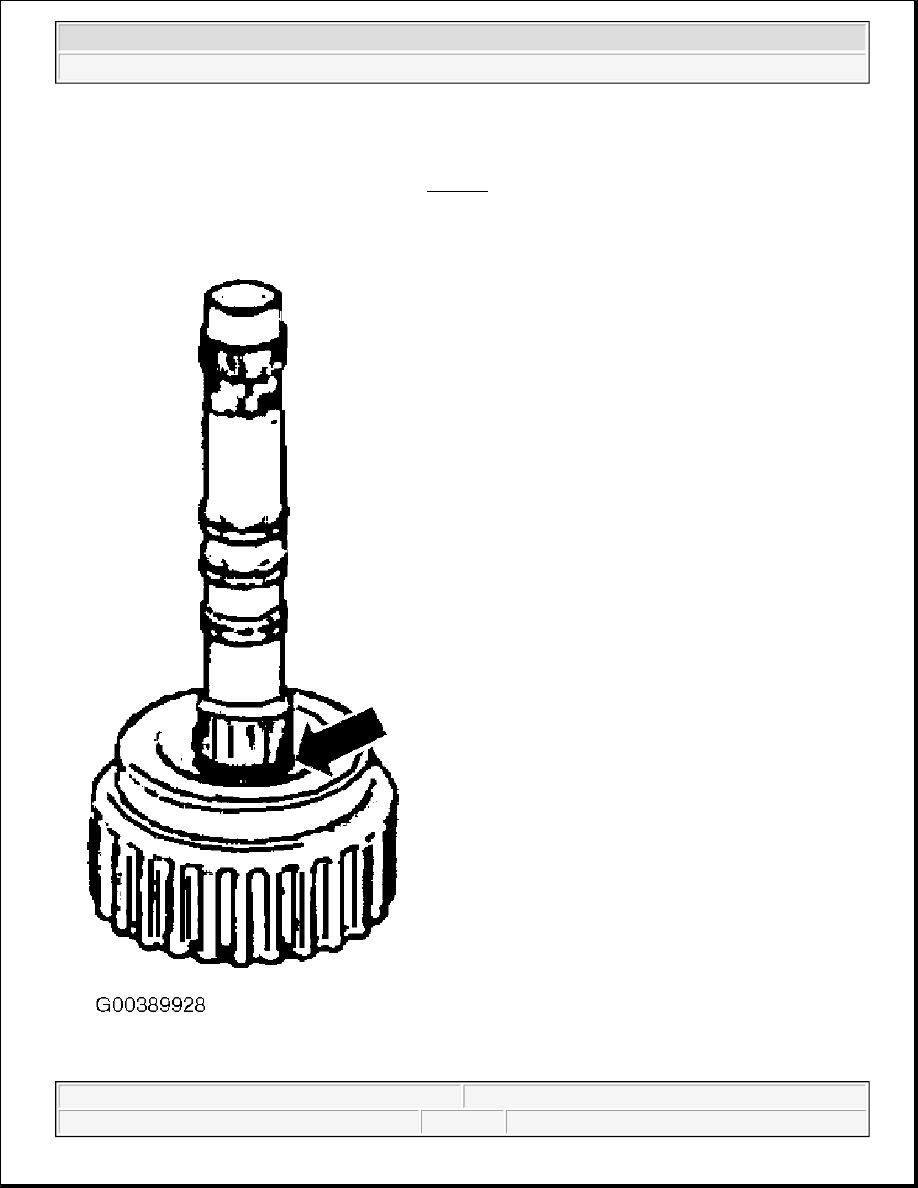

Fig. 135: Installing "O" Ring (3rd & 4th Gear Clutch)
Courtesy of VOLKSWAGEN UNITED STATES, INC.


VALVE BODY

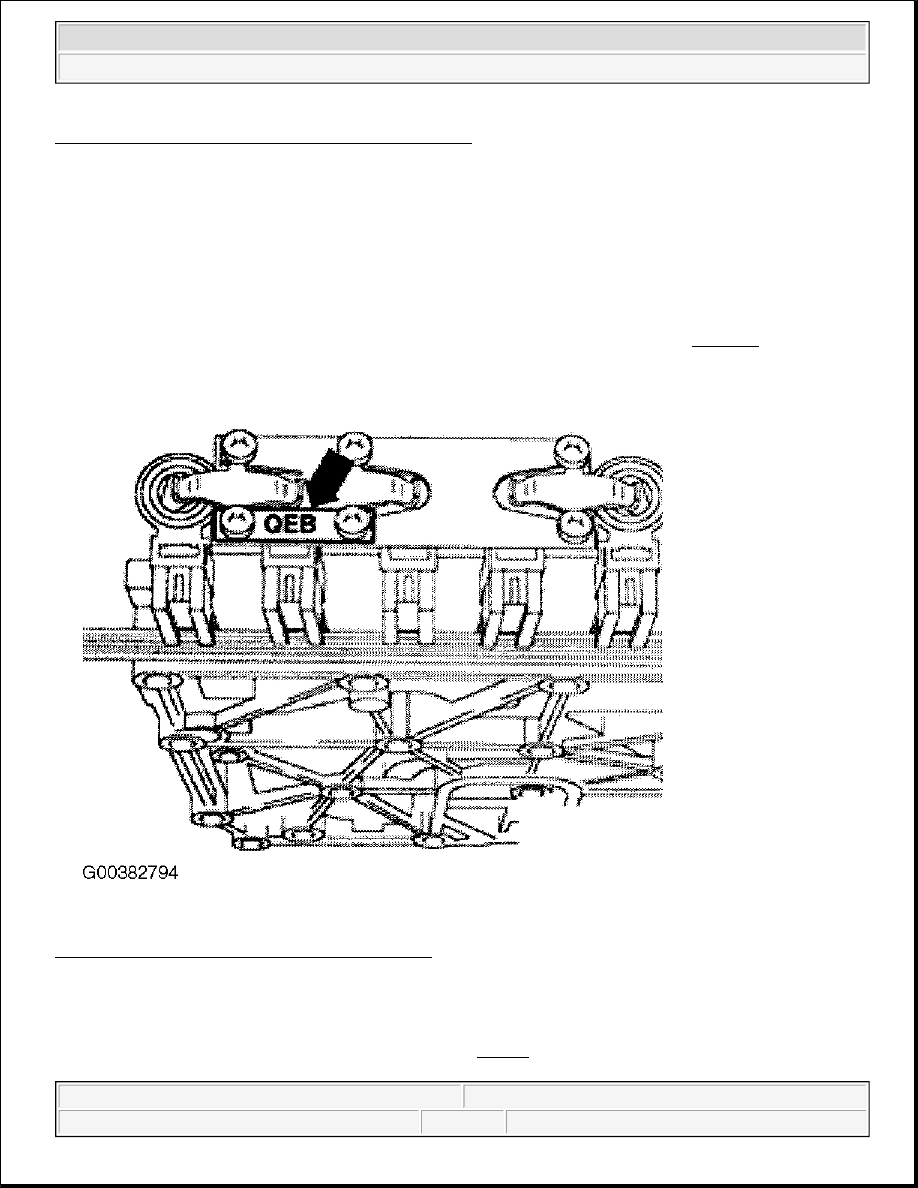

Fig. 136: Locating Valve Body Identification Tab
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removal & Installation

Place container under transmission. Remove plug (2). See Fig. 86 . Remove overflow pipe (1), and allow ATF
to drain. Screw overflow pipe in onto stop.

WARNING:

DO NOT run engine or tow vehicle with oil pan removed or when there is
no ATF fluid in transmission.

NOTE:

Code letters are stamped on a metal tab located on valve body for component
identification. Metal tab must remain on the valve body. See Fig. 136 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
