Fig. 105: Check Clutch Play Measurement
Courtesy of VOLKSWAGEN UNITED STATES, INC.

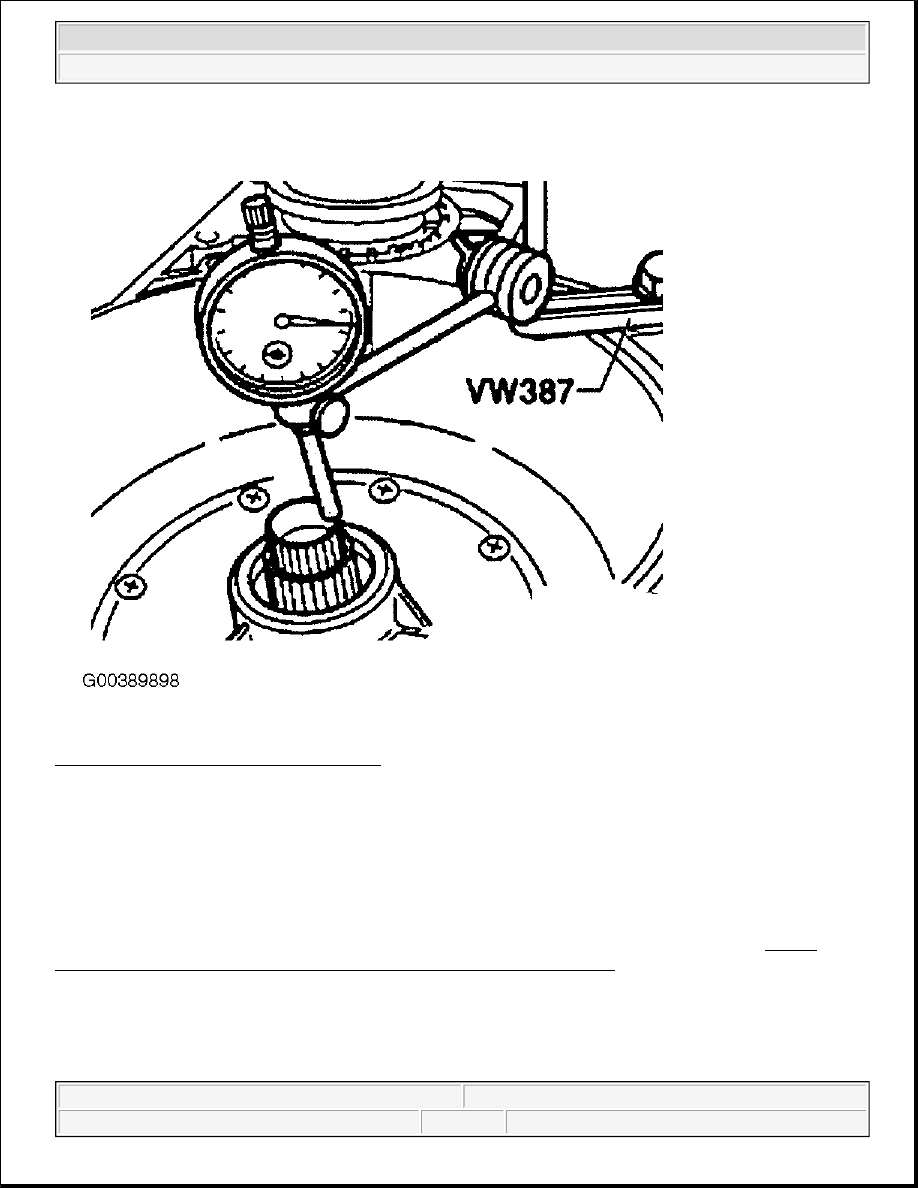

Move turbine shaft up and down and read of play on dial gauge.

Play: Min. = 0.5 mm.; Max. = 1.2 mm

2ND AND 4TH GEAR BRAKE -B2-, ADJUSTMENT

Number of inner and outer plates varies based on transmission code. For correct number used, see CODE
LETTERS, TRANSMISSION APPLICATION, RATIOS, EQUIPMENT
 .

Special Tools And Equipment

z

VW 309 Holding plate

z

VW 313 Support clamp



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



z

VW 353 Transmission support

z

3459 Adjustment tool

z

Depth gauge

z

Straightedge

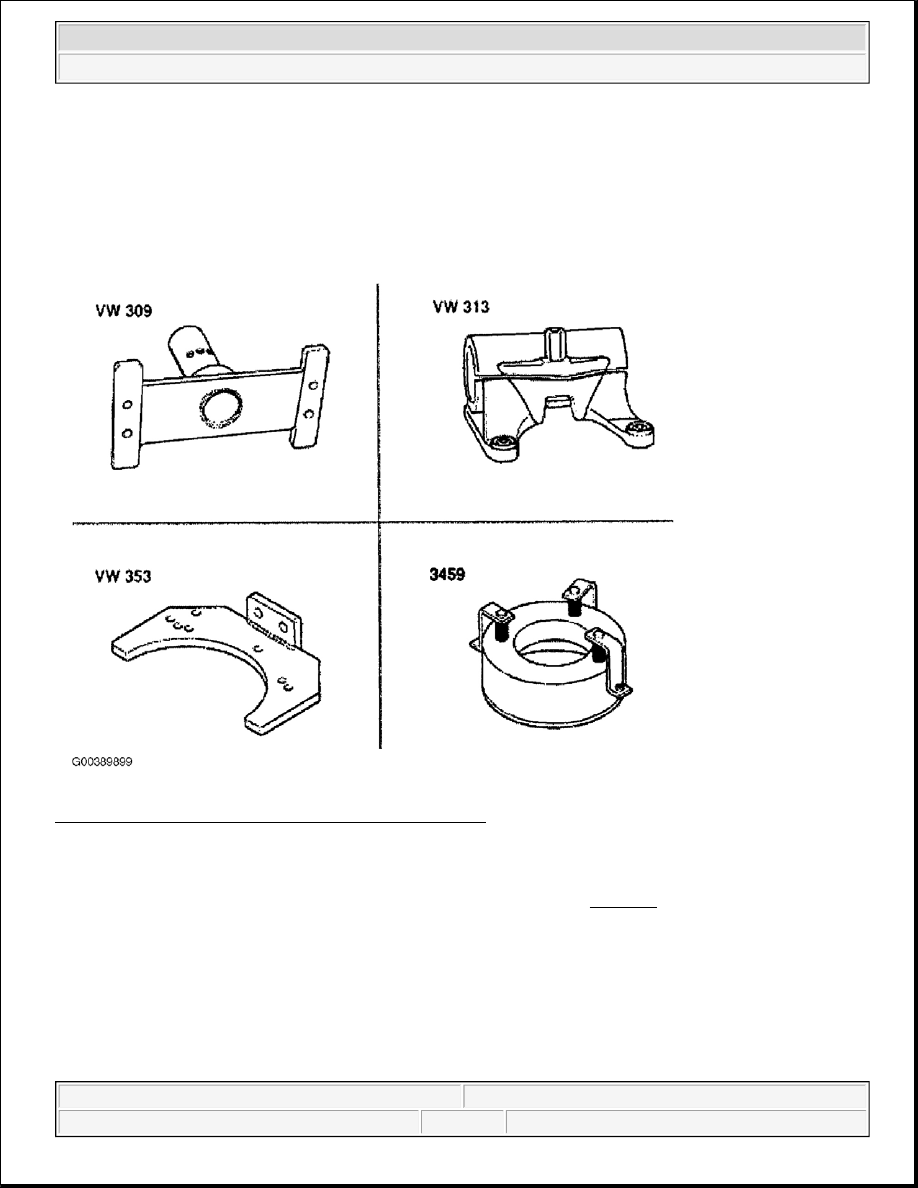

Fig. 106: 2nd & 4th Gear Brake Adjusting Special Tools
Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

To adjust, install components without shim (item -11-), without last outer plate
(item -10-) and without spring caps (item 6). See Fig. 107 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

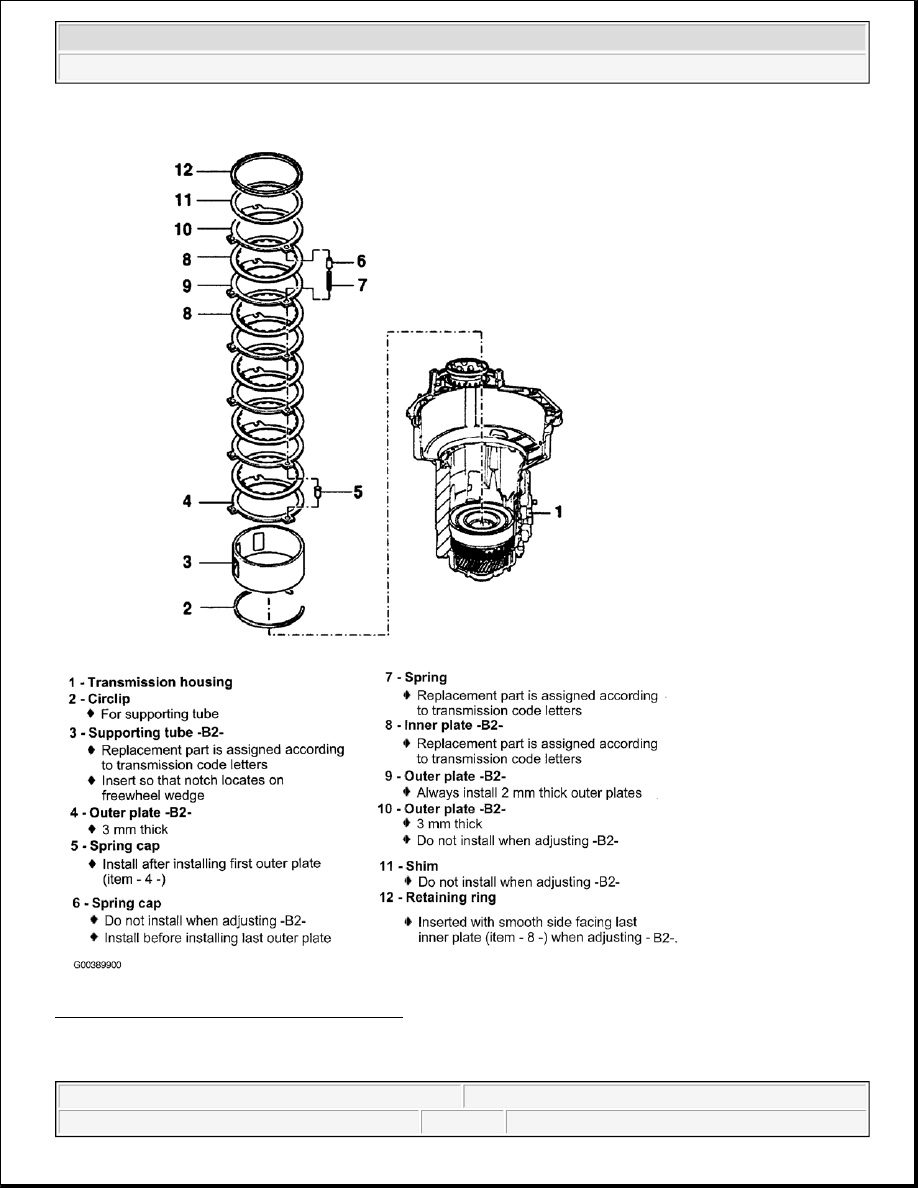

Fig. 107: Overview Of 2nd & 4th Gear Brake
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Determining Shim (2nd & 4th Gear Brake)



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

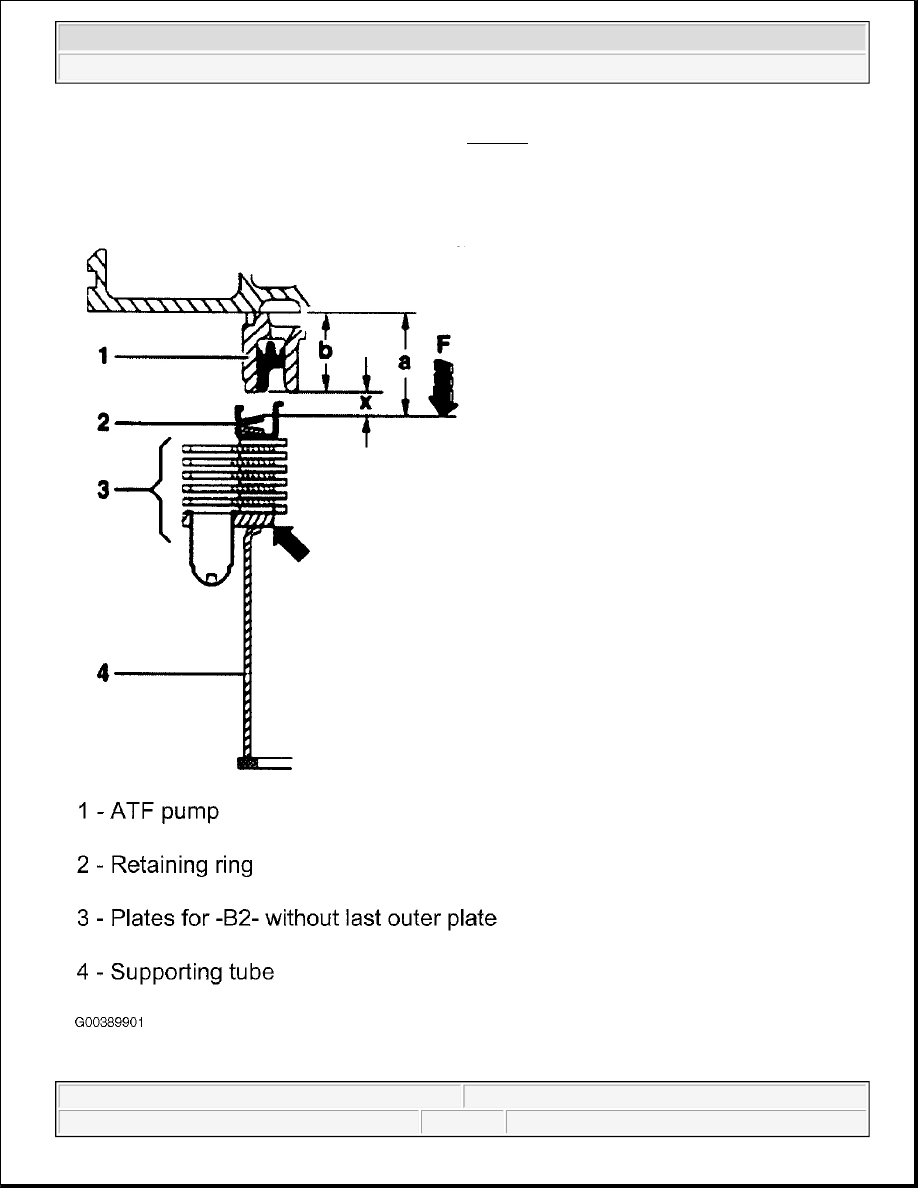

The thickness of the shim(s) is determined by gap x. See Fig. 108 . For this the formula (Gap x = a - b - 2.65
mm) must be used. The measuring points are shown in the illustration to help understanding the formula.
Special tool 3459, which exerts a force -F- onto the plate packet via the retaining ring, is not illustrated.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
