Fig. 61: Removing Large Input Shaft
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove large sun gear (arrow). See Fig. 62 . Remove transmission vehicle speed sensor (VSS) -G38-. See
TRANSMISSION VEHICLE SPEED SENSOR -G38- in DIAGNOSIS - 01M article.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

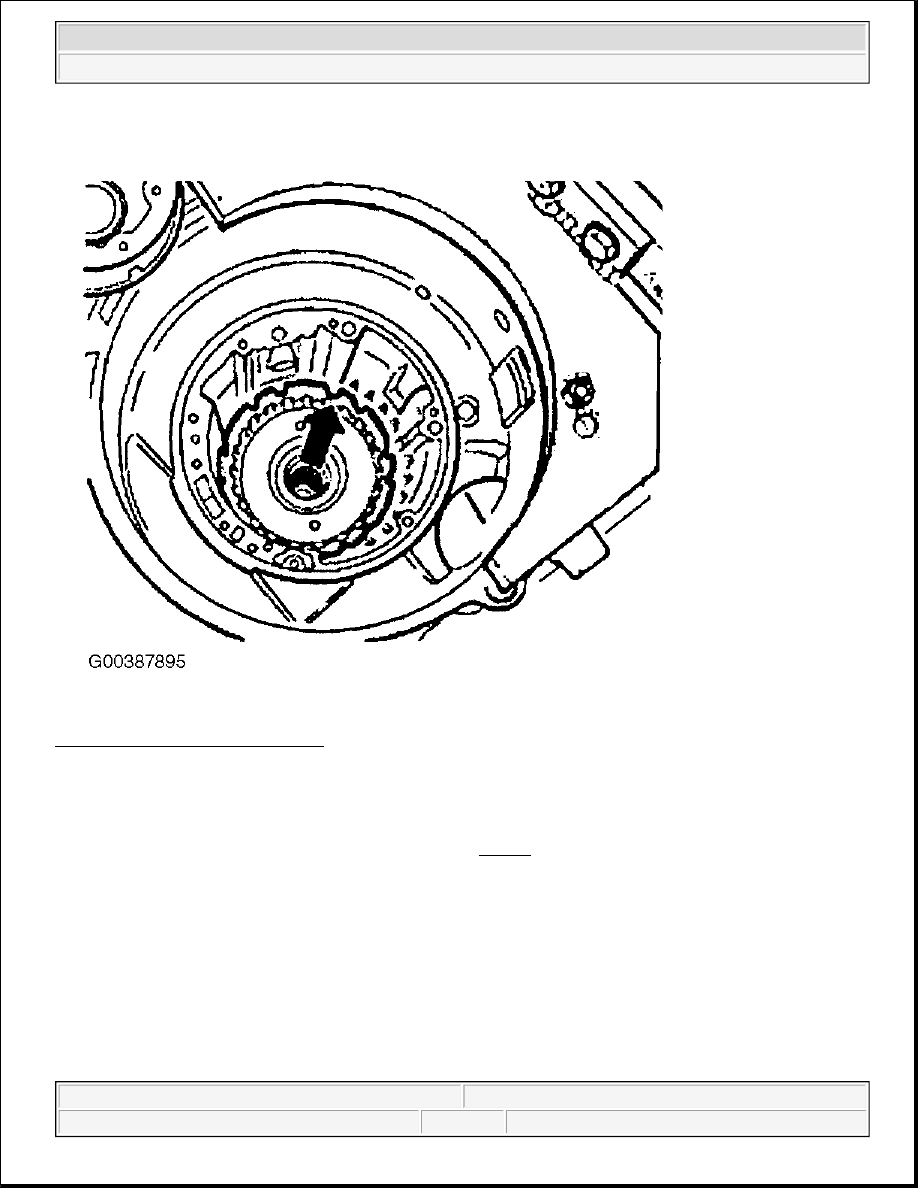

Fig. 62: Removing Large Sun Gear
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove supporting tube circlip and freewheel circlip. See Fig. 63 . Take freewheel out of transmission housing
by pulling on freewheel retaining wedge with pliers.

NOTE:

Freewheel circlip is also referred to as "one way clutch clip".



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

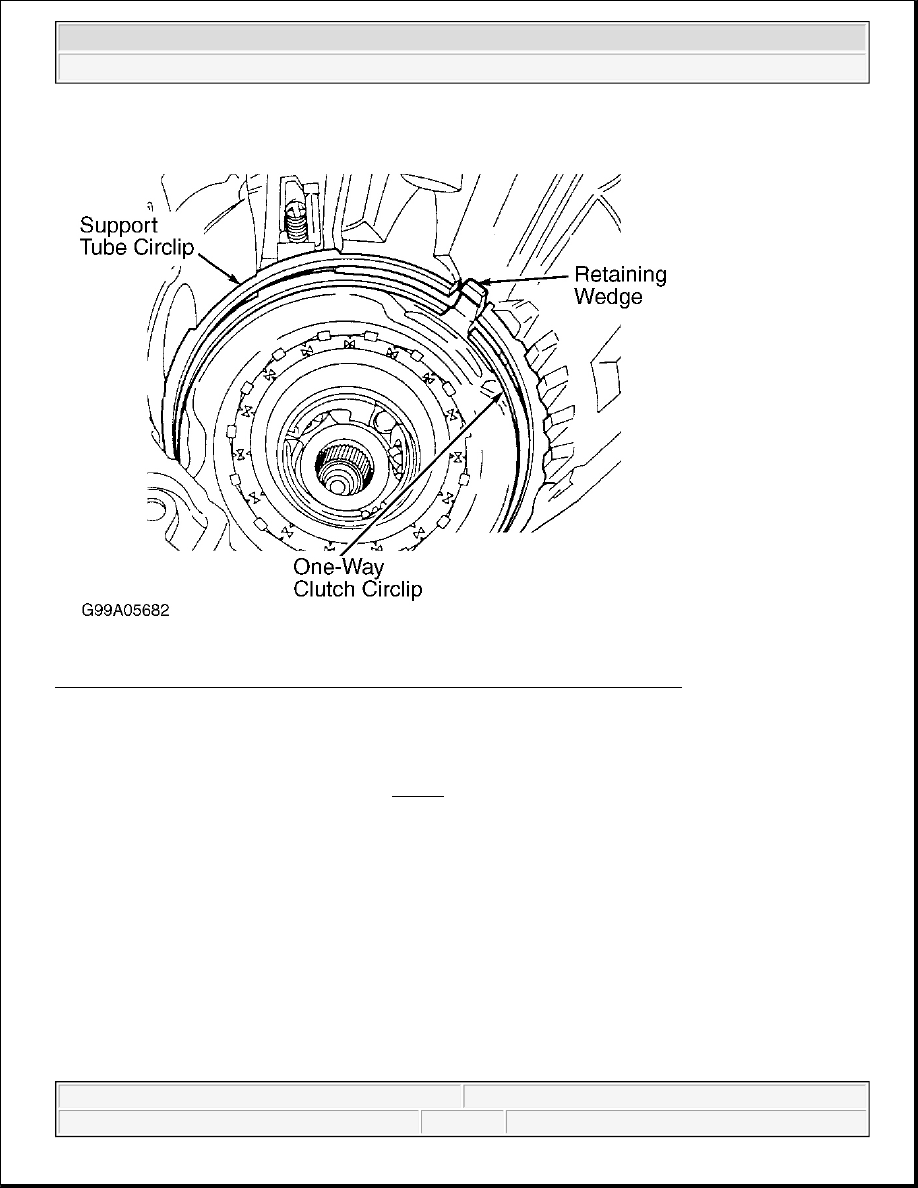

Fig. 63: Removing Support Tube & One-Way Clutch Circlips & One-Way Clutch
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove planet carrier with dished spring. See Fig. 64 . Remove reverse gear brake -B1- plates.

NOTE:

It is not necessary to remove input gear to disassemble planetary transmission.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

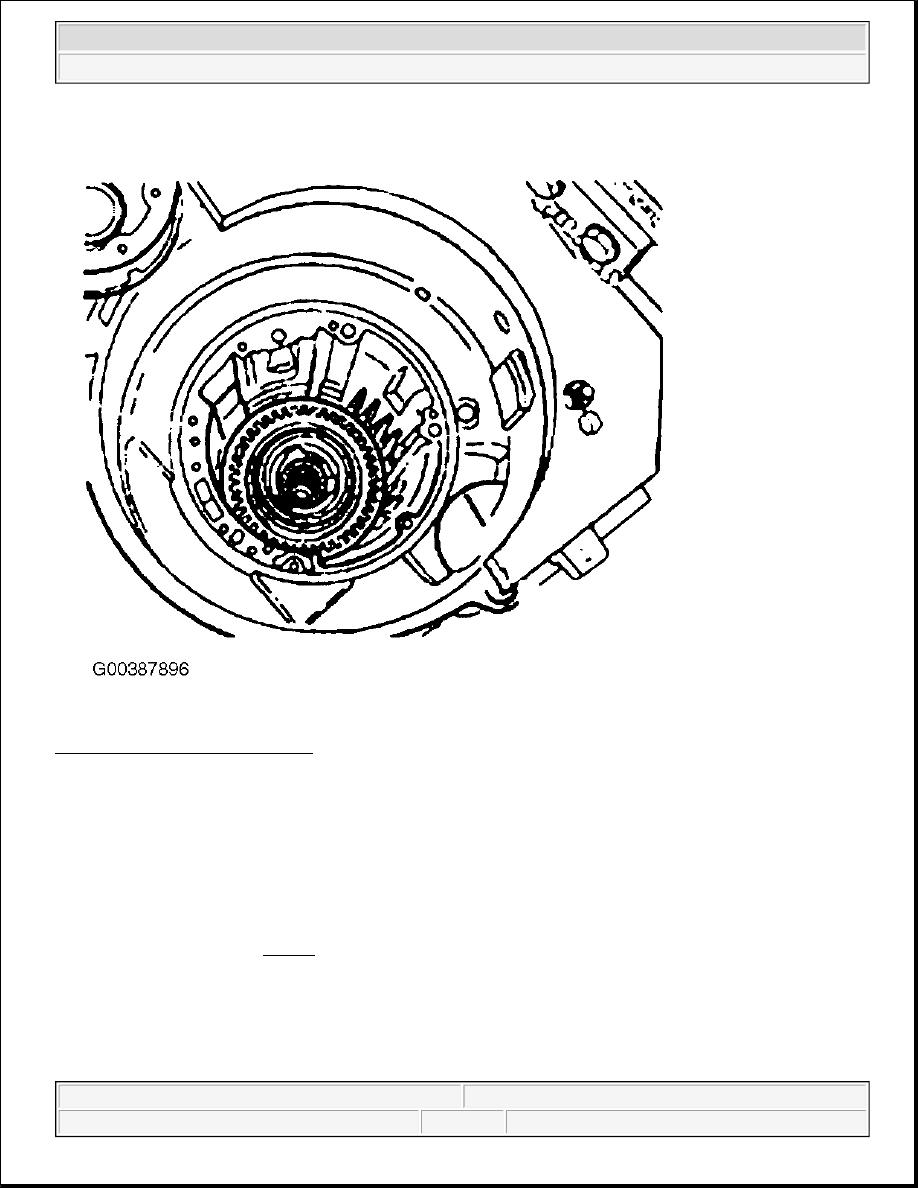

Fig. 64: Removing Planet Carrier
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pressing Clutch -K1- Off -K3-

The clutches -K1- and -K3- are pressed together.

Clutch -K1- must only be pressed off -K3- if one of the clutches is to be disassembled or replaced.

Make sure tool press surface is flat and not damaged. The pin of tube 3110 faces to plate VW 402. Hold turbine
shaft when pressing off. See Fig. 65 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
