Fig. 57: Removing Strainer
Courtesy of VOLKSWAGEN UNITED STATES, INC.

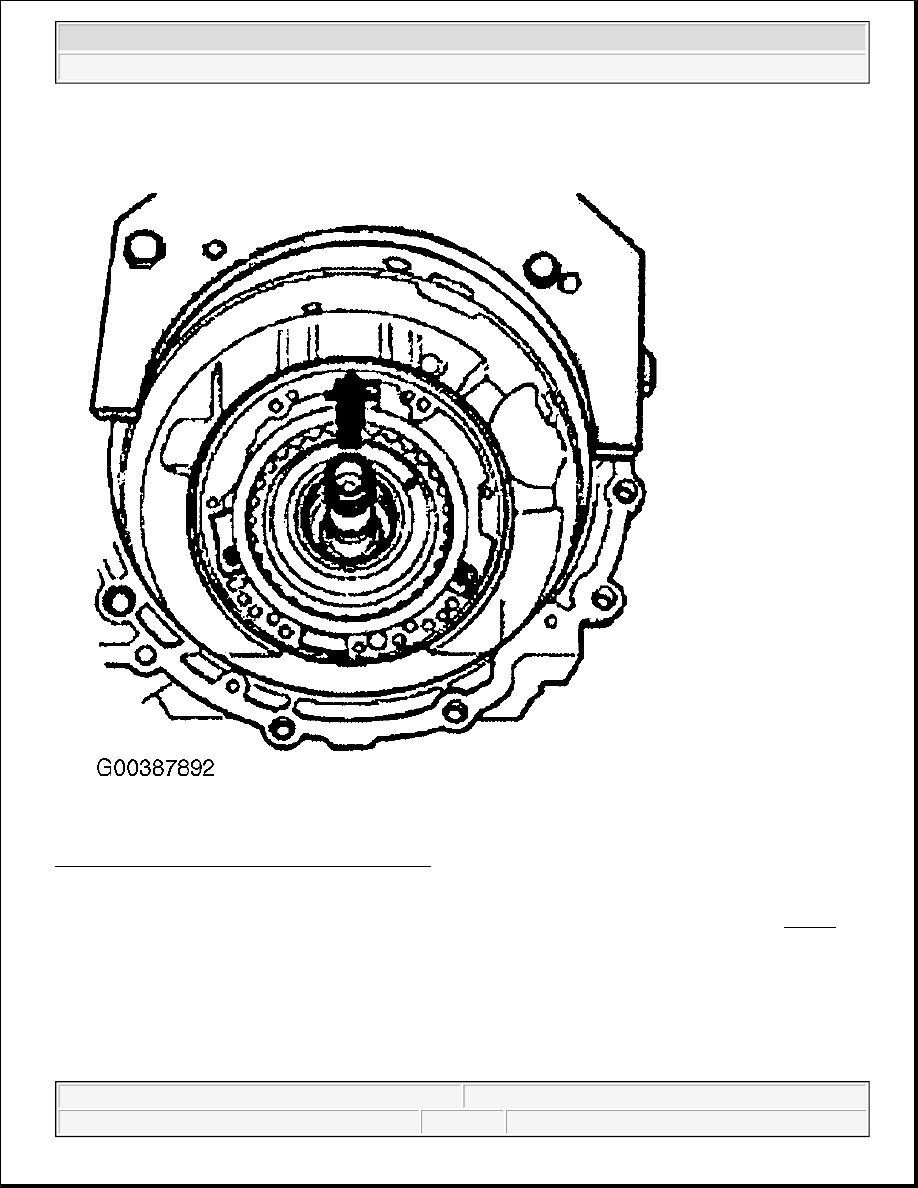

Remove all clutches with supporting tube, -B2- plates, springs and spring caps together. See Fig. 58 . The
clutches -K1- and -K3- are pressed together. Clutch -K1- must only be pressed off -K3- if one of the clutches is
to be disassembled or replaced. See Pressing Clutch -K1- Off -K3- .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

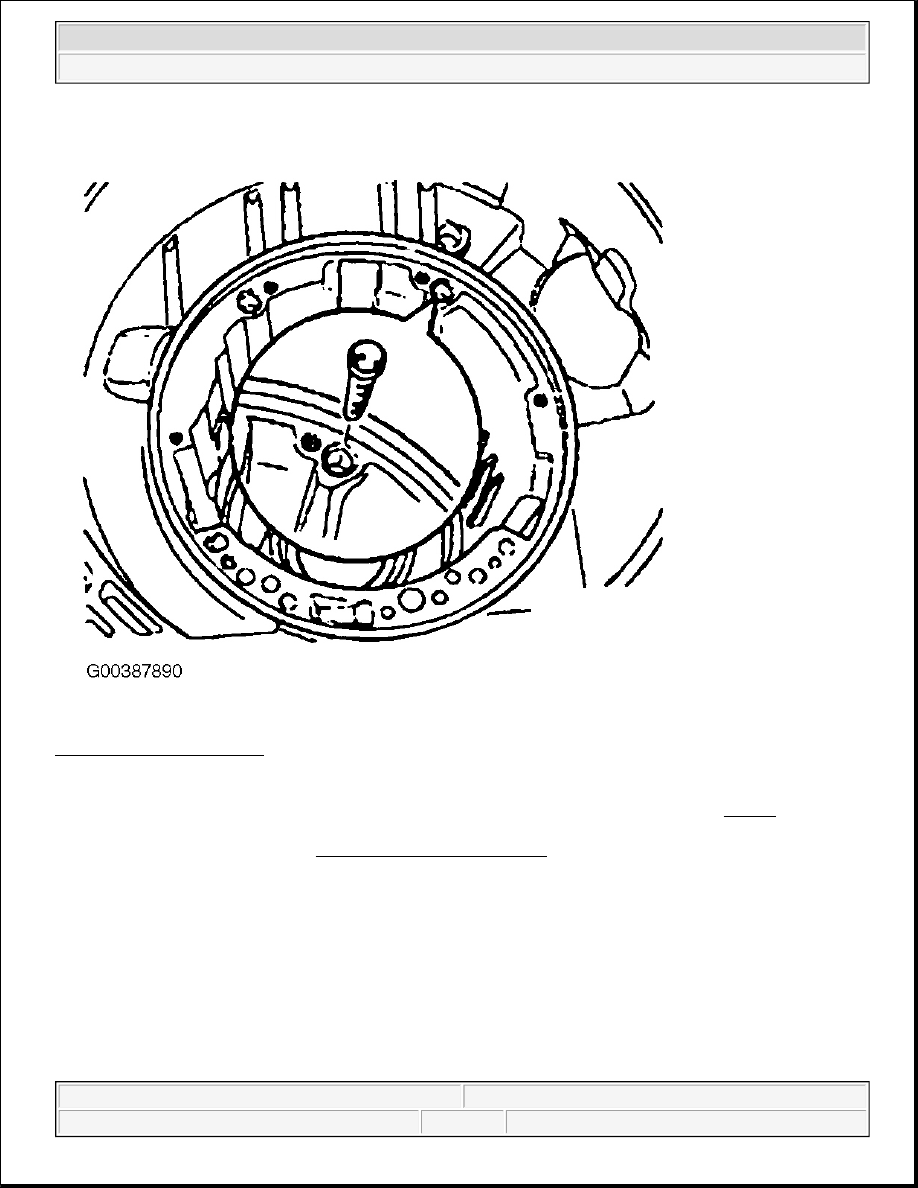

Fig. 58: Removing Clutches W/ Supporting Tube
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Insert screwdriver through hole of large sun gear to loosen and tighten bolt for small input shaft. See Fig. 59 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



Fig. 59: Locking Small Sun Gear Drive Shell
Courtesy of VOLKSWAGEN UNITED STATES, INC.

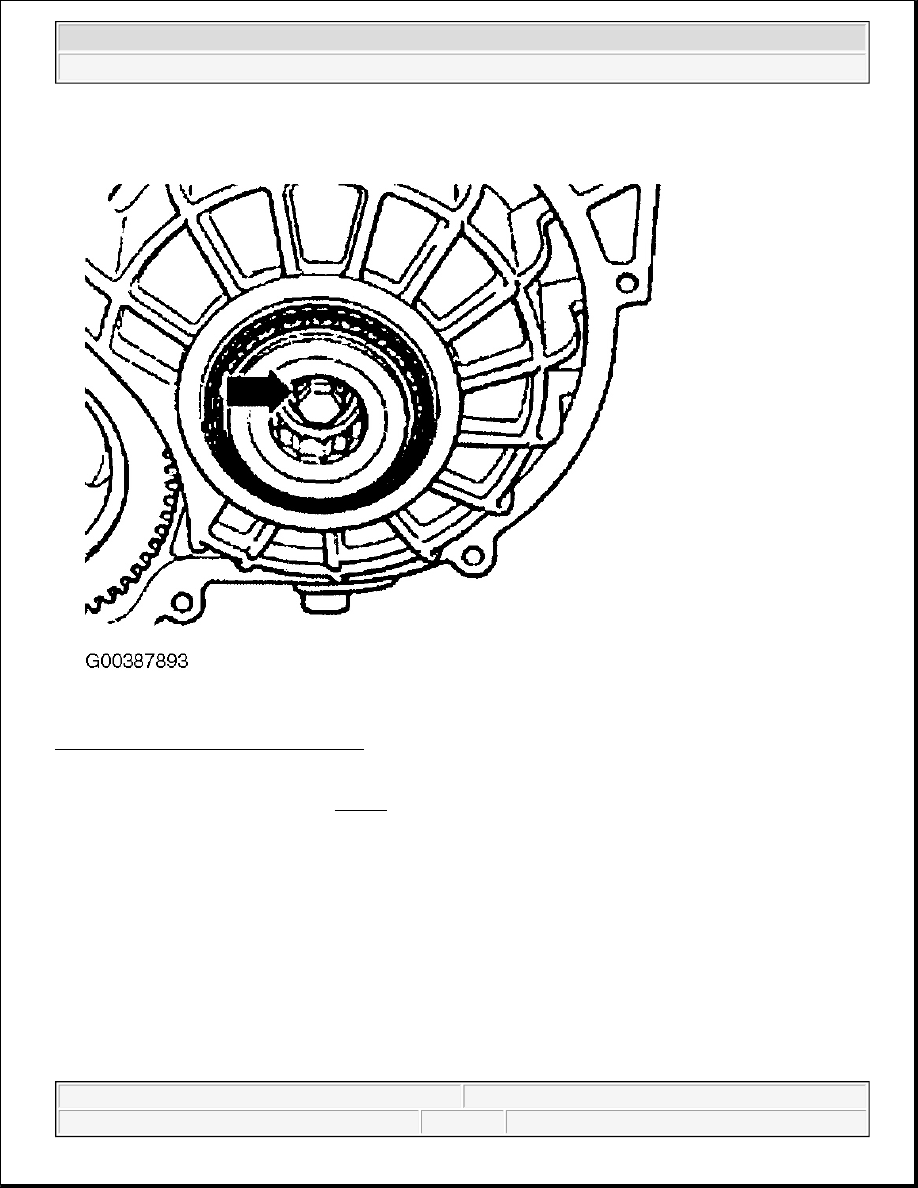

Loosen small input shaft bolt -arrow-. See Fig. 60 . Remove small input shaft bolt, washer and shim. Planet
carrier axial needle bearing remains in transmission/input gear. Remove small input shaft.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



Fig. 60: Locating Small Input Shaft Bolt
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove large input shaft (arrow). See Fig. 61 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
