Volkswagen New Beetle. Manual - part 220





Courtesy of VOLKSWAGEN OF AMERICA, INC.

Low beam bulb, removing

z

Remove applicable front headlight.

See HEADLIGHTS THROUGH 08.98, REMOVING AND INSTALLING or HEADLIGHTS
FROM 09.98, REMOVING AND INSTALLING
 .

z

Remove cover on rear of headlight insert.

z

Disconnect electrical connector -6- from low beam bulb.

z

Push spring retaining clip -1- over lugs -4- and move to side.

z

Pull low beam bulb -5- out from reflector.

Low beam bulb, installing

z

Insert new bulb so lugs on laminated plate align with grooves in reflector.

z

After installing new low beam bulb check headlight aim.

High beam bulb, removing

z

Remove applicable front headlight.

See HEADLIGHTS THROUGH 08.98, REMOVING AND INSTALLING or HEADLIGHTS
FROM 09.98, REMOVING AND INSTALLING
 .

z

Remove cover on rear of headlight insert.

z

Disconnect electrical connector -3- from high beam bulb.

z

Push spring retaining clip -1- over the lugs -4- and move to side.

z

Pull high beam bulb -2- out from reflector.

CAUTION: Do not touch the glass portion of the bulb with bare hands. The moisture

and/or grease from fingers that evaporates on the bulb during operation,
can cause the glass to cloud over.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



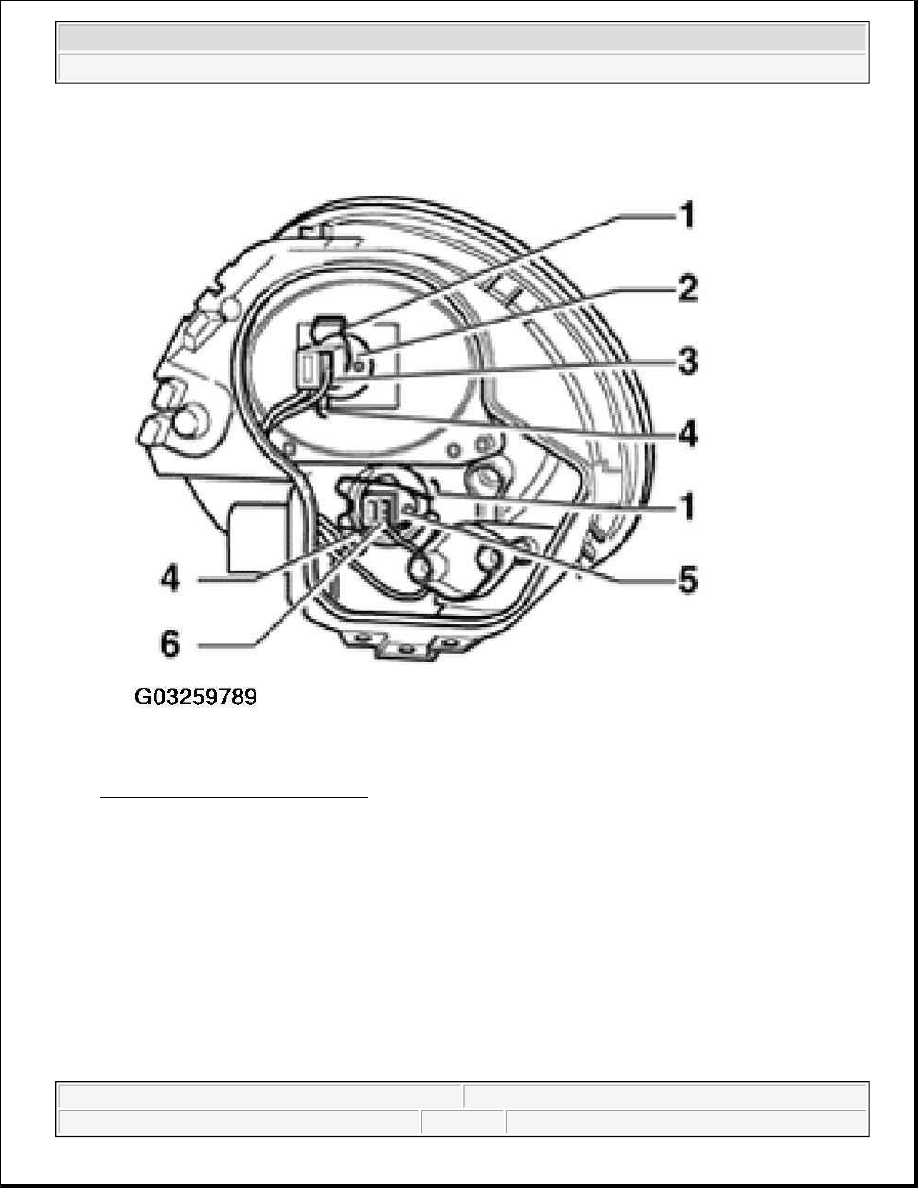

Fig. 3: Identifying Headlight Bulbs
Courtesy of VOLKSWAGEN OF AMERICA, INC.

High beam bulb, installing

z

Insert new bulb so lugs on laminated plate align with grooves in reflector.

z

After installing new high beam bulb check headlight aim.

HEADLIGHTS THROUGH 08.98, REMOVING AND INSTALLING

CAUTION: Do not touch the glass portion of the bulb with bare hands. The moisture

and/or grease from fingers that evaporates on the bulb during operation,
can cause the glass to cloud over.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



Left headlight, removing

z

Disconnect battery. See BATTERY, DISCONNECTING AND RECONNECTING .

z

Open clamp -1-.

z

Press release button -2- and push up lever -3-.

z

Pull headlight housing -4- slightly forward.

z

Disconnect electrical connectors from headlight.

z

Remove headlight housing -4-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



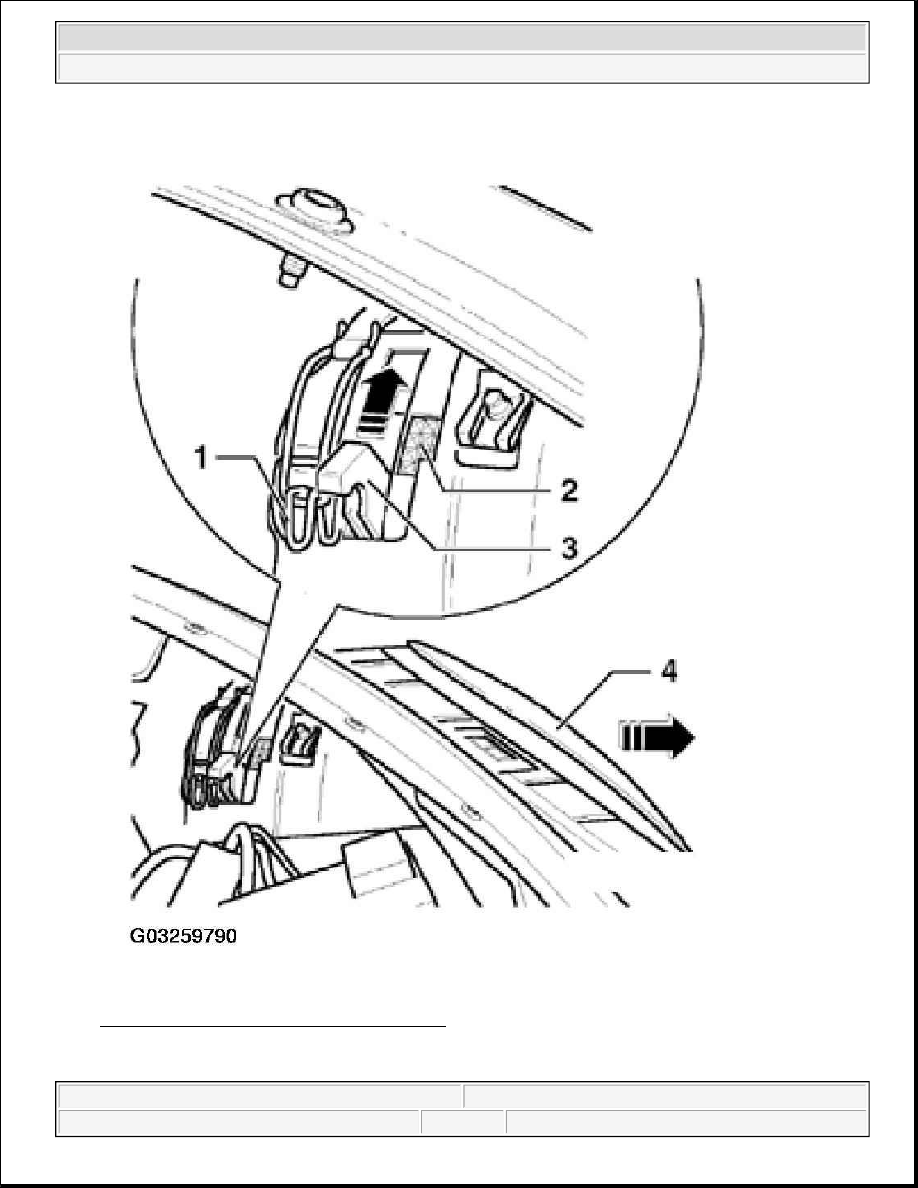

Fig. 4: Removing Button And Push Up Lever
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
