Volkswagen New Beetle. Manual - part 218

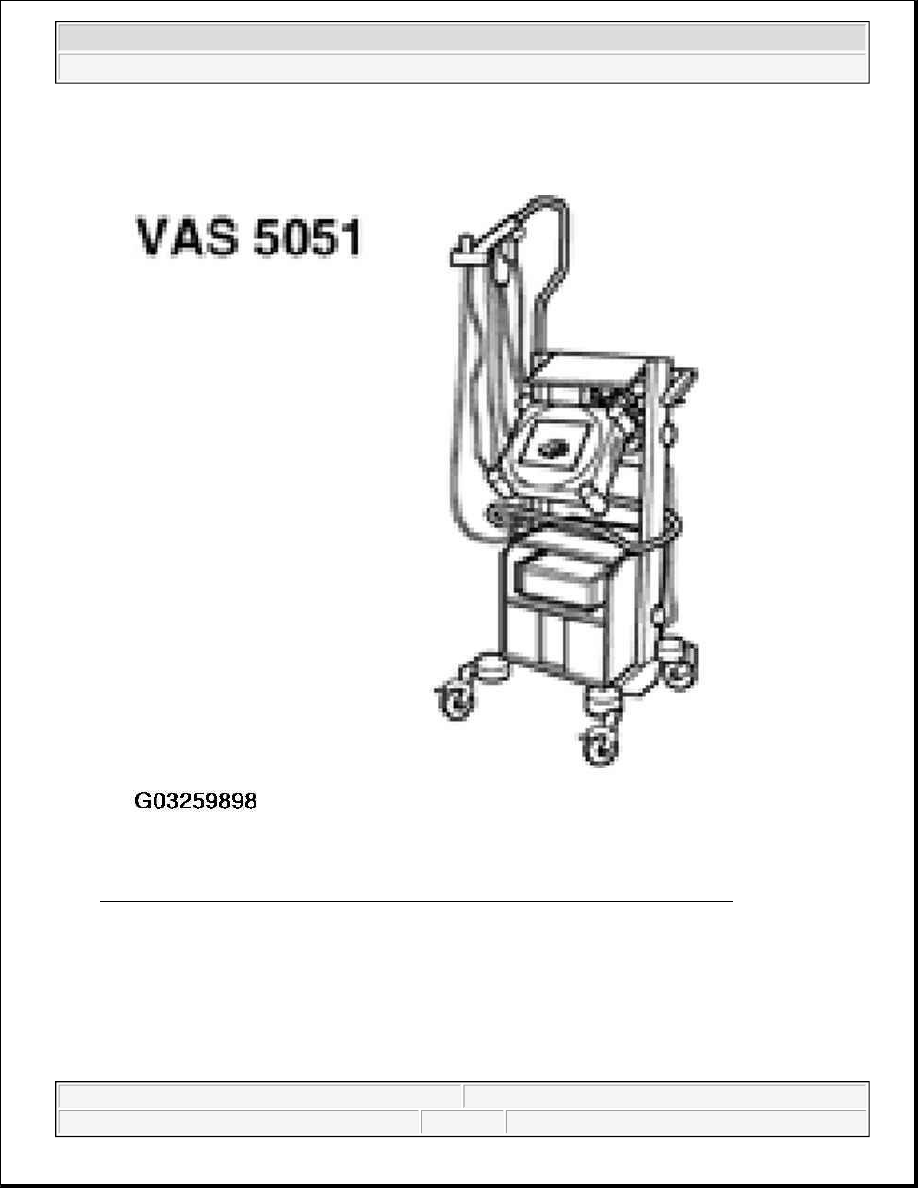

Fig. 12: Identifying VAS 5051 Vehicle Diagnostic Testing And Information System
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

With ignition switched off, connect VAS 5051/5052 with adapter cable to Data Link Connector (DLC)
located under the instrument panel, left.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Interior, Anti-Theft - New Beetle



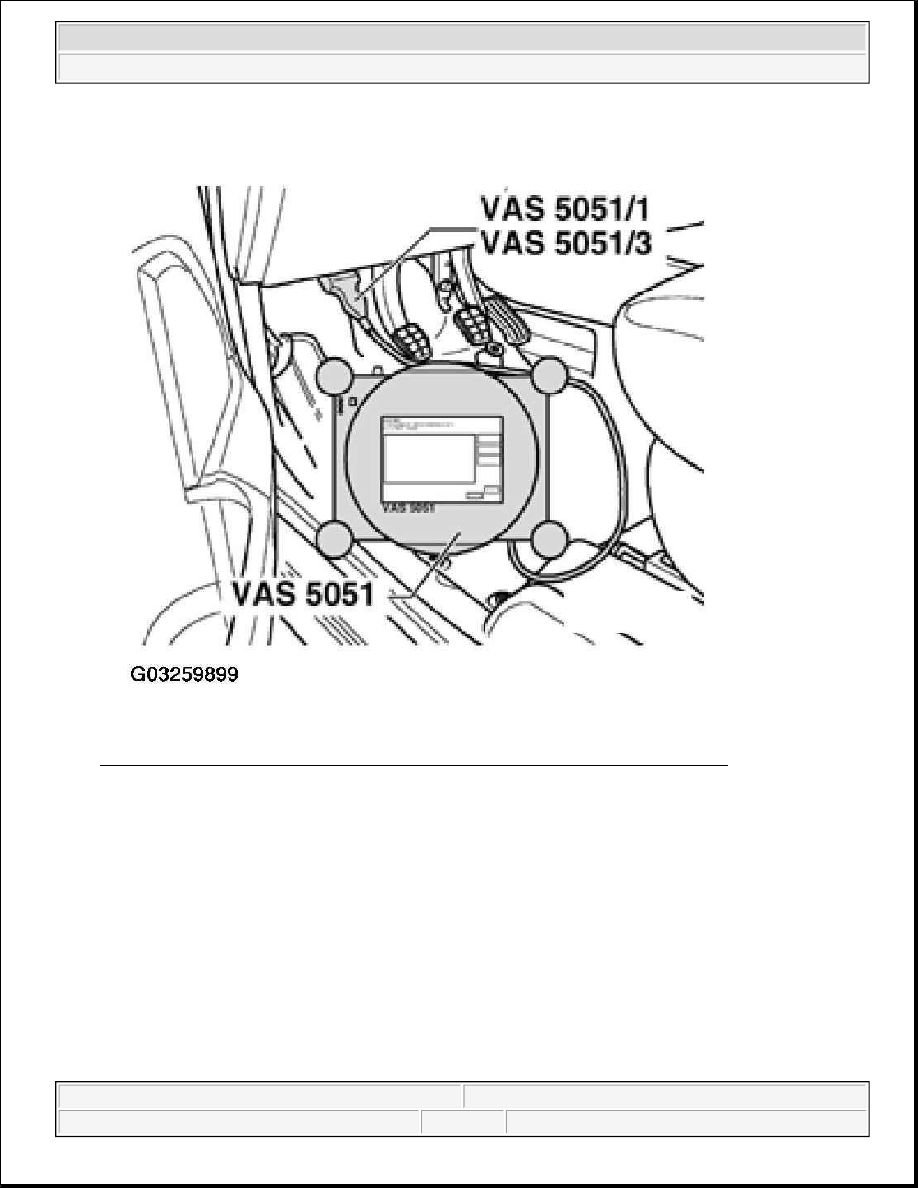

Fig. 13: Connecting VAS 5051/5052 With Adapter Cable To Data Link Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch on ignition

z

Select mode "Guided Fault Finding"

z

Enter appropriate model, equipment and model year information and press ">" to confirm.

After all Control Modules have been registered and DTC memories checked,

z

Select "Go to"

z

Select "Function / Component Selection"

z

Select "Body (Repair Group 01; 27; 50 to 97)"

z

Select "Electrical System (Repair Group 27; 90 to 97)"

z

Select "01 -Systems capable of self-diagnosis"



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Interior, Anti-Theft - New Beetle



z

Select "Anti-theft immobilizer" where indicated

z

Select "Functions"

z

Select "Adapt instrument cluster to Engine Control Module (ECM).

z

Forward with button

z

Follow/perform selected OBD program steps as prompted by tester.

ANTI-THEFT IMMOBILIZER CONTROL MODULE, REMOVING AND INSTALLING

Anti-theft immobilizer control module functions are integrated with the instrument cluster. In the event of faulty
anti-theft immobilizer control module functions, the entire instrument cluster requires replacement. See
INSTRUMENT CLUSTER, REMOVING AND INSTALLING .

INDUCTION COIL OF ANTI-THEFT IMMOBILIZER -D2-, REMOVING AND INSTALLING

The induction coil of anti-theft immobilizer -D2- is integrated with the steering column lock cylinder housing
and cannot be replaced separately. In the event of immobilizer induction coil malfunction, the complete lock
cylinder housing requires replacement. See STEERING LOCK HOUSING, REMOVING AND
INSTALLING
 .

TRANSPONDER (KEY)

Replacement or servicing of the transponder integrated with the vehicle keys is not possible. In the event of
transponder malfunction, the complete key assembly requires replacement in conjunction with OBD program,
See VAS 5051 Vehicle Diagnostic Testing and Information System or VAS 5052 Vehicle Diagnostic and
Service System in mode "Guided Fault Finding".



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Interior, Anti-Theft - New Beetle



1998-2004 ACCESSORIES & EQUIPMENT

Lights, Switches - Exterior - New Beetle

HEADLIGHTS

HEADLIGHTS, ASSEMBLY

1. Gasket

z

Replace if damaged

2. Cover

Removing

z

through 08.98, See HEADLIGHTS THROUGH 08.98, REMOVING AND INSTALLING

z

from 09.98, See HEADLIGHTS FROM 09.98, REMOVING AND INSTALLING

3. Retainers

z

Qty. 4

4. Headlight housing

Removing and installing

z

through 08.98, See HEADLIGHTS THROUGH 08.98, REMOVING AND INSTALLING

z

from 09.98, See HEADLIGHTS FROM 09.98, REMOVING AND INSTALLING

5. Gasket

z

Replace if damaged

CAUTION: Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch off ignition and remove ignition key.

z

Disconnect negative (-) battery terminal.

z

When disconnecting and reconnecting battery terminals, observe all
applicable Notes and torque specifications, as well as instructions on
performing OBD program and electrical system function checks as
specified. See BATTERY, DISCONNECTING AND RECONNECTING .

NOTE:

After performing any repairs or service that could affect headlight aim,
check/adjust aim, See HEADLIGHTS, ADJUSTING .

NOTE:

The following list refers to items in Fig. 1 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
