Volkswagen New Beetle. Manual - part 216





z

Release connections and disconnect electrical connection.

Installing

z

Connect electrical connection.

z

Insert switch into mounting and engage properly.

LUGGAGE COMPARTMENT LIGHT SWITCH, REMOVING AND INSTALLING

The luggage compartment light switch is integrated into the trunk lock and cannot be replaced separately.

If the luggage compartment light switch is faulty, the complete trunk lock must be replaced.

See TAILGATE/TRUNK LID LOCK, REMOVING AND INSTALLING , or TAILGATE/TRUNK LID
LOCK (MODELS FROM 09.01 AND UP, USA), REMOVING AND INSTALLING
 , or TRUNK LID
LOCK (CONVERTIBLE), REMOVING AND INSTALLING
 .

DOOR CONTACT SWITCH, REMOVING AND INSTALLING

The door contact switch is integrated into the door lock and cannot be replaced individually.

The complete door lock must be replaced if the door contact switch is faulty.

See FRONT DOOR .

INTERIOR LIGHT, REMOVING AND INSTALLING

Removing

z

Carefully pry lens out from interior mirror and remove.

CAUTION:

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Interior, Anti-Theft - New Beetle



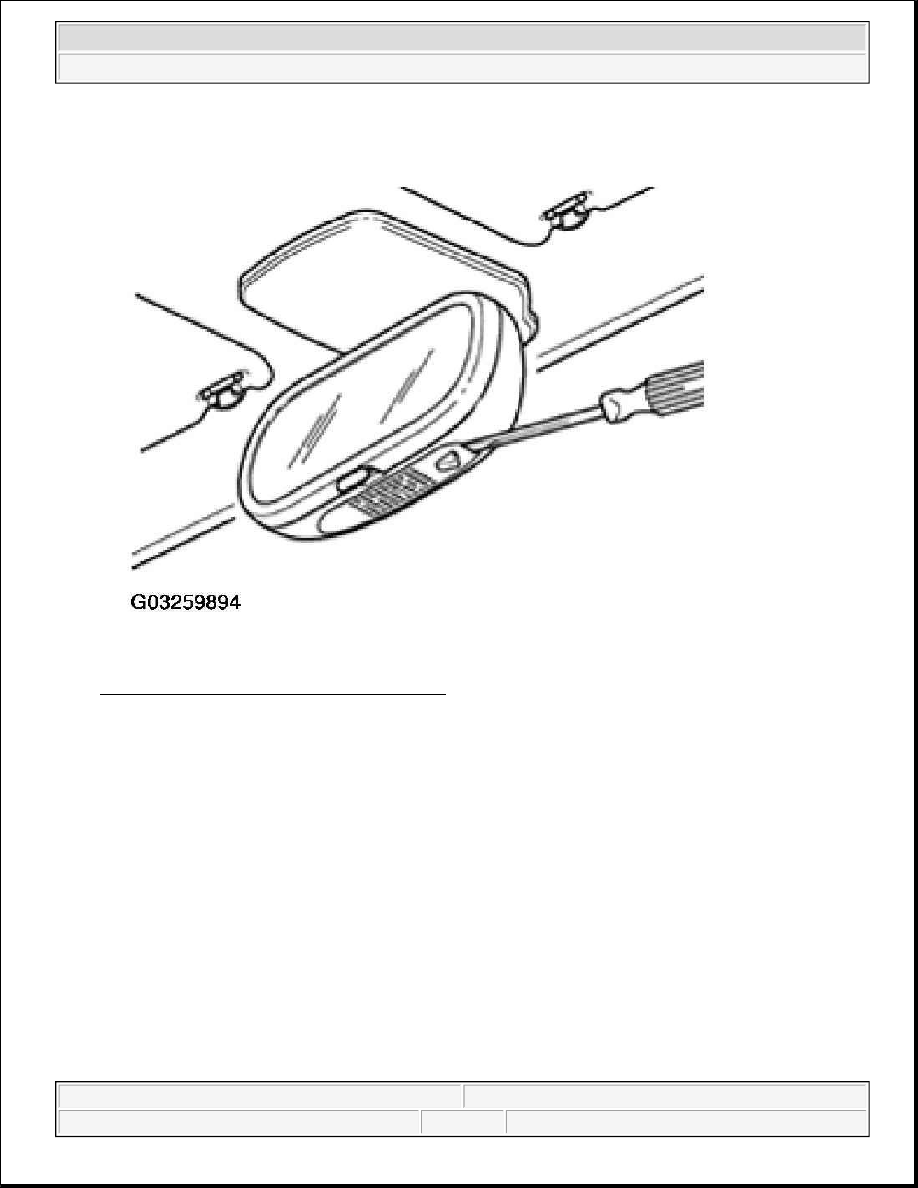

Fig. 8: Removing Lens From Interior Mirror
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Release connections and disconnect electrical connection.

z

Replace 12V/3W bulb.

Installing

z

Connect electrical connection to interior light.

z

Insert lens and engage properly.

GLOVE COMPARTMENT LIGHT, REMOVING AND INSTALLING

Removing

CAUTION:

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Interior, Anti-Theft - New Beetle



z

Insert screwdriver behind lens and carefully pry lens out.

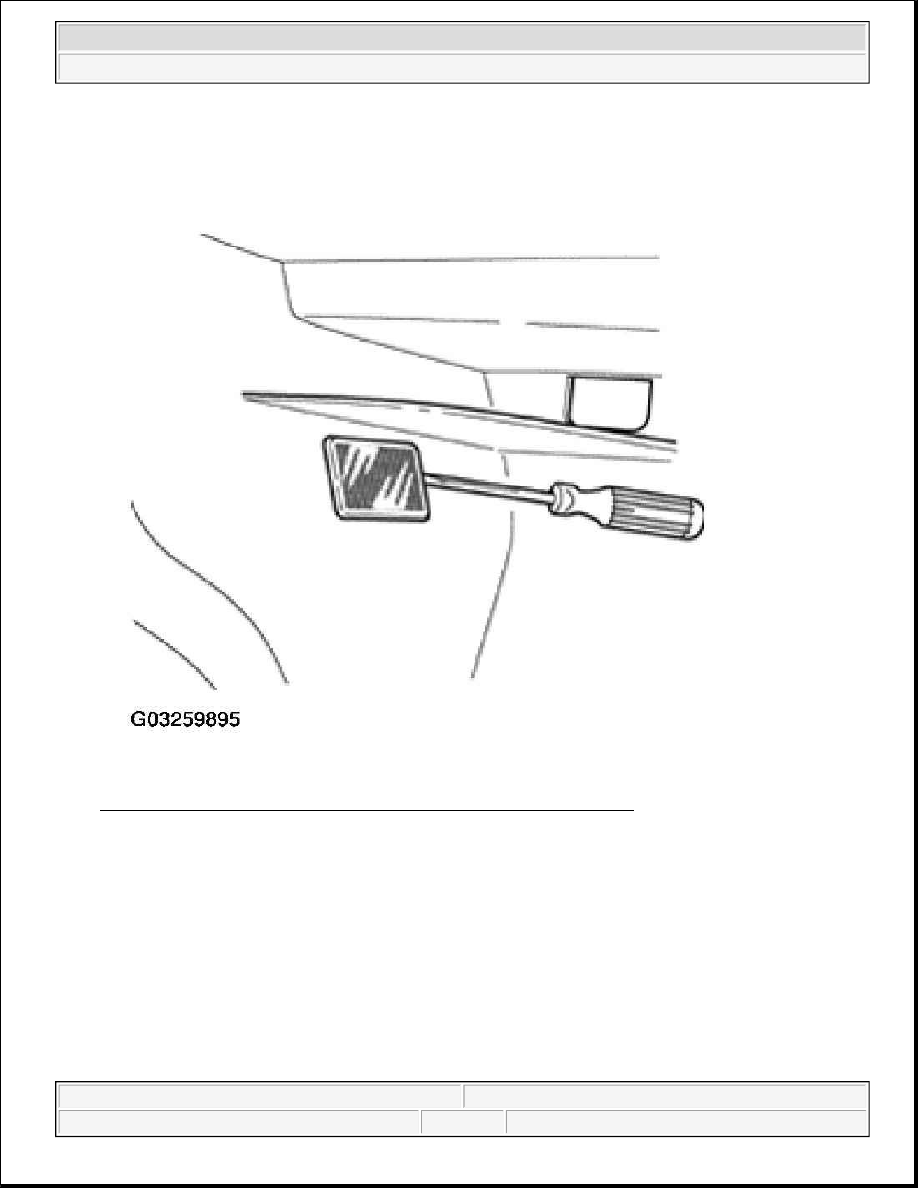

Fig. 9: Inserting Screwdriver Behind Glove Compartment Light Lens
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove lens with bulb holder.

z

Disconnect electrical connection.

z

Replace 12V/3W bulb.

Installing

z

Connect electrical connection.

z

Insert lens with bulb holder into glove compartment and engage properly.

After working on the glove compartment light, a functional check of the switch must be carried out.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Interior, Anti-Theft - New Beetle



With glove compartment closed, the light must not come on.

MAKE-UP MIRROR LIGHT, REMOVING AND INSTALLING

Removing

z

Insert screwdriver behind lens and carefully pry lens out.

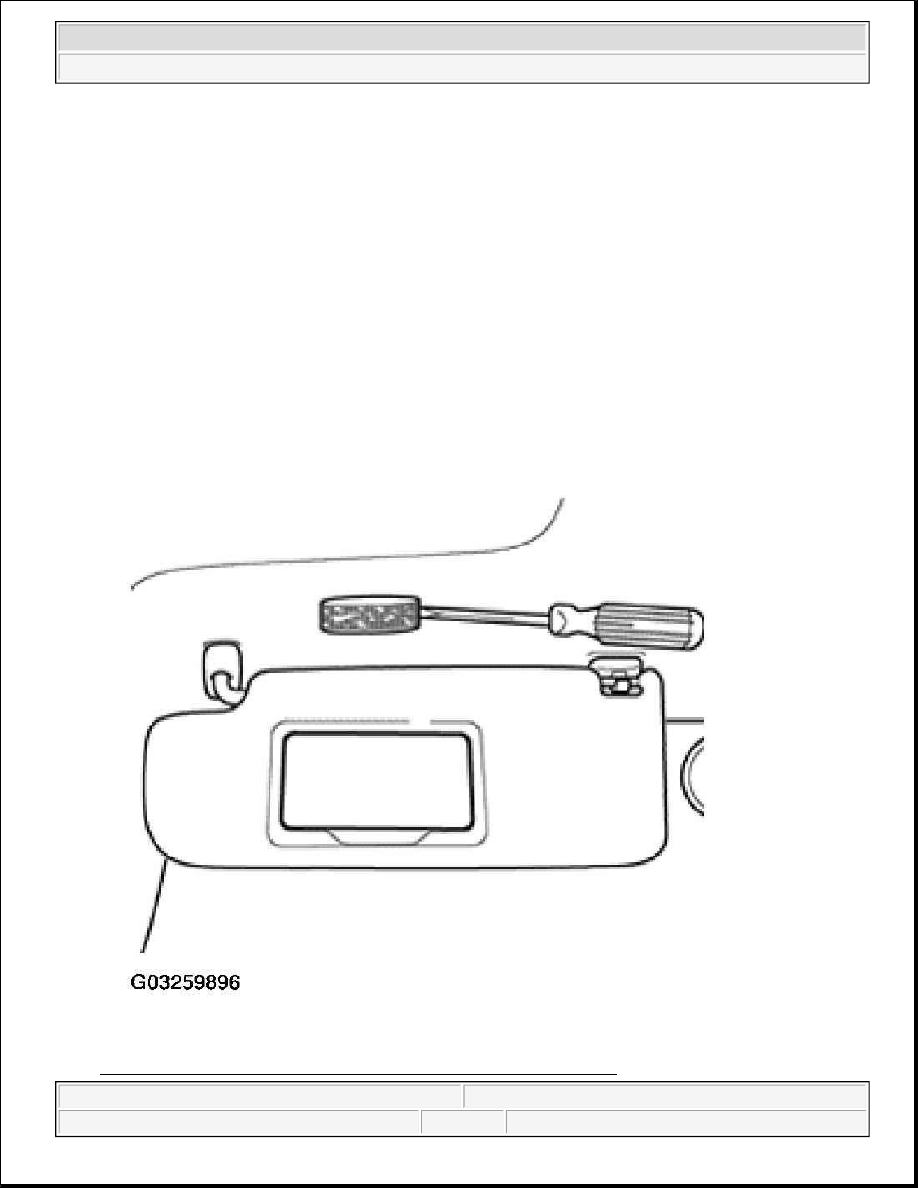

Fig. 10: Inserting Screwdriver Behind Make-Up Mirror Light Lens

NOTE:

The procedures for removing left make-up-mirror light -W20- and right make-up
mirror light -W14- are identical.

CAUTION:

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Interior, Anti-Theft - New Beetle
