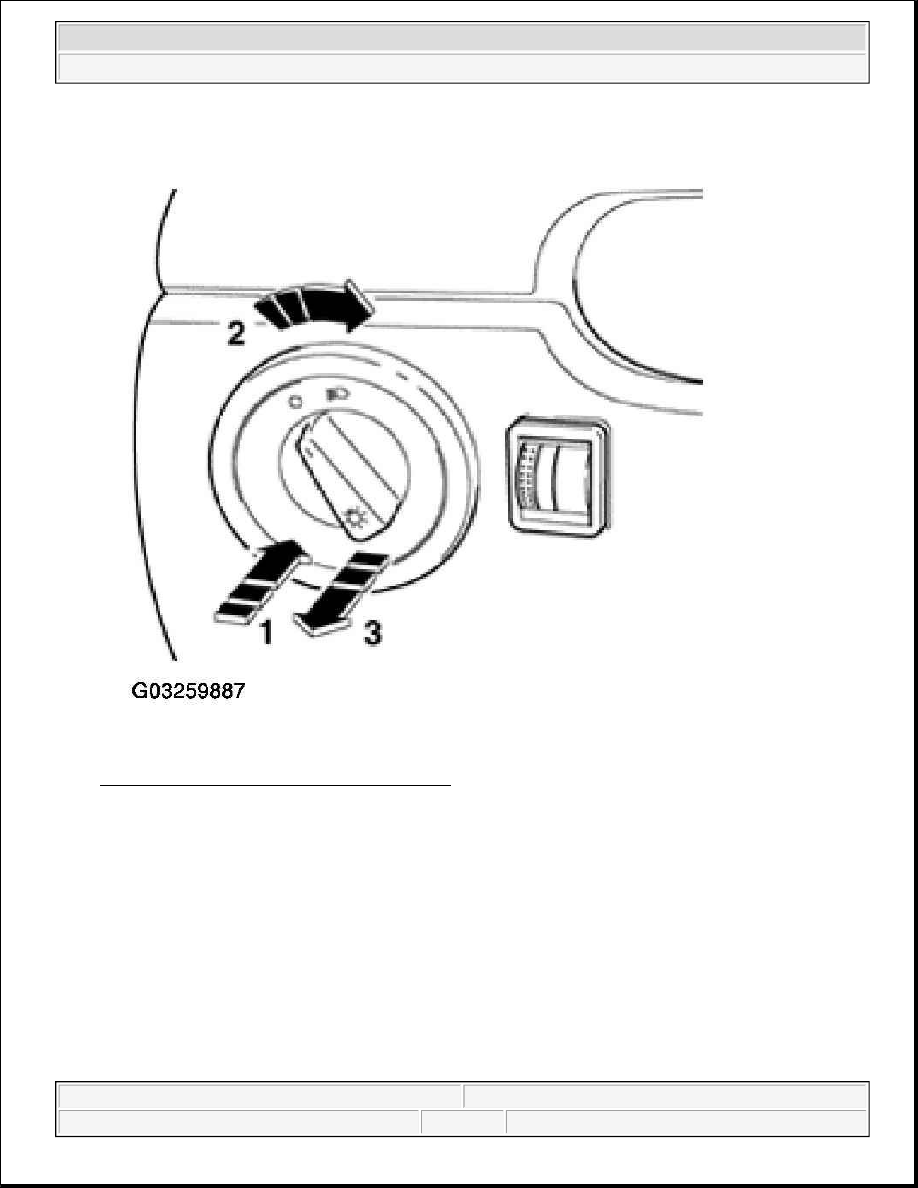

Fig. 1: Turning Rotary Knob Of Light Switch
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press rotary knob inward (arrow -1-) and turn slightly to right (arrow -2-).

z

Hold rotary knob in this position and by pulling on rotary knob remove light switch out of instrument
panel (arrow -3-).

z

Disconnect electrical connection.

Installing

z

Connect electrical connection.

z

Hold light switch and press rotary knob inward (arrow -1-) and turn slightly to left (arrow -2-).

z

Hold rotary knob in this position and slide light switch into instrument panel.

z

Turn rotary knob to "0" position, release and engage switch.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Interior, Anti-Theft - New Beetle



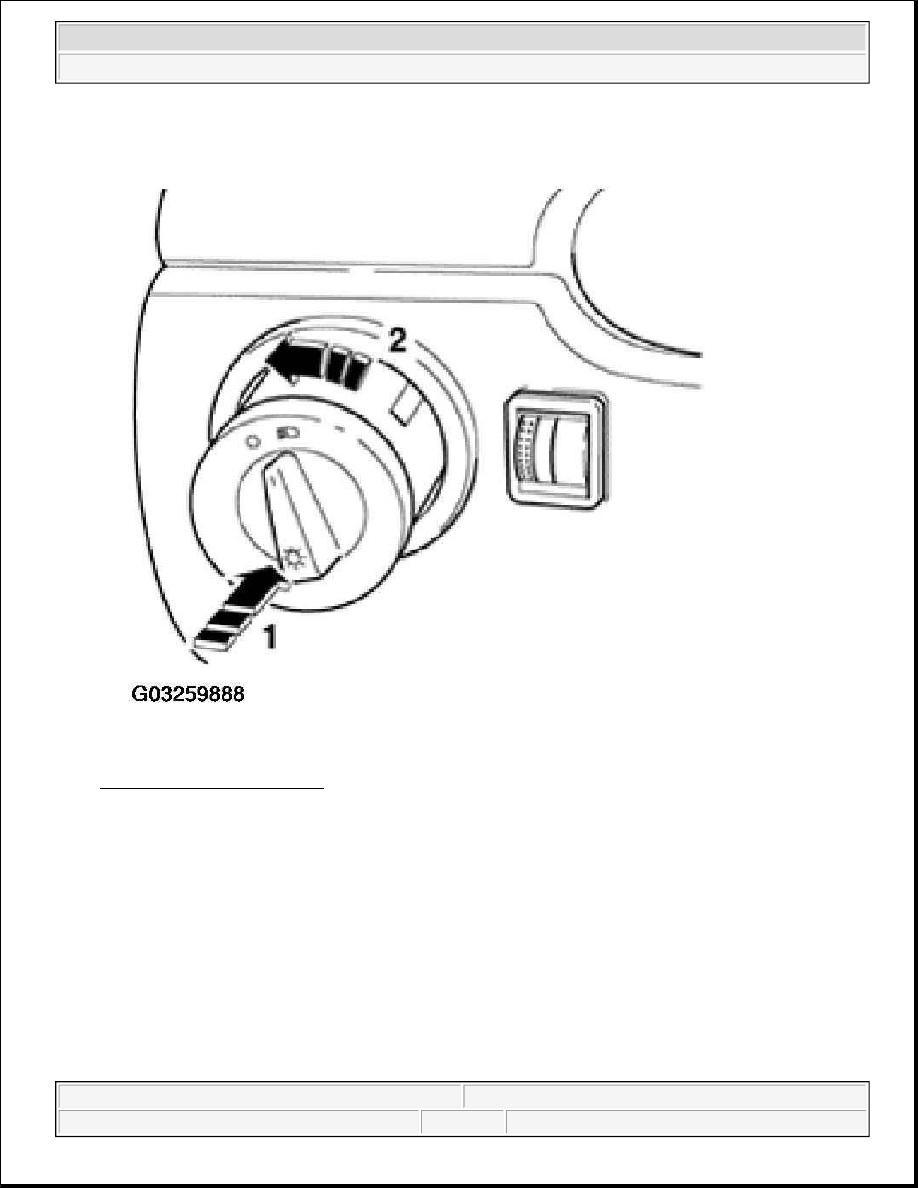

Fig. 2: Turning Rotary Knob
Courtesy of VOLKSWAGEN OF AMERICA, INC.

INSTRUMENT PANEL LIGHT DIMMER SWITCH, REMOVING AND INSTALLING

Removing

z

Place screwdriver behind switch housing and pry switch carefully out of locking device.

CAUTION:

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Interior, Anti-Theft - New Beetle

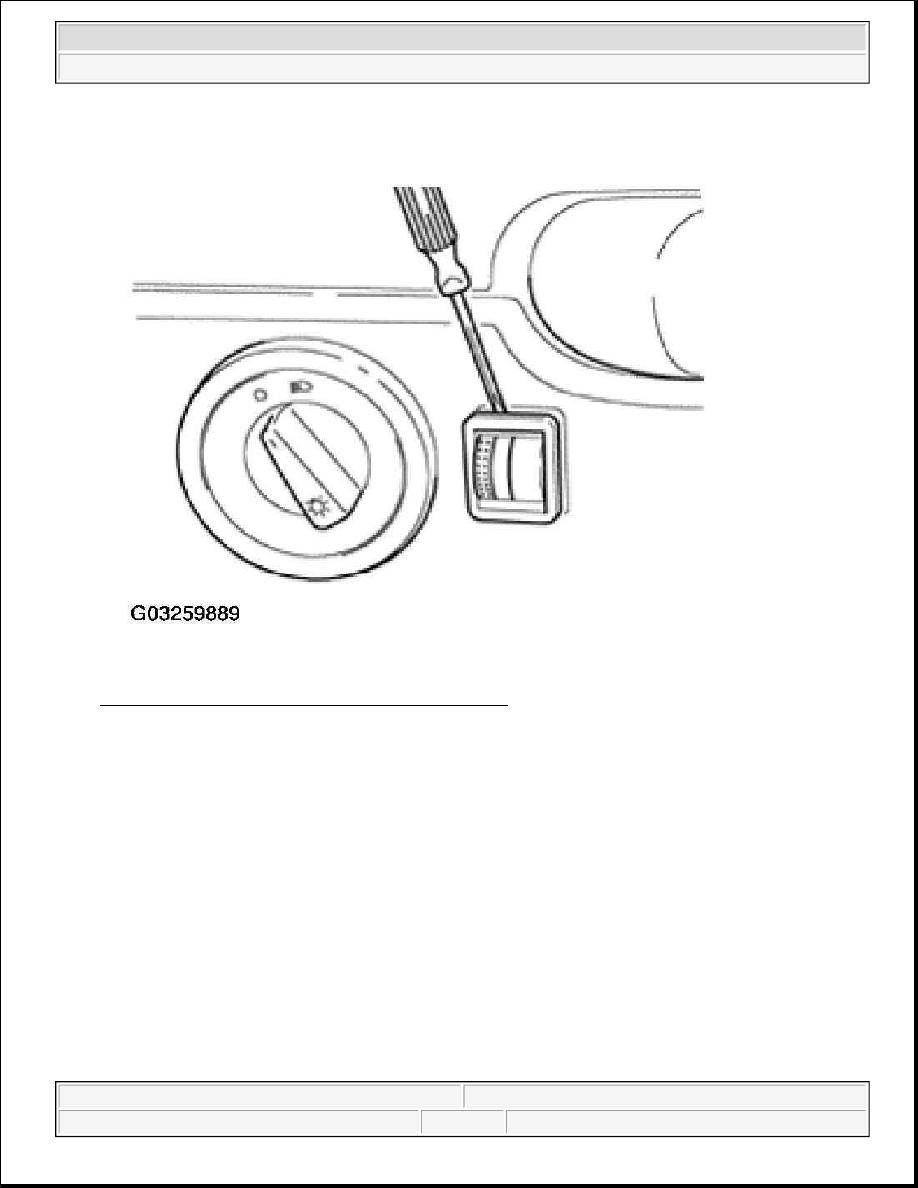

Fig. 3: Inserting Screwdriver Behind Switch Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Disconnect electrical connection.

Installing

z

Connect electrical connection.

z

Insert switch into locking device and engage.

MIRROR ADJUSTMENT SWITCH WITH MIRROR SELECTOR SWITCH, REMOVING AND
INSTALLING

Removing

CAUTION:

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Interior, Anti-Theft - New Beetle



z

Remove door trim.

See DOOR TRIM .

z

Disconnect electrical connection.

z

Pry mounting frame on long switch side -A- outward and remove switches from mounting frame.

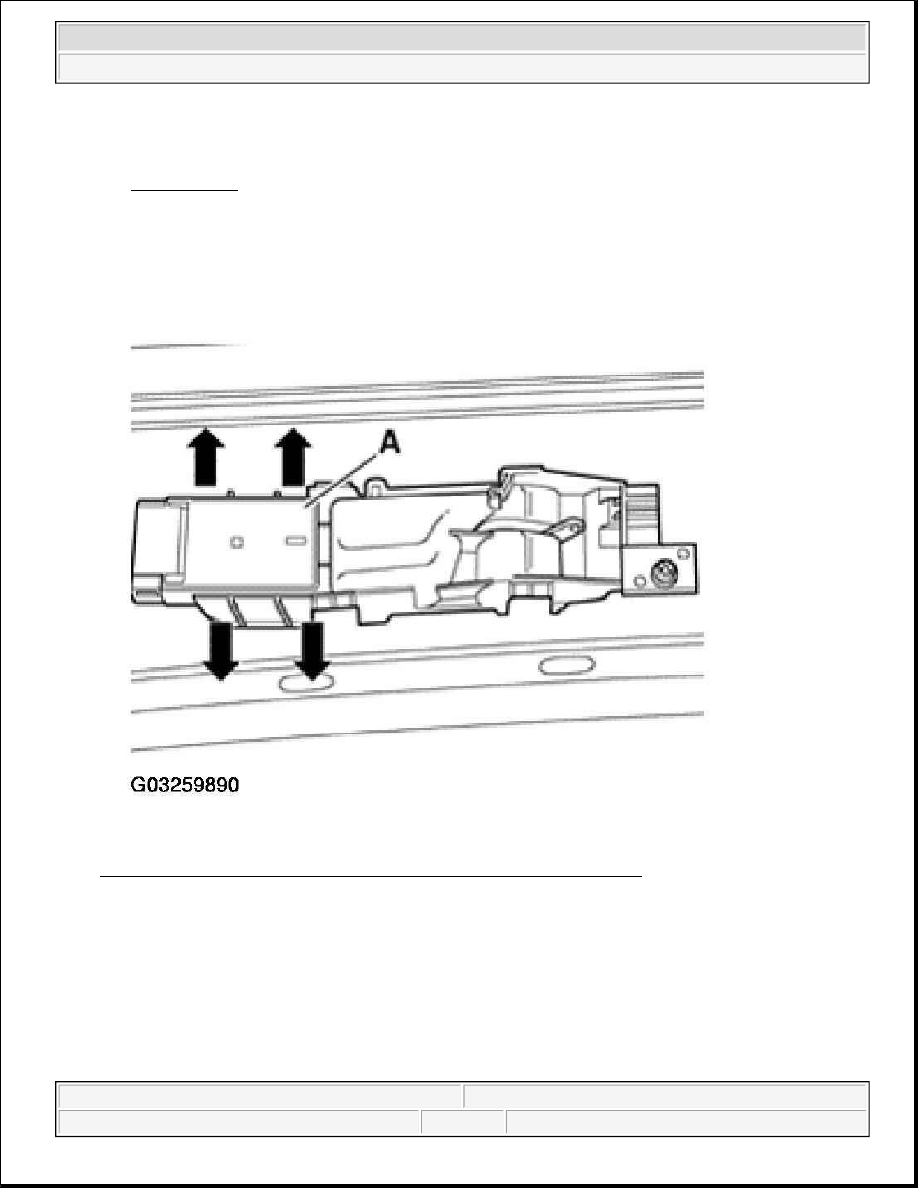

Fig. 4: Removing Mirror Adjustment Switches From Mounting Frame
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

z

Insert switch -A- in mounting frame and engage.

z

Connect electrical connection.

z

Install door trim.

SWITCH FOR INTERIOR LOCK, PASSENGER SIDE, REMOVING AND INSTALLING



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Interior, Anti-Theft - New Beetle
