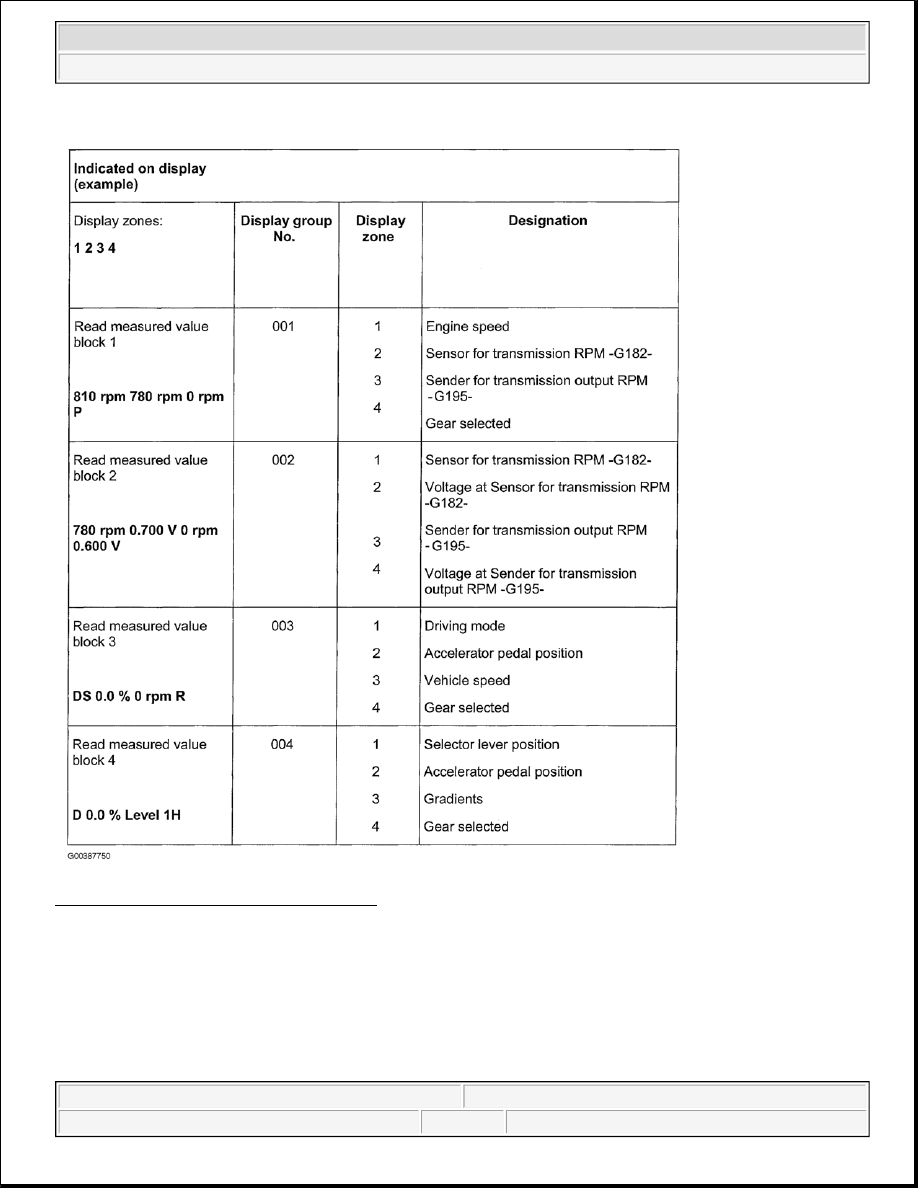

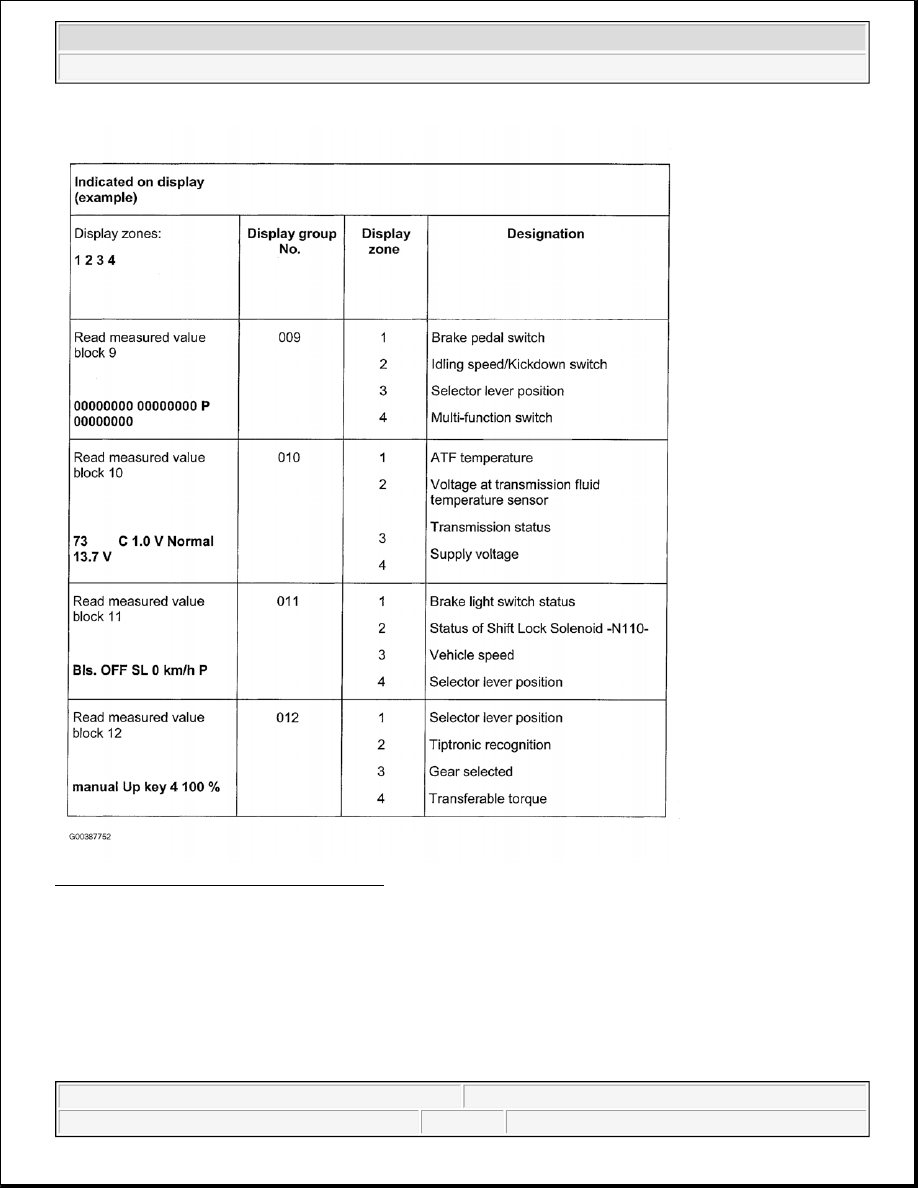

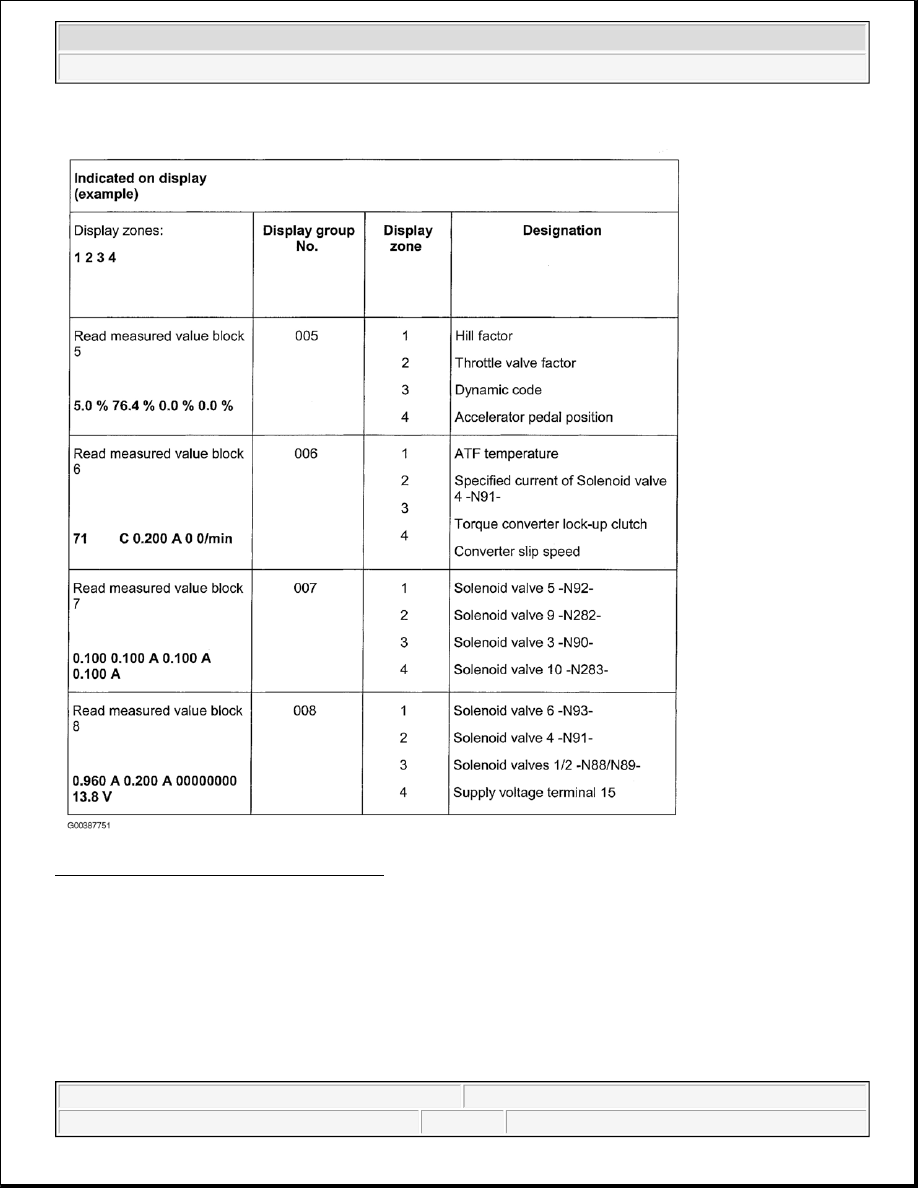

Supplementary information z Electrical Wiring Diagrams Test Sequence Connect VAS 5051 tester and select functions. See VAS 5051 DIAGNOSIS, TESTING AND Indicated on display: z Rapid data transfer HELP z Select function XX Press keys 0 and 8 (08 selects function "Read measured value block"). Indicated on display: z Rapid data transfer Q z 08 - Read measured value block Confirm entry with Q key. Indicated on display: z Read measured value (data) block z Input display group number XXX Enter display group number For list of selectable display group numbers, see List Of Selectable Display Confirm entry with Q key. There are always 4 display zones in the measured value block (arrows) (if necessary in physical quantities). z Read measured value block 1 "right arrow" z "right arrow" z 1 "right arrow" 2 "right arrow" 3 "right arrow" 4 To decode the individual values in display zones 1 to 4. See TEST TABLE . List Of Selectable Display Group Numbers NOTE: The following description refers to V.A.G 1551.
