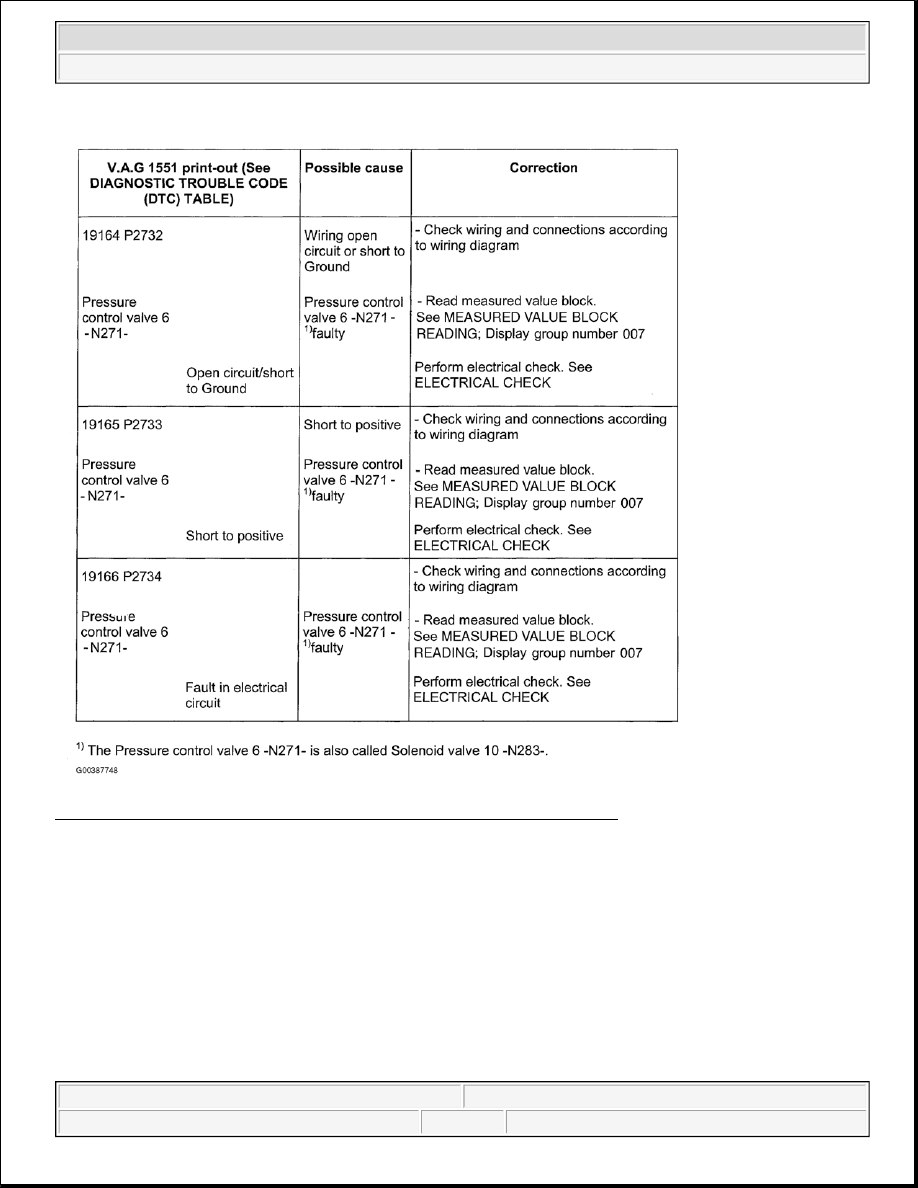

Fig. 81: DTCs 19164 (P2732), 19165 (P2733) & 19166 (P2734) Diagnostics
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DTC 65535



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

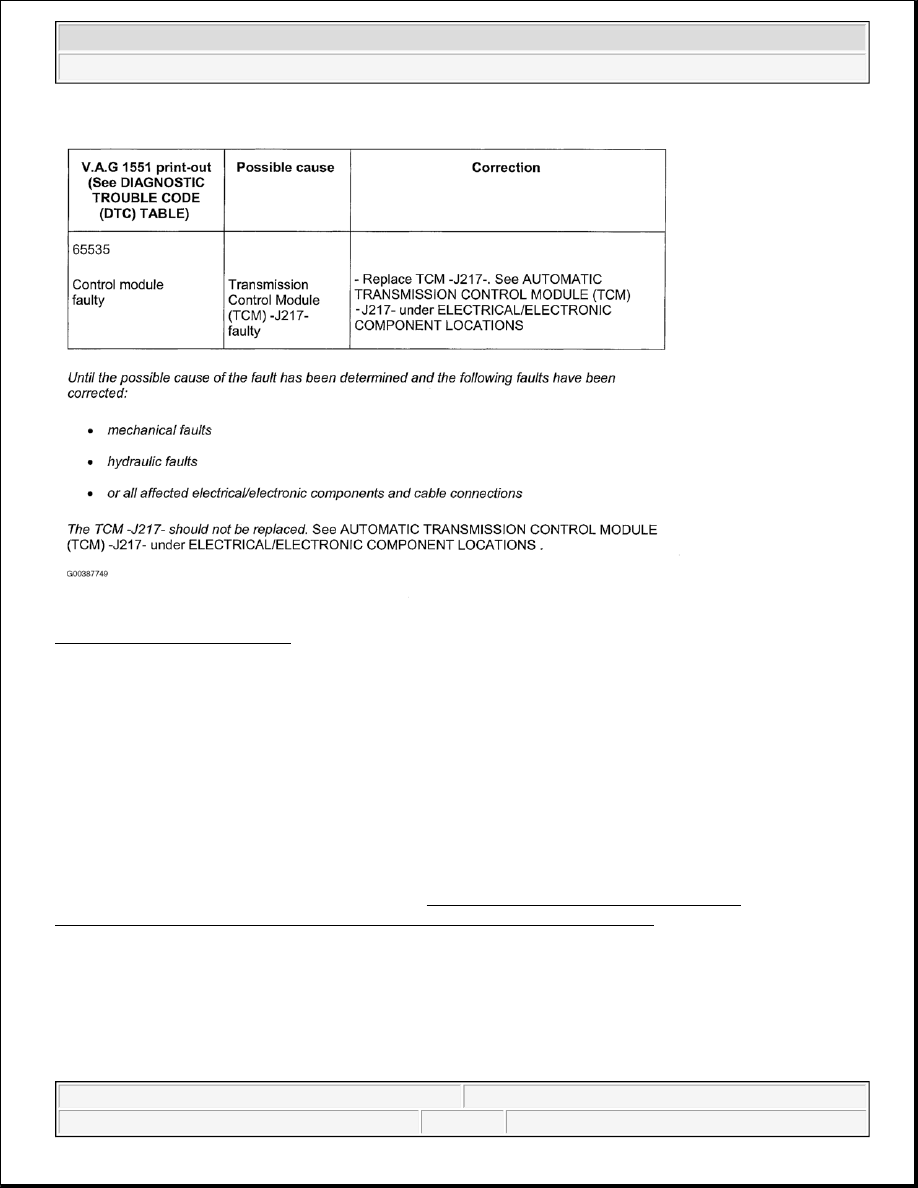

Fig. 82: DTC 65535 Diagnostic
Courtesy of VOLKSWAGEN UNITED STATES, INC.

BASIC SETTING, INITIATING

Basic setting must be performed after the following repairs:

z

Replacing engine control module

z

Replacing throttle valve control module

z

Replacing transmission control module

z

Replacing throttle position (accelerator pedal position) sensor

Connect VAS 5051 tester and select functions. See VAS 5051 DIAGNOSIS, TESTING AND
INFORMATION SYSTEM, CONNECTING AND SELECTING FUNCTION .

The Following Description Refers To V.A.G 1551 Scan Tool

Indicated on display:

z

Rapid data transfer HELP

z

Select function XX



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G



Press keys 0 and 4. (04 selects function "Initiating basic setting").

Indicated on display:

z

Rapid data transfer Q

z

04 - Basic setting

Confirm entry with Q key.

Indicated on display:

z

Basic setting

z

Input display group number XXX

Press keys 0, 0 and 1.

Confirm entry with Q key.

Indicated on display:

z

System in basic setting 0 "right arrow"

The system is now in basic setting.

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, ERASING

Connect VAS 5051 tester and select functions. See VAS 5051 DIAGNOSIS, TESTING AND
INFORMATION SYSTEM, CONNECTING AND SELECTING FUNCTION .

Requirement

DTC memory is checked. See DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING .

After DTC Memory Has Been Successfully Checked

Indicated on display:

z

Rapid data transfer HELP

z

Select function XX

Press keys 0 and 5 (05 selects function "Erase DTC memory").

NOTE:

Accelerator pedal must remain at idling speed position.

NOTE:

The following description refers To V.A.G 1551.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G



Indicated on display:

z

Rapid data transfer Q

z

05 Erase DTC memory

Confirm entry with Q key.

Adherence to the sequence of operations was not maintained if the following is indicated on display:

z

Warning!

z

DTC memory was not checked

At first the DTC memory must be checked (read).

DTC memory will be erased approx. 5 seconds after the following display appears.

z

Rapid data transfer "right arrow"

z

DTC memory is erased!

The DTC memory is now erased. Wait about 1 minute before again checking DTC memory.

Transmission Control Module (TCM) -J217- was not given sufficient time to recognize DTCs if the following
display appears: "System cannot be checked", print out with printer switched on:

z

1 DTC recognized!

z

00811 3333

z

System cannot be checked

Wait about 1 minute before again checking DTC memory.

After checking and erasing DTC memory, perform a test drive and again check DTC memory.

When checking the DTC memory the display must contain this message:

z

No DTCs recognized

TRANSMISSION CONTROL MODULE (TCM) -J217-, CODING

There is no special code required for the New Beetle convertible.

MEASURED VALUE BLOCK, READING

NOTE:

If the ignition was switched off (e.g. between interrogating the fault memory and
erasing fault memory), the fault memory is then not erased.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G
