1. Remove lower control arm. See LOWER CONTROL ARM .

2. Using hydraulic press and appropriate bushing press tools, press bushing from control arm. See Fig. 13 .

See SPECIAL TOOLS .

3.

Note proper installation position for bushing in control arm. See Fig. 14 . Press NEW bushing using
appropriate press tools into control arm. See Fig. 13 .

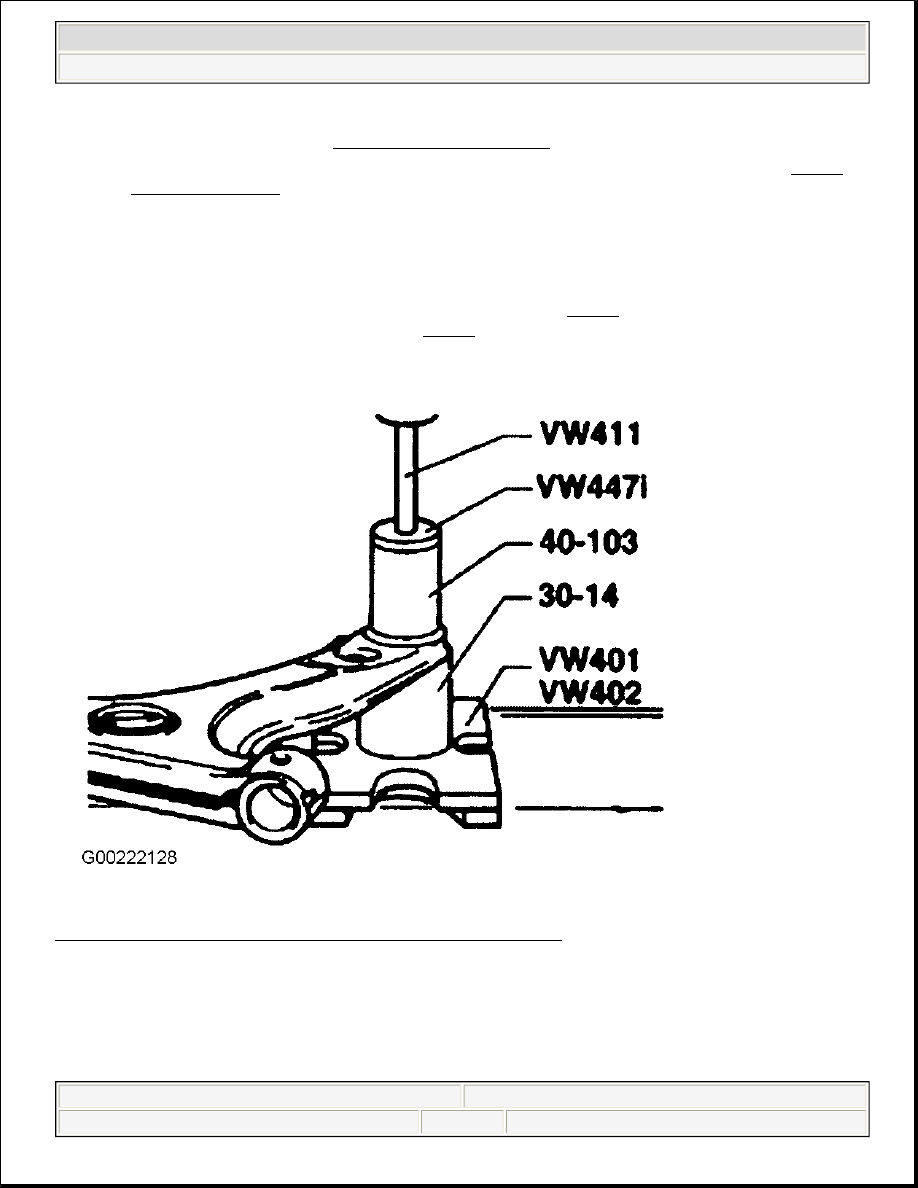

Fig. 13: Removing & Installing Rear Lower Control Arm Bushing
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CAUTION: Never use grease as a lubricant for bushings.



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:50 AM

Page 20

© 2004 Mitchell Repair Information Company, LLC.

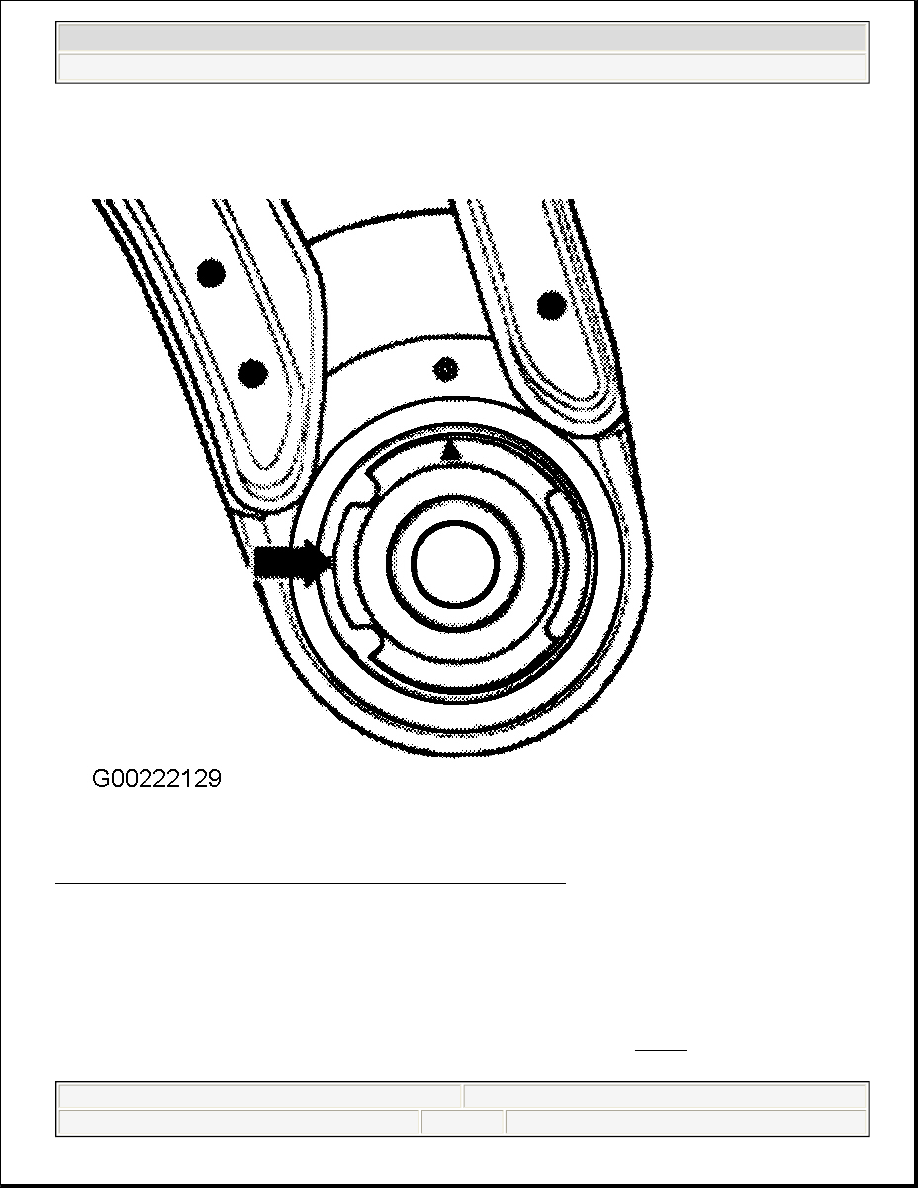

Fig. 14: Installation Position Of Rear Lower Control Arm Bushing
Courtesy of VOLKSWAGEN UNITED STATES, INC.

STRUT ASSEMBLY

Removal (Except New Beetle)

1. Raise and support vehicle. Remove wheel.

2. For vehicles with brake wear pad indicator, disconnect connector (1). See Fig. 15 .



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:50 AM

Page 21

© 2004 Mitchell Repair Information Company, LLC.

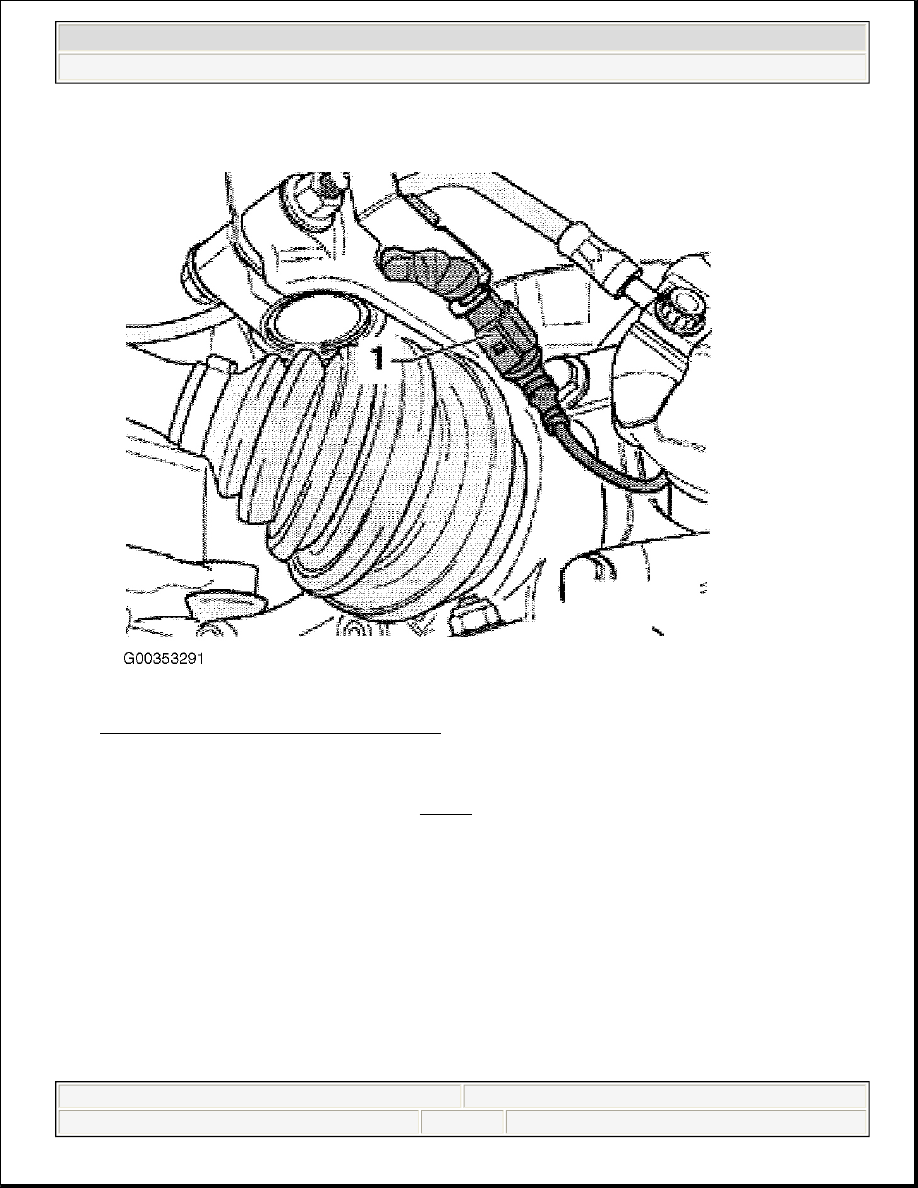

Fig. 15: Locating Brake Pad Wear Indicator
Courtesy of VOLKSWAGEN UNITED STATES, INC.

3. Remove heat shield (1) by pushing lip (A) with a screwdriver in, and push at the same time the heat

shield (1) upward in direction of arrow. See Fig. 16 . For vehicles with brake wear pad indicator remove
bolt (B) to remove support for brake wear pad indicator.



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:50 AM

Page 22

© 2004 Mitchell Repair Information Company, LLC.

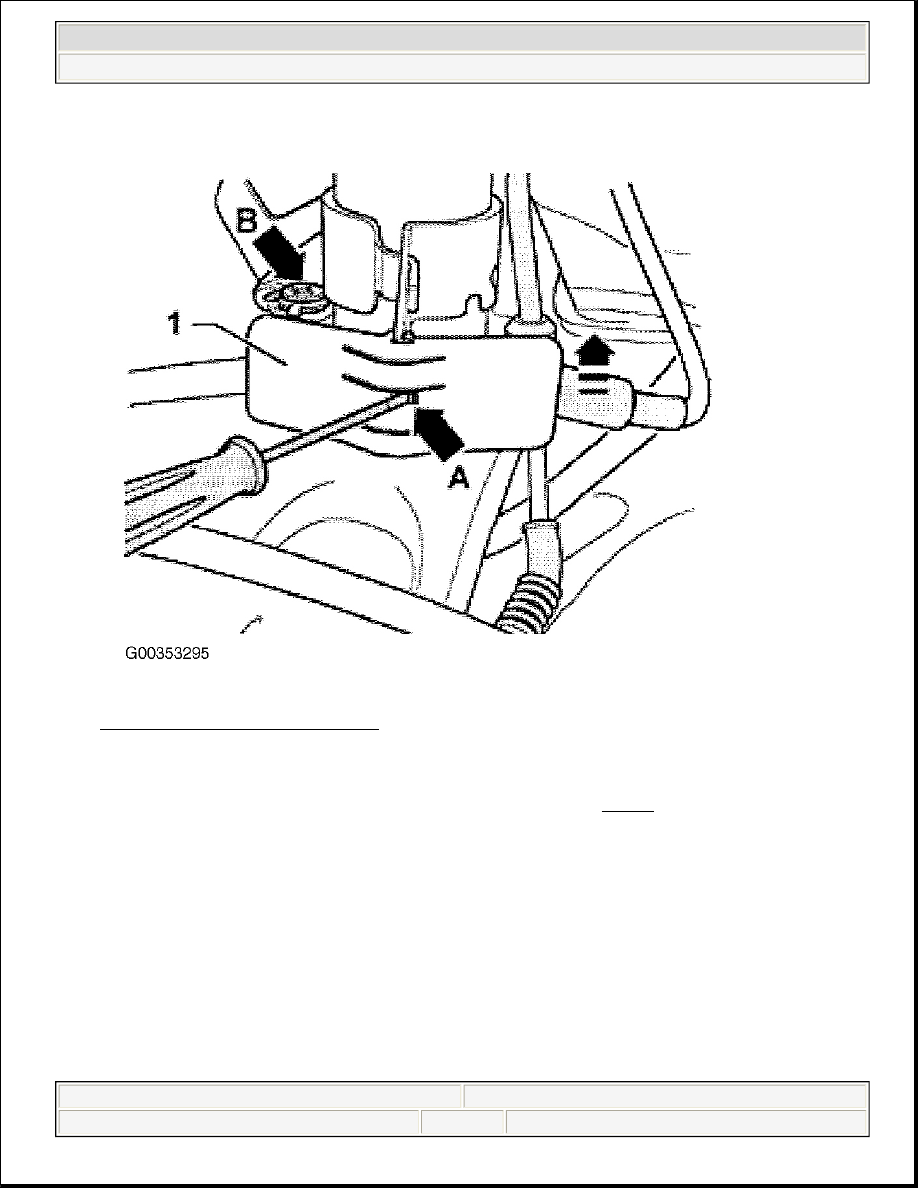

Fig. 16: Removing Strut Heat Shield
Courtesy of VOLKSWAGEN UNITED STATES, INC.

4. If equipped with modified stabilizer bar mounting, remove upper link nut. Unclip brake line clamp and

release brake line. Unclip wheel speed sensor harness from strut. See Fig. 17 .
